KM20RV-JRW (1979)

Toyota Liteace

Production Oct 1979 - Oct 1982
Engine 4K
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7910-8210)RHD

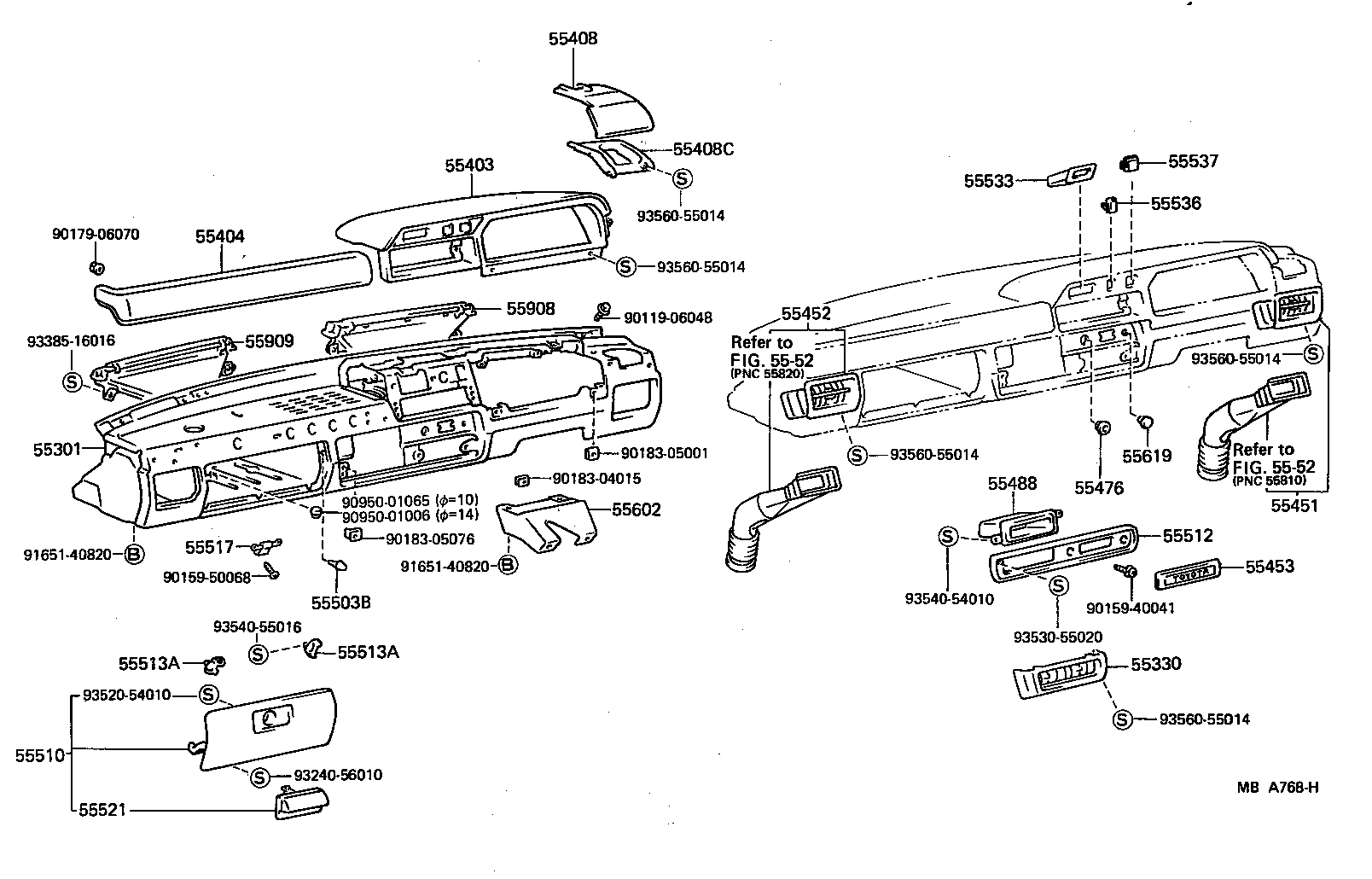

Click highlighted areas on diagram

diagram 55301 55330 55403 55404 55408 55408C 55451 55452 55453 55476 55488 55503B 55510 55512 55513A 55513A 55517 5552 5552 55521 55533 55536 55537 55602 55619 55908 55909 9011906048 9015940041 9015950068 9017906070 9018304015 9018305001 9018305076 9095001006 9095001065 9165140820 9165140820 9324056010 9338516016 9352054010 9353055020 9354054010 9354055016 9356055014 9356055014 9356055014 9356055014 9356055014
Part # Description Qty Price
55301 - PANEL SUB-ASSY, INSTRUMENT
55301-95709

KM20..RHD

 1
55301-95712

KM20..RHD

 1
55330 - LOUVER ASSY, CENTER VENTILATOR
55460-9570106

KM20..VSP..02S;KM20..03S,05S,06S,07S,08S,09S

BROWN,BROWN

 1
55403 - HOOD SUB-ASSY, METER
55421-95706

KM20..RHD

 1
55421-9570306

KM20..RHD..EUR

W/*RWD,*RW,BROWN,BROWN

 1
55421-95700

KM20..RHD

 1
55404 - SAFETY PAD SUB-ASSY, INSTRUMENT PANEL, UPPER
55404-9570106

KM20..RHD

BROWN,BROWN

 1
55408 - DOOR SUB-ASSY, RESERVOIR TANK SERVICE HOLE
55431-9570006

KM20..RHD

BROWN,BROWN

 1
55408C - BASE, RESERVOIR TANK SERVICE HOLE DOOR
55432-9570006

KM20..RHD

BROWN,BROWN

 1
55451 - OUTLET, AIR OUTER, RH
55470-9570006

KM20..RHD;KM20..LHD..GEN

BROWN,BROWN

 1
55470-9570006

KM20..RHD;KM20..LHD..VSP..EUR;KM20..LHD..(03S,05S,06S,07S)

BROWN,BROWN

 1
55452 - OUTLET, AIR OUTER, LH
55480-9570006

KM20..RHD;KM20..LHD..GEN

BROWN,BROWN

 1
55480-9570006

KM20..RHD;KM20..LHD..VSP..EUR;KM20..LHD..(03S,05S,06S,07S)

BROWN,BROWN

 1
55453 - COVER, RADIO TUNER OPENING
55522-12050

KM20..VSP..02S;KM20..03S,05S,06S,07S,08S,09S

 1
55476 - COVER, CIGARETTE LIGHTER HOLE
90950-01316

KM20..RHD;KM20..LHD..VSP..EUR;KM20..LHD..(03S,05S,06S,07S,09S)

 1
55532-89102

KM20..V..4F;KM20..02S..ARL;KM20..V..SRF..4H..EUR;KM20..HRF..VSP..4H..EUR;KM20..HRF..4H..05S..EUR;KM20..(03S,06S,07S,08S,09S)..STD

 1
55488 - COVER, STEREO OPENING
55521-9570006

KM20..RHD

BROWN,BROWN

 1
55503B - CUSHION(FOR GLOVE COMPARTMENT)
90541-04007

KM20..VSP..02S;KM20..03S,05S,06S,07S,08S,09S

 2
55510 - DOOR ASSY, GLOVE COMPARTMENT
55501-9570206

KM20..VSP..02S;KM20..03S,05S,06S,07S,08S,09S

BROWN,BROWN

 1
55512 - PLATE, RADIO TUNER FINISH
55411-9570406

KM20..RHD

BROWN,BROWN

 1
55513A - PROTECTOR, GLOVE COMPARTMENT DOOR ARM
55528-9570006

KM20..VSP..02S;KM20..03S,05S,06S,07S,08S,09S

RH,BROWN,BROWN

 1
55529-9570006

KM20..VSP..02S;KM20..03S,05S,06S,07S,08S,09S

LH,BROWN,BROWN

 1
55513A - PROTECTOR, GLOVE COMPARTMENT DOOR ARM
55528-9570006

KM20..VSP..02S;KM20..03S,05S,06S,07S,08S,09S

RH,BROWN,BROWN

 1
55529-9570006

KM20..VSP..02S;KM20..03S,05S,06S,07S,08S,09S

LH,BROWN,BROWN

 1
55517 - STOPPER, GLOVE COMPARTMENT DOOR ARM
55517-95700

KM20..VSP..02S;KM20..03S,05S,06S,07S,08S,09S

 1
55521 - KNOB, GLOVE COMPARTMENT DOOR
55569-9570006

KM20..VSP..02S;KM20..03S,05S,06S,07S,08S,09S

BROWN,BROWN

 1
55533 - COVER, AUTO CLOCK HOLE
55423-95700

KM20..VSP..02S;KM20..03S,05S,06S,07S,08S,09S

 1
55536 - COVER, REAR WINDOW WIPER SWITCH HOLE
90950-0128406

KM20..VSP..02S;KM20..03S,05S,06S,07S,08S,09S

BROWN,BROWN

 1
55537 - COVER, REAR WINDOW DEFOGGER SWITCH HOLE
90950-01283

KM20..VSP..02S;KM20..03S,05S,06S,07S,08S,09S

 1
55602 - STAY SUB-ASSY, STEERING COLUMN, UPPER
55602-9570006

KM20..RHD

BROWN,BROWN

 1
55619 - COVER, SWITCH HOLE
55369-95700

KM20..RHD

 1
55908 - NOZZLE SUB-ASSY, DEFROSTER, RH
55950-9570006

KM20..VSP..02S;KM20..03S,05S,06S,07S,08S,09S

BROWN,BROWN

 1
55909 - NOZZLE SUB-ASSY, DEFROSTER, LH
55960-9570006

KM20..VSP..02S;KM20..03S,05S,06S,07S,08S,09S

BROWN,BROWN

 1
Common parts
90119-06048
90159-40041
90159-50068
90179-06070
90183-04015
90183-05001
90183-05076
90950-01006
90950-01065
91651-40820
93240-56010
93385-16016
93520-54010
93530-55020
93540-54010
93540-55016
93560-55014
Linked diagrams
5552
