KM20RV-JRQ (1982)
Toyota Liteace
(7910-8210) ; (8210- )LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84110 - SWITCH ASSY, LIGHT CONTROL, NO.1 | ||||
| 84112-29205 |
KM20..RHD |
1 | ||
| 84112-29295 |
CM20,KM20,YM2#..RHD |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-29145 |
CM20,KM20,YM2#..RHD |
1 | ||
| 84140-29055 |
KM20..RHD |
1 | ||
| 84310 - SWITCH ASSY, TURN SIGNAL | ||||
| 84310-28030 |
KM20..RHD |
1 | ||
| 84310-28040 |
KM20..RHD..V4D..(ARL,EUR) INTERMITTENT WIPER |
1 | ||
| 84310-27070 |
KM20,YM21..(05S,08S)..ARL |
1 | ||
| 84310-27070 |
CM20,KM20,YM21..ARL W/INTERMITTENT WIPER |
1 | ||
| 84312 - PLATE, HORN CONTACT | ||||
| 84312-20011 |
CM20,KM20,YM2# |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-29115 |
CM20,KM20,YM2#..RHD |
1 | ||
| 84332-29075 |
KM20..RHD |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-27050 |
KM20..RHD |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-29255 |
KM20..RHD..V4D..(ARL,EUR) INTERMITTENT WIPER |
1 | ||
| 84652-29245 |
KM20..RHD |
1 | ||
| 84652-29585 |
KM20,YM21..(05S,08S)..ARL |
1 | ||
| 84652-29585 |
CM20,KM20,YM21..ARL INTERMITTENT WIPER |
1 | ||
| 84653A - SWITCH, REAR WIPER | ||||
| 84653-95700 |
KM20..05S..ARL |
1 | ||
| 84653-95701 |
CM20,KM20,YM21..ARL |
1 | ||
| 84653-95701 |
KM20..05S..ARL |
1 | ||
| 84659 - BRACKET, REAR WIPER SWITCH | ||||
| 64518-95700 |
KM20..05S..ARL |
1 | ||
| 84730 - SWITCH ASSY, HEATER BLOWER | ||||
| 84732-95701 |
KM20..RHD;KM20..LHD..VSP..EUR;KM20..LHD..(03S,05S,06S,09S) |
1 | ||
| 84732-95702 |
CM20,KM20,YM2#..RHD |
1 | ||
| 84790 - SWITCH ASSY, REAR WINDOW DEFOGGER | ||||
| 84790-95700 |
KM20..05S..ARL |
1 | ||
| 84790-24010 |
KM20,YM21..(05S,08S)..ARL |
1 | ||
| 84790B - BULB(FOR REAR WINDOW DEFOGGER SWITCH) | ||||
| 90981-11014 |
KM20..05S..ARL 14V 1.4W |
1 | ||
| 84999-10110 |
KM20,YM21..(05S,08S)..ARL 12V 1.12W |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-30340 |
KM20..RHD;KM20..LHD..VSP..EUR;KM20..LHD..(03S,05S,06S,07S,09S) |
1 | ||
| 85500-95703 |
CM20,KM20,YM2# |
1 | ||
| Common parts | ||||
| 90179-06078 | ||||
| 90463-15402 | ||||
| 93315-14012 | ||||
| 93319-13012 | ||||
| 93319-15012 | ||||
| 93385-16014 | ||||
| 93510-15014 | ||||
| 93540-54010 | ||||
(7910-8210) ; (8210- )LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27700 - REGULATOR ASSY, GENERATOR | ||||
| 27700-13040 |
1C,4K,1Y,2YC..CM20,KM20,YM2# |
1 | ||
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-22060 |
KM20..VSP..02S;KM20..03S,05S,06S,07S,08S,09S |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09001 |
KM20..VSP..02S;KM20..03S,05S,06S,07S,08S,09S 5A,5A |
1 | ||
| 90982-09001 |
CM20,KM20..RHD 5A,5A |
1 | ||
| 90982-09002 |
KM20..VSP..02S;KM20..03S,05S,06S,07S,08S,09S 10A,10A |
1 | ||
| 90982-09003 |
CM20,KM20,YM2# 15A,15A |
1 | ||
| 90982-09005 |
CM20,KM20,YM2#..RHD 7.5A,7.5A |
1 | ||
| 82611 - COVER, FUSE BLOCK | ||||
| 82612-95701 |
KM20..VSP..02S;KM20..03S,05S,06S,07S,08S,09S BACK |
1 | ||
| 82661-95700 |
CM20,KM20,YM2#..RHD |
1 | ||
| 82611-95701 |
KM20..RHD..V;KM20..LHD..VSP..EUR;KM20..LHD..(03S,05S,06S,07S,09S) FR |
1 | ||
| 82611 - COVER, FUSE BLOCK | ||||
| 82612-95701 |
KM20..VSP..02S;KM20..03S,05S,06S,07S,08S,09S BACK |
1 | ||
| 82661-95700 |
CM20,KM20,YM2#..RHD |
1 | ||
| 82611-95701 |
KM20..RHD..V;KM20..LHD..VSP..EUR;KM20..LHD..(03S,05S,06S,07S,09S) FR |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-12010 |
CM20,KM20,YM2# |
1 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 90987-02001 |
KM20..RHD;KM20..LHD..VSP..EUR;KM20..LHD..(03S,05S,06S,07S) |
1 | ||
| 85915 - RELAY, MAIN | ||||
| 90987-02001 |
KM20..RHD;KM20..LHD..VSP..EUR;KM20..LHD..(03S,05S,06S,07S) |
1 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-01001 |
KM20..RHD;KM20..LHD..VSP..EUR;KM20..LHD..(03S,05S,06S,07S) |
2 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-01001 |
KM20..RHD;KM20..LHD..VSP..EUR;KM20..LHD..(03S,05S,06S,07S) |
2 | ||
| 85940 - RELAY ASSY, WINDSHIELD WIPER | ||||
| 85940-22051 |
KM20..4F;KM20..LHD..SRF..4H..EUR;KM20..HRF..VSP..4H..EUR;KM20..HRF..4H..(05S,07S);KM20..RHD..V4D..(ARL,EUR) |
1 | ||
| 85940-95J00 |
KM20,YM21..(05S,08S)..ARL |
1 | ||
| 85940-22051 |
KM20..05S..ARL |
1 | ||
| 85940-95J00 |
CM20,KM20,YM21..ARL |
1 | ||
| 85999A - BRACKET, RELAY, NO.2 | ||||
| 85999-26010 |
KM20..ARL |
1 | ||
| 85999A - BRACKET, RELAY, NO.2 | ||||
| 85999-26010 |
KM20..ARL |
1 | ||
| 89390 - RELAY, BRAKE WARNING | ||||
| 90987-02001 |
KM20..ARL |
1 | ||
| 89550 - COMPUTER ASSY, EMISSION CONTROL | ||||
| 89550-27030 |
KM20..ARL |
1 | ||
| 89550-27010 |
KM20..ARL |
1 | ||
| Common parts | ||||
| 90179-06078 | ||||
| 91651-40612 | ||||
| 91656-40616 | ||||
| 91661-40616 | ||||
| 93385-16016 | ||||
| 93385-18016 | ||||
| 96179-06015 | ||||

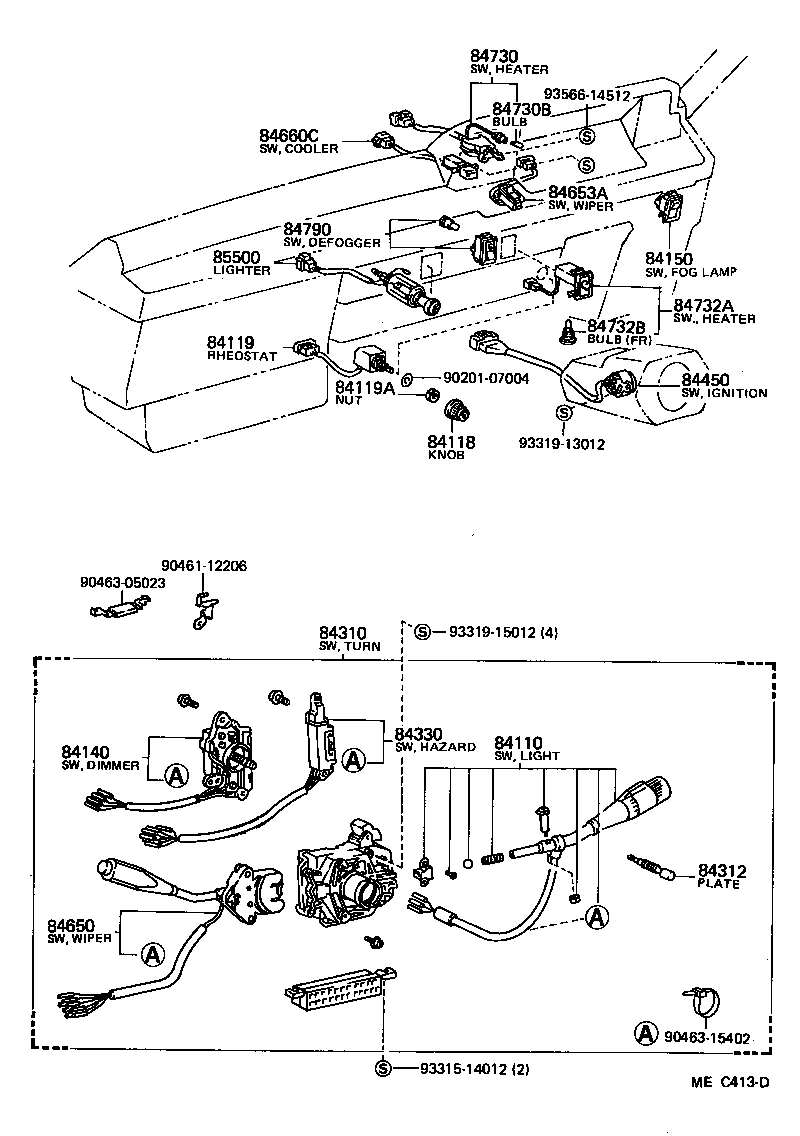

(8210- )RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84110 - SWITCH ASSY, LIGHT CONTROL, NO.1 | ||||
| 84112-29205 |
KM20..RHD |
1 | ||
| 84112-29295 |
CM20,KM20,YM2#..RHD |
1 | ||
| 84118 - KNOB, LIGHT CONTROL RHEOSTAT | ||||
| 84118-30020 |
CM20,KM20,YM21..ARL |
1 | ||
| 84119 - RHEOSTAT, LIGHT CONTROL | ||||
| 84119-30020 |
CM20,KM20,YM21..ARL |
1 | ||
| 84119A - BOLT OR NUT, RHEOSTAT CONTROL SET | ||||
| 90170-07002 |
CM20,KM20,YM21..ARL |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-29145 |
CM20,KM20,YM2#..RHD |
1 | ||
| 84140-29055 |
KM20..RHD |
1 | ||
| 84310 - SWITCH ASSY, TURN SIGNAL | ||||
| 84310-28030 |
KM20..RHD |
1 | ||
| 84310-28040 |
KM20..RHD..V4D..(ARL,EUR) INTERMITTENT WIPER |
1 | ||
| 84310-27070 |
KM20,YM21..(05S,08S)..ARL |
1 | ||
| 84310-27070 |
CM20,KM20,YM21..ARL W/INTERMITTENT WIPER |
1 | ||
| 84312 - PLATE, HORN CONTACT | ||||
| 84312-20011 |
CM20,KM20,YM2# |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-29115 |
CM20,KM20,YM2#..RHD |
1 | ||
| 84332-29075 |
KM20..RHD |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-27050 |
KM20..RHD |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-29255 |
KM20..RHD..V4D..(ARL,EUR) INTERMITTENT WIPER |
1 | ||
| 84652-29245 |
KM20..RHD |
1 | ||
| 84652-29585 |
KM20,YM21..(05S,08S)..ARL |
1 | ||
| 84652-29585 |
CM20,KM20,YM21..ARL INTERMITTENT WIPER |
1 | ||
| 84653A - SWITCH, REAR WIPER | ||||
| 84653-95700 |
KM20..05S..ARL |
1 | ||
| 84653-95701 |
CM20,KM20,YM21..ARL |
1 | ||
| 84653-95701 |
KM20..05S..ARL |
1 | ||
| 84730 - SWITCH ASSY, HEATER BLOWER | ||||
| 84732-95701 |
KM20..RHD;KM20..LHD..VSP..EUR;KM20..LHD..(03S,05S,06S,09S) |
1 | ||
| 84732-95702 |
CM20,KM20,YM2#..RHD |
1 | ||
| 84730B - BULB, HEATER BLOWER SWITCH | ||||
| 90981-11014 |
CM20,KM20,YM2#..RHD 14V 1.4W |
1 | ||
| 84790 - SWITCH ASSY, REAR WINDOW DEFOGGER | ||||
| 84790-95700 |
KM20..05S..ARL |
1 | ||
| 84790-24010 |
KM20,YM21..(05S,08S)..ARL |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-30340 |
KM20..RHD;KM20..LHD..VSP..EUR;KM20..LHD..(03S,05S,06S,07S,09S) |
1 | ||
| 85500-95703 |
CM20,KM20,YM2# |
1 | ||
| Common parts | ||||
| 90201-07004 | ||||
| 90461-12206 | ||||
| 90463-05023 | ||||
| 90463-15402 | ||||
| 93315-14012 | ||||
| 93319-13012 | ||||
| 93319-15012 | ||||
| 93566-14512 | ||||

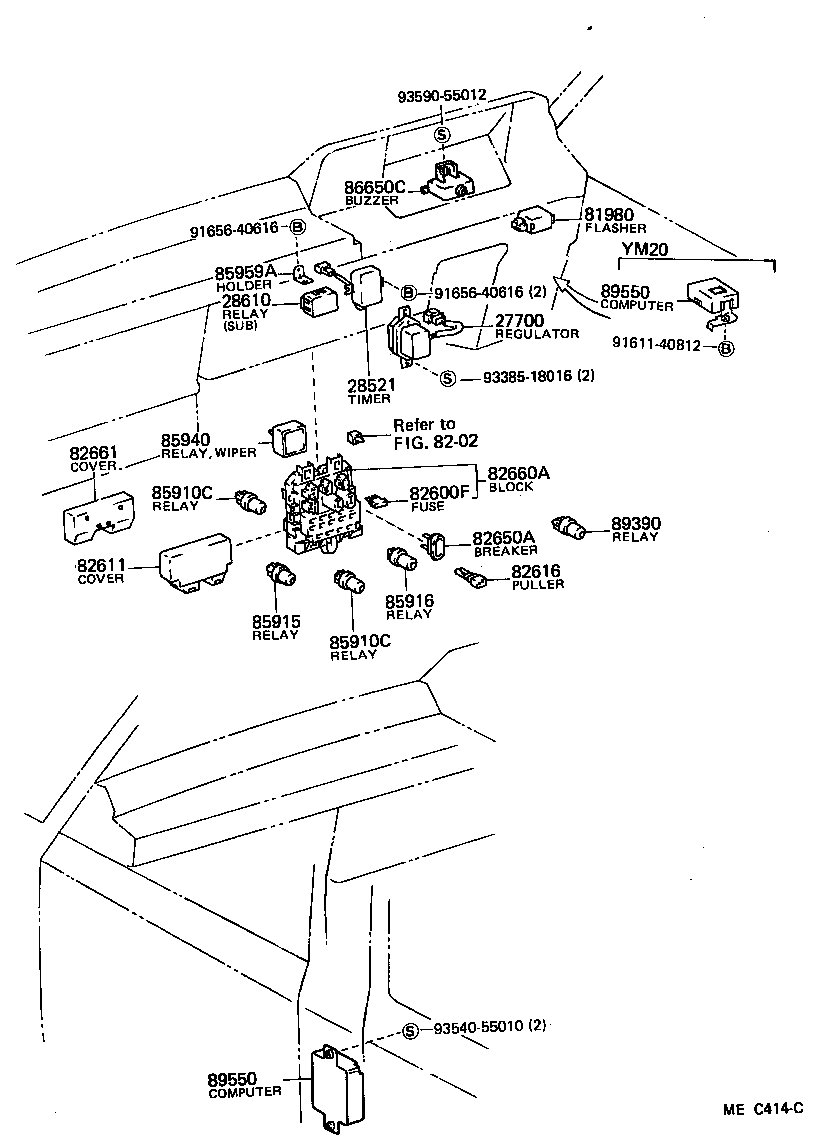

(8210- )RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27700 - REGULATOR ASSY, GENERATOR | ||||
| 27700-13040 |
1C,4K,1Y,2YC..CM20,KM20,YM2# |
1 | ||
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-22060 |
KM20..VSP..02S;KM20..03S,05S,06S,07S,08S,09S |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09001 |
KM20..VSP..02S;KM20..03S,05S,06S,07S,08S,09S 5A,5A |
1 | ||
| 90982-09001 |
CM20,KM20..RHD 5A,5A |
1 | ||
| 90982-09002 |
KM20..VSP..02S;KM20..03S,05S,06S,07S,08S,09S 10A,10A |
1 | ||
| 90982-09003 |
CM20,KM20,YM2# 15A,15A |
1 | ||
| 90982-09005 |
CM20,KM20,YM2#..RHD 7.5A,7.5A |
1 | ||
| 82611 - COVER, FUSE BLOCK | ||||
| 82612-95701 |
KM20..VSP..02S;KM20..03S,05S,06S,07S,08S,09S BACK |
1 | ||
| 82661-95700 |
CM20,KM20,YM2#..RHD |
1 | ||
| 82611-95701 |
KM20..RHD..V;KM20..LHD..VSP..EUR;KM20..LHD..(03S,05S,06S,07S,09S) FR |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-12010 |
CM20,KM20,YM2# |
1 | ||
| 82650A - BREAKER ASSY, WIRING CIRCUIT, NO.2 | ||||
| 82650-20011 |
CM20,KM20,YM2#..RHD 30A,30A |
1 | ||
| 82650-35010 |
CM20,KM20..RHD 20A,20A |
1 | ||
| 82660A - BLOCK ASSY, RELAY, COWL SIDE | ||||
| 82660-95700 |
CM20,KM20,YM2#..RHD |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82672-95701 |
KM20..05S..ARL |
1 | ||
| 82672-95701 |
CM20,KM20,YM2#..RHD |
1 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 90987-02001 |
KM20..RHD;KM20..LHD..VSP..EUR;KM20..LHD..(03S,05S,06S,07S) |
1 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 90987-02001 |
KM20..RHD;KM20..LHD..VSP..EUR;KM20..LHD..(03S,05S,06S,07S) |
1 | ||
| 85915 - RELAY, MAIN | ||||
| 90987-02001 |
KM20..RHD;KM20..LHD..VSP..EUR;KM20..LHD..(03S,05S,06S,07S) |
1 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-01001 |
KM20..RHD;KM20..LHD..VSP..EUR;KM20..LHD..(03S,05S,06S,07S) |
2 | ||
| 85940 - RELAY ASSY, WINDSHIELD WIPER | ||||
| 85940-22051 |
KM20..4F;KM20..LHD..SRF..4H..EUR;KM20..HRF..VSP..4H..EUR;KM20..HRF..4H..(05S,07S);KM20..RHD..V4D..(ARL,EUR) |
1 | ||
| 85940-95J00 |
KM20,YM21..(05S,08S)..ARL |
1 | ||
| 85940-22051 |
KM20..05S..ARL |
1 | ||
| 85940-95J00 |
CM20,KM20,YM21..ARL |
1 | ||
| 89390 - RELAY, BRAKE WARNING | ||||
| 90987-02001 |
KM20..ARL |
1 | ||
| 89550 - COMPUTER ASSY, EMISSION CONTROL | ||||
| 89550-27030 |
KM20..ARL |
1 | ||
| 89550-27010 |
KM20..ARL |
1 | ||
| 89550 - COMPUTER ASSY, EMISSION CONTROL | ||||
| 89550-27030 |
KM20..ARL |
1 | ||
| 89550-27010 |
KM20..ARL |
1 | ||
| Common parts | ||||
| 91611-40812 | ||||
| 91656-40616 | ||||
| 93385-18016 | ||||
| 93540-55010 | ||||
| 93590-55012 | ||||
| Linked diagrams | ||||
| 8202 | ||||
