KM20RV-JRF (1979)
Toyota Liteace

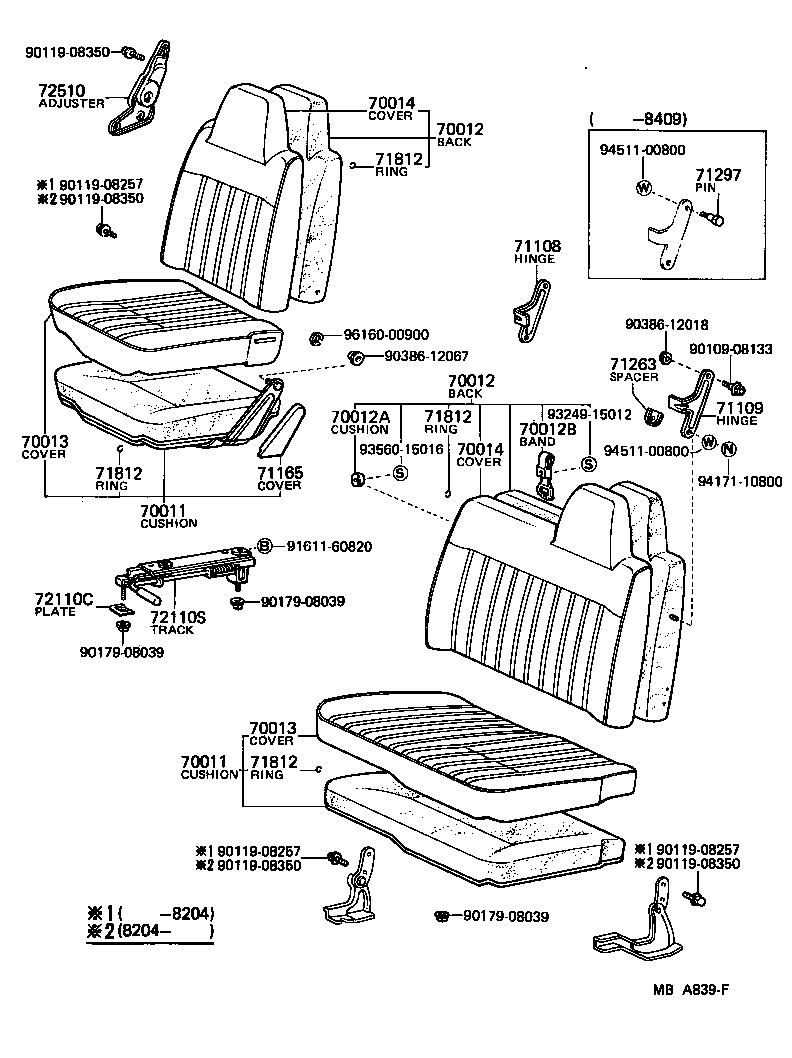

(7910- )KM20..RHD..HRF,SRF..GEN
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 70011 - CUSHION ASSY, NO.1 SEAT | ||||
| 71110-95707 |
KM20..RHD..V;KM20..LHD..VSP..EUR;KM20..LHD..(03S,05S,06S,09S) RH,VL,T=1.5 |
1 | ||
| 71110-95701 |
KM20..V..GEN RH,VL,T=0.6 |
1 | ||
| 71210-95709 |
KM20..RHD..(HRF,SRF)..GEN LH,VL,T=1.5 |
1 | ||
| 71210-95702 |
KM20..RHD..V..GEN LH,VL,T=0.6 |
1 | ||
| 71110-95720 |
KM20..VSP..02S;KM20..(HRF,SRF)..(03S,05S,06S,09S)..(EUR,GEN) RH,VL,T=1.5 |
1 | ||
| 71110-95701 |
KM20..RHD..V..GEN RH,VL,T=0.6 |
1 | ||
| 70011 - CUSHION ASSY, NO.1 SEAT | ||||
| 71110-95707 |
KM20..RHD..V;KM20..LHD..VSP..EUR;KM20..LHD..(03S,05S,06S,09S) RH,VL,T=1.5 |
1 | ||
| 71110-95701 |
KM20..V..GEN RH,VL,T=0.6 |
1 | ||
| 71210-95709 |
KM20..RHD..(HRF,SRF)..GEN LH,VL,T=1.5 |
1 | ||
| 71210-95702 |
KM20..RHD..V..GEN LH,VL,T=0.6 |
1 | ||
| 71110-95720 |
KM20..VSP..02S;KM20..(HRF,SRF)..(03S,05S,06S,09S)..(EUR,GEN) RH,VL,T=1.5 |
1 | ||
| 71110-95701 |
KM20..RHD..V..GEN RH,VL,T=0.6 |
1 | ||
| 70012 - BACK ASSY, NO.1 SEAT | ||||
| 71150-95701 |
KM20..RHD..V..GEN RH,VL,T=0.6 |
1 | ||
| 71150-95707 |
KM20..02S..ARL;KM20..RHD..(HRF,SRF)..(EUR,GEN) RH,VL,T=1.5 |
1 | ||
| 71250-95713 |
KM20..RHD..(HRF,SRF)..GEN LH,VL,T=1.5 |
1 | ||
| 71250-95706 |
KM20..RHD..V..GEN LH,VL,T=0.6 |
1 | ||
| 70012 - BACK ASSY, NO.1 SEAT | ||||
| 71150-95701 |
KM20..RHD..V..GEN RH,VL,T=0.6 |
1 | ||
| 71150-95707 |
KM20..02S..ARL;KM20..RHD..(HRF,SRF)..(EUR,GEN) RH,VL,T=1.5 |
1 | ||
| 71250-95713 |
KM20..RHD..(HRF,SRF)..GEN LH,VL,T=1.5 |
1 | ||
| 71250-95706 |
KM20..RHD..V..GEN LH,VL,T=0.6 |
1 | ||
| 70012A - CUSHION(FOR NO.1 SEAT BACK) | ||||
| 71268-95702 |
KM20..RHD..GEN |
2 | ||
| 70012B - BAND, ENGINE SERVICE HOLE COVER SUPPORT | ||||
| 71240-95700 |
KM20..RHD..GEN |
1 | ||
| 70013 - COVER ASSY, NO.1 SEAT CUSHION | ||||
| 71108-95702 |
KM20..V..GEN RH,VL,T=0.6 |
1 | ||
| 71108-95708 |
KM20..RHD..V;KM20..LHD..VSP..EUR;KM20..LHD..(03S,05S,06S,09S) RH,VL,T=1.5 |
1 | ||
| 71108-95702 |
KM20..RHD..V..GEN RH,VL,T=0.6 |
1 | ||
| 71108-95721 |
KM20..VSP..02S;KM20..(HRF,SRF)..(03S,05S,06S,09S)..(EUR,GEN) RH,VL,T=1.5 |
1 | ||
| 71208-95705 |
KM20..RHD..V..GEN LH,VL,T=0.6 |
1 | ||
| 71208-95712 |
KM20..RHD..(HRF,SRF)..GEN LH,VL,T=1.5 |
1 | ||
| 70013 - COVER ASSY, NO.1 SEAT CUSHION | ||||
| 71108-95702 |
KM20..V..GEN RH,VL,T=0.6 |
1 | ||
| 71108-95708 |
KM20..RHD..V;KM20..LHD..VSP..EUR;KM20..LHD..(03S,05S,06S,09S) RH,VL,T=1.5 |
1 | ||
| 71108-95702 |
KM20..RHD..V..GEN RH,VL,T=0.6 |
1 | ||
| 71108-95721 |
KM20..VSP..02S;KM20..(HRF,SRF)..(03S,05S,06S,09S)..(EUR,GEN) RH,VL,T=1.5 |
1 | ||
| 71208-95705 |
KM20..RHD..V..GEN LH,VL,T=0.6 |
1 | ||
| 71208-95712 |
KM20..RHD..(HRF,SRF)..GEN LH,VL,T=1.5 |
1 | ||
| 70014 - COVER ASSY, NO.1 SEAT BACK | ||||
| 71109-95701 |
KM20..V..GEN RH,VL,T=0.6 |
1 | ||
| 71209-95702 |
KM20..RHD..V..GEN LH,VL,T=0.6 |
1 | ||
| 71109-95707 |
KM20..RHD..V;KM20..LHD..VSP..EUR;KM20..LHD..(03S,05S,06S,09S) RH,VL,T=1.5 |
1 | ||
| 71209-95709 |
KM20..RHD..(HRF,SRF)..GEN LH,VL,T=1.5 |
1 | ||
| 71109-95707 |
KM20..02S..ARL;KM20..LHD..GEN;KM20..RHD..(HRF,SRF)..(EUR,GEN) RH,VL,T=1.5 |
1 | ||
| 70014 - COVER ASSY, NO.1 SEAT BACK | ||||
| 71109-95701 |
KM20..V..GEN RH,VL,T=0.6 |
1 | ||
| 71209-95702 |
KM20..RHD..V..GEN LH,VL,T=0.6 |
1 | ||
| 71109-95707 |
KM20..RHD..V;KM20..LHD..VSP..EUR;KM20..LHD..(03S,05S,06S,09S) RH,VL,T=1.5 |
1 | ||
| 71209-95709 |
KM20..RHD..(HRF,SRF)..GEN LH,VL,T=1.5 |
1 | ||
| 71109-95707 |
KM20..02S..ARL;KM20..LHD..GEN;KM20..RHD..(HRF,SRF)..(EUR,GEN) RH,VL,T=1.5 |
1 | ||
| 71108 - HINGE SUB-ASSY, FRONT SEAT BACK, UPPER RH | ||||
| 71261-95702 |
KM20..RHD..(HRF,SRF)..GEN |
1 | ||
| 71109 - HINGE SUB-ASSY, FRONT SEAT BACK, UPPER LH | ||||
| 71262-95700 |
KM20..RHD..(HRF,SRF)..GEN |
1 | ||
| 71165 - COVER, FRONT RH SEAT HINGE | ||||
| 71165-9570006 |
KM20..VSP..02S;KM20..03S,05S,06S,07S,08S,09S BROWN,BROWN |
1 | ||
| 71263 - SPACER, FRONT SEAT BACK HINGE | ||||
| 71263-95700 |
KM20..RHD..GEN |
2 | ||
| 71297 - PIN, PASSENGER SEAT BACK SUPPORT | ||||
| 71297-95700 |
KM20..RHD..(HRF,SRF)..GEN |
2 | ||
| 71812 - CLIP (FOR FRONT SEAT CUSHION COVER) | ||||
| 90468-18056 |
KM20..VSP..02S;KM20..(HRF,SRF)..(03S,05S,06S,07S,08S,09S) |
1 | ||
| 71812 - CLIP (FOR FRONT SEAT CUSHION COVER) | ||||
| 90468-18056 |
KM20..VSP..02S;KM20..(HRF,SRF)..(03S,05S,06S,07S,08S,09S) |
1 | ||
| 71812 - CLIP (FOR FRONT SEAT CUSHION COVER) | ||||
| 90468-18056 |
KM20..VSP..02S;KM20..(HRF,SRF)..(03S,05S,06S,07S,08S,09S) |
1 | ||
| 71812 - CLIP (FOR FRONT SEAT CUSHION COVER) | ||||
| 90468-18056 |
KM20..VSP..02S;KM20..(HRF,SRF)..(03S,05S,06S,07S,08S,09S) |
1 | ||
| 72110C - PLATE, SEAT TRACK SET | ||||
| 58597-95700 |
KM20..RHD..V;KM20..LHD..VSP..EUR;KM20..LHD..(03S,05S,06S) |
1 | ||
| 72110S - TRACK ASSY, RH SEAT, OUTER (FOR SEPARATE SEAT) | ||||
| 72710-95700 |
KM20..RHD..(HRF,SRF) |
1 | ||
| Common parts | ||||
| 90109-08133 | ||||
| 90119-08257 | ||||
| 90119-08350 | ||||
| 90179-08039 | ||||
| 90386-12018 | ||||
| 90386-12067 | ||||
| 91611-60820 | ||||
| 93249-15012 | ||||
| 93560-15016 | ||||
| 94171-10800 | ||||
| 94511-00800 | ||||
| 96160-00900 | ||||

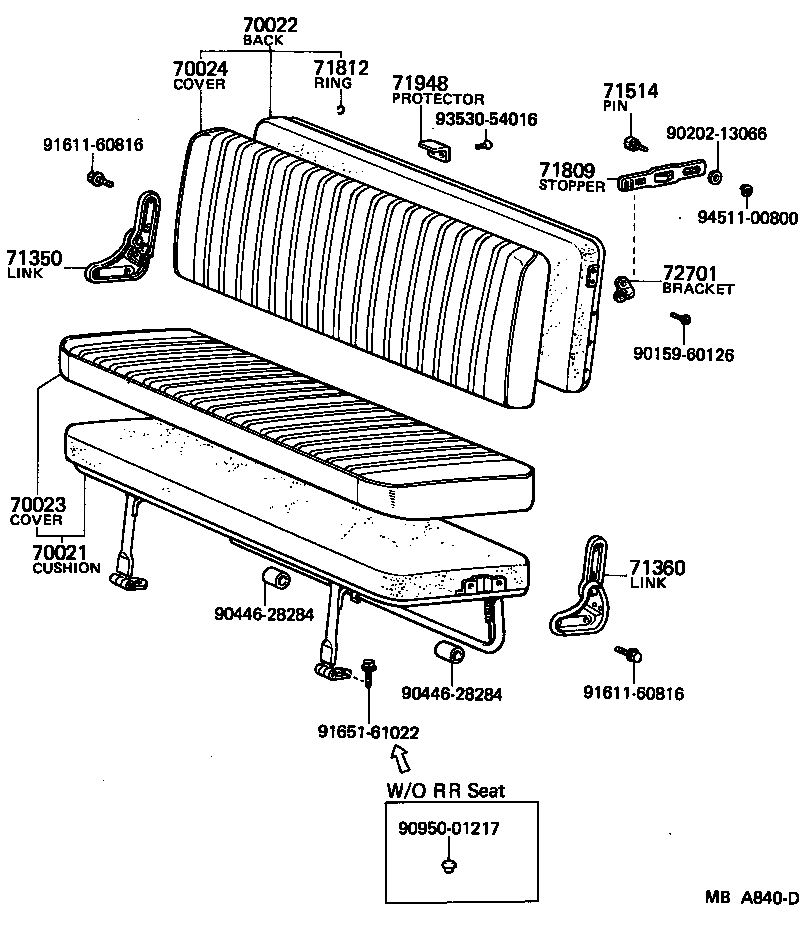

(7910- )KM20..02S..ARL ; (7910- )CM20,YM2#..RHD..V4D ; (7910- )KM20..RHD..
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 70021 - CUSHION ASSY, NO.2 SEAT | ||||
| 71410-95716 |
KM20..RHD..06S |
1 | ||
| 70022 - BACK ASSY, NO.2 SEAT | ||||
| 71450-95701 |
KM20..RHD..06S |
1 | ||
| 70023 - COVER ASSY, NO.2 SEAT CUSHION | ||||
| 71408-95702 |
KM20..(05S,06S)..(EUR,GEN) |
1 | ||
| 70024 - COVER ASSY, NO.2 SEAT BACK | ||||
| 71409-95701 |
KM20..(05S,06S)..(EUR,GEN) |
1 | ||
| 71350 - LINK ASSY, REAR SEAT BACK CUSHION, RH | ||||
| 71480-95712 |
KM20..RHD..06S |
1 | ||
| 71360 - LINK ASSY, REAR SEAT BACK CUSHION, LH | ||||
| 71490-95700 |
KM20..RHD..06S |
1 | ||
| 71514 - PIN, REAR SEAT BACK STOPPER | ||||
| 71447-95701 |
CM20,KM20..RHD..06S |
1 | ||
| 71809 - STOPPER SUB-ASSY, REAR SEAT BACK, LH | ||||
| 71440-95715 |
KM20..RHD..06S |
1 | ||
| 71812 - CLIP (FOR FRONT SEAT CUSHION COVER) | ||||
| 90468-18056 |
KM20..VSP..02S;KM20..(HRF,SRF)..(03S,05S,06S,07S,08S,09S) |
1 | ||
| 71948 - PROTECTOR, PASSENGER SEAT BACK | ||||
| 71498-9570006 |
KM20..(05S,06S,07S,08S,09S)..STD..(EUR,GEN) BROWN,BROWN |
2 | ||
| 72701 - BRACKET SUB-ASSY, REAR SEAT BACK STOPPER | ||||
| 71448-95701 |
KM20..RHD..06S |
1 | ||
| Common parts | ||||
| 90159-60126 | ||||
| 90202-13066 | ||||
| 90446-28284 | ||||
| 90950-01217 | ||||
| 91611-60816 | ||||
| 91651-61022 | ||||
| 93530-54016 | ||||
| 94511-00800 | ||||
