KM20RV-JRF (1979)
Toyota Liteace
(7910-8210)

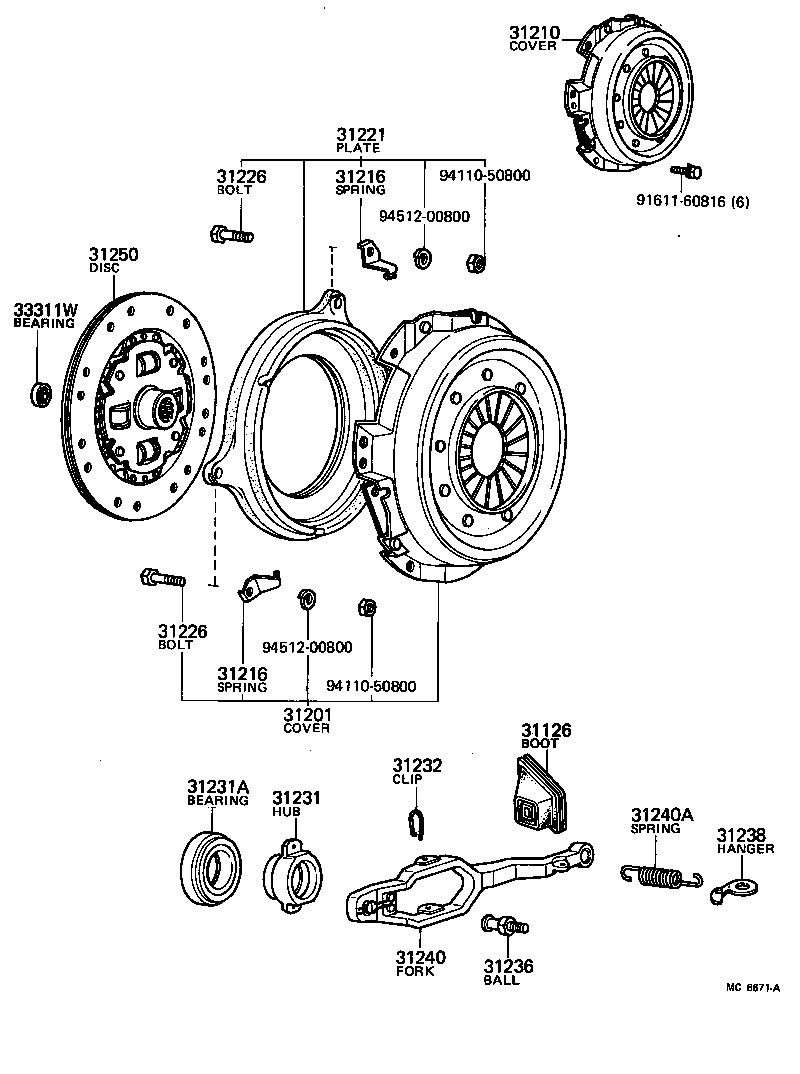

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31126 - BOOT, CLUTCH RELEASE FORK | ||||
| 31126-27020 |
KM20 |
1 | ||
| 31201 - COVER SUB-ASSY, CLUTCH | ||||
| 31201-29105 |
KM20..VSP..02S;KM20..03S,05S,06S,07S,08S,09S |
1 | ||
| 31201-29068 |
KM20..RHD;KM20..LHD..VSP..EUR;KM20..LHD..(03S,05S,06S,07S,09S) |
1 | ||
| 31210 - COVER ASSY, CLUTCH | ||||
| 31210-20092 |
KM20..RHD;KM20..LHD..VSP..EUR;KM20..LHD..(03S,05S,06S,07S,09S) |
1 | ||
| 31210-20093 |
KM20..VSP..02S;KM20..03S,05S,06S,07S,08S,09S |
1 | ||
| 31216 - SPRING, CLUTCH RETRACTING | ||||
| 31216-20020 |
KM20..VSP..02S;KM20..03S,05S,06S,07S,08S,09S |
3 | ||
| 31216 - SPRING, CLUTCH RETRACTING | ||||
| 31216-20020 |
KM20..VSP..02S;KM20..03S,05S,06S,07S,08S,09S |
3 | ||
| 31221 - PLATE, CLUTCH PRESSURE | ||||
| 31221-29015 |
KM20..VSP..02S;KM20..03S,05S,06S,07S,08S,09S |
1 | ||
| 31226 - BOLT, CLUTCH PRESSURE PLATE | ||||
| 90101-08350 |
KM20..VSP..02S;KM20..03S,05S,06S,07S,08S,09S |
3 | ||
| 31226 - BOLT, CLUTCH PRESSURE PLATE | ||||
| 90101-08350 |
KM20..VSP..02S;KM20..03S,05S,06S,07S,08S,09S |
3 | ||
| 31231 - HUB, CLUTCH RELEASE BEARING | ||||
| 31231-27012 |
KM20..RHD;KM20..LHD..VSP..EUR;KM20..LHD..(03S,05S,06S,07S) |
1 | ||
| 31231-27013 |
KM20..VSP..02S;KM20..03S,05S,06S,07S,08S,09S |
1 | ||
| 31231A - BEARING, BALL(FOR CLUTCH RELEASE HUB) | ||||
| 90363-40005 |
KM20..RHD;KM20..LHD..VSP..EUR;KM20..LHD..(03S,05S,06S,07S) |
1 | ||
| 90363-40019 |
KM20..VSP..02S;KM20..03S,05S,06S,07S,08S,09S |
1 | ||
| 90363-40013 |
KM20..RHD;KM20..LHD..VSP..EUR;KM20..LHD..(03S,05S,06S,07S) |
1 | ||
| 31232 - CLIP OR SPRING, RELEASE BEARING HUB | ||||
| 31232-30020 |
KM20 |
2 | ||
| 31236 - BALL, RELEASE FORK | ||||
| 31236-20020 |
KM20..RHD;KM20..LHD..VSP..EUR;KM20..LHD..(03S,05S,06S,07S,09S) |
1 | ||
| 31238 - HANGER, RELEASE FORK RETRACTING SPRING | ||||
| 31238-27010 |
KM20 |
1 | ||
| 31240 - FORK ASSY, CLUTCH RELEASE | ||||
| 31204-27010 |
KM20..RHD;KM20..LHD..VSP..EUR;KM20..LHD..(03S,05S,06S,07S) |
1 | ||
| 31240A - SPRING, TENSION(FOR CLUTCH RELEASE FORK RETURN) | ||||
| 90506-18311 |
KM20 |
1 | ||
| 31250 - DISC ASSY, CLUTCH | ||||
| 31250-27023 |
KM20..RHD;KM20..LHD..VSP..EUR;KM20..LHD..(03S,05S,06S,07S,09S) |
1 | ||
| 33311W - BEARING (FOR INPUT SHAFT) | ||||
| 97123-06001 |
KM20..RHD;KM20..LHD..VSP..EUR;KM20..LHD..(03S,05S,06S,07S) 6001 ZZ 03 |
1 | ||
| Common parts | ||||
| 91611-60816 | ||||
| 94110-50800 | ||||
| 94512-00800 | ||||
