KM20RV-JRF (1979)
Toyota Liteace

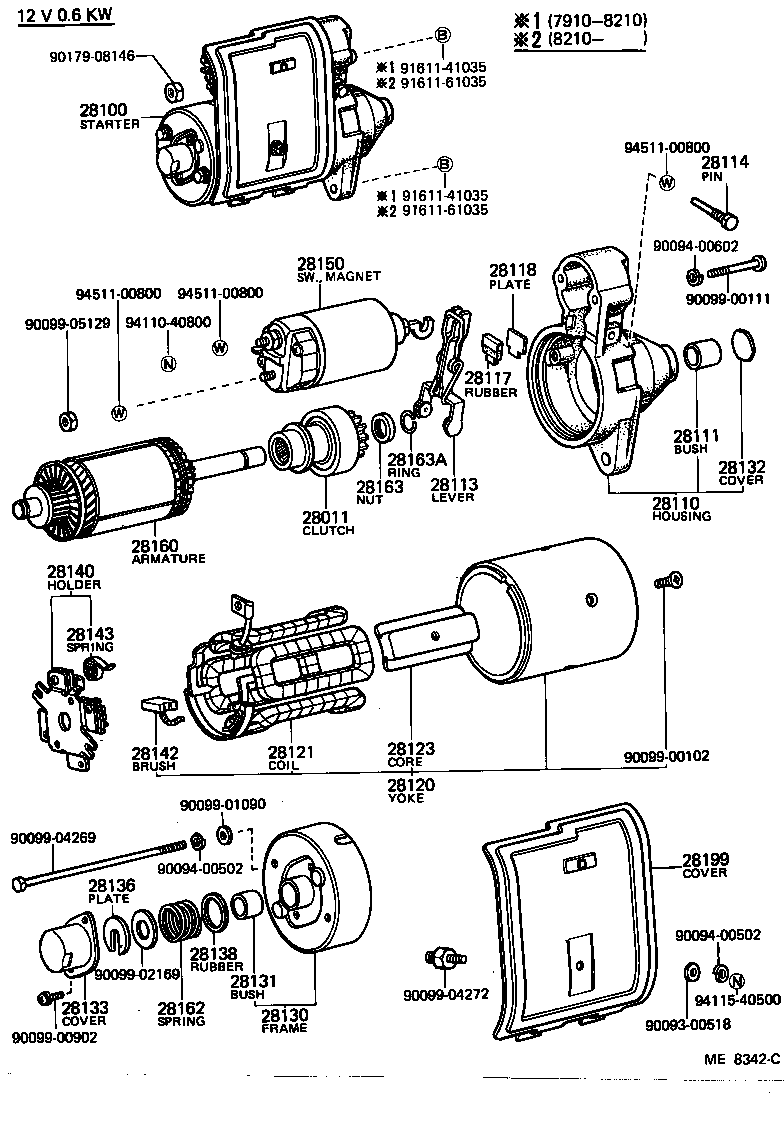

(7910- )4K
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28011 - CLUTCH SUB-ASSY, STARTER | ||||
| 28011-22022 |
4K..KM20 12V 0.6KW |
1 | ||
| 28100 - STARTER ASSY | ||||
| 28100-24031 |
4K..KM20 12V 0.6W,12V 0.6KW |
1 | ||
| 28110 - HOUSING ASSY, STARTER DRIVE | ||||
| 28110-24010 |
4K..KM20 12V 0.6KW |
1 | ||
| 28111 - BUSH(FOR STARTER HOUSING) | ||||
| 28111-51011 |
4K..KM20..VSP..02S;4K..KM20..03S,05S,06S,07S,08S,09S 12V 0.6KW |
1 | ||
| 28113 - LEVER, STARTER PINION DRIVE | ||||
| 28113-41011 |
4K..KM20 12V 0.6KW |
1 | ||
| 28114 - PIN, STARTER DRIVE LEVER SET | ||||
| 28114-25010 |
4K..KM20 12V 0.6KW |
1 | ||
| 28117 - RUBBER(FOR STARTER YOKE) | ||||
| 28117-41013 |
4K..KM20 12V 0.6KW |
1 | ||
| 28118 - PLATE(FOR STARTER YOKE) | ||||
| 28118-41013 |
4K..KM20 12V 0.6KW |
1 | ||
| 28120 - YOKE ASSY, STARTER | ||||
| 28120-24030 |
4K..KM20 12V 0.6KW |
1 | ||
| 28121 - COIL, STARTER FIELD | ||||
| 28121-22011 |
4K..KM20 12V 0.6KW |
1 | ||
| 28123 - CORE, STARTER POLE | ||||
| 28123-10011 |
4K..KM20 12V 0.6KW |
4 | ||
| 28130 - FRAME ASSY, STARTER COMMUTATOR END | ||||
| 28130-21011 |
4K..KM20 12V 0.6KW |
1 | ||
| 28131 - BUSH, COMMUTATOR END FRAME | ||||
| 28131-20010 |
4K..KM20 STD,12V 0.6KW |
1 | ||
| 90099-10039 |
4K..KM20 U/S 0.3,12V 0.6KW |
1 | ||
| 90099-10040 |
4K..KM20 U/S 0.5,12V 0.6KW |
1 | ||
| 28132 - COVER, STARTER BEARING(FOR DRIVE HOUSING) | ||||
| 28166-41011 |
4K..KM20..VSP..02S;4K..KM20..03S,05S,06S,07S,08S,09S 12V 0.6KW |
1 | ||
| 28133 - COVER, BEARING(FOR END FRAME) | ||||
| 28132-41011 |
4K..KM20 12V 0.6KW |
1 | ||
| 28136 - PLATE, STARTER LOCK | ||||
| 28136-41011 |
4K..KM20 12V 0.6KW |
1 | ||
| 28138 - RUBBER(FOR STARTER BEARING COVER) | ||||
| 28138-41011 |
4K..KM20 12V 0.6KW |
1 | ||
| 28140 - HOLDER ASSY, STARTER BRUSH | ||||
| 28140-22011 |
4K..KM20 12V 0.6KW |
1 | ||
| 28142 - BRUSH, STARTER | ||||
| 28142-10011 |
4K..KM20 12V 0.6KW |
2 | ||
| 28143 - SPRING, STARTER BRUSH | ||||
| 28143-40010 |
4K..KM20 12V 0.6KW |
4 | ||
| 28150 - SWITCH ASSY, MAGNET STARTER | ||||
| 28150-24060 |
4K..KM20 12V 0.6KW |
1 | ||
| 28160 - ARMATURE ASSY, STARTER | ||||
| 28160-22011 |
4K..KM20 12V 0.6KW |
1 | ||
| 28162 - SPRING, STARTER BRAKE | ||||
| 28162-41011 |
4K..KM20 12V 0.6KW |
1 | ||
| 28163 - NUT OR COLLAR, PINION STOP, STARTER | ||||
| 28163-40011 |
4K..KM20 12V 0.6KW,0.8KW |
1 | ||
| 28163A - RING, SNAP(FOR STARTER PINION STOP NUT) | ||||
| 90099-07047 |
4K..KM20 12V 0.6KW,0.8KW |
1 | ||
| 28199 - COVER, STARTER | ||||
| 28199-24030 |
4K..KM20 12V 0.6KW |
1 | ||
| Common parts | ||||
| 90093-00518 | ||||
| 90094-00502 | ||||
| 90094-00602 | ||||
| 90099-00102 | ||||
| 90099-00111 | ||||
| 90099-00902 | ||||
| 90099-01090 | ||||
| 90099-02169 | ||||
| 90099-04269 | ||||
| 90099-04272 | ||||
| 90099-05129 | ||||
| 90179-08146 | ||||
| 91611-41035 | ||||
| 91611-61035 | ||||
| 94110-40800 | ||||
| 94115-40500 | ||||
| 94511-00800 | ||||

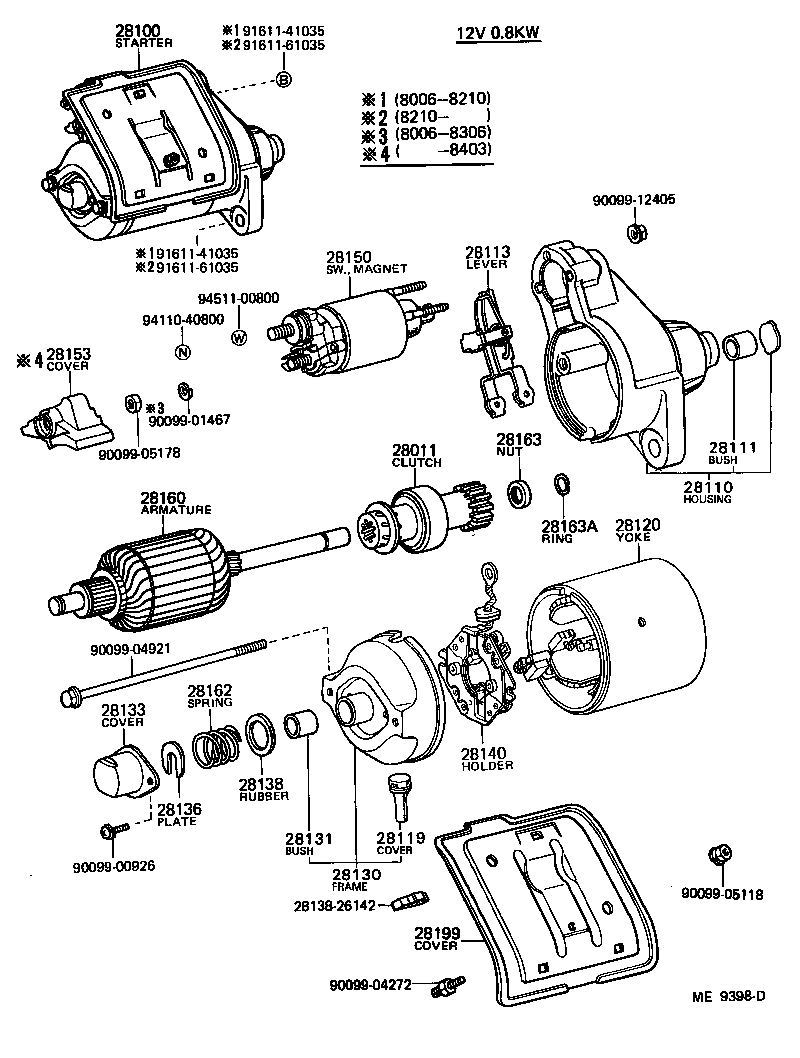

(8006- )4K
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28011 - CLUTCH SUB-ASSY, STARTER | ||||
| 28011-22022 |
4K..KM20 12V 0.6KW |
1 | ||
| 28100 - STARTER ASSY | ||||
| 28100-24031 |
4K..KM20 12V 0.6W,12V 0.6KW |
1 | ||
| 28110 - HOUSING ASSY, STARTER DRIVE | ||||
| 28110-24010 |
4K..KM20 12V 0.6KW |
1 | ||
| 28111 - BUSH(FOR STARTER HOUSING) | ||||
| 28111-51011 |
4K..KM20..VSP..02S;4K..KM20..03S,05S,06S,07S,08S,09S 12V 0.6KW |
1 | ||
| 28113 - LEVER, STARTER PINION DRIVE | ||||
| 28113-41011 |
4K..KM20 12V 0.6KW |
1 | ||
| 28120 - YOKE ASSY, STARTER | ||||
| 28120-24030 |
4K..KM20 12V 0.6KW |
1 | ||
| 28130 - FRAME ASSY, STARTER COMMUTATOR END | ||||
| 28130-21011 |
4K..KM20 12V 0.6KW |
1 | ||
| 28131 - BUSH, COMMUTATOR END FRAME | ||||
| 28131-20010 |
4K..KM20 STD,12V 0.6KW |
1 | ||
| 90099-10039 |
4K..KM20 U/S 0.3,12V 0.6KW |
1 | ||
| 90099-10040 |
4K..KM20 U/S 0.5,12V 0.6KW |
1 | ||
| 28133 - COVER, BEARING(FOR END FRAME) | ||||
| 28132-41011 |
4K..KM20 12V 0.6KW |
1 | ||
| 28136 - PLATE, STARTER LOCK | ||||
| 28136-41011 |
4K..KM20 12V 0.6KW |
1 | ||
| 28138 - RUBBER(FOR STARTER BEARING COVER) | ||||
| 28138-41011 |
4K..KM20 12V 0.6KW |
1 | ||
| 28140 - HOLDER ASSY, STARTER BRUSH | ||||
| 28140-22011 |
4K..KM20 12V 0.6KW |
1 | ||
| 28150 - SWITCH ASSY, MAGNET STARTER | ||||
| 28150-24060 |
4K..KM20 12V 0.6KW |
1 | ||
| 28160 - ARMATURE ASSY, STARTER | ||||
| 28160-22011 |
4K..KM20 12V 0.6KW |
1 | ||
| 28162 - SPRING, STARTER BRAKE | ||||
| 28162-41011 |
4K..KM20 12V 0.6KW |
1 | ||
| 28163 - NUT OR COLLAR, PINION STOP, STARTER | ||||
| 28163-40011 |
4K..KM20 12V 0.6KW,0.8KW |
1 | ||
| 28163A - RING, SNAP(FOR STARTER PINION STOP NUT) | ||||
| 90099-07047 |
4K..KM20 12V 0.6KW,0.8KW |
1 | ||
| 28199 - COVER, STARTER | ||||
| 28199-24030 |
4K..KM20 12V 0.6KW |
1 | ||
| Common parts | ||||
| 28138-26142 | ||||
| 90099-00926 | ||||
| 90099-01467 | ||||
| 90099-04272 | ||||
| 90099-04921 | ||||
| 90099-05118 | ||||
| 90099-05178 | ||||
| 90099-12405 | ||||
| 91611-41035 | ||||
| 91611-61035 | ||||
| 94110-40800 | ||||
| 94511-00800 | ||||
