KM20RV-JRF (1979)

Toyota Liteace

Production Oct 1979 - Oct 1982
Engine 4K
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7910- )4K

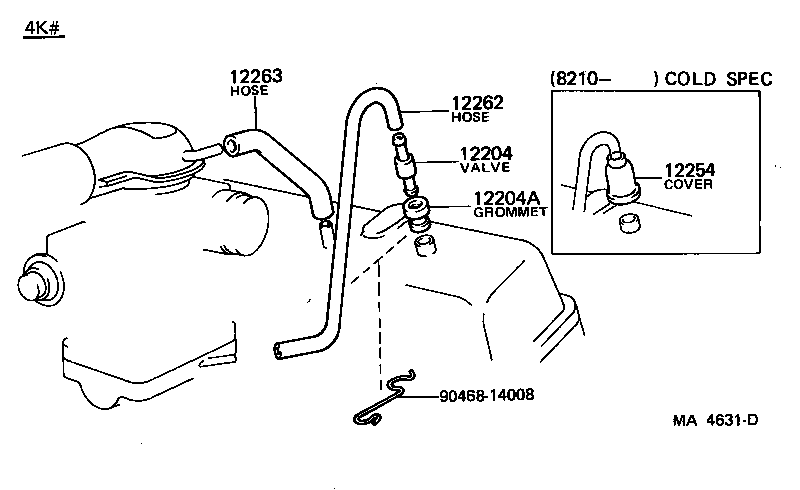

Click highlighted areas on diagram

diagram 12204 12204A 12254 12262 12263 9046814008
Part # Description Qty Price
12204 - VALVE SUB-ASSY, VENTILATION
12204-13021

4K..KM20..RHD;4K..KM20..LHD..VSP..EUR;4K..KM20..LHD..(03S,05S,06S,07S)

 1
12204-13030

4K..KM20..VSP..02S;4K..KM20..03S,05S,06S,07S,08S,09S

 1
12204A - GROMMET(FOR VENTILATION SYSTEM)
90480-16003

4K..KM20

 1
12262 - HOSE, VENTILATION, NO.2
12261-24021

4K..KM20..RHD;4K..KM20..LHD..VSP..EUR;4K..KM20..LHD..(03S,05S,06S,07S,09S)

 1
12263 - HOSE, VENTILATION, NO.3
12262-13010

4K..KM20

 1
Common parts
90468-14008
