KM20RV-JRBFE (1979)
Toyota Liteace
(7910-8405)HRF,SRF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46101 - HANDLE SUB-ASSY, PARKING BRAKE CONTROL | ||||
| 46101-26030 |
CM20,KM20..RHD..(EUR,GEN) |
1 | ||
| 46120-27010 |
CM20,KM20,YM2#..RHD |
1 | ||
| 46101 - HANDLE SUB-ASSY, PARKING BRAKE CONTROL | ||||
| 46101-26030 |
CM20,KM20..RHD..(EUR,GEN) |
1 | ||
| 46120-27010 |
CM20,KM20,YM2#..RHD |
1 | ||
| 46103 - GUIDE SUB-ASSY, PARKING BRAKE PLUNGER | ||||
| 46103-27020 |
KM20..RHD..(EUR,GEN) |
1 | ||
| 46103-27021 |
CM20,KM20,YM2#..RHD |
1 | ||
| 46103-27021 |
CM20,KM20..RHD..(EUR,GEN) |
1 | ||
| 46103 - GUIDE SUB-ASSY, PARKING BRAKE PLUNGER | ||||
| 46103-27020 |
KM20..RHD..(EUR,GEN) |
1 | ||
| 46103-27021 |
CM20,KM20,YM2#..RHD |
1 | ||
| 46103-27021 |
CM20,KM20..RHD..(EUR,GEN) |
1 | ||
| 46103 - GUIDE SUB-ASSY, PARKING BRAKE PLUNGER | ||||
| 46103-27020 |
KM20..RHD..(EUR,GEN) |
1 | ||
| 46103-27021 |
CM20,KM20,YM2#..RHD |
1 | ||
| 46103-27021 |
CM20,KM20..RHD..(EUR,GEN) |
1 | ||
| 46110A - BUSH OR RING, O (FOR PARKING BRAKE PLUNGER) | ||||
| 90386-12048 |
CM20,KM20,YM2# |
1 | ||
| 46110A - BUSH OR RING, O (FOR PARKING BRAKE PLUNGER) | ||||
| 90386-12048 |
CM20,KM20,YM2# |
1 | ||
| 46114 - PIN, PARKING BRAKE PLUNGER | ||||
| 46114-20010 |
CM20,KM20,YM2# |
1 | ||
| 46114 - PIN, PARKING BRAKE PLUNGER | ||||
| 46114-20010 |
CM20,KM20,YM2# |
1 | ||
| 46144 - ANTI-RATTLE, PARKING BRAKE PLUNGER | ||||
| 46144-20010 |
CM20,KM20,YM2# |
1 | ||
| 46144 - ANTI-RATTLE, PARKING BRAKE PLUNGER | ||||
| 46144-20010 |
CM20,KM20,YM2# |
1 | ||
| 46304 - EQUALIZER SUB-ASSY, PARKING BRAKE | ||||
| 46341-27010 |
CM20,KM20,YM2#..HRF,SRF |
1 | ||
| 46311 - PAWL, PARKING BRAKE | ||||
| 46311-30041 |
CM20,YM2#;KM20..VSP..02S;KM20..03S,05S,06S,07S,08S,09S |
2 | ||
| 46311-26010 |
CM20,YM2#;KM20..V4D..02S;KM20..03S,05S,06S,08S,09S |
2 | ||
| 46311 - PAWL, PARKING BRAKE | ||||
| 46311-30041 |
CM20,YM2#;KM20..VSP..02S;KM20..03S,05S,06S,07S,08S,09S |
2 | ||
| 46311-26010 |
CM20,YM2#;KM20..V4D..02S;KM20..03S,05S,06S,08S,09S |
2 | ||
| 46311 - PAWL, PARKING BRAKE | ||||
| 46311-30041 |
CM20,YM2#;KM20..VSP..02S;KM20..03S,05S,06S,07S,08S,09S |
2 | ||
| 46311-26010 |
CM20,YM2#;KM20..V4D..02S;KM20..03S,05S,06S,08S,09S |
2 | ||
| 46311A - SPRING(FOR PARKING BRAKE PAWL) | ||||
| 90508-08106 |
CM20..EUR,GEN;KM20..VSP..EUR;KM20..(03S,05S,06S,07S,08S,09S)..(EUR,GEN) |
1 | ||
| 90508-08106 |
CM20,YM2#;KM20..V4D..02S;KM20..03S,05S,06S,08S,09S |
1 | ||
| 46311A - SPRING(FOR PARKING BRAKE PAWL) | ||||
| 90508-08106 |
CM20..EUR,GEN;KM20..VSP..EUR;KM20..(03S,05S,06S,07S,08S,09S)..(EUR,GEN) |
1 | ||
| 90508-08106 |
CM20,YM2#;KM20..V4D..02S;KM20..03S,05S,06S,08S,09S |
1 | ||
| 46311B - PIN, PARKING BRAKE PAWL PIVOT | ||||
| 46313-40010 |
CM20,KM20,YM2# |
1 | ||
| 46311B - PIN, PARKING BRAKE PAWL PIVOT | ||||
| 46313-40010 |
CM20,KM20,YM2# |
1 | ||
| 46321 - LEVER, PARKING BRAKE INTERMEDIATE | ||||
| 46321-27020 |
CM20,KM20,YM2#..HRF,SRF |
1 | ||
| 46321A - SPRING, TENSIION(FOR PARKING BRAKE INTERMEDIATE LEVER) | ||||
| 90506-20026 |
CM20,KM20,YM2#..HRF,SRF |
1 | ||
| 46361 - ROD, PARKING BRAKE PULL | ||||
| 46361-27020 |
CM20,KM20,YM2#..HRF,SRF |
1 | ||
| 46410 - CABLE ASSY, PARKING BRAKE, NO.1 | ||||
| 46410-27062 |
CM20,KM20,YM2#..RHD |
1 | ||
| 46410-27061 |
KM20..RHD..(HRF,SRF) |
1 | ||
| 46410-27060 |
KM20..RHD..V |
1 | ||
| 46410B - GROMMET(FOR PARKING BRAKE FRONT CABLE) | ||||
| 90480-20004 |
KM20..RHD;KM20..LHD..VSP..EUR;KM20..LHD..(03S,05S,06S,07S,09S) |
1 | ||
| 46420 - CABLE ASSY, PARKING BRAKE, NO.2 | ||||
| 46420-27050 |
KM20..LHD..VSP..EUR;KM20..RHD..(HRF,SRF);KM20..LHD..(03S,05S,06S,07S,09S) |
1 | ||
| 46420-27051 |
CM20,KM20,YM2# |
1 | ||
| 46420-27050 |
KM20..VSP..02S;KM20..(HRF,SRF)..(03S,05S,06S,09S) |
1 | ||
| 46420C - PIN, W/HOLE(FOR PARKING BRAKE CABLE) | ||||
| 90240-06032 |
CM20,KM20,YM2# |
1 | ||
| 46430 - CABLE ASSY, PARKING BRAKE, NO.3 | ||||
| 46430-27050 |
KM20..LHD..VSP..EUR;KM20..RHD..(HRF,SRF);KM20..LHD..(03S,05S,06S,07S,09S) |
1 | ||
| 46430-27051 |
CM20,KM20,YM2# |
1 | ||
| 46430-27050 |
KM20..VSP..02S;KM20..(HRF,SRF)..(03S,05S,06S,09S) |
1 | ||
| 46438 - INSULATOR, PARKING CABLE DUST COVER HEAT | ||||
| 46438-27010 |
CM20,KM20,YM2# |
1 | ||
| 46438-27010 |
KM20..LHD..VSP..EUR;KM20..RHD..(HRF,SRF);KM20..LHD..(03S,05S,06S,07S,09S) |
1 | ||
| 46438-27010 |
KM20..VSP..02S;KM20..(HRF,SRF)..(03S,05S,06S,09S) |
1 | ||
| 46441 - NUT, WIRE ADJUSTING, NO.1 | ||||
| 94120-40800 |
CM20,KM20,YM2# |
1 | ||
| 46464 - PLATE, CABLE CLAMP SUPPORT | ||||
| 46464-27010 |
KM20..RHD |
1 | ||
| 46471 - PULLEY, WIRE | ||||
| 46471-20010 |
CM20,KM20,YM2# |
1 | ||
| 46471B - PIN, W/HOLE(FOR WIRE PULLEY SET) | ||||
| 90240-08017 |
CM20,KM20,YM2# |
1 | ||
| Common parts | ||||
| 90179-08020 | ||||
| 90206-08016 | ||||
| 90468-08001 | ||||
| 91611-40812 | ||||
| 91611-40814 | ||||
| 91651-40820 | ||||
| 93249-14006 | ||||
| 94611-10401 | ||||
| 94612-10701 | ||||
| 95381-02020 | ||||
| 95381-02520 | ||||
| 95381-03015 | ||||

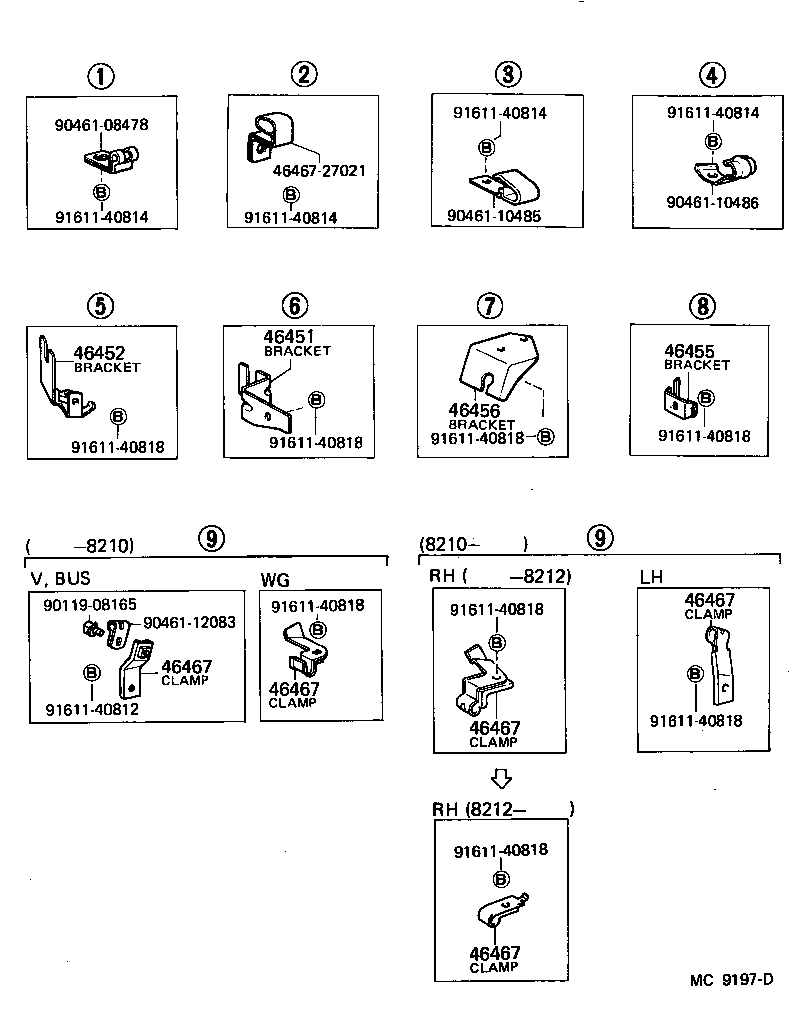

(7910- )HRF,SRF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46451 - BRACKET, CABLE SUPPORT | ||||
| 46451-27020 |
CM20,KM20,YM2#..HRF,SRF |
1 | ||
| 46452 - BRACKET, PARKING BRAKE CABLE SUPPORT, NO.2 | ||||
| 46452-27010 |
CM20,KM20,YM2#..HRF,SRF |
1 | ||
| 46455 - BRACKET, PARKING BRAKE CABLE SUPPORT, NO.3 | ||||
| 46453-27010 |
KM20..RHD..V;KM20..LHD..VSP..EUR;KM20..LHD..(03S,05S,06S,07S) |
1 | ||
| 46453-27011 |
CM20,KM20,YM2#..HRF,SRF |
1 | ||
| 46456 - BRACKET, CABLE RETAINING | ||||
| 46456-27040 |
CM20,KM20,YM2#..HRF,SRF |
1 | ||
| 46467 - CLAMP, CABLE | ||||
| 46467-27040 |
KM20..LHD..VSP..EUR;KM20..RHD..(HRF,SRF);KM20..LHD..(03S,05S,06S,07S,09S) RH |
1 | ||
| 46487-27031 |
CM20,KM20,YM2# LH |
1 | ||
| 46487-27040 |
KM20..VSP..02S;KM20..(HRF,SRF)..(03S,05S,06S,09S) LH |
1 | ||
| 46467-27031 |
CM20;KM20..VSP..02S;KM20..03S,05S,06S,08S,09S RH |
1 | ||
| 46467-27032 |
CM20,YM2#;KM20..V4D..02S;KM20..03S,05S,06S,08S,09S RH |
1 | ||
| 46487-27040 |
KM20..LHD..VSP..EUR;KM20..RHD..(HRF,SRF);KM20..LHD..(03S,05S,06S,07S,09S) LH |
1 | ||
| 46467-27040 |
KM20..VSP..02S;KM20..(HRF,SRF)..(03S,05S,06S,09S) RH |
1 | ||
| 46467 - CLAMP, CABLE | ||||
| 46467-27040 |
KM20..LHD..VSP..EUR;KM20..RHD..(HRF,SRF);KM20..LHD..(03S,05S,06S,07S,09S) RH |
1 | ||
| 46487-27031 |
CM20,KM20,YM2# LH |
1 | ||
| 46487-27040 |
KM20..VSP..02S;KM20..(HRF,SRF)..(03S,05S,06S,09S) LH |
1 | ||
| 46467-27031 |
CM20;KM20..VSP..02S;KM20..03S,05S,06S,08S,09S RH |
1 | ||
| 46467-27032 |
CM20,YM2#;KM20..V4D..02S;KM20..03S,05S,06S,08S,09S RH |
1 | ||
| 46487-27040 |
KM20..LHD..VSP..EUR;KM20..RHD..(HRF,SRF);KM20..LHD..(03S,05S,06S,07S,09S) LH |
1 | ||
| 46467-27040 |
KM20..VSP..02S;KM20..(HRF,SRF)..(03S,05S,06S,09S) RH |
1 | ||
| 46467 - CLAMP, CABLE | ||||
| 46467-27040 |
KM20..LHD..VSP..EUR;KM20..RHD..(HRF,SRF);KM20..LHD..(03S,05S,06S,07S,09S) RH |
1 | ||
| 46487-27031 |
CM20,KM20,YM2# LH |
1 | ||
| 46487-27040 |
KM20..VSP..02S;KM20..(HRF,SRF)..(03S,05S,06S,09S) LH |
1 | ||
| 46467-27031 |
CM20;KM20..VSP..02S;KM20..03S,05S,06S,08S,09S RH |
1 | ||
| 46467-27032 |
CM20,YM2#;KM20..V4D..02S;KM20..03S,05S,06S,08S,09S RH |
1 | ||
| 46487-27040 |
KM20..LHD..VSP..EUR;KM20..RHD..(HRF,SRF);KM20..LHD..(03S,05S,06S,07S,09S) LH |
1 | ||
| 46467-27040 |
KM20..VSP..02S;KM20..(HRF,SRF)..(03S,05S,06S,09S) RH |
1 | ||
| 46467 - CLAMP, CABLE | ||||
| 46467-27040 |
KM20..LHD..VSP..EUR;KM20..RHD..(HRF,SRF);KM20..LHD..(03S,05S,06S,07S,09S) RH |
1 | ||
| 46487-27031 |
CM20,KM20,YM2# LH |
1 | ||
| 46487-27040 |
KM20..VSP..02S;KM20..(HRF,SRF)..(03S,05S,06S,09S) LH |
1 | ||
| 46467-27031 |
CM20;KM20..VSP..02S;KM20..03S,05S,06S,08S,09S RH |
1 | ||
| 46467-27032 |
CM20,YM2#;KM20..V4D..02S;KM20..03S,05S,06S,08S,09S RH |
1 | ||
| 46487-27040 |
KM20..LHD..VSP..EUR;KM20..RHD..(HRF,SRF);KM20..LHD..(03S,05S,06S,07S,09S) LH |
1 | ||
| 46467-27040 |
KM20..VSP..02S;KM20..(HRF,SRF)..(03S,05S,06S,09S) RH |
1 | ||
| 46467 - CLAMP, CABLE | ||||
| 46467-27040 |
KM20..LHD..VSP..EUR;KM20..RHD..(HRF,SRF);KM20..LHD..(03S,05S,06S,07S,09S) RH |
1 | ||
| 46487-27031 |
CM20,KM20,YM2# LH |
1 | ||
| 46487-27040 |
KM20..VSP..02S;KM20..(HRF,SRF)..(03S,05S,06S,09S) LH |
1 | ||
| 46467-27031 |
CM20;KM20..VSP..02S;KM20..03S,05S,06S,08S,09S RH |
1 | ||
| 46467-27032 |
CM20,YM2#;KM20..V4D..02S;KM20..03S,05S,06S,08S,09S RH |
1 | ||
| 46487-27040 |
KM20..LHD..VSP..EUR;KM20..RHD..(HRF,SRF);KM20..LHD..(03S,05S,06S,07S,09S) LH |
1 | ||
| 46467-27040 |
KM20..VSP..02S;KM20..(HRF,SRF)..(03S,05S,06S,09S) RH |
1 | ||
| Common parts | ||||
| 46467-27021 | ||||
| 90119-08165 | ||||
| 90461-08478 | ||||
| 90461-10485 | ||||
| 90461-10486 | ||||
| 90461-12083 | ||||
| 91611-40812 | ||||
| 91611-40814 | ||||
| 91611-40818 | ||||
(8405- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46101 - HANDLE SUB-ASSY, PARKING BRAKE CONTROL | ||||
| 46101-26030 |
CM20,KM20..RHD..(EUR,GEN) |
1 | ||
| 46120-27010 |
CM20,KM20,YM2#..RHD |
1 | ||
| 46103 - GUIDE SUB-ASSY, PARKING BRAKE PLUNGER | ||||
| 46103-27020 |
KM20..RHD..(EUR,GEN) |
1 | ||
| 46103-27021 |
CM20,KM20,YM2#..RHD |
1 | ||
| 46103-27021 |
CM20,KM20..RHD..(EUR,GEN) |
1 | ||
| 46110A - BUSH OR RING, O (FOR PARKING BRAKE PLUNGER) | ||||
| 90386-12048 |
CM20,KM20,YM2# |
1 | ||
| 46114 - PIN, PARKING BRAKE PLUNGER | ||||
| 46114-20010 |
CM20,KM20,YM2# |
1 | ||
| 46144 - ANTI-RATTLE, PARKING BRAKE PLUNGER | ||||
| 46144-20010 |
CM20,KM20,YM2# |
1 | ||
| 46275 - PLATE, PARKING BRAKE RELEASE CAUTION | ||||
| 46275-26010 |
CM20,YM2#;KM20..V4D..02S;KM20..03S,05S,06S,08S,09S |
1 | ||
| 46304 - EQUALIZER SUB-ASSY, PARKING BRAKE | ||||
| 46341-27010 |
CM20,KM20,YM2#..HRF,SRF |
1 | ||
| 46311 - PAWL, PARKING BRAKE | ||||
| 46311-30041 |
CM20,YM2#;KM20..VSP..02S;KM20..03S,05S,06S,07S,08S,09S |
2 | ||
| 46311-26010 |
CM20,YM2#;KM20..V4D..02S;KM20..03S,05S,06S,08S,09S |
2 | ||
| 46311A - SPRING(FOR PARKING BRAKE PAWL) | ||||
| 90508-08106 |
CM20..EUR,GEN;KM20..VSP..EUR;KM20..(03S,05S,06S,07S,08S,09S)..(EUR,GEN) |
1 | ||
| 90508-08106 |
CM20,YM2#;KM20..V4D..02S;KM20..03S,05S,06S,08S,09S |
1 | ||
| 46311B - PIN, PARKING BRAKE PAWL PIVOT | ||||
| 46313-40010 |
CM20,KM20,YM2# |
1 | ||
| 46321 - LEVER, PARKING BRAKE INTERMEDIATE | ||||
| 46321-27020 |
CM20,KM20,YM2#..HRF,SRF |
1 | ||
| 46321A - SPRING, TENSIION(FOR PARKING BRAKE INTERMEDIATE LEVER) | ||||
| 90506-20026 |
CM20,KM20,YM2#..HRF,SRF |
1 | ||
| 46361 - ROD, PARKING BRAKE PULL | ||||
| 46361-27020 |
CM20,KM20,YM2#..HRF,SRF |
1 | ||
| 46410 - CABLE ASSY, PARKING BRAKE, NO.1 | ||||
| 46410-27062 |
CM20,KM20,YM2#..RHD |
1 | ||
| 46410-27061 |
KM20..RHD..(HRF,SRF) |
1 | ||
| 46410-27060 |
KM20..RHD..V |
1 | ||
| 46420 - CABLE ASSY, PARKING BRAKE, NO.2 | ||||
| 46420-27050 |
KM20..LHD..VSP..EUR;KM20..RHD..(HRF,SRF);KM20..LHD..(03S,05S,06S,07S,09S) |
1 | ||
| 46420-27051 |
CM20,KM20,YM2# |
1 | ||
| 46420-27050 |
KM20..VSP..02S;KM20..(HRF,SRF)..(03S,05S,06S,09S) |
1 | ||
| 46420C - PIN, W/HOLE(FOR PARKING BRAKE CABLE) | ||||
| 90240-06032 |
CM20,KM20,YM2# |
1 | ||
| 46430 - CABLE ASSY, PARKING BRAKE, NO.3 | ||||
| 46430-27050 |
KM20..LHD..VSP..EUR;KM20..RHD..(HRF,SRF);KM20..LHD..(03S,05S,06S,07S,09S) |
1 | ||
| 46430-27051 |
CM20,KM20,YM2# |
1 | ||
| 46430-27050 |
KM20..VSP..02S;KM20..(HRF,SRF)..(03S,05S,06S,09S) |
1 | ||
| 46438 - INSULATOR, PARKING CABLE DUST COVER HEAT | ||||
| 46438-27010 |
CM20,KM20,YM2# |
1 | ||
| 46438-27010 |
KM20..LHD..VSP..EUR;KM20..RHD..(HRF,SRF);KM20..LHD..(03S,05S,06S,07S,09S) |
1 | ||
| 46438-27010 |
KM20..VSP..02S;KM20..(HRF,SRF)..(03S,05S,06S,09S) |
1 | ||
| 46441 - NUT, WIRE ADJUSTING, NO.1 | ||||
| 94120-40800 |
CM20,KM20,YM2# |
1 | ||
| 46464 - PLATE, CABLE CLAMP SUPPORT | ||||
| 46464-27010 |
KM20..RHD |
1 | ||
| 46471 - PULLEY, WIRE | ||||
| 46471-20010 |
CM20,KM20,YM2# |
1 | ||
| 46471B - PIN, W/HOLE(FOR WIRE PULLEY SET) | ||||
| 90240-08017 |
CM20,KM20,YM2# |
1 | ||
| Common parts | ||||
| 90179-08020 | ||||
| 90206-08016 | ||||
| 90468-08001 | ||||
| 91611-40812 | ||||
| 91611-40814 | ||||
| 91651-40820 | ||||
| 94612-10701 | ||||
| 95381-02020 | ||||
| 95381-02520 | ||||
| 95381-03015 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
