KM20RV-JRBEW (1979)

Toyota Liteace

Production Oct 1979 - Aug 1985
Engine 4K
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7910-8210) ; (8210- )LHD

Click highlighted areas on diagram

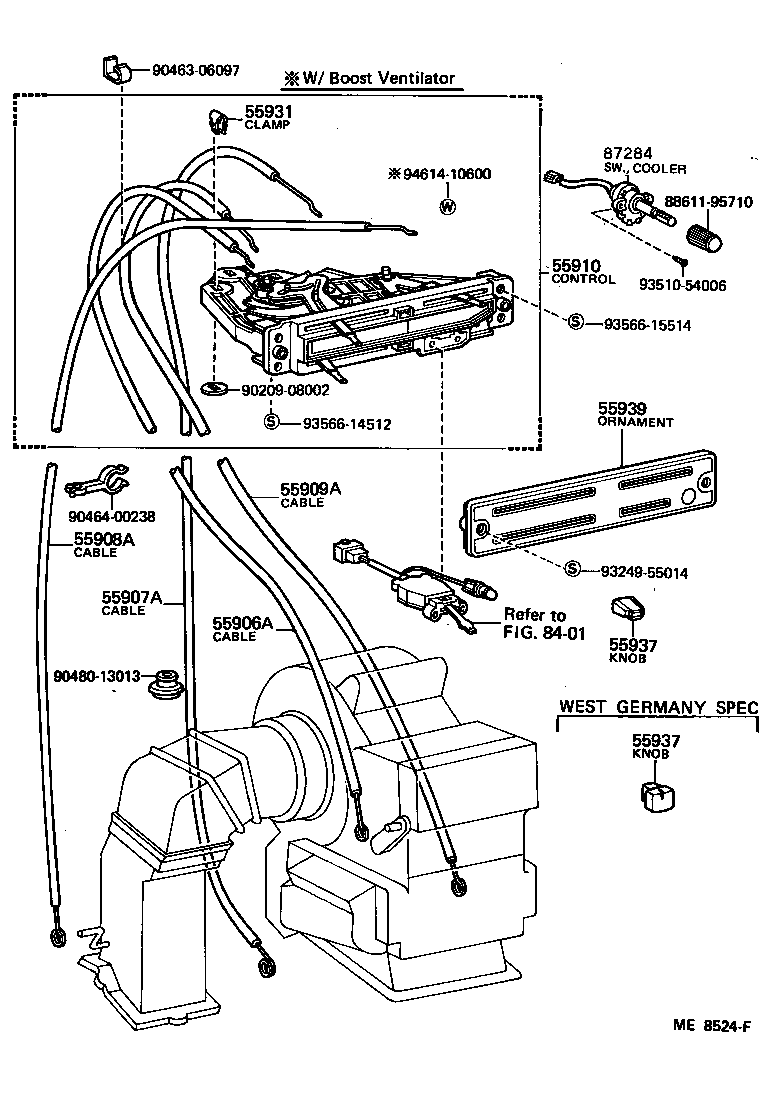

diagram 55906A 55907A 55908A 55909A 55910 55931 55937 55937 55939 8401 87284 8861195710 9020908002 9046306097 9046400238 9048013013 9324955014 9351054006 9356614512 9356615514 9461410600
Part # Description Qty Price
55906A - CABLE SUB-ASSY, DEFROSTER DAMPER CONTROL
55906-95704

KM20..RHD

L=570

 1
55906-95706

CM20,KM20,YM2#..RHD

 1
55907A - CABLE SUB-ASSY, WATER VALVE CONTROL
55907-95702

KM20..RHD

L=850

 1
55907-95707

CM20,KM20,YM2#..RHD

 1
55908A - CABLE SUB-ASSY, AIR INLET DAMPER CONTROL
55908-95702

KM20..RHD

L=890

 1
55908-95704

CM20,KM20,YM2#..RHD

 1
55909A - CABLE SUB-ASSY, AIRMIX DAMPER CONTROL
55909-95701

KM20..VSP..02S;KM20..03S,05S,06S,07S,08S,09S

L=610

 1
55909-95702

CM20,KM20,YM2#..RHD

 1
55910 - CONTROL ASSY, HEATER OR BOOST VENTILATOR
55910-95704

KM20..RHD

 1
55910-95706

KM20..RHD

 1
55910-95713

CM20,KM20,YM2#..RHD

 1
55931 - CLAMP, HEATER CONTROL WIRE
55933-14020

KM20..VSP..02S;KM20..03S,05S,06S,07S,08S,09S

 4
55937 - KNOB, HEATER CONTROL LEVER
55905-95702

KM20..VSP..02S;KM20..03S,05S,06S,07S,08S,09S

 4
55905-12070

CM20,KM20,YM2#

 4
55937 - KNOB, HEATER CONTROL LEVER
55905-95702

KM20..VSP..02S;KM20..03S,05S,06S,07S,08S,09S

 4
55905-12070

CM20,KM20,YM2#

 4
55939 - ORNAMENT, HEATER CONTROL
55519-95702

KM20..RHD

 1
55519-95700

KM20..RHD

 1
55519-95711

CM20,KM20..RHD

W/BOOST VENTILATOR

 1
55519-95714

CM20,KM20,YM2#..RHD

 1
55519-95710

CM20,KM20..RHD

 1
55519-95715

CM20,KM20..RHD

BOOST VENTILATOR

 1
Common parts
88611-95710
90209-08002
90463-06097
90464-00238
90480-13013
93249-55014
93510-54006
93566-14512
93566-15514
94614-10600
Linked diagrams
8401

(8210- )RHD

Click highlighted areas on diagram

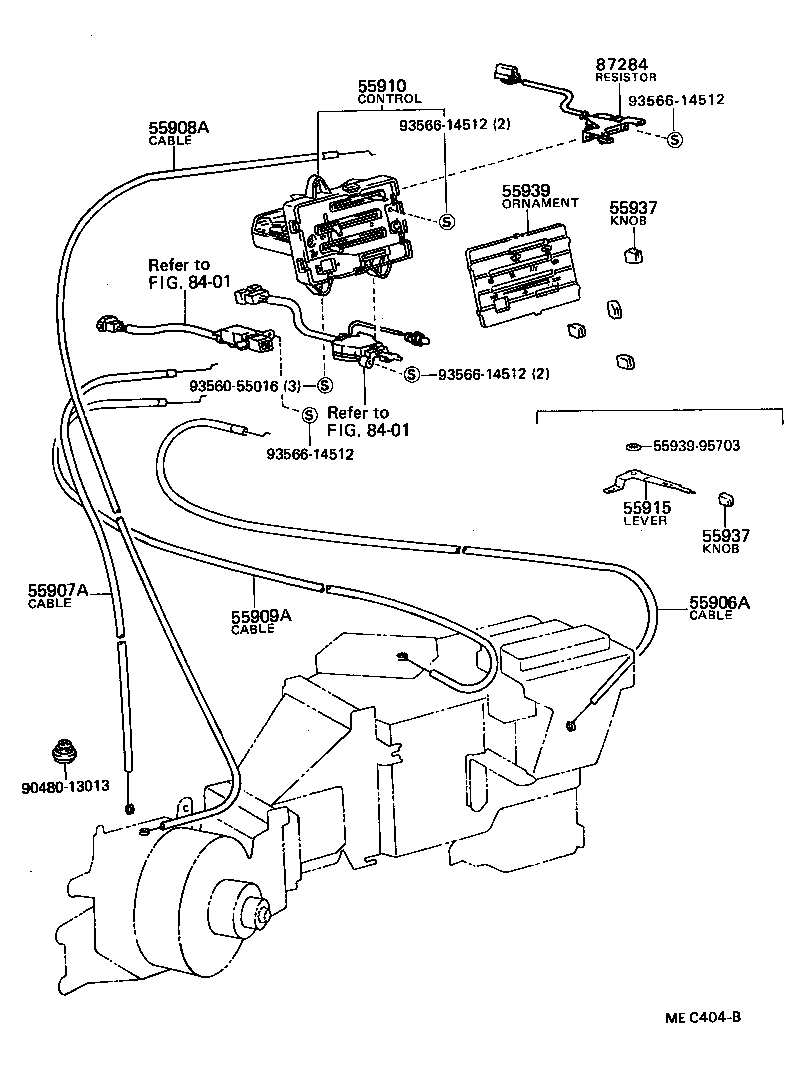

diagram 55906A 55907A 55908A 55909A 55910 55915 55937 55937 55939 5593995703 8401 8401 87284 9048013013 9356055016 9356614512 9356614512 9356614512 9356614512
Part # Description Qty Price
55906A - CABLE SUB-ASSY, DEFROSTER DAMPER CONTROL
55906-95704

KM20..RHD

L=570

 1
55906-95706

CM20,KM20,YM2#..RHD

 1
55907A - CABLE SUB-ASSY, WATER VALVE CONTROL
55907-95702

KM20..RHD

L=850

 1
55907-95707

CM20,KM20,YM2#..RHD

 1
55908A - CABLE SUB-ASSY, AIR INLET DAMPER CONTROL
55908-95702

KM20..RHD

L=890

 1
55908-95704

CM20,KM20,YM2#..RHD

 1
55909A - CABLE SUB-ASSY, AIRMIX DAMPER CONTROL
55909-95701

KM20..VSP..02S;KM20..03S,05S,06S,07S,08S,09S

L=610

 1
55909-95702

CM20,KM20,YM2#..RHD

 1
55910 - CONTROL ASSY, HEATER OR BOOST VENTILATOR
55910-95704

KM20..RHD

 1
55910-95706

KM20..RHD

 1
55910-95713

CM20,KM20,YM2#..RHD

 1
55937 - KNOB, HEATER CONTROL LEVER
55905-95702

KM20..VSP..02S;KM20..03S,05S,06S,07S,08S,09S

 4
55905-12070

CM20,KM20,YM2#

 4
55937 - KNOB, HEATER CONTROL LEVER
55905-95702

KM20..VSP..02S;KM20..03S,05S,06S,07S,08S,09S

 4
55905-12070

CM20,KM20,YM2#

 4
55939 - ORNAMENT, HEATER CONTROL
55519-95702

KM20..RHD

 1
55519-95700

KM20..RHD

 1
55519-95711

CM20,KM20..RHD

W/BOOST VENTILATOR

 1
55519-95714

CM20,KM20,YM2#..RHD

 1
55519-95710

CM20,KM20..RHD

 1
55519-95715

CM20,KM20..RHD

BOOST VENTILATOR

 1
Common parts
55939-95703
90480-13013
93560-55016
93566-14512
Linked diagrams
8401

(8210- )RHD

Click highlighted areas on diagram

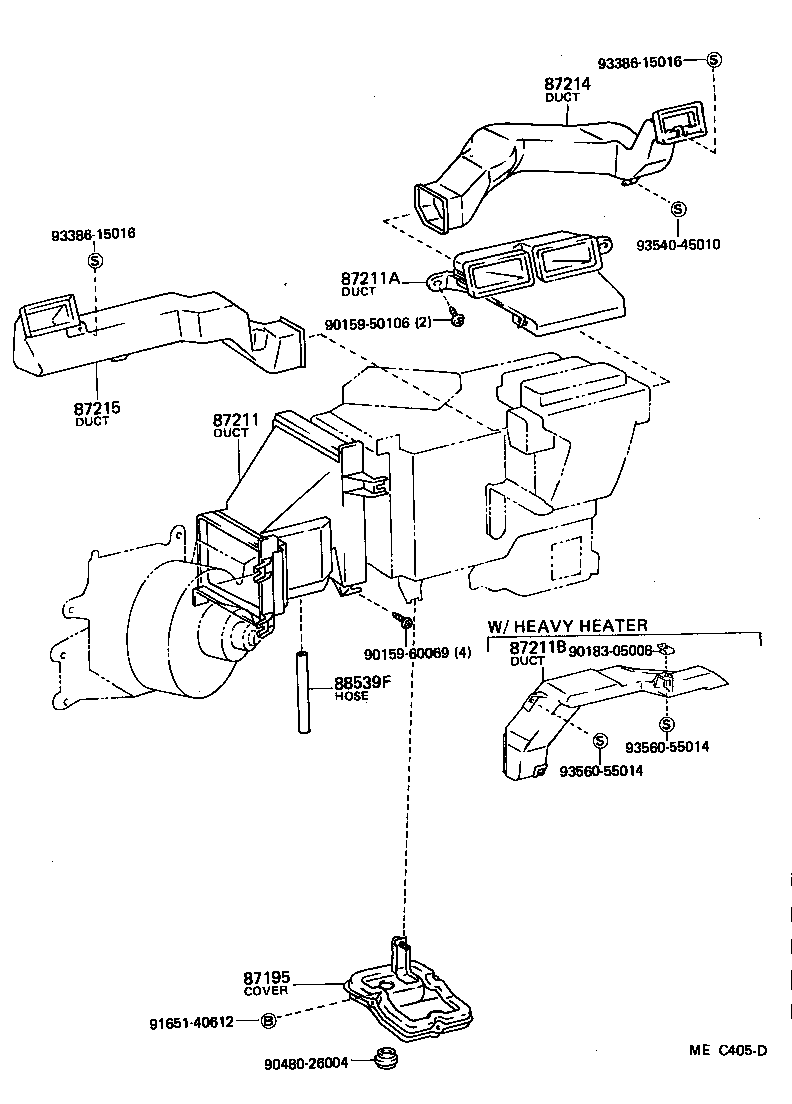

diagram 87195 87211 87211A 87211B 87214 87215 88539F 9015950106 9015960069 9018305008 9048026004 9165140612 9338615016 9338615016 9354045010 9356055014 9356055014
Part # Description Qty Price
87195 - COVER, HOLE
87195-95703

CM20,KM20,YM2#..RHD

 1
87211 - DUCT, AIR, NO.1
87211-95701

CM20,KM20,YM2#..RHD

 1
87211A - DUCT, AIR, NO.2
87201-95700

KM20..RHD

 1
55086-95700

CM20,KM20,YM2#..RHD

 1
87214 - DUCT, AIR, SIDE NO.1 RH
55084-95700

CM20,KM20,YM2#..RHD

 1
87215 - DUCT, AIR, SIDE NO.1 LH
55085-95700

CM20,KM20,YM2#..RHD

 1
88539F - HOSE, DRAIN
88539-14010

CM20,KM20,YM2#..RHD

 1
Common parts
90159-50106
90159-60069
90183-05008
90480-26004
91651-40612
93386-15016
93540-45010
93560-55014

(7910-8210)RHD

Click highlighted areas on diagram

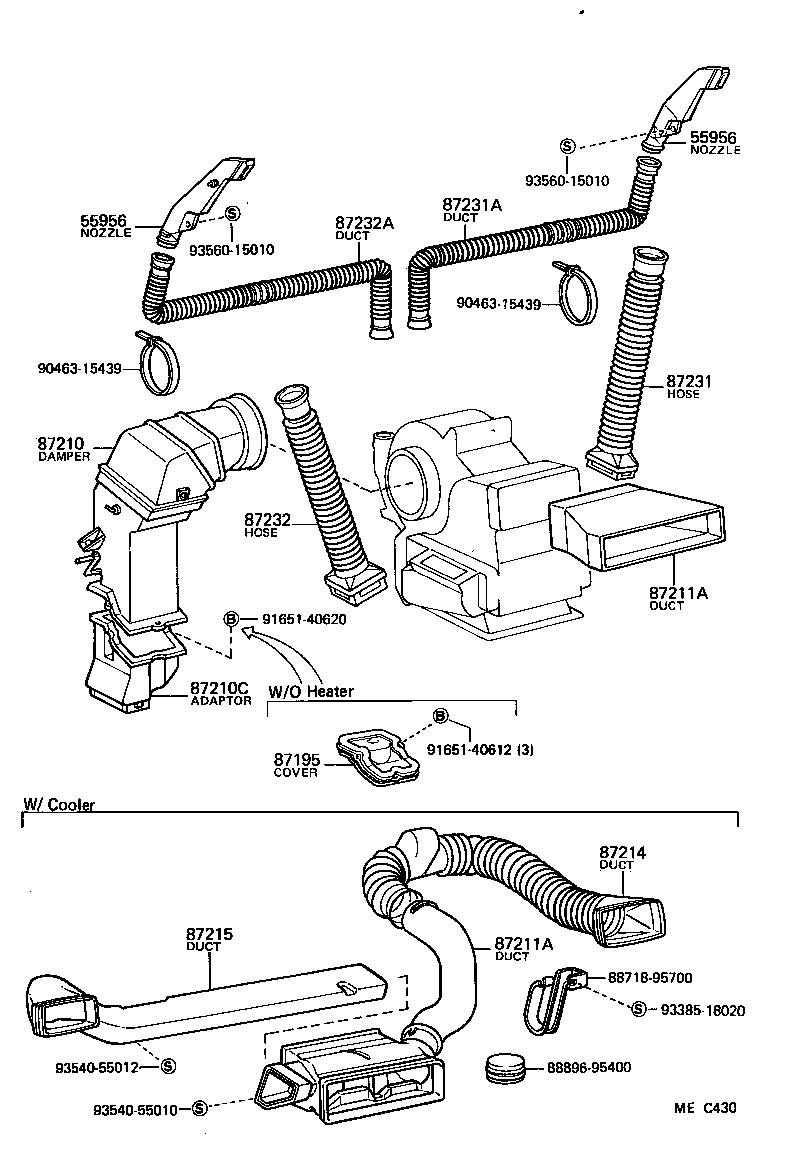

diagram 55956 55956 87195 87210 87210C 87211A 87211A 87214 87215 87231 87231A 87232 87232A 8871895700 8889695400 9046315439 9046315439 9165140612 9165140620 9338518020 9354055010 9354055012 9356015010 9356015010
Part # Description Qty Price
55956 - NOZZLE, SIDE DEFROSTER
87205-9570006

KM20..4F;KM20..SRF..4H..EUR;KM20..HRF..VSP..4H..EUR;KM20..HRF..4H..(05S,07S)..EUR

RH,BROWN,BROWN

 1
87206-9570006

KM20..4F;KM20..SRF..4H..EUR;KM20..HRF..VSP..4H..EUR;KM20..HRF..4H..(05S,07S)..EUR

LH,BROWN,BROWN

 1
55956 - NOZZLE, SIDE DEFROSTER
87205-9570006

KM20..4F;KM20..SRF..4H..EUR;KM20..HRF..VSP..4H..EUR;KM20..HRF..4H..(05S,07S)..EUR

RH,BROWN,BROWN

 1
87206-9570006

KM20..4F;KM20..SRF..4H..EUR;KM20..HRF..VSP..4H..EUR;KM20..HRF..4H..(05S,07S)..EUR

LH,BROWN,BROWN

 1
87195 - COVER, HOLE
87195-95703

CM20,KM20,YM2#..RHD

 1
87210 - DAMPER ASSY, AIR
87210-95700

KM20..RHD

 1
87210C - ADAPTER, HEATER AIR DAMPER
87203-95700

KM20..RHD..V

 1
87211A - DUCT, AIR, NO.2
87201-95700

KM20..RHD

 1
55086-95700

CM20,KM20,YM2#..RHD

 1
87211A - DUCT, AIR, NO.2
87201-95700

KM20..RHD

 1
55086-95700

CM20,KM20,YM2#..RHD

 1
87214 - DUCT, AIR, SIDE NO.1 RH
55084-95700

CM20,KM20,YM2#..RHD

 1
87215 - DUCT, AIR, SIDE NO.1 LH
55085-95700

CM20,KM20,YM2#..RHD

 1
87231 - HOSE, HEATER DEFROSTER, RH
87231-95401

KM20..VSP..02S;KM20..03S,05S,06S,07S,08S,09S

 1
87231A - DUCT, HEATER DEFROSTER, SIDE NO.1 RH
87202-95700

KM20..4F;KM20..SRF..4H..EUR;KM20..HRF..VSP..4H..EUR;KM20..HRF..4H..(05S,07S)..EUR

 1
87232 - HOSE, HEATER DEFROSTER, LH
87231-95401

KM20..VSP..02S;KM20..03S,05S,06S,07S,08S,09S

 1
87232A - DUCT, HEATER DEFROSTER, SIDE NO.1 LH
87202-95700

KM20..4F;KM20..SRF..4H..EUR;KM20..HRF..VSP..4H..EUR;KM20..HRF..4H..(05S,07S)..EUR

 1
Common parts
88718-95700
88896-95400
90463-15439
91651-40612
91651-40620
93385-18020
93540-55010
93540-55012
93560-15010
