KM20RV-JRBEW (1979)

Toyota Liteace

Production Oct 1979 - Aug 1985
Engine 4K
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7910- )HRF,SRF

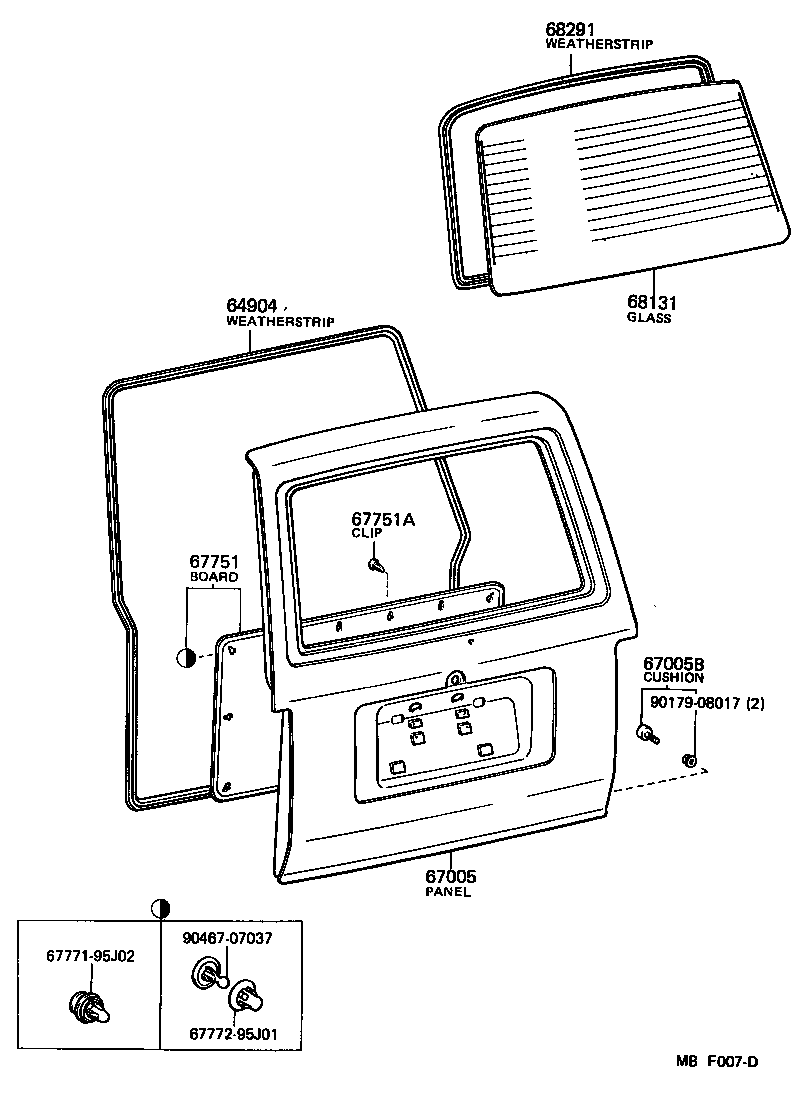

Click highlighted areas on diagram

diagram 64904 67005 67005B 67751 67751A 6777195J02 6777295J01 68131 68291 9017908017 9046707037
Part # Description Qty Price
64904 - WEATHERSTRIP SUB-ASSY, BACK DOOR
67875-95702

KM20..LHD..VSP..EUR;KM20..RHD..(HRF,SRF);KM20..LHD..(03S,05S,06S,07S,09S)

 1
67875-95706

CM20,KM20,YM2#..HRF,SRF

 1
67005 - PANEL SUB-ASSY, BACK DOOR
67005-95714

KM20..4F..STD;KM20..SRF..4H..EUR;KM20..HRF..VSP..4H..EUR;KM20..HRF..4H..(05S,07S)..EUR

W/*RW

 1
67005-95712

KM20..4F..STD;KM20..SRF..4H..EUR;KM20..HRF..VSP..4H..EUR;KM20..HRF..4H..(05S,07S)..EUR

 1
67005-95715

KM20..4F;KM20..SRF..4H..EUR;KM20..HRF..VSP..4H..EUR;KM20..HRF..4H..(05S,07S)..EUR

W/*RW,*DEF

 1
67005-95730

CM20,KM20..V..EUR

 1
67005-95713

KM20..4F..STD;KM20..SRF..4H..EUR;KM20..HRF..VSP..4H..EUR;KM20..HRF..4H..(05S,07S)..EUR

W/*DEF

 1
67005-95732

CM20,KM20..V..EUR

W/*RW

 1
67005B - CUSHION(FOR BACK DOOR PANEL)
69406-95701

CM20,KM20,YM2#..HRF,SRF

 2
67751 - BOARD, BACK DOOR TRIM
64780-9570106

KM20..4F..STD;KM20..SRF..4H..EUR;KM20..HRF..VSP..4H..EUR;KM20..HRF..4H..(05S,07S)..EUR

W/RR WIPER,BROWN,BROWN

 1
64780-9570006

KM20..VSP..02S;KM20..(HRF,SRF)..(03S,05S,06S,07S,08S,09S)..STD

BROWN,BROWN

 1
64780-95717

CM20,YM21..V4D;KM20..02S..ARL;KM20..V..(EUR,GEN)

 1
64780-95716

CM20,KM20..V..EUR

W/RR WIPER

 1
67751A - CLIP(FOR BACK DOOR TRIM BOARD)
90467-1003405

CM20;KM20..V..4F;KM20..LHD..V..GEN;KM20..RHD..(02S,03S,06S)

BEIGE,REDDISH BROWN

 16
68131 - GLASS, BACK DOOR
68131-95706

KM20..4F;KM20..SRF..4H..EUR;KM20..HRF..VSP..4H..EUR;KM20..HRF..4H..(05S,07S)

*EHT,T=4.0

 1
68131-95705

CM20;KM20..VSP..02S;KM20..(HRF,SRF)..(03S,05S,06S,07S,08S,09S)..STD

*TEM,T=4.0

 1
68131-95705

CM20..EUR,GEN;KM20..V4D..02S..EUR;KM20..(03S,05S,06S,08S,09S)..(EUR,GEN)

*TEM,T=4.0

 1
68131-95710

CM20,KM20..EUR

*EHT,T=4.0

 1
68291 - WEATHERSTRIP, BACK DOOR GLASS
68291-95702

CM20,KM20,YM2#..(HRF,SRF)..STD

 1
Common parts
67771-95J02
67772-95J01
90179-08017
90467-07037
