KM20RV-JRBEQ (1981)

Toyota Liteace

Production Mar 1981 - Aug 1985
Engine 4K 4KC
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7910-8210) ; (8210- )LHD

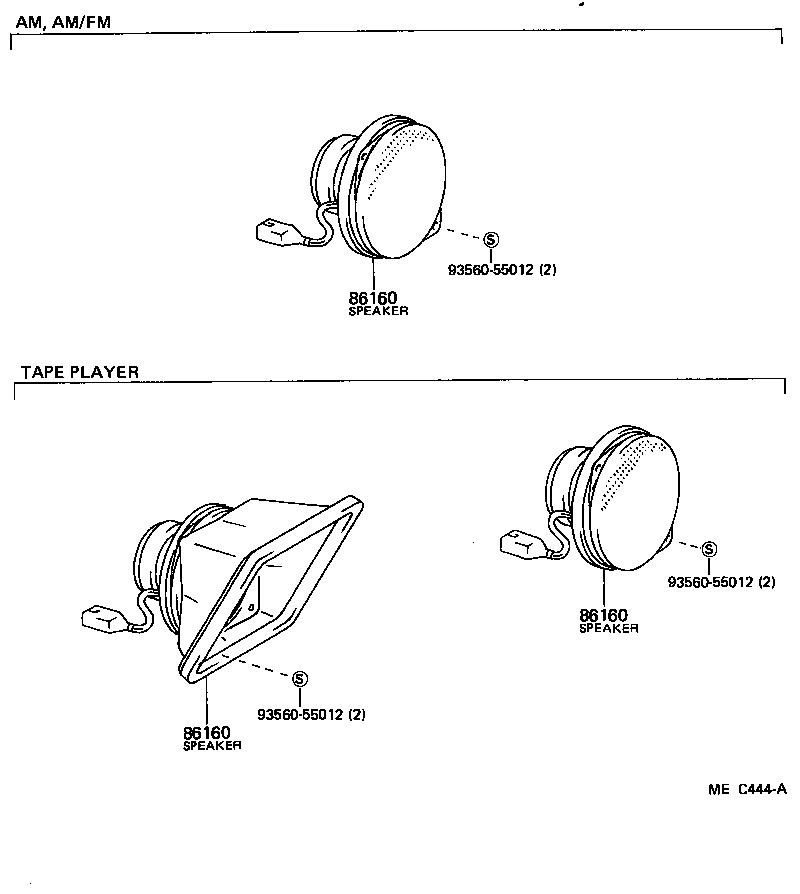

Click highlighted areas on diagram

diagram 8271195701 8271195701 86160 86160 86160 86202 86202 86202A 86262A 86262A 86264 86264 9017906070 9018303033 9018303033 9018906018 9018906018 9046108183 9046108183 9359016014 9359016014
Part # Description Qty Price
86160 - SPEAKER ASSY, FRONT NO.1
86160-95700

KM20..VSP..02S;KM20..03S,05S,06S,07S,08S,09S

 1
86160-19565

CM20,KM20,YM21..RHD

 1
86160-32070

CM20,KM20,YM21..RHD..(ARL,GEN)

RH,W/TAPE PEAYER

 1
86160-95710

CM20,KM20,YM21..RHD..(ARL,GEN)

LH,W/TAPE PLAYER

 1
86160 - SPEAKER ASSY, FRONT NO.1
86160-95700

KM20..VSP..02S;KM20..03S,05S,06S,07S,08S,09S

 1
86160-19565

CM20,KM20,YM21..RHD

 1
86160-32070

CM20,KM20,YM21..RHD..(ARL,GEN)

RH,W/TAPE PEAYER

 1
86160-95710

CM20,KM20,YM21..RHD..(ARL,GEN)

LH,W/TAPE PLAYER

 1
86160 - SPEAKER ASSY, FRONT NO.1
86160-95700

KM20..VSP..02S;KM20..03S,05S,06S,07S,08S,09S

 1
86160-19565

CM20,KM20,YM21..RHD

 1
86160-32070

CM20,KM20,YM21..RHD..(ARL,GEN)

RH,W/TAPE PEAYER

 1
86160-95710

CM20,KM20,YM21..RHD..(ARL,GEN)

LH,W/TAPE PLAYER

 1
Common parts
82711-95701
90179-06070
90183-03033
90189-06018
90461-08183
93590-16014

(8210- )RHD

Click highlighted areas on diagram

diagram 86160 86160 86160 9356055012 9356055012 9356055012
Part # Description Qty Price
86160 - SPEAKER ASSY, FRONT NO.1
86160-95700

KM20..VSP..02S;KM20..03S,05S,06S,07S,08S,09S

 1
86160-19565

CM20,KM20,YM21..RHD

 1
86160-32070

CM20,KM20,YM21..RHD..(ARL,GEN)

RH,W/TAPE PEAYER

 1
86160-95710

CM20,KM20,YM21..RHD..(ARL,GEN)

LH,W/TAPE PLAYER

 1
86160 - SPEAKER ASSY, FRONT NO.1
86160-95700

KM20..VSP..02S;KM20..03S,05S,06S,07S,08S,09S

 1
86160-19565

CM20,KM20,YM21..RHD

 1
86160-32070

CM20,KM20,YM21..RHD..(ARL,GEN)

RH,W/TAPE PEAYER

 1
86160-95710

CM20,KM20,YM21..RHD..(ARL,GEN)

LH,W/TAPE PLAYER

 1
86160 - SPEAKER ASSY, FRONT NO.1
86160-95700

KM20..VSP..02S;KM20..03S,05S,06S,07S,08S,09S

 1
86160-19565

CM20,KM20,YM21..RHD

 1
86160-32070

CM20,KM20,YM21..RHD..(ARL,GEN)

RH,W/TAPE PEAYER

 1
86160-95710

CM20,KM20,YM21..RHD..(ARL,GEN)

LH,W/TAPE PLAYER

 1
Common parts
93560-55012
