KM20RV-JRBE (1979)

Toyota Liteace

Production Oct 1979 - Aug 1985
Engine 4K
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7910- )4K

Click highlighted areas on diagram

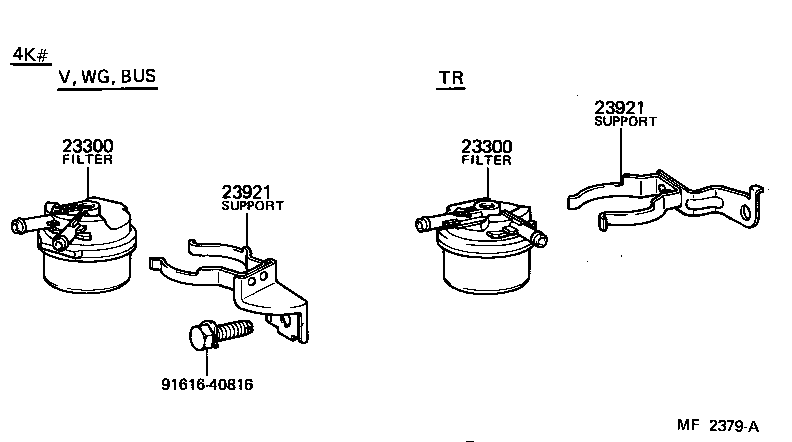

diagram 23300 23300 23921 23921 9161640816
Part # Description Qty Price
23300 - FILTER ASSY, FUEL
23300-34100

4K..KM20..HRF,SRF

 1
23300 - FILTER ASSY, FUEL
23300-34100

4K..KM20..HRF,SRF

 1
23921 - SUPPORT, FUEL FILTER
90461-10452

4K..KM20..HRF,SRF

 1
23921 - SUPPORT, FUEL FILTER
90461-10452

4K..KM20..HRF,SRF

 1
Common parts
91616-40816
