KM20RV-JRBE (1979)
Toyota Liteace
Production
Oct 1979
-
Aug 1985
Engine
4K
Transmission
4H MTM
Displacement
2500cc
Power
168 HP (125 kW)
(7910- )4K

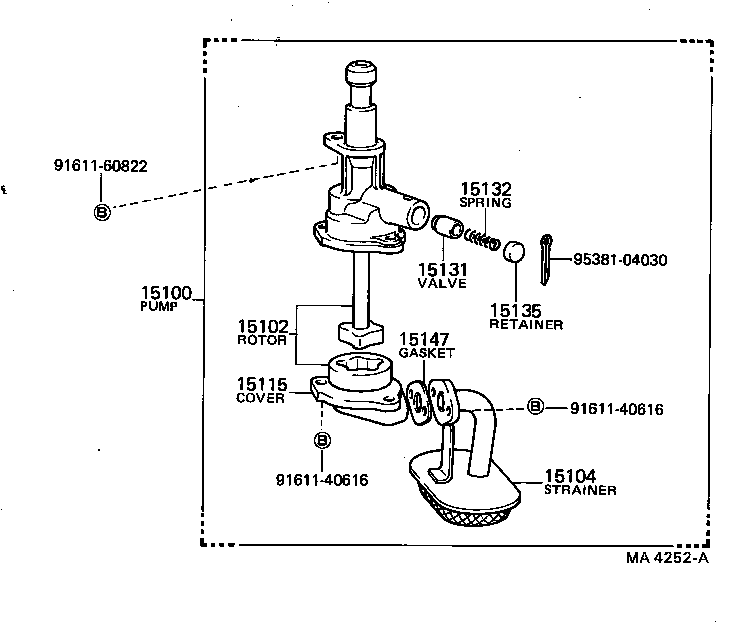

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 15100 - PUMP ASSY, OIL | ||||
| 15100-24013 |
4K..KM20 |
1 | ||
| 15102 - ROTOR SET, OIL PUMP | ||||
| 15102-24010 |
4K..KM20 |
1 | ||
| 15104 - STRAINER SUB-ASSY, OIL | ||||
| 15104-22011 |
4K..KM20 |
1 | ||
| 15115 - COVER, OIL PUMP | ||||
| 15115-22010 |
4K..KM20 |
1 | ||
| 15131 - VALVE, OIL PUMP RELIEF | ||||
| 15131-24010 |
4K..KM20 |
1 | ||
| 15132 - SPRING, OIL PUMP RELIEF VALVE | ||||
| 15132-40010 |
4K..KM20 |
1 | ||
| 15135 - RETAINER, OIL PUMP RELIEF VALVE | ||||
| 15135-13010 |
4K..KM20 |
1 | ||
| 15147 - GASKET, OIL STRAINER | ||||
| 15147-40010 |
4K..KM20 |
1 | ||
| Common parts | ||||
| 91611-40616 | ||||
| 91611-60822 | ||||
| 95381-04030 | ||||
