KM20RV-JR (1979)
Toyota Liteace

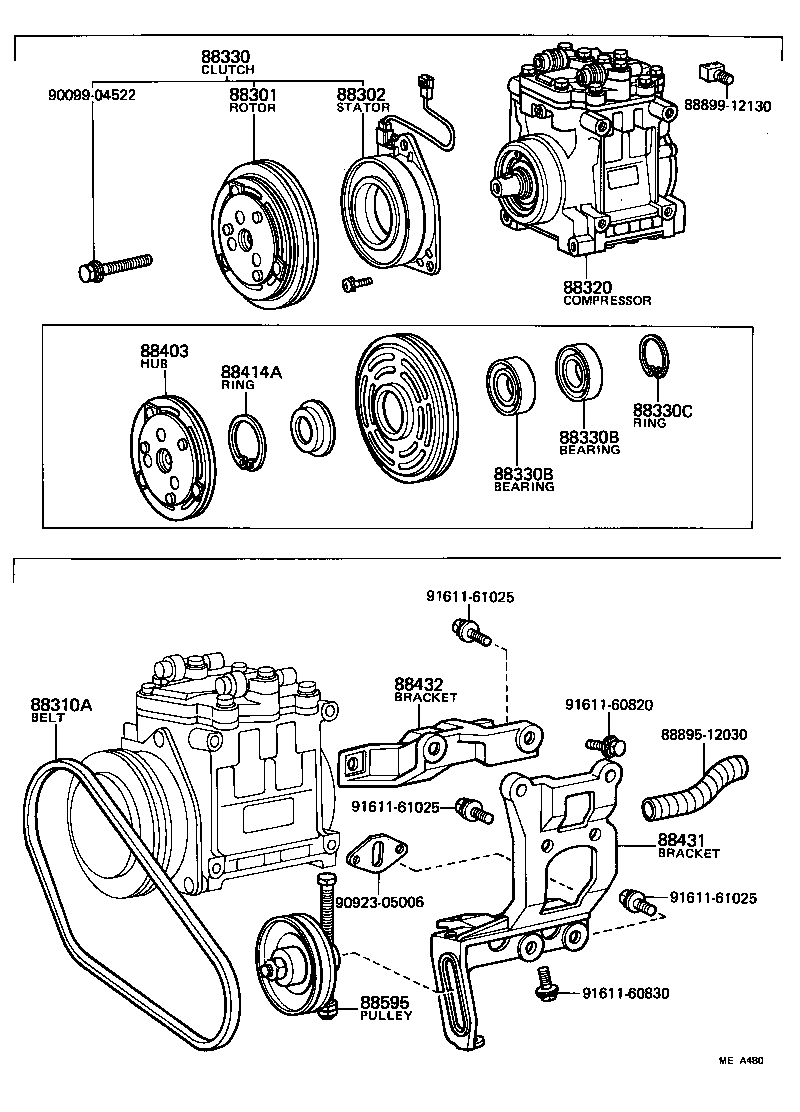

(8101-8210)HRF,SRF..GEN ; (8210- )LHD..GEN
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88301 - ROTOR SUB-ASSY, MAGNET CLUTCH | ||||
| 88401-14060 |
KM20..(HRF,SRF)..GEN |
1 | ||
| 88412-14030 |
KM20..RHD..GEN |
1 | ||
| 88302 - STATOR SUB-ASSY, MAGNET CLUTCH | ||||
| 88411-14060 |
KM20..RHD..GEN |
1 | ||
| 88411-12050 |
KM20..(HRF,SRF)..GEN |
1 | ||
| 88310A - BELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1 | ||||
| 99322-00950 |
KM20..(HRF,SRF)..GEN |
1 | ||
| 99322-50950 |
KM20..GEN |
1 | ||
| 99322-00950 |
KM20..RHD..GEN W/HEATER |
1 | ||
| 88320 - COMPRESSOR ASSY, COOLER | ||||
| 88320-28050 |
KM20..RHD..GEN |
1 | ||
| 88320-27020 |
KM20..(HRF,SRF)..GEN |
1 | ||
| 88330 - CLUTCH ASSY, MAGNET | ||||
| 88410-14110 |
KM20..RHD..GEN |
1 | ||
| 88410-14050 |
KM20..(HRF,SRF)..GEN |
1 | ||
| 88330B - BEARING, MAGNET CLUTCH | ||||
| 90099-10083 |
KM20..(HRF,SRF)..GEN |
2 | ||
| 90099-10135 |
KM20..RHD..GEN |
1 | ||
| 88330B - BEARING, MAGNET CLUTCH | ||||
| 90099-10083 |
KM20..(HRF,SRF)..GEN |
2 | ||
| 90099-10135 |
KM20..RHD..GEN |
1 | ||
| 88330C - RING, SNAP (FOR MAGNET CLUTCH) | ||||
| 90099-07114 |
KM20..RHD..GEN |
1 | ||
| 90096-90015 |
KM20..(HRF,SRF)..GEN |
1 | ||
| 88403 - HUB SUB-ASSY, MAGNET CLUTCH | ||||
| 88403-20031 |
KM20..(HRF,SRF)..GEN |
1 | ||
| 88403-14040 |
KM20..RHD..GEN |
1 | ||
| 88414A - RING, SHIELD SNAP | ||||
| 90096-90005 |
KM20..(HRF,SRF)..GEN |
1 | ||
| 88431 - BRACKET, COMPRESSOR MOUNTING, NO.1 | ||||
| 88431-27010 |
KM20..(HRF,SRF)..GEN |
1 | ||
| 88431-28060 |
KM20..RHD..GEN |
1 | ||
| 88432 - BRACKET, COMPRESSOR MOUNTING, NO.2 | ||||
| 88437-27010 |
KM20..(HRF,SRF)..GEN |
1 | ||
| 88437-28020 |
KM20..RHD..GEN |
1 | ||
| 88595 - PULLEY, COOLER COMPRESSOR IDLE | ||||
| 88440-27010 |
KM20..(HRF,SRF)..GEN |
1 | ||
| 88440-28040 |
KM20..RHD..GEN |
1 | ||
| Common parts | ||||
| 88895-12030 | ||||
| 88899-12130 | ||||
| 90099-04522 | ||||
| 90923-05006 | ||||
| 91611-60820 | ||||
| 91611-60830 | ||||
| 91611-61025 | ||||

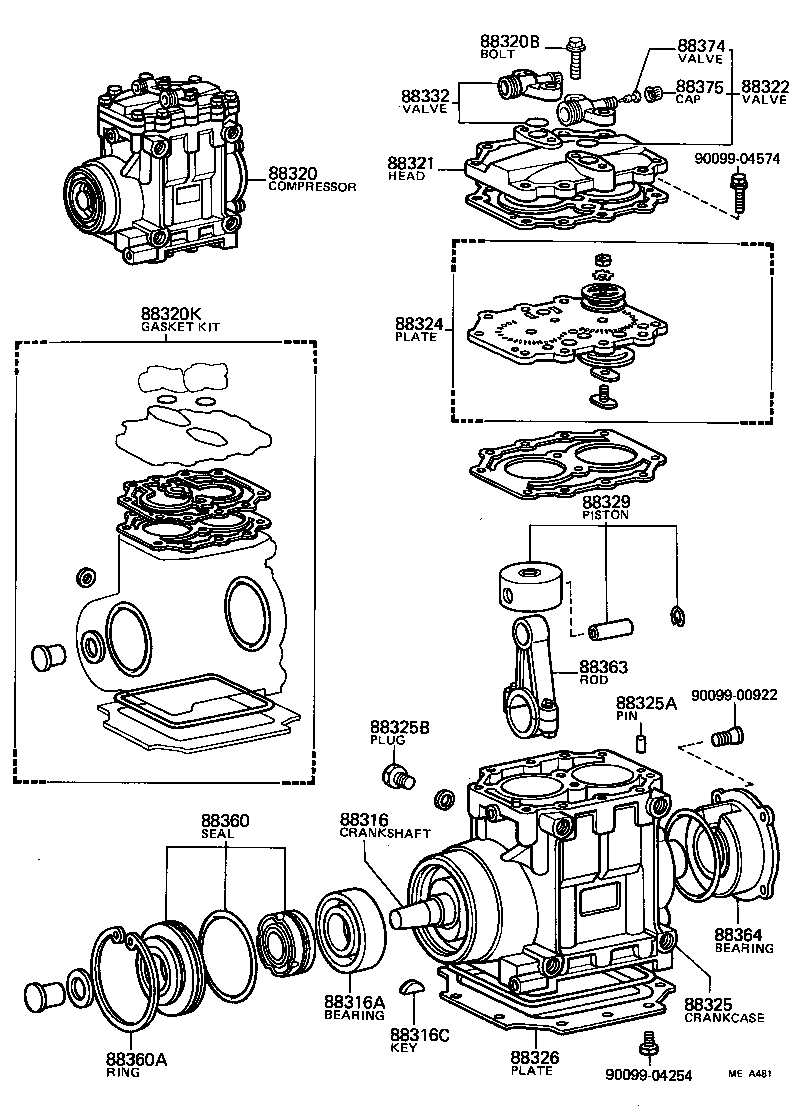

(8101-8210)HRF,SRF..GEN ; (8210- )LHD..GEN
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88316 - CRANKSHAFT, COOLER COMPRESSOR | ||||
| 88316-22010 |
KM20..(HRF,SRF)..GEN |
1 | ||
| 88316A - BEARING, COMPRESSOR CRANKSHAFT, FRONT | ||||
| 88366-22010 |
KM20..(HRF,SRF)..GEN |
1 | ||
| 88316C - KEY, COMPRESSOR CRANKSHAFT | ||||
| 90097-00465 |
KM20..(HRF,SRF)..GEN |
1 | ||
| 88320 - COMPRESSOR ASSY, COOLER | ||||
| 88320-28050 |
KM20..RHD..GEN |
1 | ||
| 88320-27020 |
KM20..(HRF,SRF)..GEN |
1 | ||
| 88320B - BOLT, SERVICE VALVE | ||||
| 90099-04575 |
KM20..(HRF,SRF)..GEN |
4 | ||
| 88320K - GASKET KIT, COOLER COMPRESSOR OVERHAUL | ||||
| 04881-27010 |
KM20..(HRF,SRF)..GEN |
1 | ||
| 88321 - HEAD, COOLER COMPRESSOR CYLINDER | ||||
| 88321-22020 |
KM20..(HRF,SRF)..GEN |
1 | ||
| 88322 - VALVE, COOLER COMPRESSOR SUCTION SERVICE | ||||
| 88371-30300 |
KM20..(HRF,SRF)..GEN |
1 | ||
| 88324 - PLATE SUB-ASSY, COOLER COMPRESSOR VALVE | ||||
| 88305-22010 |
KM20..(HRF,SRF)..GEN |
1 | ||
| 88325 - CRANKCASE, COOLER COMPRESSOR | ||||
| 88325-22020 |
KM20..(HRF,SRF)..GEN |
1 | ||
| 88325A - PIN, CYLINDER BLOCK | ||||
| 90099-08060 |
KM20..(HRF,SRF)..GEN |
2 | ||
| 88325B - PLUG, CYLINDER BLOCK OIL | ||||
| 88339-30250 |
KM20..(HRF,SRF)..GEN |
1 | ||
| 88326 - PLATE, COOLER COMPRESSOR BOTTOM | ||||
| 88331-12030 |
KM20..(HRF,SRF)..GEN |
1 | ||
| 88329 - PISTON SUB-ASSY, COOLER COMPRESSOR | ||||
| 88301-14010 |
KM20..(HRF,SRF)..GEN |
2 | ||
| 88332 - VALVE, COOLER COMPRESSOR DISCHARGE SERVICE | ||||
| 88372-14050 |
KM20..(HRF,SRF)..GEN |
1 | ||
| 88360 - SEAL ASSY, COOLER COMPRESSOR SHAFT | ||||
| 88360-22010 |
KM20..(HRF,SRF)..GEN |
1 | ||
| 88360A - RING, COMPRESSOR SEAL PLATE SNAP | ||||
| 90096-90005 |
KM20..(HRF,SRF)..GEN |
1 | ||
| 88363 - ROD SUB-ASSY, COOLER COMPRESSOR CONNECTING | ||||
| 88302-14010 |
KM20..(HRF,SRF)..GEN |
2 | ||
| 88364 - BEARING, COMPRESSOR CRANKSHAFT, REAR | ||||
| 88367-22010 |
KM20..(HRF,SRF)..GEN |
1 | ||
| 88374 - VALVE, COOLER COMPRESSOR SERVICE | ||||
| 88374-12020 |
KM20..(HRF,SRF)..GEN |
2 | ||
| 88375 - CAP, COOLER COMPRESSOR SERVICE VALVE | ||||
| 88375-30270 |
KM20..(HRF,SRF)..GEN |
2 | ||
| Common parts | ||||
| 90099-00922 | ||||
| 90099-04254 | ||||
| 90099-04574 | ||||

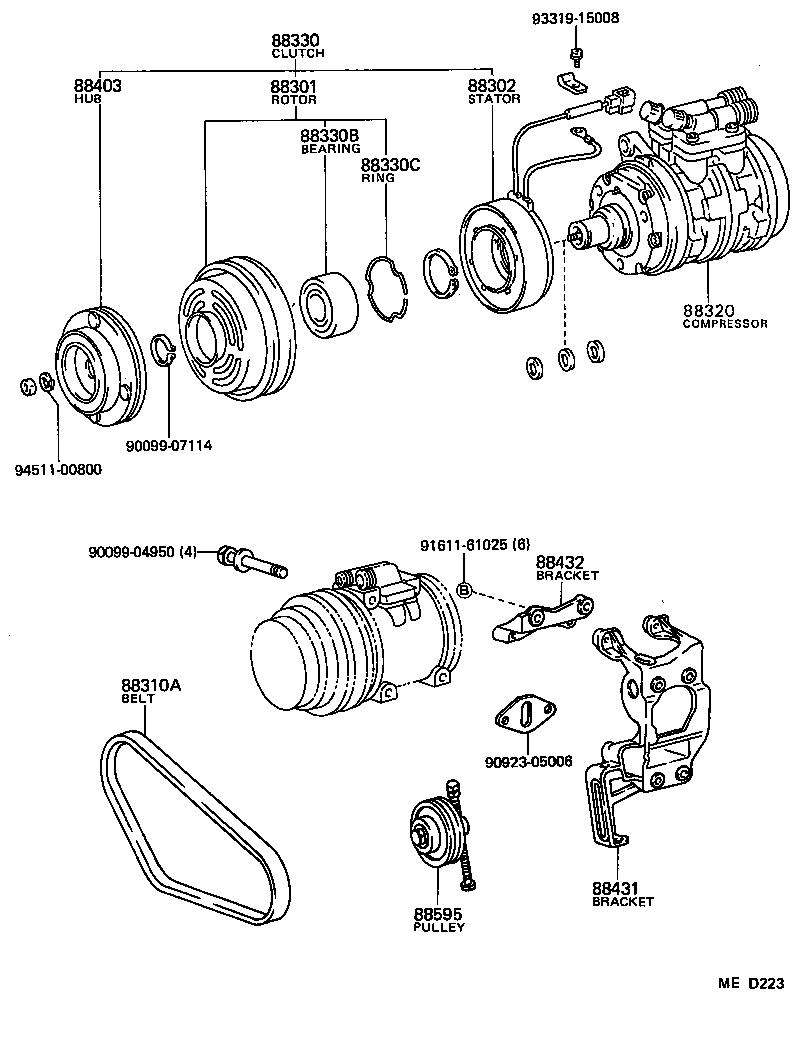

(8210- )RHD..GEN
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88301 - ROTOR SUB-ASSY, MAGNET CLUTCH | ||||
| 88401-14060 |
KM20..(HRF,SRF)..GEN |
1 | ||
| 88412-14030 |
KM20..RHD..GEN |
1 | ||
| 88302 - STATOR SUB-ASSY, MAGNET CLUTCH | ||||
| 88411-14060 |
KM20..RHD..GEN |
1 | ||
| 88411-12050 |
KM20..(HRF,SRF)..GEN |
1 | ||
| 88310A - BELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1 | ||||
| 99322-00950 |
KM20..(HRF,SRF)..GEN |
1 | ||
| 99322-50950 |
KM20..GEN |
1 | ||
| 99322-00950 |
KM20..RHD..GEN W/HEATER |
1 | ||
| 88320 - COMPRESSOR ASSY, COOLER | ||||
| 88320-28050 |
KM20..RHD..GEN |
1 | ||
| 88320-27020 |
KM20..(HRF,SRF)..GEN |
1 | ||
| 88330 - CLUTCH ASSY, MAGNET | ||||
| 88410-14110 |
KM20..RHD..GEN |
1 | ||
| 88410-14050 |
KM20..(HRF,SRF)..GEN |
1 | ||
| 88330B - BEARING, MAGNET CLUTCH | ||||
| 90099-10083 |
KM20..(HRF,SRF)..GEN |
2 | ||
| 90099-10135 |
KM20..RHD..GEN |
1 | ||
| 88330C - RING, SNAP (FOR MAGNET CLUTCH) | ||||
| 90099-07114 |
KM20..RHD..GEN |
1 | ||
| 90096-90015 |
KM20..(HRF,SRF)..GEN |
1 | ||
| 88403 - HUB SUB-ASSY, MAGNET CLUTCH | ||||
| 88403-20031 |
KM20..(HRF,SRF)..GEN |
1 | ||
| 88403-14040 |
KM20..RHD..GEN |
1 | ||
| 88431 - BRACKET, COMPRESSOR MOUNTING, NO.1 | ||||
| 88431-27010 |
KM20..(HRF,SRF)..GEN |
1 | ||
| 88431-28060 |
KM20..RHD..GEN |
1 | ||
| 88432 - BRACKET, COMPRESSOR MOUNTING, NO.2 | ||||
| 88437-27010 |
KM20..(HRF,SRF)..GEN |
1 | ||
| 88437-28020 |
KM20..RHD..GEN |
1 | ||
| 88595 - PULLEY, COOLER COMPRESSOR IDLE | ||||
| 88440-27010 |
KM20..(HRF,SRF)..GEN |
1 | ||
| 88440-28040 |
KM20..RHD..GEN |
1 | ||
| Common parts | ||||
| 90099-04950 | ||||
| 90099-07114 | ||||
| 90923-05006 | ||||
| 91611-61025 | ||||
| 93319-15008 | ||||
| 94511-00800 | ||||
