KM20RV-JR (1979)

Toyota Liteace

Production Oct 1979 - Aug 1985
Engine 4K
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7910- )HRF,SRF

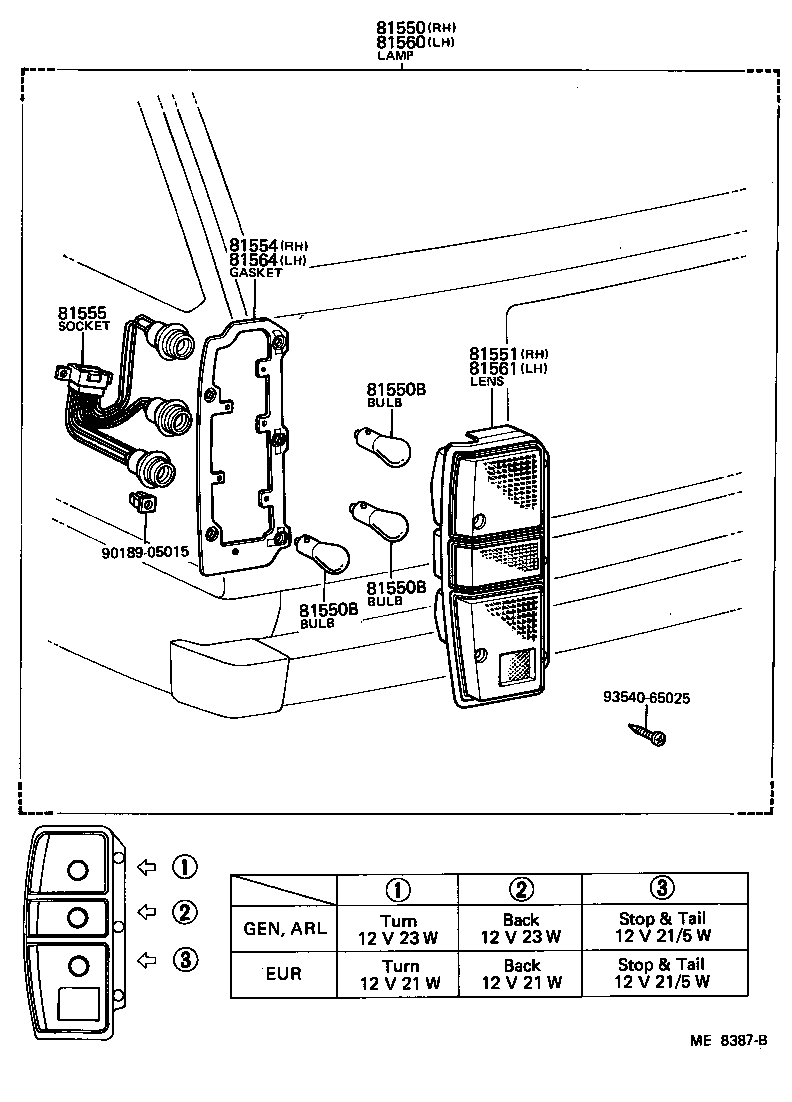

Click highlighted areas on diagram

diagram 81550 81550B 81550B 81550B 81551 81554 81555 81560 81561 81564 9018905015 9354065025
Part # Description Qty Price
81550 - LAMP ASSY, REAR COMBINATION, RH
81550-80067

KM20..(HRF,SRF)..(ARL,GEN)

 1
81550-80156

CM20,KM20,YM2#..ARL,GEN

 1
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-21210

CM20,KM20,YM2#

12V 21/5W,12V 21/5W

 2
99132-11230

CM20,KM20,YM2#..(HRF,SRF)..(ARL,GEN)

12V 23W,12V 23W

 4
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-21210

CM20,KM20,YM2#

12V 21/5W,12V 21/5W

 2
99132-11230

CM20,KM20,YM2#..(HRF,SRF)..(ARL,GEN)

12V 23W,12V 23W

 4
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-21210

CM20,KM20,YM2#

12V 21/5W,12V 21/5W

 2
99132-11230

CM20,KM20,YM2#..(HRF,SRF)..(ARL,GEN)

12V 23W,12V 23W

 4
81551 - LENS, REAR COMBINATION LAMP, RH
81551-95700

KM20..(HRF,SRF)..(ARL,GEN)

 1
81551-95705

CM20,KM20,YM2#..ARL,GEN

 1
81554 - GASKET, REAR COMBINATION LAMP BODY, RH
81554-95700

CM20,KM20,YM2#..HRF,SRF

 1
81555 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH
81555-95700

KM20..(HRF,SRF)..(ARL,GEN)

 2
81555-95700

CM20,KM20,YM2#

 2
81560 - LAMP ASSY, REAR COMBINATION, LH
81560-80069

KM20..(HRF,SRF)..(ARL,GEN)

 1
81560-80161

CM20,KM20,YM2#..ARL,GEN

 1
81561 - LENS, REAR COMBINATION LAMP, LH
81561-95700

KM20..(HRF,SRF)..(ARL,GEN)

 1
81561-95705

CM20,KM20,YM2#..ARL,GEN

 1
81564 - GASKET, REAR COMBINATION LAMP BODY, LH
81564-95700

CM20,KM20,YM2#..HRF,SRF

 1
Common parts
90189-05015
93540-65025
