KM20R-JRBQ (1979)

Toyota Liteace

Production Oct 1979 - Oct 1982
Engine 4K 4KC
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

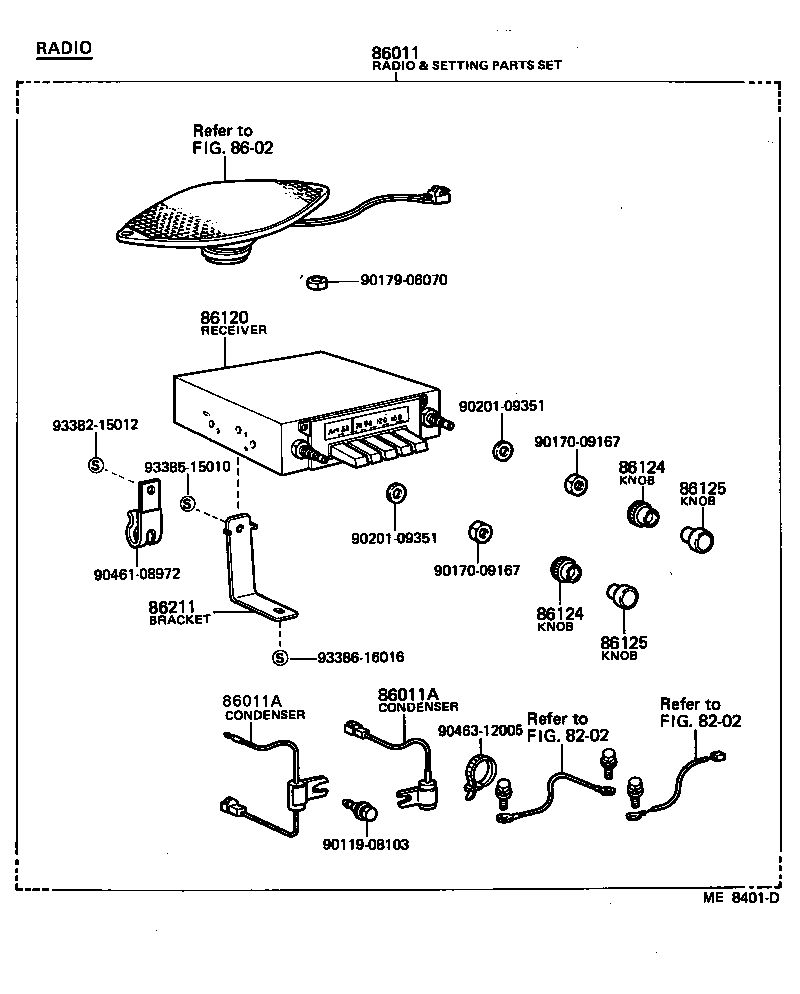

(7910-8210) ; (8210- )LHD

Click highlighted areas on diagram

diagram 8202 8202 86011 86011A 86011A 8602 86120 86124 86124 86125 86125 86211 9011908103 9017009167 9017009167 9017906070 9020109351 9020109351 9046108972 9046312005 9338215012 9338515010 9338616016
Part # Description Qty Price
86011 - RADIO & SETTING PARTS SET
86011-29195

KM20..VSP..02S;KM20..03S,05S,06S,07S,08S,09S

AM

 1
86011A - CONDENSER, RADIO SETTING
90980-04023

CM20,KM20

REGULATOR

 1
86011A - CONDENSER, RADIO SETTING
90980-04023

CM20,KM20

REGULATOR

 1
86120 - RECEIVER ASSY, RADIO
86120-95700

KM20..VSP..02S;KM20..03S,05S,06S,07S,08S,09S

AM

 1
86124 - KNOB, RADIO RECEIVER CONTROL
86124-12010

KM20..VSP..02S;KM20..03S,05S,06S,07S,08S,09S

 2
86124 - KNOB, RADIO RECEIVER CONTROL
86124-12010

KM20..VSP..02S;KM20..03S,05S,06S,07S,08S,09S

 2
86125 - KNOB, RADIO RECEIVER SWITCH
86125-12011

KM20..VSP..02S;KM20..03S,05S,06S,07S,08S,09S

 2
86125 - KNOB, RADIO RECEIVER SWITCH
86125-12011

KM20..VSP..02S;KM20..03S,05S,06S,07S,08S,09S

 2
86211 - BRACKET, RADIO, NO.1
86211-95703

KM20..VSP..02S;KM20..03S,05S,06S,07S,08S,09S

AM

 1
Common parts
90119-08103
90170-09167
90179-06070
90201-09351
90461-08972
90463-12005
93382-15012
93385-15010
93386-16016
Linked diagrams
8202
8602

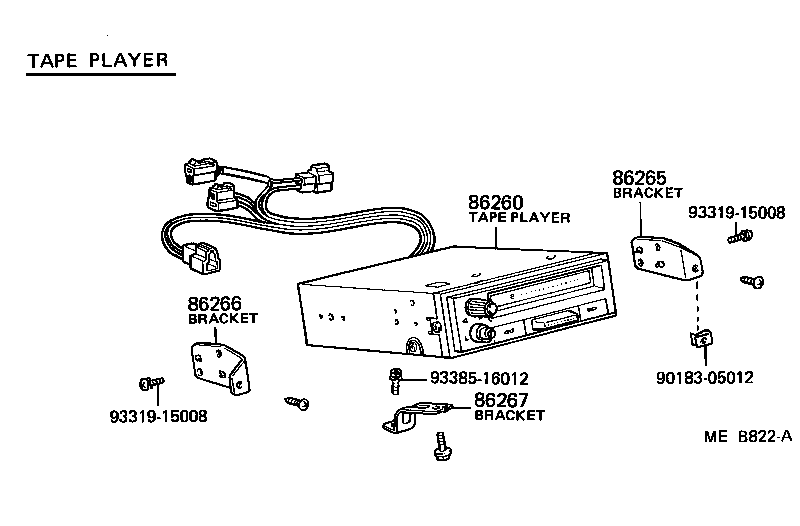

(8204-8210) ; (8210- )LHD

Click highlighted areas on diagram

diagram 86260 86265 86266 86267 9018305012 9331915008 9331915008 9338516012
Part # Description Qty Price
Common parts
90183-05012
93319-15008
93385-16012
