KM20R-JRB (1979)

Toyota Liteace

Production Oct 1979 - Oct 1982
Engine 4K
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7910- )

Click highlighted areas on diagram

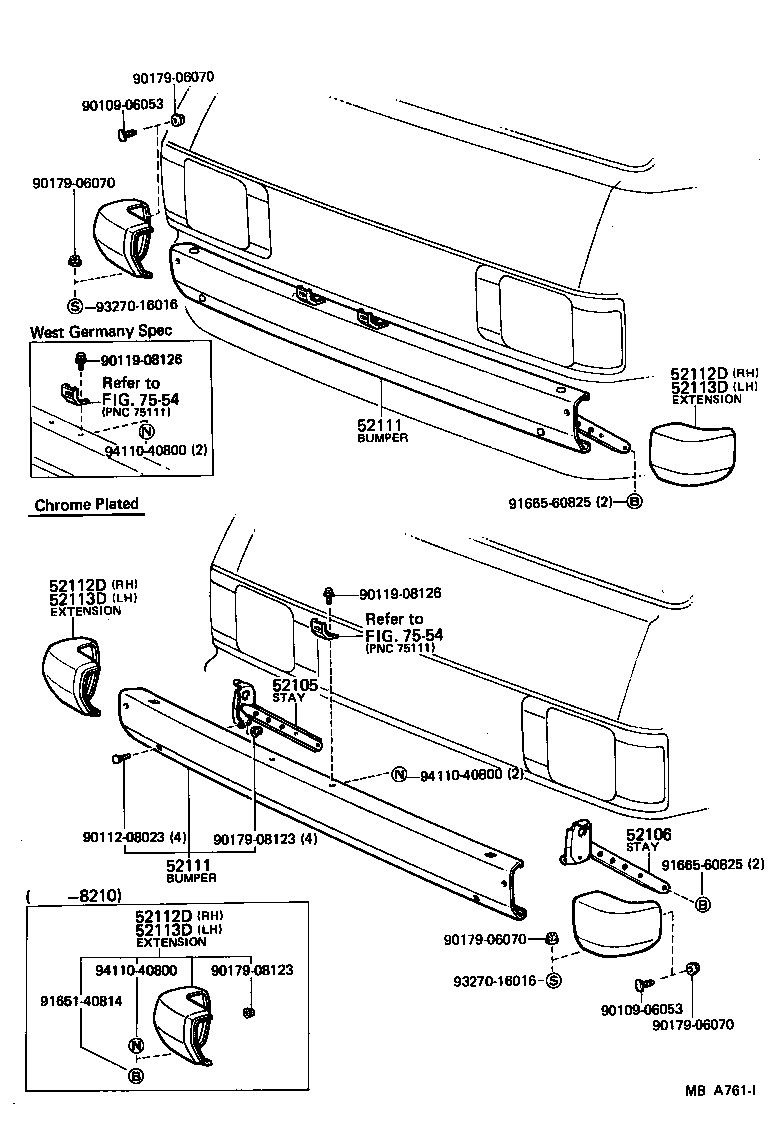

diagram 52105 52106 52111 52111 52112D 52112D 52112D 52113D 52113D 52113D 7554 7554 9010906053 9010906053 9011208023 9011908126 9011908126 9017906070 9017906070 9017906070 9017906070 9017908123 9017908123 9165140814 9166560825 9166560825 9327016016 9327016016 9411040800 9411040800 9411040800
Part # Description Qty Price
52111 - BUMPER ASSY, FRONT
52101-87405

KM20..TR

 1
52101-87409

KM20..TR

 1
52111 - BUMPER ASSY, FRONT
52101-87405

KM20..TR

 1
52101-87409

KM20..TR

 1
52112D - EXTENSION, FRONT BUMPER, RH
52011-29015

KM20..VSP..02S;KM20..03S,05S,06S,07S,08S,09S

 1
52112D - EXTENSION, FRONT BUMPER, RH
52011-29015

KM20..VSP..02S;KM20..03S,05S,06S,07S,08S,09S

 1
52112D - EXTENSION, FRONT BUMPER, RH
52011-29015

KM20..VSP..02S;KM20..03S,05S,06S,07S,08S,09S

 1
52113D - EXTENSION, FRONT BUMPER, LH
52012-29015

KM20..VSP..02S;KM20..03S,05S,06S,07S,08S,09S

 1
52113D - EXTENSION, FRONT BUMPER, LH
52012-29015

KM20..VSP..02S;KM20..03S,05S,06S,07S,08S,09S

 1
52113D - EXTENSION, FRONT BUMPER, LH
52012-29015

KM20..VSP..02S;KM20..03S,05S,06S,07S,08S,09S

 1
Common parts
90109-06053
90112-08023
90119-08126
90179-06070
90179-08123
91651-40814
91665-60825
93270-16016
94110-40800
Linked diagrams
7554
