KM20R-JRB (1979)

Toyota Liteace

Production Oct 1979 - Oct 1982
Engine 4K
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8108- )4K

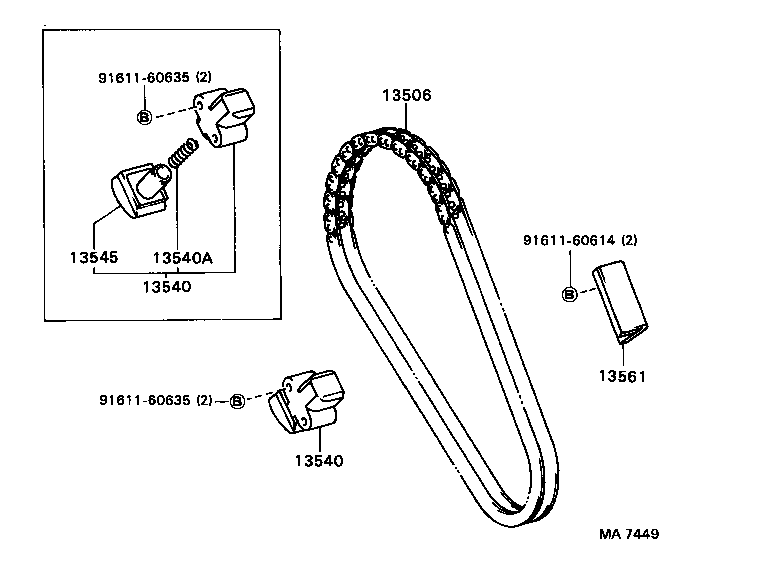

Click highlighted areas on diagram

diagram 13506 13540 13540 13540A 13545 13561 9161160614 9161160635 9161160635
Part # Description Qty Price
13506 - CHAIN SUB-ASSY
13506-22010

4K..KM20..RHD;4K..KM20..LHD..VSP..EUR;4K..KM20..LHD..(03S,05S,06S,07S,09S)

 1
13540 - TENSIONER ASSY, CHAIN, NO.1
13540-22012

4K..KM20..RHD;4K..KM20..LHD..VSP..EUR;4K..KM20..LHD..(03S,05S,06S,07S,09S)

 1
13540 - TENSIONER ASSY, CHAIN, NO.1
13540-22012

4K..KM20..RHD;4K..KM20..LHD..VSP..EUR;4K..KM20..LHD..(03S,05S,06S,07S,09S)

 1
13540A - SPRING, COMPRESSION(FOR CHAIN TENSIONER)
90501-10595

4K..KM20..RHD;4K..KM20..LHD..VSP..EUR;4K..KM20..LHD..(03S,05S,06S,07S,09S)

 1
13545 - PLUNGER, CHAIN TENSIONER
13545-22010

4K..KM20..RHD;4K..KM20..LHD..VSP..EUR;4K..KM20..LHD..(03S,05S,06S,07S,09S)

 1
13561 - DAMPER, CHAIN VIBRATION, NO.1
13561-22010

4K..KM20..RHD;4K..KM20..LHD..VSP..EUR;4K..KM20..LHD..(03S,05S,06S,07S,09S)

 1
Common parts
91611-60614
91611-60635

(7910-8108)

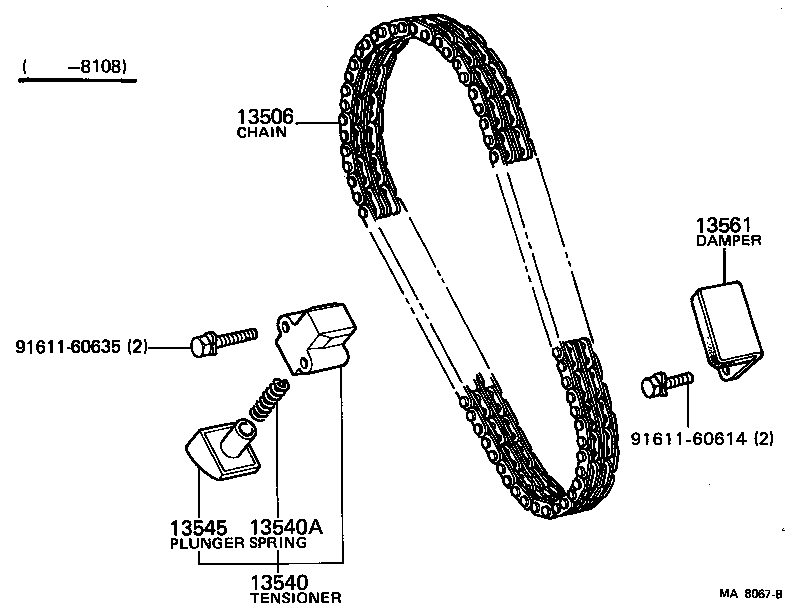

Click highlighted areas on diagram

diagram 13506 13540 13540A 13545 13561 9161160614 9161160635
Part # Description Qty Price
13506 - CHAIN SUB-ASSY
13506-22010

4K..KM20..RHD;4K..KM20..LHD..VSP..EUR;4K..KM20..LHD..(03S,05S,06S,07S,09S)

 1
13540 - TENSIONER ASSY, CHAIN, NO.1
13540-22012

4K..KM20..RHD;4K..KM20..LHD..VSP..EUR;4K..KM20..LHD..(03S,05S,06S,07S,09S)

 1
13540A - SPRING, COMPRESSION(FOR CHAIN TENSIONER)
90501-10595

4K..KM20..RHD;4K..KM20..LHD..VSP..EUR;4K..KM20..LHD..(03S,05S,06S,07S,09S)

 1
13545 - PLUNGER, CHAIN TENSIONER
13545-22010

4K..KM20..RHD;4K..KM20..LHD..VSP..EUR;4K..KM20..LHD..(03S,05S,06S,07S,09S)

 1
13561 - DAMPER, CHAIN VIBRATION, NO.1
13561-22010

4K..KM20..RHD;4K..KM20..LHD..VSP..EUR;4K..KM20..LHD..(03S,05S,06S,07S,09S)

 1
Common parts
91611-60614
91611-60635
