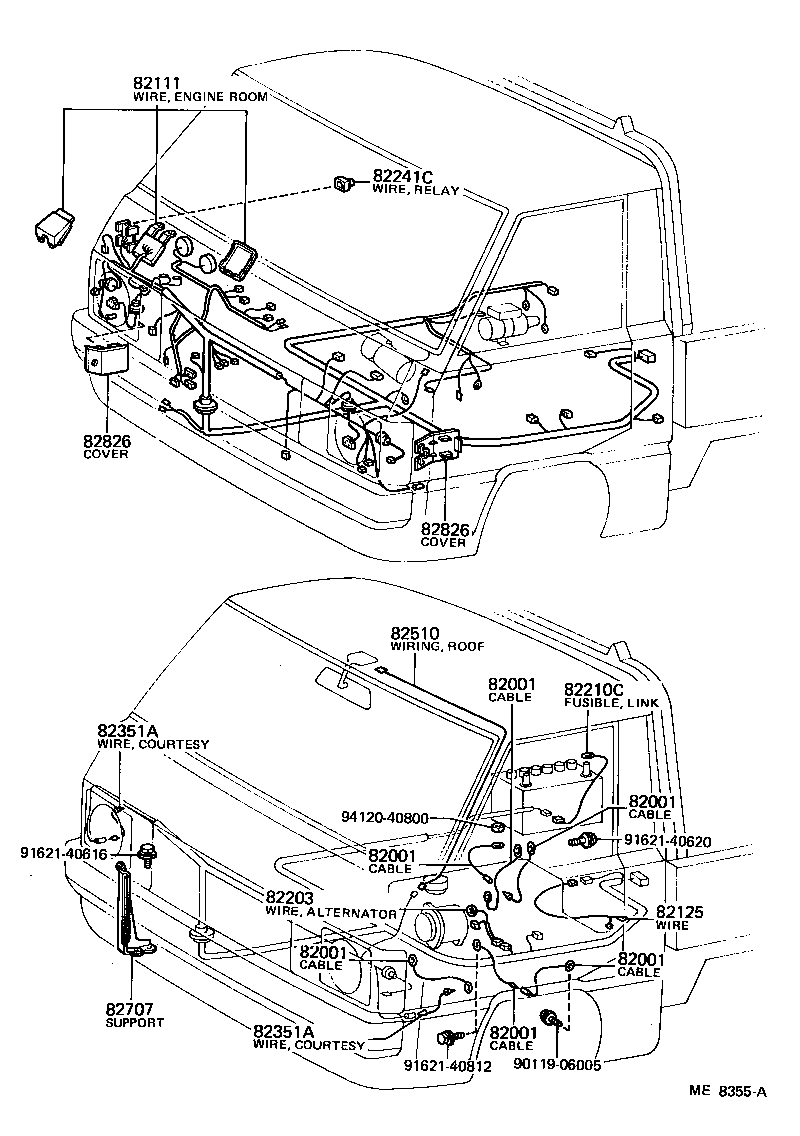

KM20R-JR3 (1979)
Toyota Liteace
(7910-8210)TR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07021 |
KM20..RHD..V L=280 |
1 | ||
| 90980-07170 |
KM20..TR L=130 |
2 | ||
| 90980-07171 |
KM20..TR L=140 |
1 | ||
| 90980-07172 |
KM20..TR L=320 |
1 | ||
| 90980-07167 |
KM20 L=380 |
1 | ||
| 90980-07048 |
KM20..TR L=370 |
1 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07021 |
KM20..RHD..V L=280 |
1 | ||
| 90980-07170 |
KM20..TR L=130 |
2 | ||
| 90980-07171 |
KM20..TR L=140 |
1 | ||
| 90980-07172 |
KM20..TR L=320 |
1 | ||
| 90980-07167 |
KM20 L=380 |
1 | ||
| 90980-07048 |
KM20..TR L=370 |
1 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07021 |
KM20..RHD..V L=280 |
1 | ||
| 90980-07170 |
KM20..TR L=130 |
2 | ||
| 90980-07171 |
KM20..TR L=140 |
1 | ||
| 90980-07172 |
KM20..TR L=320 |
1 | ||
| 90980-07167 |
KM20 L=380 |
1 | ||
| 90980-07048 |
KM20..TR L=370 |
1 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07021 |
KM20..RHD..V L=280 |
1 | ||
| 90980-07170 |
KM20..TR L=130 |
2 | ||
| 90980-07171 |
KM20..TR L=140 |
1 | ||
| 90980-07172 |
KM20..TR L=320 |
1 | ||
| 90980-07167 |
KM20 L=380 |
1 | ||
| 90980-07048 |
KM20..TR L=370 |
1 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07021 |
KM20..RHD..V L=280 |
1 | ||
| 90980-07170 |
KM20..TR L=130 |
2 | ||
| 90980-07171 |
KM20..TR L=140 |
1 | ||
| 90980-07172 |
KM20..TR L=320 |
1 | ||
| 90980-07167 |
KM20 L=380 |
1 | ||
| 90980-07048 |
KM20..TR L=370 |
1 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07021 |
KM20..RHD..V L=280 |
1 | ||
| 90980-07170 |
KM20..TR L=130 |
2 | ||
| 90980-07171 |
KM20..TR L=140 |
1 | ||
| 90980-07172 |
KM20..TR L=320 |
1 | ||
| 90980-07167 |
KM20 L=380 |
1 | ||
| 90980-07048 |
KM20..TR L=370 |
1 | ||
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82210-87416 |
KM20..TR..GEN |
1 | ||
| 82210-95716 |
KM20..RHD..V..(EUR,GEN) |
1 | ||
| 82210-87420 |
KM20..TR..GEN |
1 | ||
| 82125 - WIRE, TRANSMISSION | ||||
| 82490-87401 |
KM20..TR |
1 | ||
| 82203 - WIRE SUB-ASSY, ALTERNATOR | ||||
| 82203-87401 |
KM20..TR |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08058 |
KM20..VSP..02S;KM20..03S,05S,06S,07S,08S,09S L=110,0.85R,0.5G,0.5GREEN & 0.85RED |
1 | ||
| 82241C - WIRE, RELAY | ||||
| 82241-22060 |
KM20..TR |
1 | ||
| 82351A - WIRE, COURTESY LAMP SWITCH (FOR FRONT OR REAR DOOR) | ||||
| 82301-95701 |
KM20..RHD..V;KM20..LHD..VSP..EUR;KM20..LHD..(03S,05S,06S,07S,09S) FRONT DOOR |
2 | ||
| 84232-87001 |
KM20..TR |
2 | ||
| 82351A - WIRE, COURTESY LAMP SWITCH (FOR FRONT OR REAR DOOR) | ||||
| 82301-95701 |
KM20..RHD..V;KM20..LHD..VSP..EUR;KM20..LHD..(03S,05S,06S,07S,09S) FRONT DOOR |
2 | ||
| 84232-87001 |
KM20..TR |
2 | ||
| 82510 - WIRING ASSY, ROOF | ||||
| 82510-87404 |
KM20..TR |
1 | ||
| 82707 - SUPPORT SUB-ASSY, WIRING HARNESS | ||||
| 82707-95703 |
KM20..RHD |
1 | ||
| 82826 - COVER, WIRING HARNESS HOLE | ||||
| 82817-95700 |
CM20,KM20,YM2# |
2 | ||
| 82826 - COVER, WIRING HARNESS HOLE | ||||
| 82817-95700 |
CM20,KM20,YM2# |
2 | ||
| Common parts | ||||
| 90119-06005 | ||||
| 91621-40616 | ||||
| 91621-40620 | ||||
| 91621-40812 | ||||
| 94120-40800 | ||||
(7910-8210)TR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82410 - HARNESS ASSY, WIRING TO REAR LAMP | ||||
| 82410-87413 |
KM20..GEN..IV |
1 | ||
| 82430-95700 |
KM20..RHD..V..(ARL,GEN) |
1 | ||
| 82412 - WIRE, FUEL GAGE | ||||
| 82412-87401 |
KM20..TR |
1 | ||
(7910- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-12070 | ||||
| 82711-22130 | ||||
| 82711-22140 | ||||
| 82711-22150 | ||||
| 90044-61116 | ||||
| 90461-04009 | ||||
| 90461-06075 | ||||
| 90461-08109 | ||||
| 90461-08175 | ||||
| 90461-08187 | ||||
| 90461-08214 | ||||
| 90461-08972 | ||||
| 90461-10275 | ||||
| 90461-10312 | ||||
| 90461-10387 | ||||
| 90461-10421 | ||||
| 90461-10461 | ||||
| 90461-10463 | ||||
| 90463-04012 | ||||
| 90463-04379 | ||||
| 90463-06116 | ||||
| 90463-10336 | ||||
| 90463-10337 | ||||
| 90463-10338 | ||||
| 90463-12005 | ||||
(7910- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 78183-95701 | ||||
| 82212-95A00 | ||||
| 82711-12200 | ||||
| 82711-12290 | ||||
| 82711-95700 | ||||
| 90461-08509 | ||||
| 90461-10526 | ||||
| 90462-10052 | ||||
| 90463-04035 | ||||
| 90463-04133 | ||||
| 90463-08122 | ||||
| 90463-08307 | ||||
| 90463-12014 | ||||
| 90463-15439 | ||||
| 90464-00073 | ||||
| 90464-00108 | ||||
| 90464-00122 | ||||
| 90464-00156 | ||||
| 90464-00159 | ||||
| 90464-00161 | ||||
| 90464-00165 | ||||
| 90464-00166 | ||||
| 90467-09007 | ||||
| 90480-15007 | ||||
| 90480-40507 | ||||
(7910- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-14560 | ||||
| 82711-20050 | ||||
| 82711-95404 | ||||
| 82711-95701 | ||||
| 82711-95702 | ||||
| 82711-95703 | ||||
| 82711-95705 | ||||
| 90461-06804 | ||||
| 90461-08066 | ||||
| 90461-08202 | ||||
| 90461-08213 | ||||
| 90461-08313 | ||||
| 90461-08519 | ||||
| 90461-10247 | ||||
| 90461-10522 | ||||
| 90461-12146 | ||||
| 90461-12690 | ||||
| 90463-08026 | ||||
| 90463-08030 | ||||
| 90463-08124 | ||||
| 90463-08375 | ||||
| 90463-12002 | ||||
| 90464-00102 | ||||
| 90480-30320 | ||||
| 90950-01084 | ||||
(7910- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-12290 | ||||
| 82711-95709 | ||||
| 90461-08109 | ||||
| 90461-08548 | ||||
| 90461-10423 | ||||
| 90464-00140 | ||||
| 90464-00141 | ||||
