KM20R-JR3 (1979)

Toyota Liteace

Production Oct 1979 - Oct 1982
Engine 4K
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7910-8210)TR

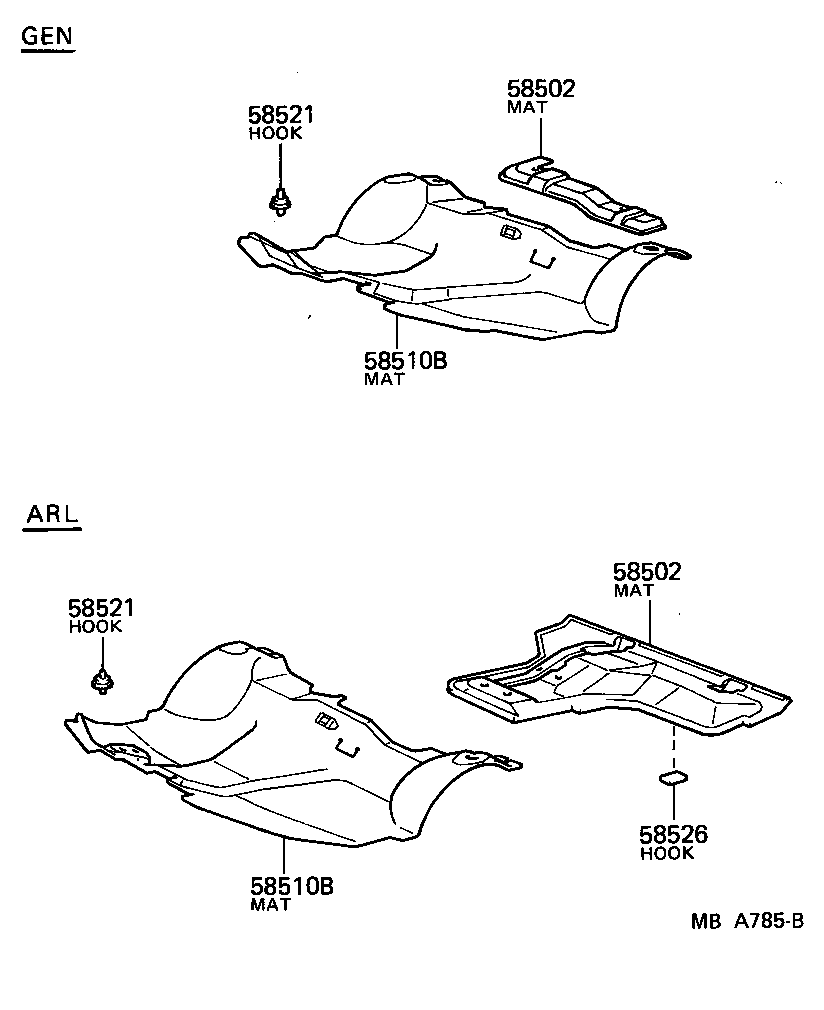

Click highlighted areas on diagram

diagram 58502 58502 58510B 58510B 58521 58521 58526
Part # Description Qty Price
58502 - MAT ASSY, ENGINE SERVICE HOLE COVER
58473-95700

KM20..RHD..GEN

 1
58502 - MAT ASSY, ENGINE SERVICE HOLE COVER
58473-95700

KM20..RHD..GEN

 1
58510B - MAT, FRONT FLOOR, FRONT
58501-87403

KM20..TR..GEN

 1
58501-87406

KM20..TR..GEN

 1
58501-95707

KM20..RHD..V..GEN

 1
58510B - MAT, FRONT FLOOR, FRONT
58501-87403

KM20..TR..GEN

 1
58501-87406

KM20..TR..GEN

 1
58501-95707

KM20..RHD..V..GEN

 1
58521 - HOOK, MALE, NO.1
90530-06001

CM20,KM20,YM2#

 1
58521 - HOOK, MALE, NO.1
90530-06001

CM20,KM20,YM2#

 1

(7910- )V..EUR,GEN

Click highlighted areas on diagram

diagram 58502 58510B 58510B 58510B 58521 58521 58521 58521 58521 58521 58526 58526 58530C 58530C 58530C 58554 58554 58570B 58570B 58570B 58572 58572 58572 58573 58573 58573 58574 58574 58574 58679 58679 58679 9016860013 9016860013 9016860013 9016860013 9016860013 9016860013 9018906002 9018906002 9018906002 9018906018 9018906018 9018906018
Part # Description Qty Price
58502 - MAT ASSY, ENGINE SERVICE HOLE COVER
58473-95700

KM20..RHD..GEN

 1
58510B - MAT, FRONT FLOOR, FRONT
58501-87403

KM20..TR..GEN

 1
58501-87406

KM20..TR..GEN

 1
58501-95707

KM20..RHD..V..GEN

 1
58510B - MAT, FRONT FLOOR, FRONT
58501-87403

KM20..TR..GEN

 1
58501-87406

KM20..TR..GEN

 1
58501-95707

KM20..RHD..V..GEN

 1
58510B - MAT, FRONT FLOOR, FRONT
58501-87403

KM20..TR..GEN

 1
58501-87406

KM20..TR..GEN

 1
58501-95707

KM20..RHD..V..GEN

 1
58521 - HOOK, MALE, NO.1
90530-06001

CM20,KM20,YM2#

 1
58521 - HOOK, MALE, NO.1
90530-06001

CM20,KM20,YM2#

 1
58521 - HOOK, MALE, NO.1
90530-06001

CM20,KM20,YM2#

 1
58521 - HOOK, MALE, NO.1
90530-06001

CM20,KM20,YM2#

 1
58521 - HOOK, MALE, NO.1
90530-06001

CM20,KM20,YM2#

 1
58521 - HOOK, MALE, NO.1
90530-06001

CM20,KM20,YM2#

 1
58530C - MAT, FRONT FLOOR, REAR
58505-95714

KM20..RHD..V

W/RR FLOOR MAT

 1
58530C - MAT, FRONT FLOOR, REAR
58505-95714

KM20..RHD..V

W/RR FLOOR MAT

 1
58530C - MAT, FRONT FLOOR, REAR
58505-95714

KM20..RHD..V

W/RR FLOOR MAT

 1
Common parts
90168-60013
90189-06002
90189-06018
