KM20R-JR3 (1979)

Toyota Liteace

Production Oct 1979 - Oct 1982
Engine 4K
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7910- )

Click highlighted areas on diagram

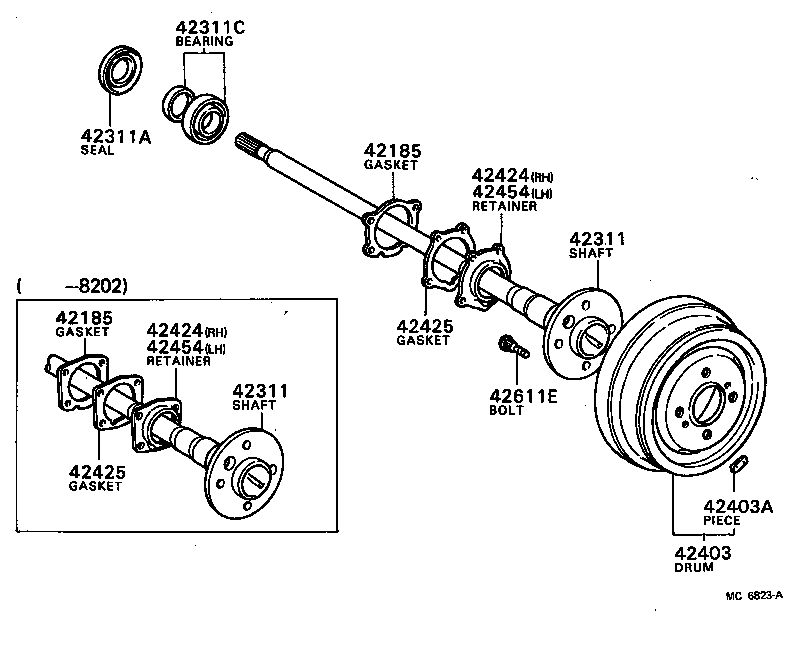

diagram 42185 42185 42311 42311 42311A 42311C 42403 42403A 42424 42424 42425 42425 42454 42454 42611E
Part # Description Qty Price
42185 - GASKET, REAR AXLE HOUSING END
42185-22020

KM20..VSP..02S;KM20..03S,05S,06S,07S,08S,09S

 2
42185 - GASKET, REAR AXLE HOUSING END
42185-22020

KM20..VSP..02S;KM20..03S,05S,06S,07S,08S,09S

 2
42311 - SHAFT, REAR AXLE
42311-22100

CM20,KM20,YM2#

 2
42311 - SHAFT, REAR AXLE
42311-22100

CM20,KM20,YM2#

 2
42311A - SEAL, OIL (FOR REAR AXLE SHAFT)
90311-52059

CM20,KM20,YM2#

 2
42311C - BEARING (FOR REAR AXLE SHAFT)
04421-30011

CM20,KM20..4F,4H

 2
42403 - DRUM SUB-ASSY, REAR BRAKE
42431-27020

CM20,KM20,YM2#

 2
42403A - PIECE, BALANCE (FOR REAR BRAKE DRUM)
90937-01020

CM20,KM20,YM2#

20G,20G

 2
90937-01021

CM20,KM20,YM2#

40G,40G

 2
90937-01023

CM20,KM20,YM2#

10G,10G

 2
90937-01032

CM20,KM20,YM2#

30G,30G

 2
90937-01034

CM20,KM20,YM2#

60G,60G

 2
90937-01033

CM20,KM20,YM2#

50G,50G

 2
42424 - RETAINER, REAR AXLE BEARING, OUTER, RH
42424-21010

KM20..VSP..02S;KM20..03S,05S,06S,07S,08S,09S

 1
42424 - RETAINER, REAR AXLE BEARING, OUTER, RH
42424-21010

KM20..VSP..02S;KM20..03S,05S,06S,07S,08S,09S

 1
42425 - GASKET, REAR AXLE BEARING RETAINER
42425-21010

KM20..VSP..02S;KM20..03S,05S,06S,07S,08S,09S

 2
42425 - GASKET, REAR AXLE BEARING RETAINER
42425-21010

KM20..VSP..02S;KM20..03S,05S,06S,07S,08S,09S

 2
42454 - RETAINER, REAR AXLE BEARING, OUTER, LH
42454-21010

KM20..VSP..02S;KM20..03S,05S,06S,07S,08S,09S

 1
42454 - RETAINER, REAR AXLE BEARING, OUTER, LH
42454-21010

KM20..VSP..02S;KM20..03S,05S,06S,07S,08S,09S

 1
42611E - BOLT, HUB (FOR REAR AXLE)
90942-02035

CM20;KM20..VSP..02S;KM20..03S,05S,06S,07S,08S,09S

 8
