KM20R-JR (1979)

Toyota Liteace

Production Oct 1979 - Oct 1982
Engine 4K
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7910- )STD

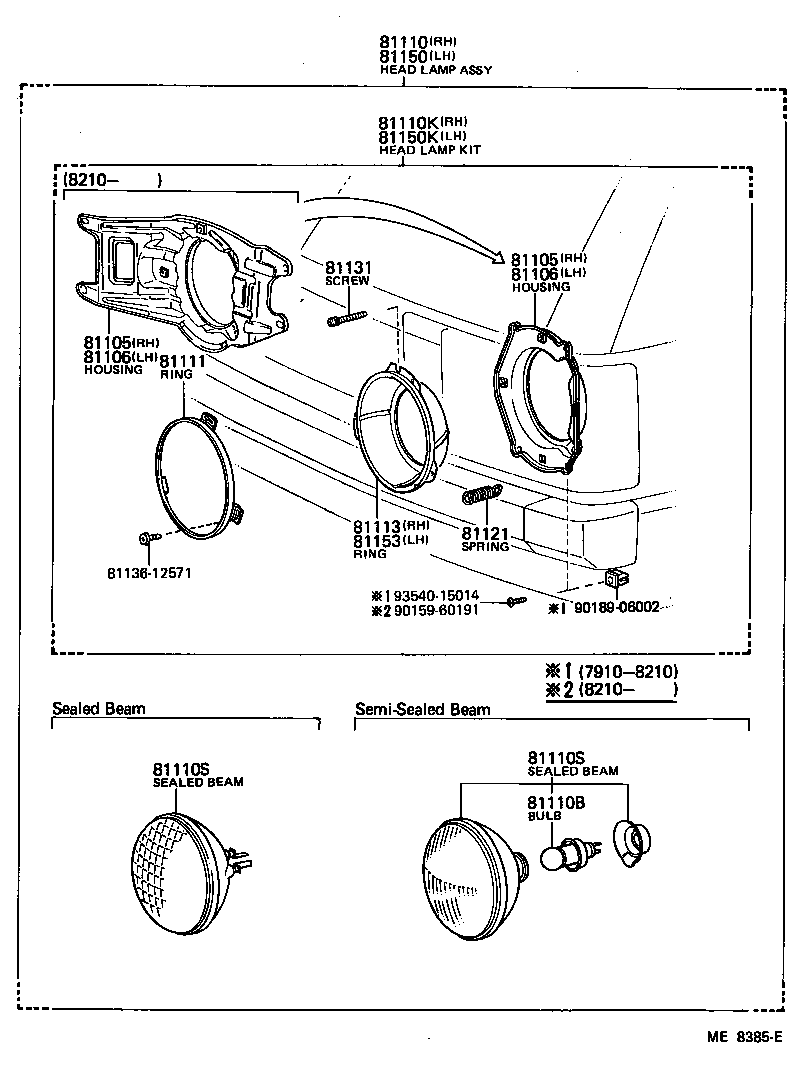

Click highlighted areas on diagram

diagram 81105 81105 81106 81106 81110 81110B 81110K 81110S 81110S 81111 81113 81121 81131 8113612571 81150 81150K 81153 9015960191 9018906002 9354015014
Part # Description Qty Price
81105 - HOUSING SUB-ASSY, HEADLAMP, RH
81105-95700

KM20..VSP..02S;KM20..(03S,05S,06S,07S,08S,09S)..STD

 1
81105 - HOUSING SUB-ASSY, HEADLAMP, RH
81105-95700

KM20..VSP..02S;KM20..(03S,05S,06S,07S,08S,09S)..STD

 1
81106 - HOUSING SUB-ASSY, HEADLAMP, LH
81106-95700

KM20..VSP..02S;KM20..(03S,05S,06S,07S,08S,09S)..STD

 1
81106 - HOUSING SUB-ASSY, HEADLAMP, LH
81106-95700

KM20..VSP..02S;KM20..(03S,05S,06S,07S,08S,09S)..STD

 1
81110 - HEADLAMP ASSY, RH
81110-80049

KM20..RHD

 1
81110-80053

KM20..RHD..(EUR,GEN)

SEMI-SEALED,WHITE

 1
81110B - BULB(FOR HEADLAMP, NO.1)
90981-13013

CM20,KM20..EUR,GEN

12V 45/40W,WHITE,12V 45/40W WHITE

 2
81110S - SEALED BEAM UNIT, NO.1
90981-01015

KM20..RHD

12V 50/40W

 2
90981-01028

CM20,KM20..RHD..(EUR,GEN)

12V 45/40W,*WSB,SEMI-SEALED,WHITE

 2
81110S - SEALED BEAM UNIT, NO.1
90981-01015

KM20..RHD

12V 50/40W

 2
90981-01028

CM20,KM20..RHD..(EUR,GEN)

12V 45/40W,*WSB,SEMI-SEALED,WHITE

 2
81111 - RING, SEALED BEAM RETAINING
81111-89117

KM20..VSP..02S;KM20..(03S,05S,06S,07S,08S,09S)..STD

 2
81113 - RING, SEALED BEAM MOUNTING, NO.1 RH
81153-95A00

KM20..VSP..02S;KM20..(03S,05S,06S,07S,08S,09S)..STD

 1
81113-95722

CM20;KM20..VSP..02S;KM20..03S,05S,06S,08S,09S

 1
81121 - SPRING, HEADLAMP TENSION
81121-62010

CM20;KM20..VSP..02S;KM20..(03S,05S,06S,07S,08S,09S)..STD

 2
81131 - SCREW, HEADLAMP ADJUSTING
81131-10031

CM20,KM20,YM2#

 4
81150 - HEADLAMP ASSY, LH
81150-80046

KM20..RHD

 1
81150-80050

KM20..RHD..(EUR,GEN)

WHITE,SEMI-SEALED

 1
81153 - RING, SEALED BEAM MOUNTING, NO.1 LH
81153-95722

CM20;KM20..VSP..02S;KM20..03S,05S,06S,08S,09S

 1
81113-95A00

KM20..VSP..02S;KM20..(03S,05S,06S,07S,08S,09S)..STD

 1
Common parts
81136-12571
90159-60191
90189-06002
93540-15014
