KM20R-JR (1979)

Toyota Liteace

Production Oct 1979 - Oct 1982
Engine 4K
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7910-8210)

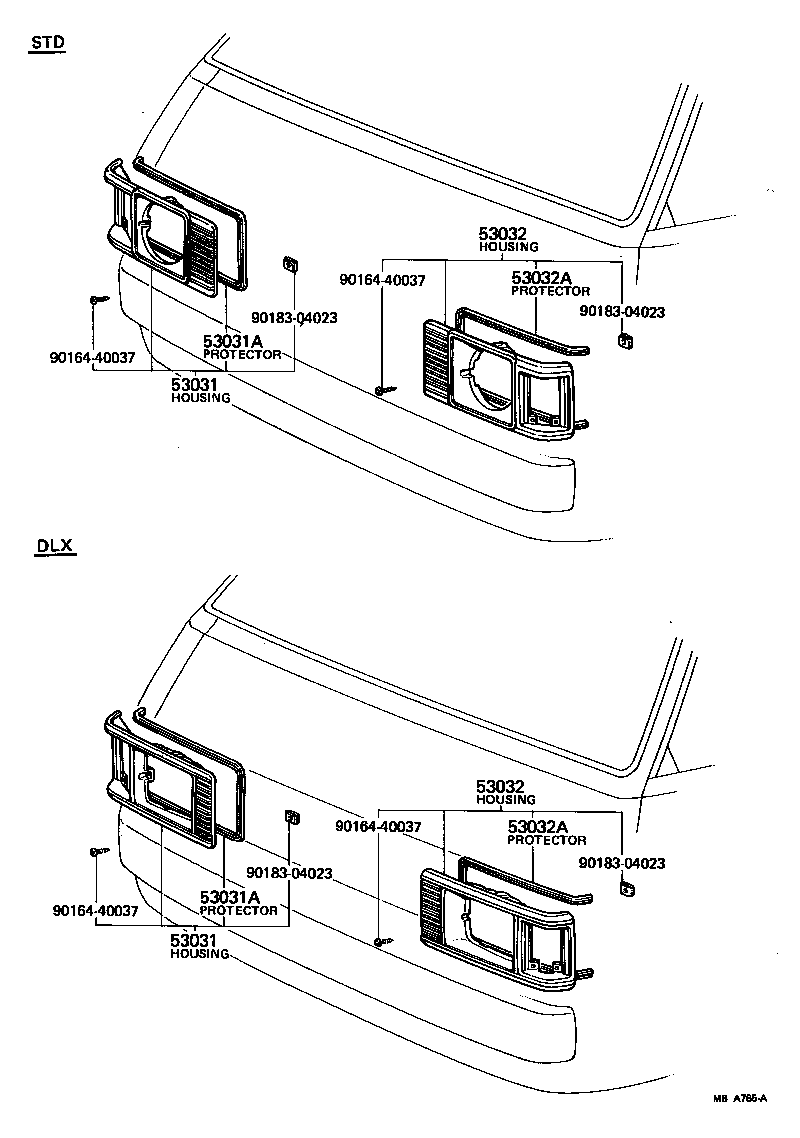

Click highlighted areas on diagram

diagram 53031 53031 53031A 53031A 53032 53032 53032A 53032A 9016440037 9016440037 9016440037 9016440037 9018304023 9018304023 9018304023 9018304023
Part # Description Qty Price
53031 - HOUSING, HEADLAMP, RH
53130-29015

KM20..VSP..02S;KM20..(03S,05S,06S,07S,08S,09S)..STD

 1
53031 - HOUSING, HEADLAMP, RH
53130-29015

KM20..VSP..02S;KM20..(03S,05S,06S,07S,08S,09S)..STD

 1
53031A - PROTECTOR, HEADLAMP DOOR, RH
53138-95700

KM20..VSP..02S;KM20..(03S,05S,06S,07S,08S,09S)..STD

 1
53031A - PROTECTOR, HEADLAMP DOOR, RH
53138-95700

KM20..VSP..02S;KM20..(03S,05S,06S,07S,08S,09S)..STD

 1
53032 - HOUSING, HEADLAMP, LH
53140-29015

KM20..VSP..02S;KM20..(03S,05S,06S,07S,08S,09S)..STD

 1
53032 - HOUSING, HEADLAMP, LH
53140-29015

KM20..VSP..02S;KM20..(03S,05S,06S,07S,08S,09S)..STD

 1
53032A - PROTECTOR, HEADLAMP DOOR, LH
53138-95700

KM20..VSP..02S;KM20..(03S,05S,06S,07S,08S,09S)..STD

 1
53032A - PROTECTOR, HEADLAMP DOOR, LH
53138-95700

KM20..VSP..02S;KM20..(03S,05S,06S,07S,08S,09S)..STD

 1
Common parts
90164-40037
90183-04023
