KM20LV-KRZGW (1981)

Toyota Liteace

Production Aug 1981 - Aug 1985
Engine 4K
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

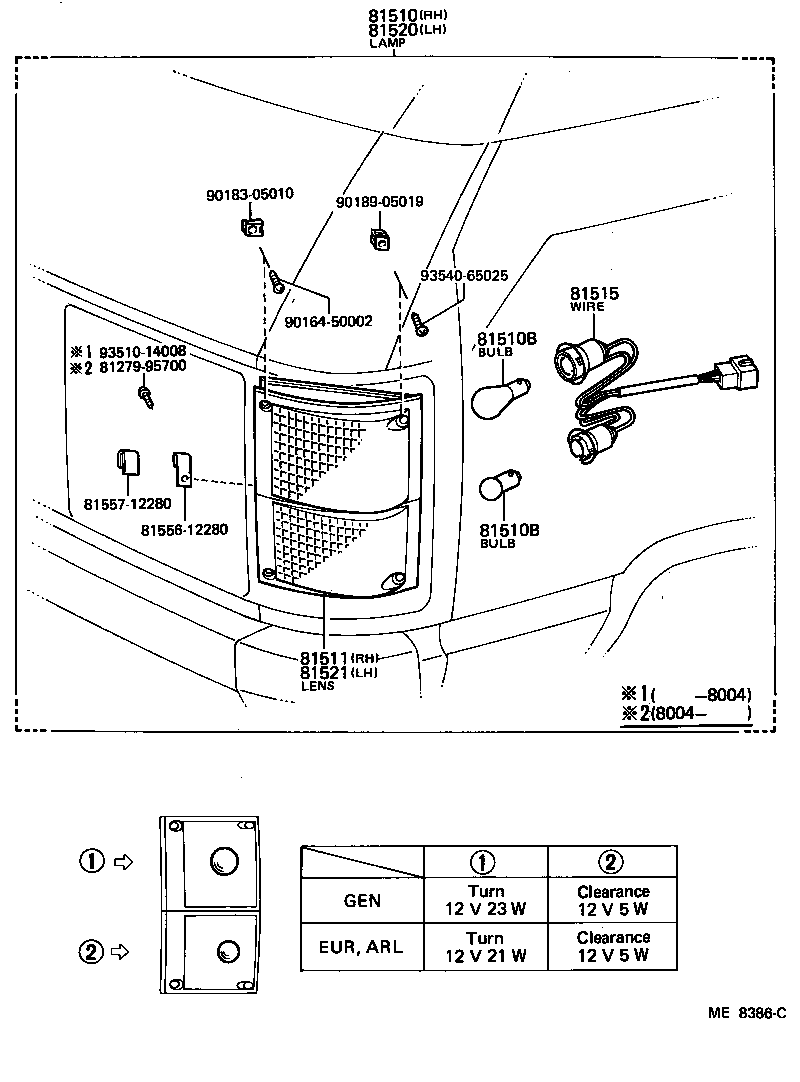

(7910-8210)

Click highlighted areas on diagram

diagram 8127995700 81510 81510B 81510B 81511 81515 81520 81521 8155612280 8155712280 9016450002 9018305010 9018905019 9351014008 9354065025
Part # Description Qty Price
81510 - LAMP ASSY, FRONT TURN SIGNAL, RH
81510-29795

CM20,KM20,YM21..ARL,EUR

 1
81510B - BULB (FOR FRONT TURN SIGNAL LAMP)
99132-11210

CM20,KM20,YM21..ARL,EUR

12V 21W,12V 21W

 2
99132-11050

CM20,KM20,YM2#

12V 5W,12V 5W

 2
81510B - BULB (FOR FRONT TURN SIGNAL LAMP)
99132-11210

CM20,KM20,YM21..ARL,EUR

12V 21W,12V 21W

 2
99132-11050

CM20,KM20,YM2#

12V 5W,12V 5W

 2
81511 - LENS, FRONT TURN SIGNAL LAMP, RH
81511-95705

CM20,KM20,YM21..ARL,EUR

 1
81515 - WIRE SUB-ASSY, FRONT TURN SIGNAL LAMP BODY
81515-95705

CM20,KM20,YM21..ARL,EUR

 2
81515-95701

KM20..VSP..02S;KM20..(03S,05S,07S,08S)..(ARL,EUR)

 2
81520 - LAMP ASSY, FRONT TURN SIGNAL, LH
81520-29785

CM20,KM20,YM21..ARL,EUR

 1
81521 - LENS, FRONT TURN SIGNAL LAMP, LH
81521-95705

CM20,KM20,YM21..ARL,EUR

 1
Common parts
81279-95700
81556-12280
81557-12280
90164-50002
90183-05010
90189-05019
93510-14008
93540-65025

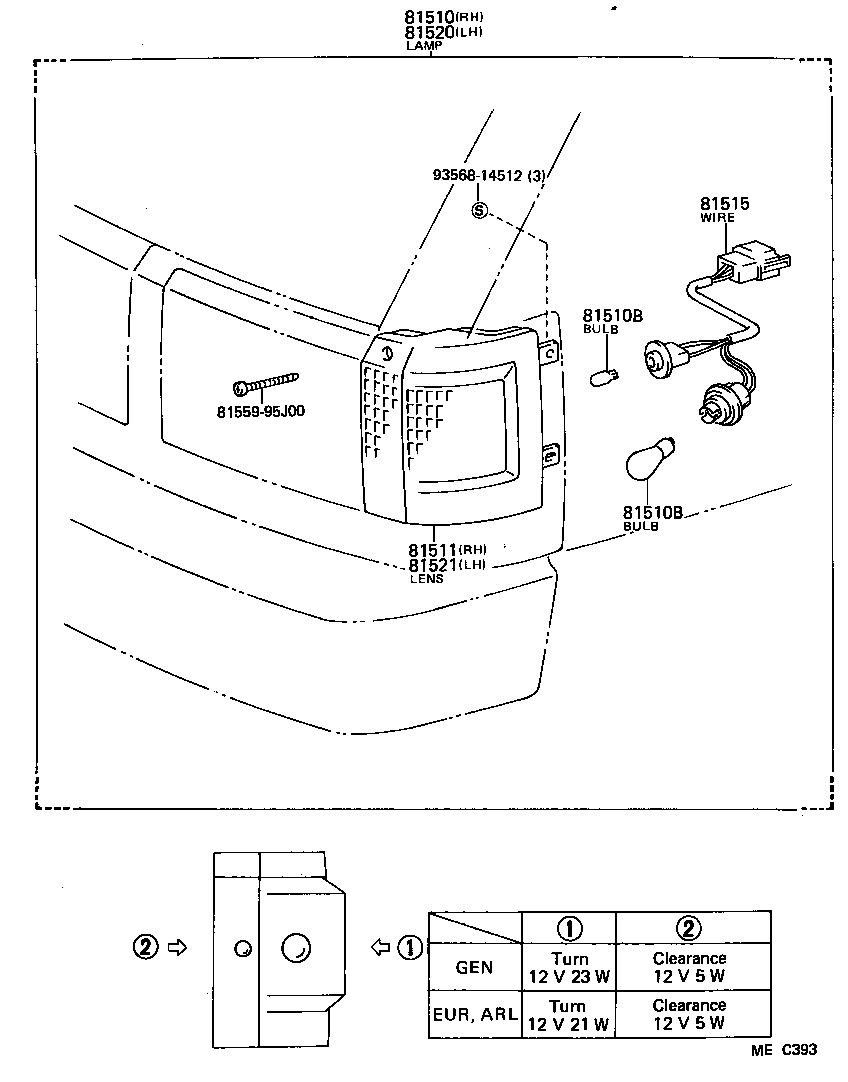

(8210- )

Click highlighted areas on diagram

diagram 81510 81510B 81510B 81511 81515 81520 81521 8155995J00 9356814512
Part # Description Qty Price
81510 - LAMP ASSY, FRONT TURN SIGNAL, RH
81510-29795

CM20,KM20,YM21..ARL,EUR

 1
81510B - BULB (FOR FRONT TURN SIGNAL LAMP)
99132-11210

CM20,KM20,YM21..ARL,EUR

12V 21W,12V 21W

 2
99132-11050

CM20,KM20,YM2#

12V 5W,12V 5W

 2
81510B - BULB (FOR FRONT TURN SIGNAL LAMP)
99132-11210

CM20,KM20,YM21..ARL,EUR

12V 21W,12V 21W

 2
99132-11050

CM20,KM20,YM2#

12V 5W,12V 5W

 2
81511 - LENS, FRONT TURN SIGNAL LAMP, RH
81511-95705

CM20,KM20,YM21..ARL,EUR

 1
81515 - WIRE SUB-ASSY, FRONT TURN SIGNAL LAMP BODY
81515-95705

CM20,KM20,YM21..ARL,EUR

 2
81515-95701

KM20..VSP..02S;KM20..(03S,05S,07S,08S)..(ARL,EUR)

 2
81520 - LAMP ASSY, FRONT TURN SIGNAL, LH
81520-29785

CM20,KM20,YM21..ARL,EUR

 1
81521 - LENS, FRONT TURN SIGNAL LAMP, LH
81521-95705

CM20,KM20,YM21..ARL,EUR

 1
Common parts
81559-95J00
93568-14512
