KM20LV-KRZGW (1981)
Toyota Liteace
(8210- )KM20..08S

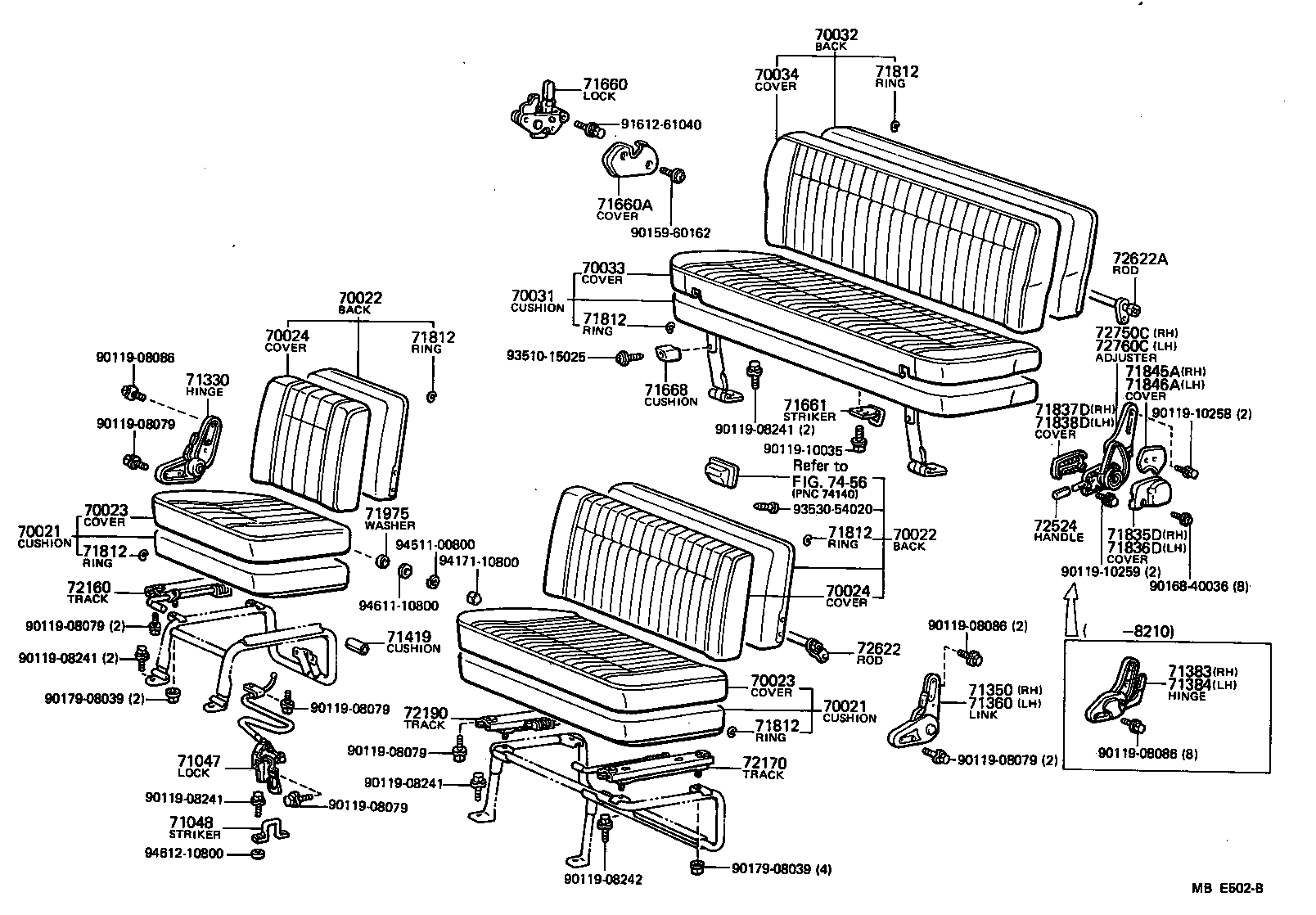

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 70021 - CUSHION ASSY, NO.2 SEAT | ||||
| 71410-95754 |
KM20..08S RH |
1 | ||
| 71510-95732 |
KM20..08S LH |
1 | ||
| 70021 - CUSHION ASSY, NO.2 SEAT | ||||
| 71410-95754 |
KM20..08S RH |
1 | ||
| 71510-95732 |
KM20..08S LH |
1 | ||
| 70022 - BACK ASSY, NO.2 SEAT | ||||
| 71450-95738 |
KM20..08S RH |
1 | ||
| 71550-95731 |
KM20..08S LH |
1 | ||
| 70022 - BACK ASSY, NO.2 SEAT | ||||
| 71450-95738 |
KM20..08S RH |
1 | ||
| 71550-95731 |
KM20..08S LH |
1 | ||
| 70023 - COVER ASSY, NO.2 SEAT CUSHION | ||||
| 71408-95736 |
KM20..08S RH |
1 | ||
| 71508-95728 |
KM20..08S LH |
1 | ||
| 70023 - COVER ASSY, NO.2 SEAT CUSHION | ||||
| 71408-95736 |
KM20..08S RH |
1 | ||
| 71508-95728 |
KM20..08S LH |
1 | ||
| 70024 - COVER ASSY, NO.2 SEAT BACK | ||||
| 71409-95736 |
KM20..08S RH |
1 | ||
| 71509-95728 |
KM20..08S LH |
1 | ||
| 70024 - COVER ASSY, NO.2 SEAT BACK | ||||
| 71409-95736 |
KM20..08S RH |
1 | ||
| 71509-95728 |
KM20..08S LH |
1 | ||
| 70031 - CUSHION ASSY, NO.3 SEAT | ||||
| 71610-95723 |
KM20,YM21..08S |
1 | ||
| 70032 - BACK ASSY, NO.3 SEAT | ||||
| 71650-95728 |
KM20,YM21..08S |
1 | ||
| 70033 - COVER ASSY, NO.3 SEAT CUSHION | ||||
| 71608-95729 |
KM20,YM21..08S |
1 | ||
| 70034 - COVER ASSY, NO.3 SEAT BACK | ||||
| 71609-95730 |
KM20,YM21..08S |
1 | ||
| 71047 - LOCK SUB-ASSY, REAR SEAT LEG | ||||
| 72630-95703 |
KM20..08S |
1 | ||
| 71048 - STRIKER SUB-ASSY, REAR SEAT LOCK | ||||
| 71048-95700 |
KM20..08S |
1 | ||
| 71330 - HINGE ASSY, REAR SEAT CUSHION | ||||
| 72580-95702 |
KM20..08S |
1 | ||
| 71383 - HINGE, REAR SEAT BACK STOP, NO.3 | ||||
| 71680-95700 |
KM20..BUS,WG |
1 | ||
| 71384 - HINGE, REAR SEAT BACK STOP, NO.4 | ||||
| 71690-95700 |
KM20..BUS,WG |
1 | ||
| 71419 - CUSHION (FOR REAR SEAT LEG) | ||||
| 71419-95A01 |
KM20,YM21..08S |
1 | ||
| 71660A - COVER, REAR NO.3 SEAT LOCK | ||||
| 71692-9570105 |
KM20,YM21..08S,09S LH,BEIGE,BEIGE |
1 | ||
| 71691-9570105 |
KM20,YM21..08S,09S RH,BEIGE,BEIGE |
1 | ||
| 71661 - STRIKER, REAR NO.3 SEAT LOCK | ||||
| 71664-95701 |
KM20,YM21..08S,09S |
2 | ||
| 71668 - CUSHION, REAR NO.3 SEAT | ||||
| 71668-95700 |
KM20,YM21..BUS,WG |
2 | ||
| 71812 - CLIP (FOR FRONT SEAT CUSHION COVER) | ||||
| 90468-18071 |
CM20,KM20,YM2# |
1 | ||
| 90468-18056 |
KM20..VSP..02S;KM20..(HRF,SRF)..(03S,05S,06S,07S,08S,09S) |
1 | ||
| 71812 - CLIP (FOR FRONT SEAT CUSHION COVER) | ||||
| 90468-18071 |
CM20,KM20,YM2# |
1 | ||
| 90468-18056 |
KM20..VSP..02S;KM20..(HRF,SRF)..(03S,05S,06S,07S,08S,09S) |
1 | ||
| 71812 - CLIP (FOR FRONT SEAT CUSHION COVER) | ||||
| 90468-18071 |
CM20,KM20,YM2# |
1 | ||
| 90468-18056 |
KM20..VSP..02S;KM20..(HRF,SRF)..(03S,05S,06S,07S,08S,09S) |
1 | ||
| 71812 - CLIP (FOR FRONT SEAT CUSHION COVER) | ||||
| 90468-18071 |
CM20,KM20,YM2# |
1 | ||
| 90468-18056 |
KM20..VSP..02S;KM20..(HRF,SRF)..(03S,05S,06S,07S,08S,09S) |
1 | ||
| 71812 - CLIP (FOR FRONT SEAT CUSHION COVER) | ||||
| 90468-18071 |
CM20,KM20,YM2# |
1 | ||
| 90468-18056 |
KM20..VSP..02S;KM20..(HRF,SRF)..(03S,05S,06S,07S,08S,09S) |
1 | ||
| 71812 - CLIP (FOR FRONT SEAT CUSHION COVER) | ||||
| 90468-18071 |
CM20,KM20,YM2# |
1 | ||
| 90468-18056 |
KM20..VSP..02S;KM20..(HRF,SRF)..(03S,05S,06S,07S,08S,09S) |
1 | ||
| 71835D - COVER, REAR SEAT RECLINING, LOWER RH | ||||
| 71835-9570005 |
KM20,YM21..08S,09S BEIGE,BEIGE |
1 | ||
| 71836D - COVER, REAR SEAT RECLINING, LOWER LH | ||||
| 71836-9570005 |
KM20,YM21..08S,09S BEIGE,BEIGE |
1 | ||
| 71837D - COVER, REAR SEAT RECLINING, INNER RH | ||||
| 71837-9570005 |
KM20,YM21..08S,09S BEIGE,BEIGE |
1 | ||
| 71838D - COVER, REAR SEAT RECLINING, INNER LH | ||||
| 71838-9570005 |
KM20,YM21..08S,09S BEIGE,BEIGE |
1 | ||
| 71845A - COVER, REAR SEAT RECLINING, UPPER RH | ||||
| 71845-9570005 |
KM20,YM21..08S,09S BEIGE,BEIGE |
1 | ||
| 71846A - COVER, REAR SEAT RECLINING, UPPER LH | ||||
| 71846-9570005 |
KM20,YM21..08S,09S BEIGE,BEIGE |
1 | ||
| 71975 - WASHER, REAR NO.1 SEAT | ||||
| 71975-95A01 |
KM20,YM21..08S |
1 | ||
| 72160 - TRACK ASSY, REAR SEAT, OUTER RH | ||||
| 72160-95702 |
KM20..08S BEIGE |
1 | ||
| 72170 - TRACK ASSY, REAR SEAT, OUTER LH | ||||
| 72180-95701 |
KM20..08S BEIGE |
1 | ||
| 72190 - TRACK ASSY, REAR SEAT INNER, LH | ||||
| 72190-95702 |
KM20..08S BEIGE |
1 | ||
| 72524 - HANDLE, RECLINING ADJUSTER RELEASE | ||||
| 72525-1206005 |
KM20,YM21..08S,09S BEIGE,BEIGE |
2 | ||
| 72622 - ROD, REAR SEAT BACK STOPPER CONNECTING | ||||
| 71507-95701 |
KM20,YM21..08S,09S |
1 | ||
| 72622A - ROD, REAR SEAT BACK STOPPER CONNECTING, NO.2 | ||||
| 79169-95701 |
KM20,YM21..08S,09S |
1 | ||
| 72753-95700 |
KM20,YM21..08S,09S |
1 | ||
| 71670-95700 |
KM20..BUS,WG |
1 | ||
| 72750C - ADJUSTER ASSY, NO.3 SEAT RECLINING, RH | ||||
| 72750-9570005 |
KM20,YM21..08S,09S BEIGE,BEIGE |
1 | ||
| 72760C - ADJUSTER ASSY, NO.3 SEAT RECLINING, LH | ||||
| 72760-9570005 |
KM20,YM21..08S,09S BEIGE,BEIGE |
1 | ||
| Common parts | ||||
| 90119-08079 | ||||
| 90119-08086 | ||||
| 90119-08241 | ||||
| 90119-08242 | ||||
| 90119-10035 | ||||
| 90119-10258 | ||||
| 90119-10259 | ||||
| 90159-60162 | ||||
| 90168-40036 | ||||
| 90179-08039 | ||||
| 91612-61040 | ||||
| 93510-15025 | ||||
| 93530-54020 | ||||
| 94171-10800 | ||||
| 94511-00800 | ||||
| 94611-10800 | ||||
| 94612-10800 | ||||
| Linked diagrams | ||||
| 7456 | ||||
