KM20LV-KRZBFEW (1981)
Toyota Liteace

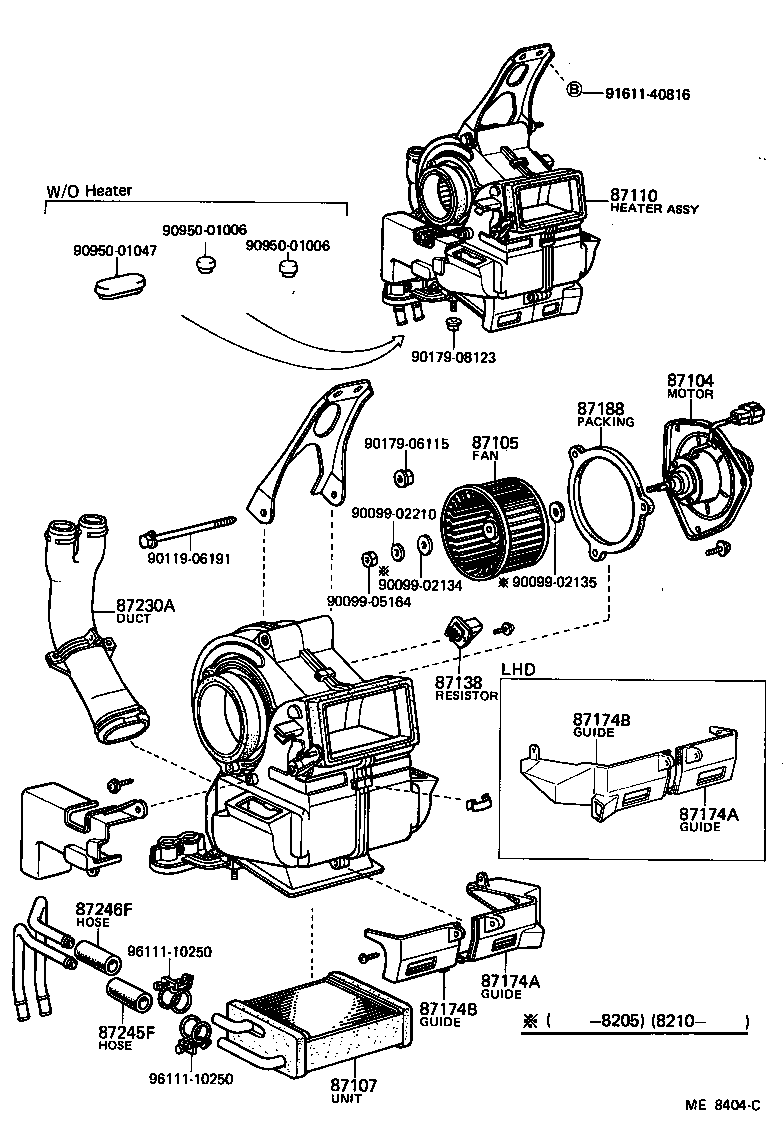

(7910-8210) ; (8210- )LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87104 - MOTOR SUB-ASSY, HEATER BLOWER | ||||
| 87104-95403 |
KM20..4F;KM20..SRF..4H..EUR;KM20..HRF..VSP..4H..EUR;KM20..HRF..4H..(05S,07S)..EUR HEAVY HEATER |
1 | ||
| 87104-95401 |
KM20..VSP..02S;KM20..03S,05S,06S,07S,08S,09S |
1 | ||
| 87105 - FAN SUB-ASSY, HEATER BLOWER | ||||
| 87105-12040 |
CM20,KM20..LHD |
1 | ||
| 87107 - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-95403 |
KM20..4F;KM20..SRF..4H..EUR;KM20..HRF..VSP..4H..EUR;KM20..HRF..4H..(05S,07S)..EUR HEAVY HEATER |
1 | ||
| 87107-95400 |
KM20..VSP..02S;KM20..03S,05S,06S,07S,08S,09S |
1 | ||
| 87110 - HEATER ASSY | ||||
| 87110-95707 |
KM20..4F;KM20..LHD..SRF..4H..EUR;KM20..HRF..VSP..4H..EUR;KM20..HRF..4H..(05S,07S)..EUR |
1 | ||
| 87110-95708 |
KM20..4F;KM20..LHD..SRF..4H..EUR;KM20..HRF..VSP..4H..EUR;KM20..HRF..4H..(05S,07S)..EUR HEAVY HEATER |
1 | ||
| 87138 - RESISTOR, HEATER BLOWER | ||||
| 87138-87003 |
KM20..VSP..02S;KM20..03S,05S,06S,07S,08S,09S |
1 | ||
| 87138-87004 |
KM20..4F;KM20..SRF..4H..EUR;KM20..HRF..VSP..4H..EUR;KM20..HRF..4H..(05S,07S)..EUR HEAVY HEATER |
1 | ||
| 87174A - GUIDE, AIR HEATER | ||||
| 87174-95700 |
KM20..4F;KM20..LHD..VSP..4H..EUR;KM20..LHD..4H..(03S,05S,06S,07S,09S) |
1 | ||
| 87174A - GUIDE, AIR HEATER | ||||
| 87174-95700 |
KM20..4F;KM20..LHD..VSP..4H..EUR;KM20..LHD..4H..(03S,05S,06S,07S,09S) |
1 | ||
| 87174B - GUIDE, AIR, NO.2 | ||||
| 87175-95700 |
KM20..4F;KM20..LHD..VSP..4H..EUR;KM20..LHD..4H..(03S,05S,06S,07S,09S) |
1 | ||
| 87174B - GUIDE, AIR, NO.2 | ||||
| 87175-95700 |
KM20..4F;KM20..LHD..VSP..4H..EUR;KM20..LHD..4H..(03S,05S,06S,07S,09S) |
1 | ||
| 87188 - PACKING, HEATER BLOWER MOTOR | ||||
| 87128-22010 |
KM20..VSP..02S;KM20..03S,05S,06S,07S,08S,09S |
1 | ||
| 87230A - DUCT ASSY, HEATER AIR | ||||
| 87212-95700 |
KM20..4F;KM20..SRF..4H..EUR;KM20..HRF..VSP..4H..EUR;KM20..HRF..4H..(05S,07S)..EUR |
1 | ||
| 87245F - HOSE, HEATER WATER, INLET F | ||||
| 99552-30075 |
KM20..VSP..02S;KM20..03S,05S,06S,07S,08S,09S *H,L=45 |
1 | ||
| 87246F - HOSE, HEATER WATER, OUTLET F | ||||
| 99552-30075 |
KM20..VSP..02S;KM20..03S,05S,06S,07S,08S,09S *H,L=45 |
1 | ||
| Common parts | ||||
| 90099-02134 | ||||
| 90099-02135 | ||||
| 90099-02210 | ||||
| 90099-05164 | ||||
| 90119-06191 | ||||
| 90179-06115 | ||||
| 90179-08123 | ||||
| 90950-01006 | ||||
| 90950-01047 | ||||
| 91611-40816 | ||||
| 96111-10250 | ||||

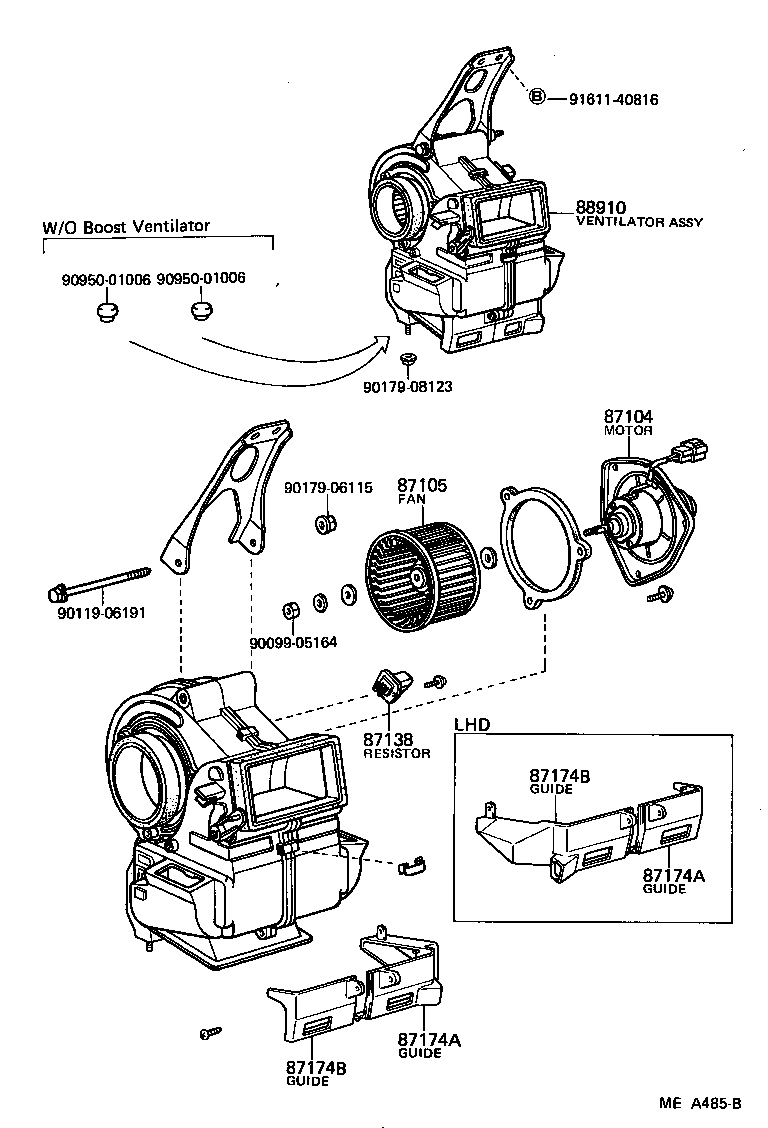

(7910-8210) ; (8210- )LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87104 - MOTOR SUB-ASSY, HEATER BLOWER | ||||
| 87104-95403 |
KM20..4F;KM20..SRF..4H..EUR;KM20..HRF..VSP..4H..EUR;KM20..HRF..4H..(05S,07S)..EUR HEAVY HEATER |
1 | ||
| 87104-95401 |
KM20..VSP..02S;KM20..03S,05S,06S,07S,08S,09S |
1 | ||
| 87105 - FAN SUB-ASSY, HEATER BLOWER | ||||
| 87105-12040 |
CM20,KM20..LHD |
1 | ||
| 87138 - RESISTOR, HEATER BLOWER | ||||
| 87138-87003 |
KM20..VSP..02S;KM20..03S,05S,06S,07S,08S,09S |
1 | ||
| 87138-87004 |
KM20..4F;KM20..SRF..4H..EUR;KM20..HRF..VSP..4H..EUR;KM20..HRF..4H..(05S,07S)..EUR HEAVY HEATER |
1 | ||
| 87174A - GUIDE, AIR HEATER | ||||
| 87174-95700 |
KM20..4F;KM20..LHD..VSP..4H..EUR;KM20..LHD..4H..(03S,05S,06S,07S,09S) |
1 | ||
| 87174A - GUIDE, AIR HEATER | ||||
| 87174-95700 |
KM20..4F;KM20..LHD..VSP..4H..EUR;KM20..LHD..4H..(03S,05S,06S,07S,09S) |
1 | ||
| 87174B - GUIDE, AIR, NO.2 | ||||
| 87175-95700 |
KM20..4F;KM20..LHD..VSP..4H..EUR;KM20..LHD..4H..(03S,05S,06S,07S,09S) |
1 | ||
| 87174B - GUIDE, AIR, NO.2 | ||||
| 87175-95700 |
KM20..4F;KM20..LHD..VSP..4H..EUR;KM20..LHD..4H..(03S,05S,06S,07S,09S) |
1 | ||
| Common parts | ||||
| 90099-05164 | ||||
| 90119-06191 | ||||
| 90179-06115 | ||||
| 90179-08123 | ||||
| 90950-01006 | ||||
| 91611-40816 | ||||
