KM20LV-KRZBEW (1981)

Toyota Liteace

Production Aug 1981 - Aug 1985
Engine 4K 4KC
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7910-8202) ; (7910-8210)4K..EUR ; (7910- )4K..GEN

Click highlighted areas on diagram

(7910-8202)HONG KONG SPEC

diagram 9033902008 9033902008 9046400074 9046400082 9541119995
Part # Description Qty Price
Common parts
90339-02008
90464-00074
90464-00082
95411-19995

(7910-8210)

Click highlighted areas on diagram

diagram 2103 2103 2103 23262 23281 23282 9033902008 9041304004 9046400020 9046400074 9046400074 9046400082 9046400082 9046400089 9541119930 9541119930 9541119930 9541119930 9541119930 9541119960 9541119960
Part # Description Qty Price
23262 - VALVE, BIMETAL VACUUM SWITCHING, NO.1
90925-05063

4K..KM20..V4D..4F

SWITZERLAND SPEC

 1
90925-05051

4K..KM20..EUR

 1
23281 - VALVE, VACUUM TRANSMITTING, NO.1
90925-01029

4K..KM20..EUR

 1
23282 - VALVE, VACUUM TRANSMITTING, NO.2
90925-01058

4K..KM20..EUR

 1
Common parts
90339-02008
90413-04004
90464-00020
90464-00074
90464-00082
90464-00089
95411-19930
95411-19960
Linked diagrams
2103

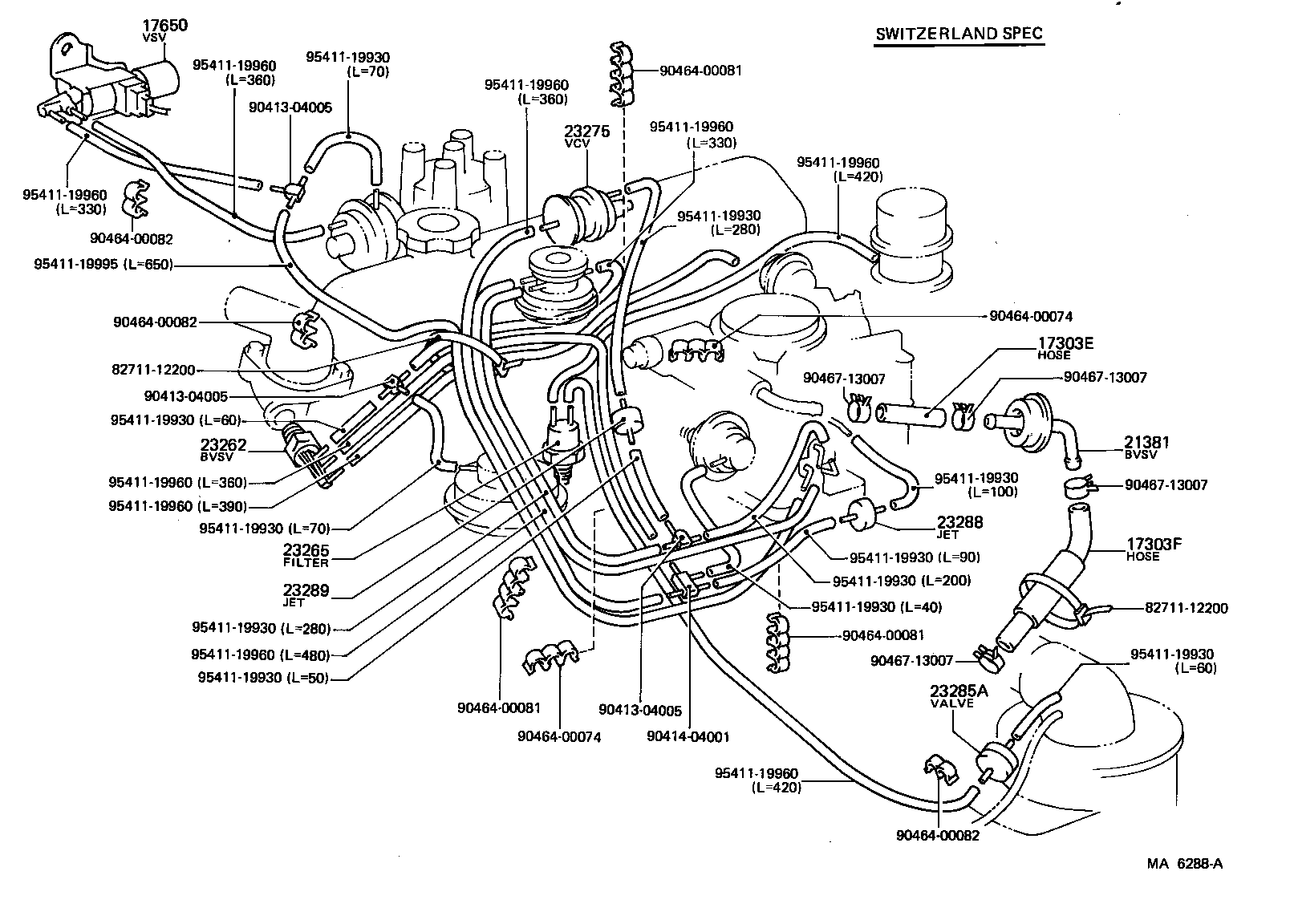

(8210- )4K..V4D..4F ; (8210- )4K..SRF..08S

Click highlighted areas on diagram

diagram 17303E 17303F 17650 21381 23262 23265 23275 23285A 23288 23289 8271112200 8271112200 9041304005 9041304005 9041304005 9041404001 9046400074 9046400074 9046400081 9046400081 9046400081 9046400082 9046400082 9046400082 9046713007 9046713007 9046713007 9046713007 9541119930 9541119930 9541119930 9541119930 9541119930 9541119930 9541119930 9541119930 9541119930 9541119930 9541119930 9541119960 9541119960 9541119960 9541119960 9541119960 9541119960 9541119960 9541119960 9541119960 9541119995
Part # Description Qty Price
17303E - HOSE, NO.1(FOR AIR PIPE)
90445-14079

4K..KM20..EUR

 1
17303F - HOSE, NO.2(FOR AIR PIPE)
90447-14004

4K..KM20..EUR

 1
17650 - VALVE ASSY, VACUUM SWITCHING
89570-28050

4K..KM20..V4D..4F

SWITZERLAND SPEC

 1
21381 - BIMETAL, THERMOSTATIC
21381-13030

4K..KM20..EUR

 1
23262 - VALVE, BIMETAL VACUUM SWITCHING, NO.1
90925-05063

4K..KM20..V4D..4F

SWITZERLAND SPEC

 1
90925-05051

4K..KM20..EUR

 1
23265 - FILTER, GAS, NO.1
90917-11023

4K..KM20..ARL;4K..KM20..V4D..4F;4K..KM20..SRF..08S..STD

 1
90917-11023

4K..KM20..EUR

 1
23275 - VALVE, VACUUM CONTROL, NO.1
90925-03138

4K..KM20..V4D..4F

SWITZERLAND SPEC

 1
23285A - VALVE, CHECK, NO.1
90917-10049

4K..KM20..LHD..EUR

COLD SPEC

 1
90917-10049

4K..KM20..V4D..4F

SWITZERLAND SPEC

 1
23288 - JET, NO.1
90925-04005

4K..KM20..V4D..4F

SWIZERLAND SPEC

 1
23289 - JET, NO.2
90925-04018

4K..KM20..V4D..4F

SWITZERLAND SPEC

 1
Common parts
82711-12200
90413-04005
90414-04001
90464-00074
90464-00081
90464-00082
90467-13007
95411-19930
95411-19960
95411-19995

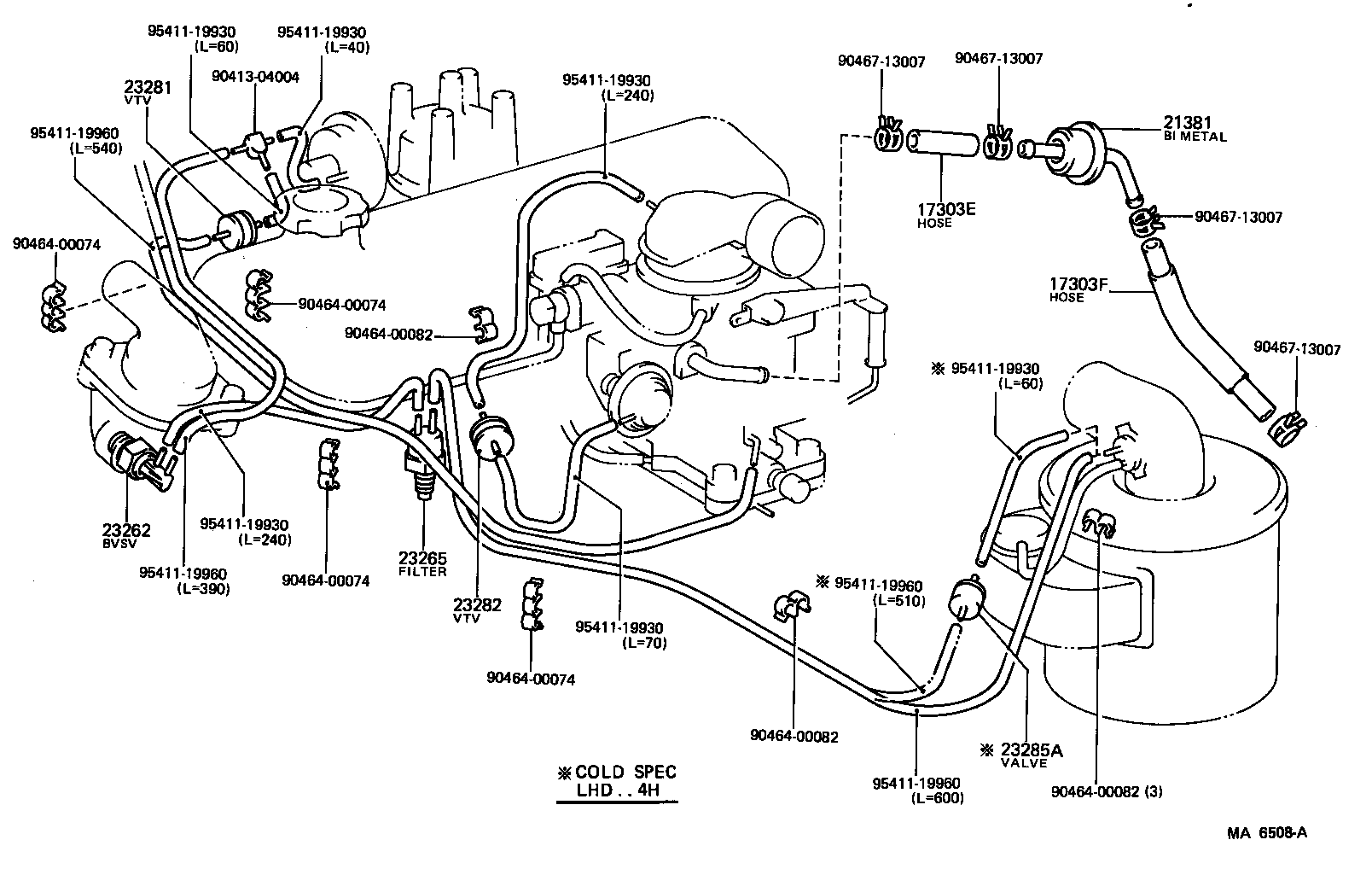

(8210- )4K..EUR

Click highlighted areas on diagram

diagram 17303E 17303F 21381 23262 23265 23281 23282 23285A 9041304004 9046400074 9046400074 9046400074 9046400074 9046400082 9046400082 9046400082 9046713007 9046713007 9046713007 9046713007 9541119930 9541119930 9541119930 9541119930 9541119930 9541119930 9541119960 9541119960 9541119960 9541119960
Part # Description Qty Price
17303E - HOSE, NO.1(FOR AIR PIPE)
90445-14079

4K..KM20..EUR

 1
17303F - HOSE, NO.2(FOR AIR PIPE)
90447-14004

4K..KM20..EUR

 1
21381 - BIMETAL, THERMOSTATIC
21381-13030

4K..KM20..EUR

 1
23262 - VALVE, BIMETAL VACUUM SWITCHING, NO.1
90925-05063

4K..KM20..V4D..4F

SWITZERLAND SPEC

 1
90925-05051

4K..KM20..EUR

 1
23265 - FILTER, GAS, NO.1
90917-11023

4K..KM20..ARL;4K..KM20..V4D..4F;4K..KM20..SRF..08S..STD

 1
90917-11023

4K..KM20..EUR

 1
23281 - VALVE, VACUUM TRANSMITTING, NO.1
90925-01029

4K..KM20..EUR

 1
23282 - VALVE, VACUUM TRANSMITTING, NO.2
90925-01058

4K..KM20..EUR

 1
23285A - VALVE, CHECK, NO.1
90917-10049

4K..KM20..LHD..EUR

COLD SPEC

 1
90917-10049

4K..KM20..V4D..4F

SWITZERLAND SPEC

 1
Common parts
90413-04004
90464-00074
90464-00082
90467-13007
95411-19930
95411-19960
