KM20LV-KRBFEW (1981)

Toyota Liteace

Production Aug 1981 - Aug 1985
Engine 4K
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7910-8210)LHD

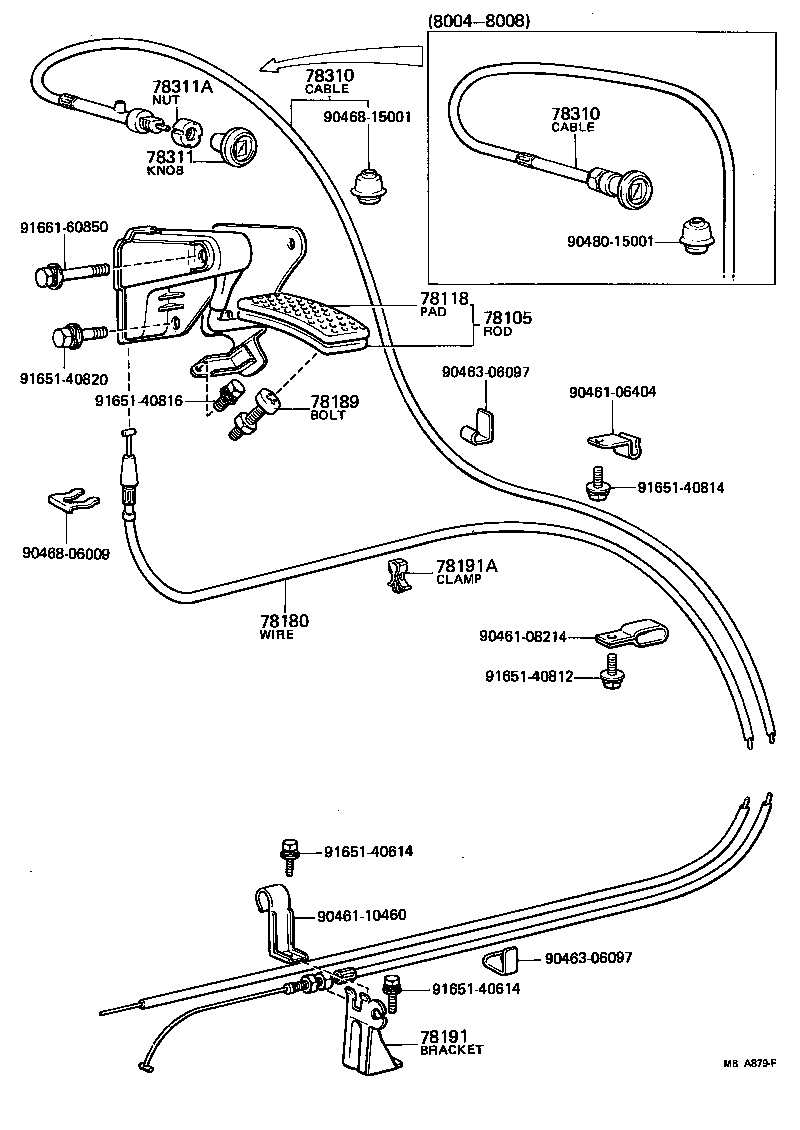

Click highlighted areas on diagram

diagram 78105 78118 78180 78189 78191 78191A 78310 78310 78311 78311A 9046106404 9046108214 9046110460 9046306097 9046306097 9046806009 9046815001 9048015001 9165140614 9165140614 9165140812 9165140814 9165140816 9165140820 9166160850
Part # Description Qty Price
78105 - ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.3
78105-95701

KM20..4F;KM20..LHD..VSP..4H..EUR;KM20..LHD..4H..(03S,05S,06S,07S,09S)

 1
78105-95703

CM20,KM20..LHD

 1
78118 - PAD, ACCELERATOR PEDAL
78111-95110

CM20,KM20..LHD

 1
78180 - WIRE ASSY, ACCELERATOR
78150-95712

KM20..LHD

 1
78189 - BOLT, ACCELERATOR PEDAL STOPPER
78107-95A00

CM20,KM20,YM2#..HRF,SRF

 1
78191 - BRACKET, ACCELERATOR WIRE SUPPORT
78184-95700

KM20..RHD;KM20..LHD..VSP..EUR;KM20..LHD..(03S,05S,06S,07S)

 1
78191A - CLAMP (FOR ACCELERATOR WIRE SET)
78183-95701

KM20..LHD

 1
78310 - CABLE ASSY, CHOKE
78301-95701

KM20..LHD..VSP..EUR;KM20..LHD..(03S,05S,06S,07S)

 1
78301-95706

KM20..LHD..EUR

 1
78310 - CABLE ASSY, CHOKE
78301-95701

KM20..LHD..VSP..EUR;KM20..LHD..(03S,05S,06S,07S)

 1
78301-95706

KM20..LHD..EUR

 1
78311 - KNOB, CHOKE CONTROL CABLE
78302-95700

KM20..LHD..VSP..EUR;KM20..LHD..(03S,05S,06S,07S)

 1
78311A - NUT, CHOKE SHAFT SET
78314-95A00

KM20..LHD..VSP..EUR;KM20..LHD..(03S,05S,06S,07S)

 1
Common parts
90461-06404
90461-08214
90461-10460
90463-06097
90468-06009
90468-15001
90480-15001
91651-40614
91651-40812
91651-40814
91651-40816
91651-40820
91661-60850

(8210- )LHD

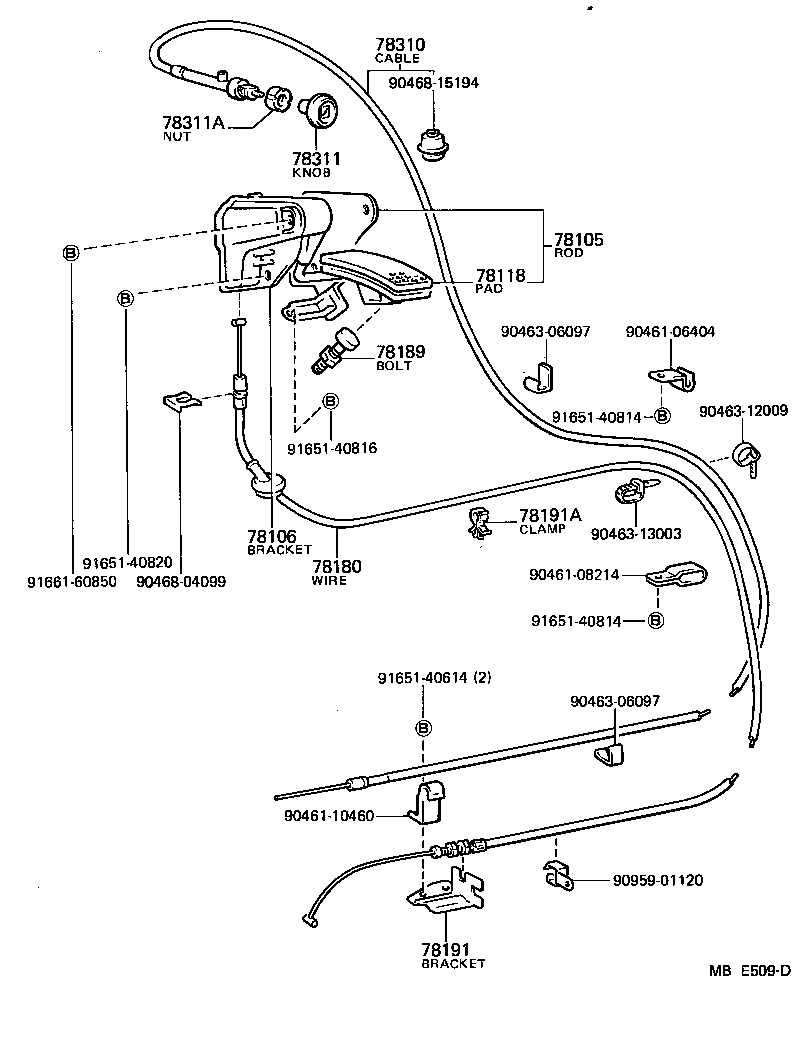

Click highlighted areas on diagram

diagram 78105 78106 78118 78180 78189 78191 78191A 78310 78311 78311A 9046106404 9046108214 9046110460 9046306097 9046306097 9046312009 9046313003 9046804099 9046815194 9095901120 9165140614 9165140814 9165140814 9165140816 9165140820 9166160850
Part # Description Qty Price
78105 - ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.3
78105-95701

KM20..4F;KM20..LHD..VSP..4H..EUR;KM20..LHD..4H..(03S,05S,06S,07S,09S)

 1
78105-95703

CM20,KM20..LHD

 1
78106 - BRACKET SUB-ASSY, ACCELERATOR PEDAL SUPPORT
78106-95701

CM20,KM20..LHD

 1
78118 - PAD, ACCELERATOR PEDAL
78111-95110

CM20,KM20..LHD

 1
78180 - WIRE ASSY, ACCELERATOR
78150-95712

KM20..LHD

 1
78189 - BOLT, ACCELERATOR PEDAL STOPPER
78107-95A00

CM20,KM20,YM2#..HRF,SRF

 1
78191 - BRACKET, ACCELERATOR WIRE SUPPORT
78184-95700

KM20..RHD;KM20..LHD..VSP..EUR;KM20..LHD..(03S,05S,06S,07S)

 1
78191A - CLAMP (FOR ACCELERATOR WIRE SET)
78183-95701

KM20..LHD

 1
78310 - CABLE ASSY, CHOKE
78301-95701

KM20..LHD..VSP..EUR;KM20..LHD..(03S,05S,06S,07S)

 1
78301-95706

KM20..LHD..EUR

 1
78311 - KNOB, CHOKE CONTROL CABLE
78302-95700

KM20..LHD..VSP..EUR;KM20..LHD..(03S,05S,06S,07S)

 1
78311A - NUT, CHOKE SHAFT SET
78314-95A00

KM20..LHD..VSP..EUR;KM20..LHD..(03S,05S,06S,07S)

 1
Common parts
90461-06404
90461-08214
90461-10460
90463-06097
90463-12009
90463-13003
90468-04099
90468-15194
90959-01120
91651-40614
91651-40814
91651-40816
91651-40820
91661-60850
