KM20LV-KDGW (1981)

Toyota Liteace

Production Aug 1981 - Oct 1982
Engine 4K
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7910-8210)HRF,SRF

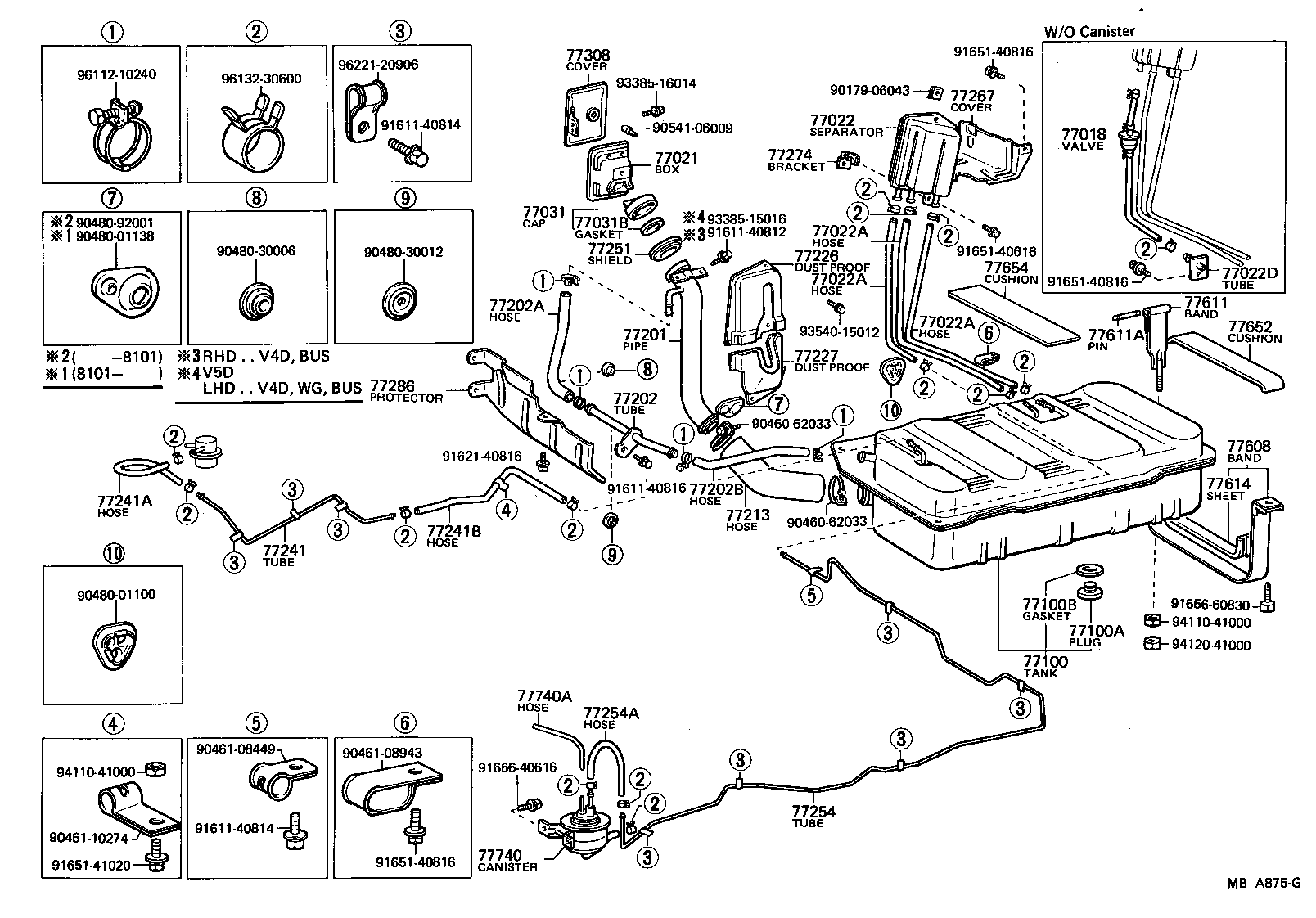

Click highlighted areas on diagram

diagram 77018 77021 77022 77022A 77022A 77022A 77022D 77031 77031B 77100 77100A 77100B 77201 77202 77202A 77202B 77213 77226 77227 77241 77241A 77241B 77251 77254 77254A 77267 77274 77286 77308 77608 77611 77611A 77614 77652 77654 77740 77740A 9017906043 9046062033 9046062033 9046108449 9046108943 9046110274 9048001100 9048001138 9048030006 9048030012 9048092001 9054106009 9161140812 9161140814 9161140814 9161140816 9162140816 9165140616 9165140816 9165140816 9165140816 9165141020 9165660830 9166640616 9338515016 9338516014 9354015012 9411041000 9411041000 9412041000 9611210240 9613230600 9622120906
Part # Description Qty Price
77018 - VALVE SUB-ASSY, FUEL VAPOUR SEPARATE
77018-27020

KM20..(HRF,SRF)..(EUR,GEN)

 1
77022 - SEPARATOR SUB-ASSY, FUEL EVAPORATIVE
77271-28011

CM20,KM20,YM2#..HRF,SRF

 1
77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)
77259-27070

CM20,KM20,YM2#..HRF,SRF

L=800

 2
77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)
77259-27070

CM20,KM20,YM2#..HRF,SRF

L=800

 2
77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)
77259-27070

CM20,KM20,YM2#..HRF,SRF

L=800

 2
77022D - HOSE OR TUBE(FOR FUEL EVAPORATIVE SEPARATOR)
77263-26020

KM20..(HRF,SRF)..(EUR,GEN)

 1
77031 - CAP ASSY, FUEL TANK
77310-14070

KM20..VSP..02S;KM20..(HRF,SRF)..(03S,05S,06S,07S,08S,09S)

 1
77031B - GASKET (FOR FUEL TANK CAP)
77316-12050

CM20,KM20,YM2#..HRF,SRF

 1
77100 - TANK ASSY, FUEL
77001-27050

KM20..HRF,SRF

 1
77100A - PLUG(FOR FUEL TANK)
90341-24036

KM20..VSP..02S;KM20..(HRF,SRF)..(03S,05S,06S,07S,08S,09S)

 1
77100B - GASKET(FOR FUEL TANK)
90430-24047

KM20..VSP..02S;KM20..(HRF,SRF)..(03S,05S,06S,07S,08S,09S)

 1
77201 - PIPE SUB-ASSY, FUEL TANK INLET
77201-27070

KM20..V4D..4F;KM20..LHD..(BUS,WG);KM20..LHD..V4D..VSP..4H..EUR;KM20..LHD..V4D..4H..(03S,05S,06S)

 1
77202 - TUBE SUB-ASSY, BREATHER
77203-27040

KM20..V4D..4F;KM20..LHD..(BUS,WG);KM20..LHD..V4D..VSP..4H..EUR;KM20..LHD..V4D..4H..(03S,05S,06S)

 1
77202A - HOSE, FUEL, NO.1 (FOR BREATHER TUBE)
90445-24020

CM20,KM20..LHD..V4D;KM20..LHD..(BUS,WG)

 1
77202B - HOSE, FUEL, NO.2 (FOR BREATHER TUBE)
77259-27040

CM20,KM20..LHD..V4D;KM20..LHD..(BUS,WG)

 1
77213 - HOSE, FUEL TANK SUB INLET
77259-27010

CM20,KM20..LHD..V4D;KM20..LHD..(BUS,WG)

 1
77226 - DUST PROOF SUB-ASSY, FUEL INLET PIPE, UPPER
77206-95701

CM20,KM20..LHD..V4D;KM20..LHD..(BUS,WG)

 1
77227 - DUST PROOF SUB-ASSY, FUEL INLET PIPE, LOWER
77207-95700

CM20,KM20..LHD..V4D;KM20..LHD..(BUS,WG)

 1
77241 - TUBE, FUEL MAIN, NO.1
77251-27040

KM20..VSP..02S;KM20..(HRF,SRF)..(03S,05S,06S,07S,08S,09S)

 1
77241A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1)
95332-06030

KM20..VSP..02S;KM20..(HRF,SRF)..(03S,05S,06S,07S,08S,09S)

*H,L=220

 1
77241B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1)
95332-06060

KM20..VSP..02S;KM20..(HRF,SRF)..(03S,05S,06S,07S,08S,09S)

*H,L=460

 1
77251 - SHIELD, FUEL TANK, INLET, NO.1
77251-10010

CM20,KM20,YM2#..HRF,SRF

 1
77267 - COVER, FUEL EVAPORATIVE TUBE
77267-95700

CM20,KM20,YM2#..HRF,SRF

 1
77274 - BRACKET, FUEL EVAPORATIVE SEPARATOR
77274-27010

CM20,KM20,YM2#..HRF,SRF

 1
77308 - COVER SUB-ASSY, FUEL INLET BOX
77310-95700

CM20,KM20,YM2#..HRF,SRF

 1
77611 - BAND, FUEL TANK
77601-27020

CM20,KM20,YM2#..HRF,SRF

 2
77611A - PIN (FOR FUEL TANK BAND)
77629-25010

CM20,KM20,YM2#

 2
77614 - SEAT, FUEL TANK BAND
77614-36040

CM20;KM20..VSP..02S;KM20..(HRF,SRF)..(03S,05S,06S,07S,08S,09S)

 2
77652 - CUSHION, FUEL TANK, NO.1
77651-27020

CM20;KM20..VSP..02S;KM20..(HRF,SRF)..(03S,05S,06S,07S,08S,09S)

 2
77654 - CUSHION, FUEL TANK, NO.2
77651-27030

CM20;KM20..VSP..02S;KM20..(HRF,SRF)..(03S,05S,06S,07S,08S,09S)

 1
Common parts
90179-06043
90460-62033
90461-08449
90461-08943
90461-10274
90480-01100
90480-01138
90480-30006
90480-30012
90480-92001
90541-06009
91611-40812
91611-40814
91611-40816
91621-40816
91651-40616
91651-40816
91651-41020
91656-60830
91666-40616
93385-15016
93385-16014
93540-15012
94110-41000
94120-41000
96112-10240
96132-30600
96221-20906
