KM20LV-KDGW (1981)

Toyota Liteace

Production Aug 1981 - Oct 1982
Engine 4K
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8108- )4F

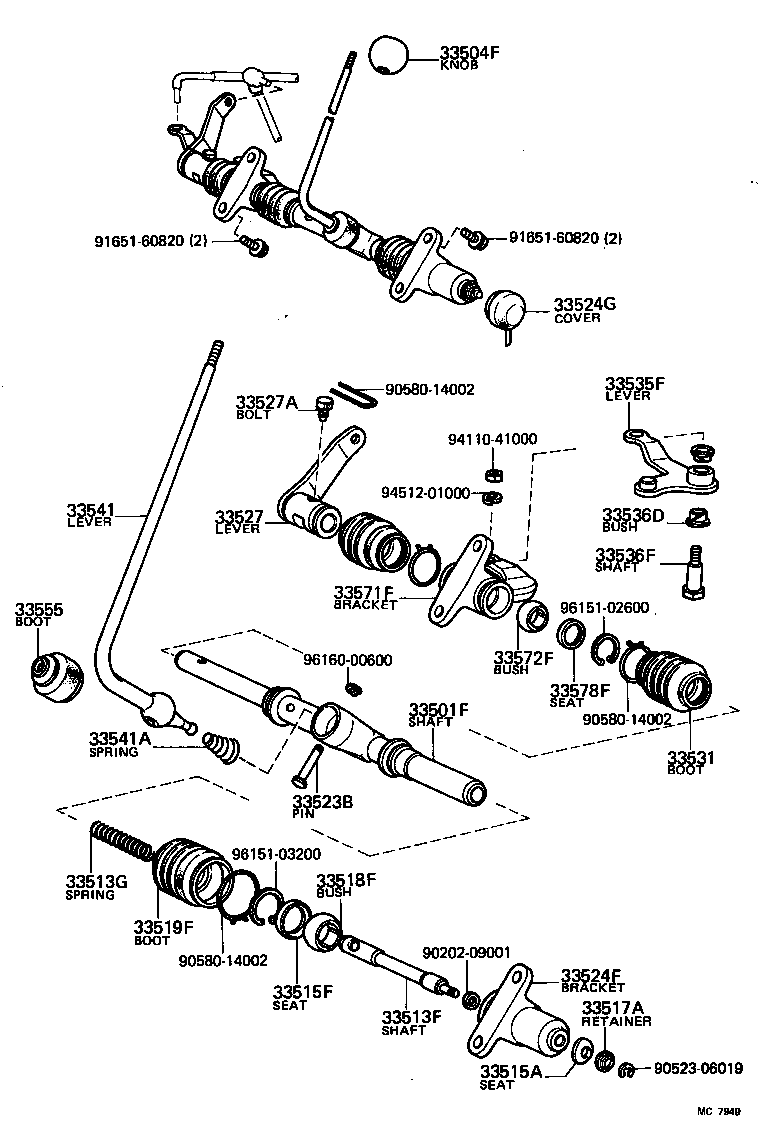

Click highlighted areas on diagram

diagram 33501F 33504F 33513F 33513G 33515A 33515F 33517A 33518F 33519F 33523B 33524F 33524G 33527 33527A 33531 33535F 33536D 33536F 33541 33541A 33555 33571F 33572F 33578F 9020209001 9052306019 9058014002 9058014002 9058014002 9165160820 9165160820 9411041000 9451201000 9615102600 9615103200 9616000600
Part # Description Qty Price
33504F - KNOB SUB-ASSY, SHIFT LEVER
33504-2210101

KM20..V..4F

BLACK,BLACK

 1
33504-2006201

KM20..4F

BLACK,URETHANE,BLACK

 1
Common parts
90202-09001
90523-06019
90580-14002
91651-60820
94110-41000
94512-01000
96151-02600
96151-03200
96160-00600

(8108- )4F

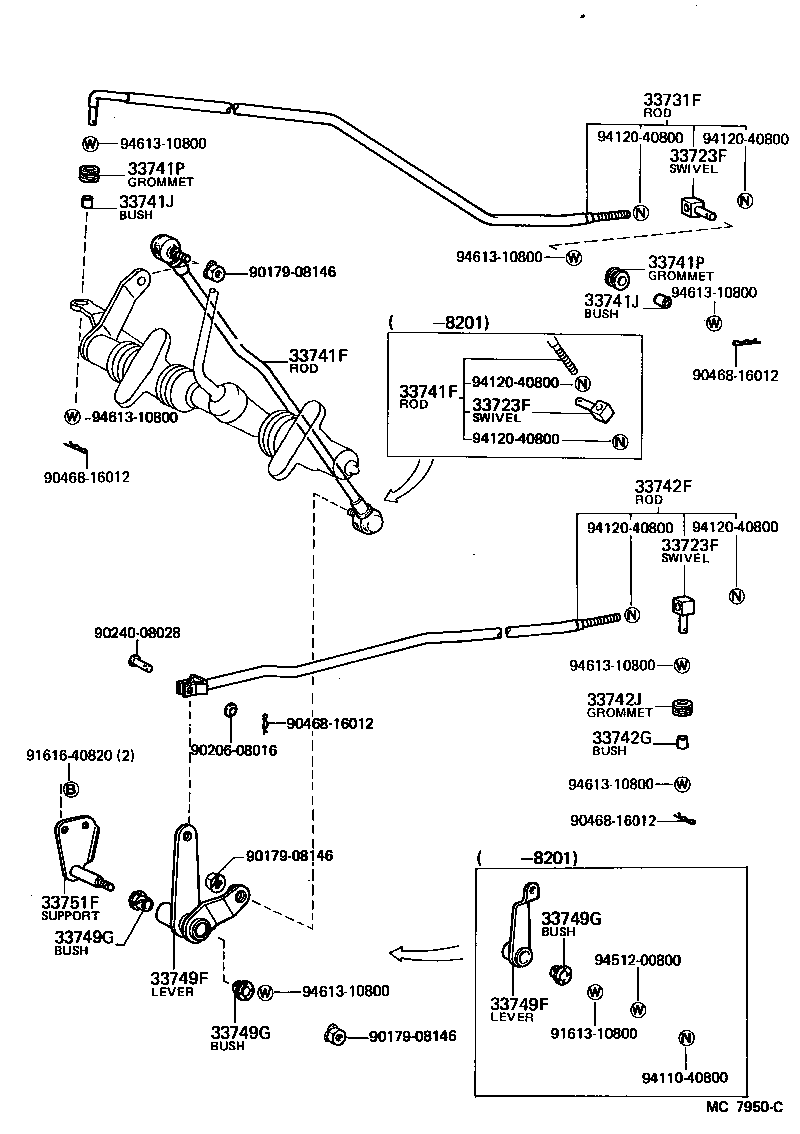

Click highlighted areas on diagram

diagram 33723F 33723F 33723F 33731F 33741F 33741F 33741J 33741J 33741P 33741P 33742F 33742G 33742J 33749F 33749F 33749G 33749G 33749G 33751F 9017908146 9017908146 9017908146 9020608016 9024008028 9046816012 9046816012 9046816012 9046816012 9161310800 9161640820 9411040800 9412040800 9412040800 9412040800 9412040800 9412040800 9412040800 9451200800 9461310800 9461310800 9461310800 9461310800 9461310800 9461310800 9461310800
Part # Description Qty Price
33723F - SWIVEL, CONNECTING ROD (FOR FLOOR SHIFT)
33723-10020

KM20..4F

 3
33723F - SWIVEL, CONNECTING ROD (FOR FLOOR SHIFT)
33723-10020

KM20..4F

 3
33723F - SWIVEL, CONNECTING ROD (FOR FLOOR SHIFT)
33723-10020

KM20..4F

 3
33741F - ROD, GEAR SHIFTING, NO.1 (FOR FLOOR SHIFT)
33710-27040

KM20..4F

 1
33741F - ROD, GEAR SHIFTING, NO.1 (FOR FLOOR SHIFT)
33710-27040

KM20..4F

 1
33749F - LEVER, GEAR SHIFT, NO.3 (FOR FLOOR SHIFT)
33749-27030

KM20..4F

 1
33749F - LEVER, GEAR SHIFT, NO.3 (FOR FLOOR SHIFT)
33749-27030

KM20..4F

 1
33749G - BUSH (FOR FLOOR SHIFT GEAR SHIFTING LEVER)
90386-13007

KM20..4F

 2
33749G - BUSH (FOR FLOOR SHIFT GEAR SHIFTING LEVER)
90386-13007

KM20..4F

 2
33749G - BUSH (FOR FLOOR SHIFT GEAR SHIFTING LEVER)
90386-13007

KM20..4F

 2
33751F - SUPPORT, GEAR SHIFT LINK LEVER (FOR FLOOR SHIFT)
33705-27020

KM20..4F

 1
33705-27011

KM20..4F

 1
Common parts
90179-08146
90206-08016
90240-08028
90468-16012
91613-10800
91616-40820
94110-40800
94120-40800
94512-00800
94613-10800
