KM20LV-JRZW (1979)
Toyota Liteace

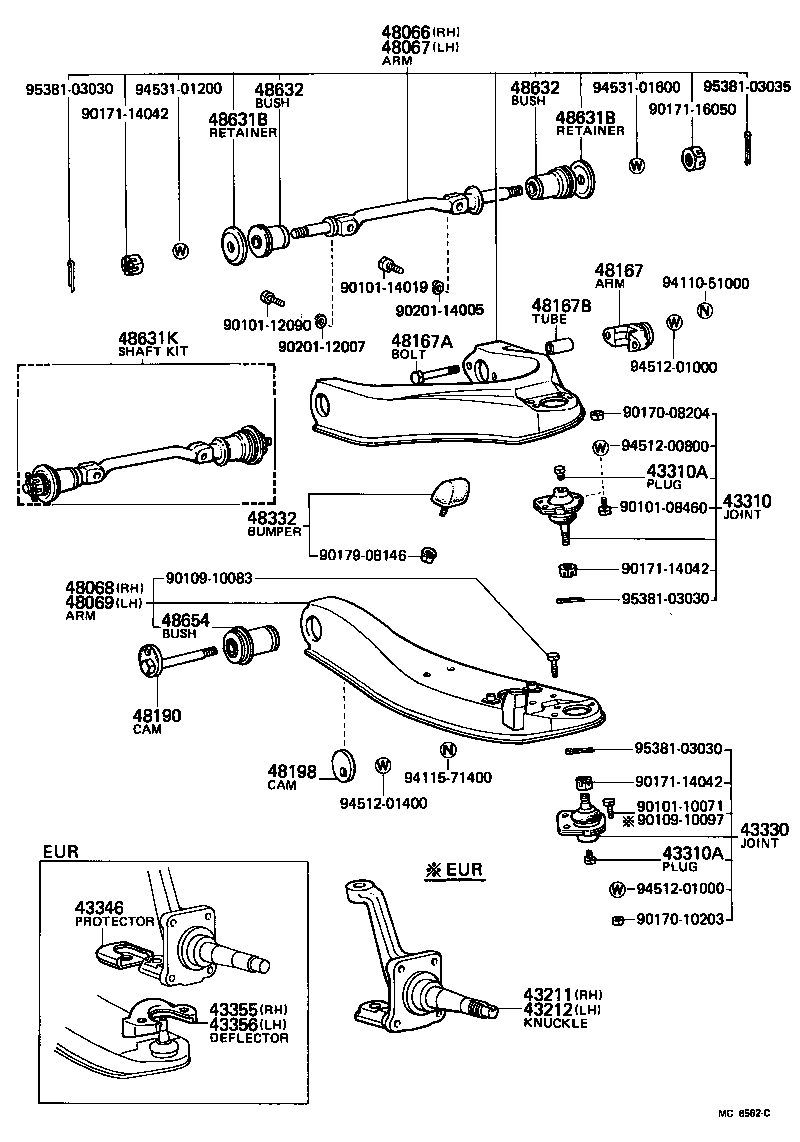

(7910-8210)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 43211 - KNUCKLE, STEERING, RH | ||||
| 43211-28020 |
CM20,KM20,YM2# |
1 | ||
| 43211-28021 |
CM20,YM2#;KM20..V4D..02S;KM20..03S,05S,06S,08S,09S |
1 | ||
| 43211-27010 |
KM20 |
1 | ||
| 43212 - KNUCKLE, STEERING, LH | ||||
| 43211-28020 |
CM20,KM20,YM2# |
1 | ||
| 43211-27010 |
KM20 |
1 | ||
| 43211-28021 |
CM20,YM2#;KM20..V4D..02S;KM20..03S,05S,06S,08S,09S |
1 | ||
| 43310 - JOINT ASSY, UPPER BALL | ||||
| 43360-29056 |
CM20,KM20,YM2# LH |
1 | ||
| 43350-29036 |
CM20,KM20,YM2# RH |
1 | ||
| 43360-29055 |
KM20 LH |
1 | ||
| 43350-29035 |
KM20 RH |
1 | ||
| 43310A - PLUG (FOR BALL JOINT) | ||||
| 90345-06014 |
CM20,KM20,YM2# |
4 | ||
| 43310A - PLUG (FOR BALL JOINT) | ||||
| 90345-06014 |
CM20,KM20,YM2# |
4 | ||
| 43330 - JOINT ASSY, LOWER BALL, FRONT | ||||
| 43330-29115 |
CM20,KM20,YM2# RH |
1 | ||
| 43340-29095 |
CM20,KM20,YM2# LH |
1 | ||
| 43330-29095 |
KM20 RH |
1 | ||
| 43340-29075 |
KM20 LH |
1 | ||
| 43346 - PROTECTOR, LOWER BALL JOINT DUST COVER | ||||
| 43346-20021 |
KM20..EUR |
2 | ||
| 43355 - DEFLECTOR, LOWER ARM ICE, RH | ||||
| 43355-27010 |
KM20..EUR |
1 | ||
| 43356 - DEFLECTOR, LOWER ARM ICE, LH | ||||
| 43355-27010 |
KM20..EUR |
1 | ||
| 48066 - ARM SUB-ASSY, FRONT SUSPENSION, UPPER RH | ||||
| 48066-27020 |
KM20 |
1 | ||
| 48601-28010 |
CM20,KM20,YM2# |
1 | ||
| 48067 - ARM SUB-ASSY, FRONT SUSPENSION, UPPER LH | ||||
| 48067-27020 |
KM20 |
1 | ||
| 48602-28010 |
CM20,KM20,YM2# |
1 | ||
| 48068 - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH | ||||
| 48068-28020 |
CM20,KM20,YM2# |
1 | ||
| 48068-27030 |
KM20 |
1 | ||
| 48069 - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH | ||||
| 48069-28020 |
CM20,KM20,YM2# |
1 | ||
| 48069-27030 |
KM20 |
1 | ||
| 48167 - ARM, TORQUE | ||||
| 48106-27010 |
KM20 |
2 | ||
| 48106-28010 |
CM20,KM20,YM2# |
2 | ||
| 48167A - BOLT(FOR TORQUE ARM SETTING) | ||||
| 91121-71085 |
CM20,KM20,YM2# |
4 | ||
| 48167B - TUBE(FOR TORQUE ARM SETTING BOLT) | ||||
| 90440-17029 |
CM20,KM20,YM2# |
2 | ||
| 48190 - CAM ASSY, CAMBER ADJUST | ||||
| 48190-20010 |
CM20,KM20,YM2# |
2 | ||
| 48198 - CAM, CAMBER ADJUST, NO.2 | ||||
| 48198-20010 |
CM20,KM20,YM2# |
2 | ||
| 48332 - BUMPER, FRONT SPRING, NO.2 | ||||
| 48305-39015 |
CM20,KM20,YM2# |
2 | ||
| 48631B - RETAINER, CUSHION(FOR FRONT SUSPENSION UPPER ARM) | ||||
| 90948-02048 |
CM20,KM20,YM2# RR SIDE |
2 | ||
| 90948-02049 |
CM20,KM20,YM2# FR SIDE |
2 | ||
| 48631B - RETAINER, CUSHION(FOR FRONT SUSPENSION UPPER ARM) | ||||
| 90948-02048 |
CM20,KM20,YM2# RR SIDE |
2 | ||
| 90948-02049 |
CM20,KM20,YM2# FR SIDE |
2 | ||
| 48631K - SHAFT KIT, UPPER SUSPENSION ARM | ||||
| 04485-28020 |
CM20,KM20,YM2# |
2 | ||
| 04485-27010 |
KM20 |
2 | ||
| 48632 - BUSH, UPPER ARM | ||||
| 48635-28010 |
CM20,KM20,YM2# RR SIDE |
2 | ||
| 48632-30040 |
CM20,KM20,YM2# FR SIDE |
2 | ||
| 48635-27010 |
KM20 RR SIDE |
2 | ||
| 48632-27010 |
CM20,YM2#;KM20..V4D..02S;KM20..03S,05S,06S,08S,09S FR SIDE |
2 | ||
| 48632 - BUSH, UPPER ARM | ||||
| 48635-28010 |
CM20,KM20,YM2# RR SIDE |
2 | ||
| 48632-30040 |
CM20,KM20,YM2# FR SIDE |
2 | ||
| 48635-27010 |
KM20 RR SIDE |
2 | ||
| 48632-27010 |
CM20,YM2#;KM20..V4D..02S;KM20..03S,05S,06S,08S,09S FR SIDE |
2 | ||
| 48654 - BUSH, LOWER ARM | ||||
| 48061-28010 |
CM20,KM20,YM2# |
2 | ||
| 48061-20020 |
KM20 |
2 | ||
| Common parts | ||||
| 90101-08460 | ||||
| 90101-10071 | ||||
| 90101-12090 | ||||
| 90101-14019 | ||||
| 90109-10083 | ||||
| 90109-10097 | ||||
| 90170-08204 | ||||
| 90170-10203 | ||||
| 90171-14042 | ||||
| 90171-16050 | ||||
| 90179-08146 | ||||
| 90201-12007 | ||||
| 90201-14005 | ||||
| 94110-51000 | ||||
| 94115-71400 | ||||
| 94512-00800 | ||||
| 94512-01000 | ||||
| 94512-01400 | ||||
| 94531-01200 | ||||
| 94531-01600 | ||||
| 95381-03030 | ||||
| 95381-03035 | ||||

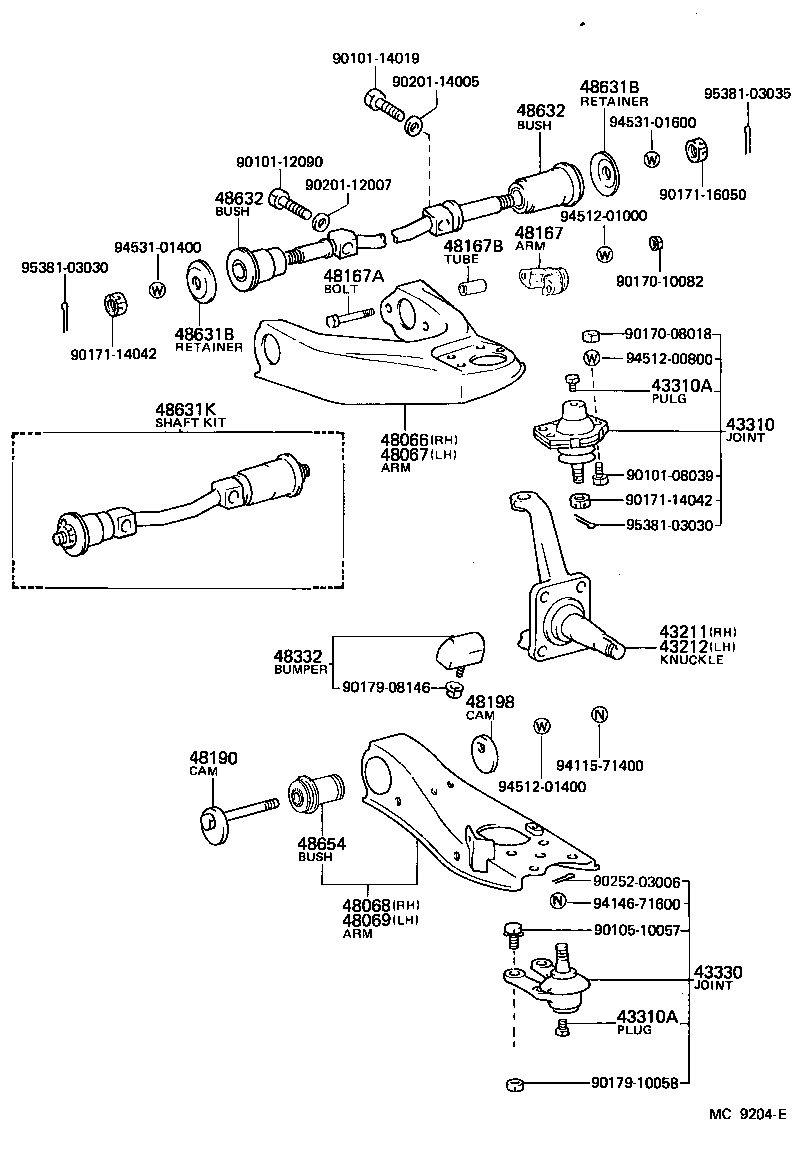

(8210- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 43211 - KNUCKLE, STEERING, RH | ||||
| 43211-28020 |
CM20,KM20,YM2# |
1 | ||
| 43211-28021 |
CM20,YM2#;KM20..V4D..02S;KM20..03S,05S,06S,08S,09S |
1 | ||
| 43211-27010 |
KM20 |
1 | ||
| 43212 - KNUCKLE, STEERING, LH | ||||
| 43211-28020 |
CM20,KM20,YM2# |
1 | ||
| 43211-27010 |
KM20 |
1 | ||
| 43211-28021 |
CM20,YM2#;KM20..V4D..02S;KM20..03S,05S,06S,08S,09S |
1 | ||
| 43310 - JOINT ASSY, UPPER BALL | ||||
| 43360-29056 |
CM20,KM20,YM2# LH |
1 | ||
| 43350-29036 |
CM20,KM20,YM2# RH |
1 | ||
| 43360-29055 |
KM20 LH |
1 | ||
| 43350-29035 |
KM20 RH |
1 | ||
| 43310A - PLUG (FOR BALL JOINT) | ||||
| 90345-06014 |
CM20,KM20,YM2# |
4 | ||
| 43310A - PLUG (FOR BALL JOINT) | ||||
| 90345-06014 |
CM20,KM20,YM2# |
4 | ||
| 43330 - JOINT ASSY, LOWER BALL, FRONT | ||||
| 43330-29115 |
CM20,KM20,YM2# RH |
1 | ||
| 43340-29095 |
CM20,KM20,YM2# LH |
1 | ||
| 43330-29095 |
KM20 RH |
1 | ||
| 43340-29075 |
KM20 LH |
1 | ||
| 48066 - ARM SUB-ASSY, FRONT SUSPENSION, UPPER RH | ||||
| 48066-27020 |
KM20 |
1 | ||
| 48601-28010 |
CM20,KM20,YM2# |
1 | ||
| 48067 - ARM SUB-ASSY, FRONT SUSPENSION, UPPER LH | ||||
| 48067-27020 |
KM20 |
1 | ||
| 48602-28010 |
CM20,KM20,YM2# |
1 | ||
| 48068 - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH | ||||
| 48068-28020 |
CM20,KM20,YM2# |
1 | ||
| 48068-27030 |
KM20 |
1 | ||
| 48069 - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH | ||||
| 48069-28020 |
CM20,KM20,YM2# |
1 | ||
| 48069-27030 |
KM20 |
1 | ||
| 48167 - ARM, TORQUE | ||||
| 48106-27010 |
KM20 |
2 | ||
| 48106-28010 |
CM20,KM20,YM2# |
2 | ||
| 48167A - BOLT(FOR TORQUE ARM SETTING) | ||||
| 91121-71085 |
CM20,KM20,YM2# |
4 | ||
| 48167B - TUBE(FOR TORQUE ARM SETTING BOLT) | ||||
| 90440-17029 |
CM20,KM20,YM2# |
2 | ||
| 48190 - CAM ASSY, CAMBER ADJUST | ||||
| 48190-20010 |
CM20,KM20,YM2# |
2 | ||
| 48198 - CAM, CAMBER ADJUST, NO.2 | ||||
| 48198-20010 |
CM20,KM20,YM2# |
2 | ||
| 48332 - BUMPER, FRONT SPRING, NO.2 | ||||
| 48305-39015 |
CM20,KM20,YM2# |
2 | ||
| 48631B - RETAINER, CUSHION(FOR FRONT SUSPENSION UPPER ARM) | ||||
| 90948-02048 |
CM20,KM20,YM2# RR SIDE |
2 | ||
| 90948-02049 |
CM20,KM20,YM2# FR SIDE |
2 | ||
| 48631B - RETAINER, CUSHION(FOR FRONT SUSPENSION UPPER ARM) | ||||
| 90948-02048 |
CM20,KM20,YM2# RR SIDE |
2 | ||
| 90948-02049 |
CM20,KM20,YM2# FR SIDE |
2 | ||
| 48631K - SHAFT KIT, UPPER SUSPENSION ARM | ||||
| 04485-28020 |
CM20,KM20,YM2# |
2 | ||
| 04485-27010 |
KM20 |
2 | ||
| 48632 - BUSH, UPPER ARM | ||||
| 48635-28010 |
CM20,KM20,YM2# RR SIDE |
2 | ||
| 48632-30040 |
CM20,KM20,YM2# FR SIDE |
2 | ||
| 48635-27010 |
KM20 RR SIDE |
2 | ||
| 48632-27010 |
CM20,YM2#;KM20..V4D..02S;KM20..03S,05S,06S,08S,09S FR SIDE |
2 | ||
| 48632 - BUSH, UPPER ARM | ||||
| 48635-28010 |
CM20,KM20,YM2# RR SIDE |
2 | ||
| 48632-30040 |
CM20,KM20,YM2# FR SIDE |
2 | ||
| 48635-27010 |
KM20 RR SIDE |
2 | ||
| 48632-27010 |
CM20,YM2#;KM20..V4D..02S;KM20..03S,05S,06S,08S,09S FR SIDE |
2 | ||
| 48654 - BUSH, LOWER ARM | ||||
| 48061-28010 |
CM20,KM20,YM2# |
2 | ||
| 48061-20020 |
KM20 |
2 | ||
| Common parts | ||||
| 90101-08039 | ||||
| 90101-12090 | ||||
| 90101-14019 | ||||
| 90105-10057 | ||||
| 90170-08018 | ||||
| 90170-10082 | ||||
| 90171-14042 | ||||
| 90171-16050 | ||||
| 90179-08146 | ||||
| 90179-10058 | ||||
| 90201-12007 | ||||
| 90201-14005 | ||||
| 90252-03006 | ||||
| 94115-71400 | ||||
| 94146-71600 | ||||
| 94512-00800 | ||||
| 94512-01000 | ||||
| 94512-01400 | ||||
| 94531-01400 | ||||
| 94531-01600 | ||||
| 95381-03030 | ||||
| 95381-03035 | ||||
