KM20LV-JRZGW (1979)

Toyota Liteace

Production Oct 1979 - Aug 1981
Engine 4K
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7910- )

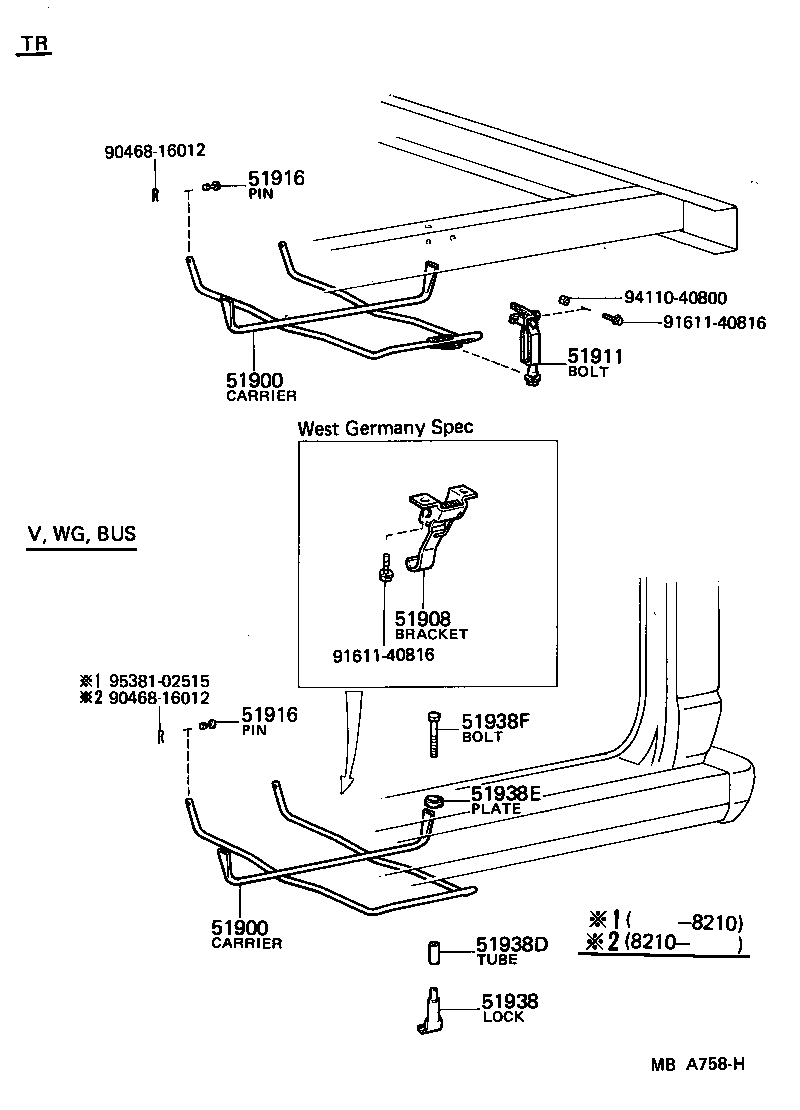

Click highlighted areas on diagram

diagram 51900 51900 51908 51911 51916 51916 51938 51938D 51938E 51938F 9046816012 9046816012 9161140816 9161140816 9411040800 9538102515
Part # Description Qty Price
51900 - CARRIER ASSY, SPARE WHEEL
51900-27020

KM20..LHD..VSP..EUR;KM20..RHD..(HRF,SRF)..(EUR,GEN);KM20..LHD..(03S,05S,06S,07S,09S)

 1
51900-27020

KM20..LHD..VSP..EUR;KM20..RHD..(HRF,SRF);KM20..LHD..(03S,05S,06S,07S,09S)

 1
51900-27020

KM20..RHD..V;KM20..LHD..VSP..EUR;KM20..LHD..(03S,05S,06S,07S,09S)

 1
51900 - CARRIER ASSY, SPARE WHEEL
51900-27020

KM20..LHD..VSP..EUR;KM20..RHD..(HRF,SRF)..(EUR,GEN);KM20..LHD..(03S,05S,06S,07S,09S)

 1
51900-27020

KM20..LHD..VSP..EUR;KM20..RHD..(HRF,SRF);KM20..LHD..(03S,05S,06S,07S,09S)

 1
51900-27020

KM20..RHD..V;KM20..LHD..VSP..EUR;KM20..LHD..(03S,05S,06S,07S,09S)

 1
51916 - PIN, SPARE TIRE CARRIER
51916-27020

CM20,KM20,YM2#

 2
51916 - PIN, SPARE TIRE CARRIER
51916-27020

CM20,KM20,YM2#

 2
51938 - LOCK, SPARE WHEEL CARRIER
51938-13010

CM20,YM21;KM20..VSP..02S;KM20..(HRF,SRF)..(03S,05S,06S,07S,08S,09S)

 1
51938D - TUBE(FOR SPARE WHEEL CARRIER BOLT)
90440-17027

YM2#;CM20,KM20..EUR

 1
51938E - PLATE, SPARE WHEEL CARRIER LOCK
51937-26010

KM20..VSP..02S;KM20..(HRF,SRF)..(03S,05S,06S,07S,08S,09S)

 1
51938F - BOLT(FOR SPARE WHEEL CARRIER LOCK)
90101-12009

YM2#;CM20,KM20..EUR

 1
Common parts
90468-16012
91611-40816
94110-40800
95381-02515
