KM20LV-JRZGW (1979)

Toyota Liteace

Production Oct 1979 - Aug 1981
Engine 4K
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7910- )4K

Click highlighted areas on diagram

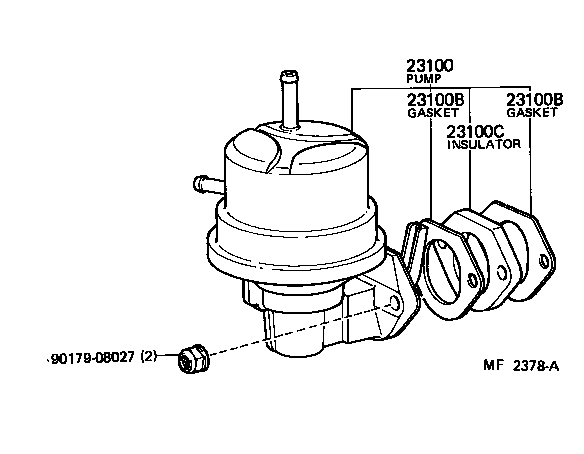

diagram 23100 23100B 23100B 23100C 9017908027
Part # Description Qty Price
23100 - PUMP ASSY, FUEL
23100-29245

4K..KM20..VSP..02S;4K..KM20..03S,05S,06S,07S,08S,09S

 1
23100B - GASKET, FUEL PUMP
90923-05006

4K..KM20

 2
23100B - GASKET, FUEL PUMP
90923-05006

4K..KM20

 2
23100C - INSULATOR, FUEL PUMP
90923-06003

4K..KM20

 1
Common parts
90179-08027
