KM20LV-JRZGW (1979)
Toyota Liteace
(7910-8302)4K ; (8302- )4K
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27020-13050 |
4K..KM20..LHD..SRF..EUR;4K..KM20..HRF..VSP..EUR;4K..KM20..HRF..(05S,07S) 12V 40A |
1 | ||
| 27020-13050 |
4K..KM20..HRF..VSP..EUR;4K..KM20..HRF..(05S,07S);4K..KM20..LHD..SRF..(02S,05S,07S,09S) 12V 40A |
1 | ||
| 27020-13030 |
4K..KM20..VSP..02S;4K..KM20..03S,05S,06S,07S,08S,09S 12V 30A |
1 | ||
| 27039 - COVER, ALTERNATOR REAR END | ||||
| 27039-18011 |
4K..KM20..HRF..VSP..EUR;4K..KM20..HRF..(05S,07S);4K..KM20..LHD..SRF..(02S,05S,07S,09S) 12V 40A |
1 | ||
| 27039-15030 |
4K..KM20..LHD..SRF..EUR;4K..KM20..HRF..VSP..EUR;4K..KM20..HRF..(05S,07S) 12V 40A |
1 | ||
| 27039-11014 |
4K..KM20..VSP..02S;4K..KM20..03S,05S,06S,07S,08S,09S 12V 30A |
1 | ||
| 27039-18011 |
4K..KM20..LHD..SRF..EUR;4K..KM20..HRF..VSP..EUR;4K..KM20..HRF..(05S,07S) 12V 40A |
1 | ||
| 27113 - PLATE, BEARING RETAINER, ALTERNATOR | ||||
| 27113-10012 |
4K..KM20..VSP..02S;4K..KM20..03S,05S,06S,07S,08S,09S 12V 30A |
1 | ||
| 27212 - RING, SPACE(FOR ALTERNATOR ROTOR) | ||||
| 90099-19068 |
4K..KM20..VSP..02S;4K..KM20..03S,05S,06S,07S,08S,09S 12V 30A |
1 | ||
| 27212-39050 |
4K..KM20..HRF..VSP..EUR;4K..KM20..HRF..(05S,07S);4K..KM20..LHD..SRF..(02S,05S,07S,09S) 12V 40A |
1 | ||
| 27212-39050 |
4K..KM20..LHD..SRF..EUR;4K..KM20..HRF..VSP..EUR;4K..KM20..HRF..(05S,07S) 12V 40A |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-15060 |
4K..KM20..VSP..02S;4K..KM20..03S,05S,06S,07S,08S,09S 12V 30A |
1 | ||
| 27310-13050 |
4K..KM20..LHD..SRF..EUR;4K..KM20..HRF..VSP..EUR;4K..KM20..HRF..(05S,07S) 12V 40A |
1 | ||
| 27310-13050 |
4K..KM20..HRF..VSP..EUR;4K..KM20..HRF..(05S,07S);4K..KM20..LHD..SRF..(02S,05S,07S,09S) 12V 40A |
1 | ||
| 27310A - COLLAR OR NUT(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 27412-31040 |
4K..KM20..HRF..VSP..EUR;4K..KM20..HRF..(05S,07S);4K..KM20..LHD..SRF..(02S,05S,07S,09S) 12V 40A |
1 | ||
| 27412-31040 |
4K..KM20..LHD..SRF..EUR;4K..KM20..HRF..VSP..EUR;4K..KM20..HRF..(05S,07S) 12V 40A |
1 | ||
| 27412-56040 |
4K..KM20..VSP..02S;4K..KM20..03S,05S,06S,07S,08S,09S 12V 30A |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-10126 |
4K..KM20..LHD..SRF..EUR;4K..KM20..HRF..VSP..EUR;4K..KM20..HRF..(05S,07S) 12V 40A |
1 | ||
| 90099-10126 |
4K..KM20..HRF..VSP..EUR;4K..KM20..HRF..(05S,07S);4K..KM20..LHD..SRF..(02S,05S,07S,09S) 12V 40A |
1 | ||
| 90099-10012 |
4K..KM20..VSP..02S;4K..KM20..03S,05S,06S,07S,08S,09S 12V 30A |
1 | ||
| 27310C - FELT(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-02009 |
4K..KM20..VSP..02S;4K..KM20..03S,05S,06S,07S,08S,09S 12V 30A |
1 | ||
| 27315 - COVER, ALTERNATOR FELT, INNER NO.1 | ||||
| 27313-39010 |
4K..KM20..VSP..02S;4K..KM20..03S,05S,06S,07S,08S,09S 12V 30A |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-26050 |
4K..KM20..LHD..SRF..EUR;4K..KM20..HRF..VSP..EUR;4K..KM20..HRF..(05S,07S) 12V 40A |
1 | ||
| 27330-26050 |
4K..KM20..HRF..VSP..EUR;4K..KM20..HRF..(05S,07S);4K..KM20..LHD..SRF..(02S,05S,07S,09S) 12V 40A |
1 | ||
| 27330-22012 |
4K..KM20..VSP..02S;4K..KM20..03S,05S,06S,07S,08S,09S 12V 30A |
1 | ||
| 27330A - BEARING(FOR ALTERNATOR ROTOR) | ||||
| 90099-10111 |
4K..KM20..LHD..SRF..EUR;4K..KM20..HRF..VSP..EUR;4K..KM20..HRF..(05S,07S) 12V 40A |
1 | ||
| 90099-10111 |
4K..KM20..HRF..VSP..EUR;4K..KM20..HRF..(05S,07S);4K..KM20..LHD..SRF..(02S,05S,07S,09S) 12V 40A |
1 | ||
| 97110-06201 |
4K..KM20..VSP..02S;4K..KM20..03S,05S,06S,07S,08S,09S 12V 30A |
1 | ||
| 27350 - FRAME ASSY, RECTIFIER END | ||||
| 27350-12012 |
4K..KM20..VSP..02S;4K..KM20..03S,05S,06S,07S,08S,09S 12V 30A |
1 | ||
| 27357 - HOLDER, ALTERNATOR, W/RECTIFIER | ||||
| 27357-11014 |
4K..KM20..VSP..02S;4K..KM20..03S,05S,06S,07S,08S,09S 12V 30A |
1 | ||
| 27359 - FRAME, ALTERNATOR RECTIFIER END | ||||
| 27359-13050 |
4K..KM20..LHD..SRF..EUR;4K..KM20..HRF..VSP..EUR;4K..KM20..HRF..(05S,07S) 12V 40A |
1 | ||
| 27359-13050 |
4K..KM20..HRF..VSP..EUR;4K..KM20..HRF..(05S,07S);4K..KM20..LHD..SRF..(02S,05S,07S,09S) 12V 40A |
1 | ||
| 27359-31090 |
4K..KM20..VSP..02S;4K..KM20..03S,05S,06S,07S,08S,09S 12V 30A |
1 | ||
| 27370 - HOLDER ASSY, ALTERNATOR BRUSH | ||||
| 27370-31090 |
4K..KM20..VSP..02S;4K..KM20..03S,05S,06S,07S,08S,09S 12V 30A |
1 | ||
| 27371 - BRUSH, ALTERNATOR | ||||
| 27371-31011 |
4K,1Y,2YC..KM20,YM2# 12V 30A,40A,50A |
2 | ||
| 27372 - SPRING, ALTERNATOR BRUSH | ||||
| 27372-31011 |
4K,1Y,2YC..KM20,YM2# 12V 30A,40A,50A |
2 | ||
| 27410 - STATOR ASSY, ALTERNATOR | ||||
| 27410-15030 |
4K..KM20..LHD..SRF..EUR;4K..KM20..HRF..VSP..EUR;4K..KM20..HRF..(05S,07S) 12V 40A |
1 | ||
| 27410-15030 |
4K..KM20..HRF..VSP..EUR;4K..KM20..HRF..(05S,07S);4K..KM20..LHD..SRF..(02S,05S,07S,09S) 12V 40A |
1 | ||
| 27410-11014 |
4K..KM20..VSP..02S;4K..KM20..03S,05S,06S,07S,08S,09S 12V 30A |
1 | ||
| 27411 - PULLEY, ALTERNATOR | ||||
| 27411-26111 |
4K..KM20..HRF..VSP..EUR;4K..KM20..HRF..(05S,07S);4K..KM20..LHD..SRF..(02S,05S,07S,09S) 12V 40A |
1 | ||
| 27411-26111 |
4K..KM20..LHD..SRF..EUR;4K..KM20..HRF..VSP..EUR;4K..KM20..HRF..(05S,07S) 12V 40A |
1 | ||
| 27411-13030 |
4K..KM20..VSP..02S;4K..KM20..03S,05S,06S,07S,08S,09S 12V 30A |
1 | ||
| 27441 - FAN, ALTERNATOR | ||||
| 27441-34030 |
4K..KM20..HRF..VSP..EUR;4K..KM20..HRF..(05S,07S);4K..KM20..LHD..SRF..(02S,05S,07S,09S) 12V 40A |
1 | ||
| 27441-34030 |
4K..KM20..LHD..SRF..EUR;4K..KM20..HRF..VSP..EUR;4K..KM20..HRF..(05S,07S) 12V 40A |
1 | ||
| 27441-31090 |
4K..KM20..VSP..02S;4K..KM20..03S,05S,06S,07S,08S,09S 12V 30A |
1 | ||
| Common parts | ||||
| 27378-31050 | ||||
| 27387-12030 | ||||
| 27387-31011 | ||||
| 27447-24061 | ||||
| 90099-00862 | ||||
| 90099-01423 | ||||
| 90099-04808 | ||||
| 90099-05060 | ||||
| 90099-05118 | ||||
| 90099-05119 | ||||
| 90101-08164 | ||||
| 90119-08023 | ||||
| 90179-06158 | ||||
| 90179-08061 | ||||
| 90440-14001 | ||||
| 94511-01400 | ||||
| 94612-10800 | ||||

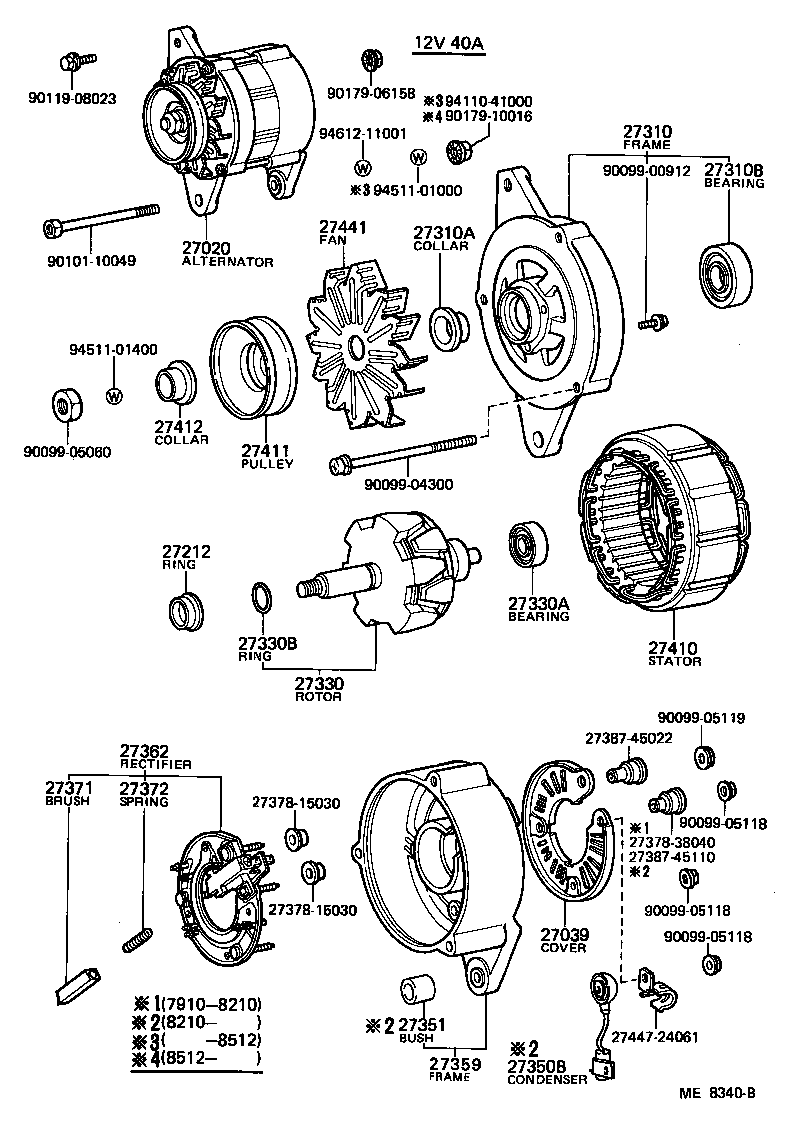

(7910- )4K
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27020-13050 |
4K..KM20..LHD..SRF..EUR;4K..KM20..HRF..VSP..EUR;4K..KM20..HRF..(05S,07S) 12V 40A |
1 | ||
| 27020-13050 |
4K..KM20..HRF..VSP..EUR;4K..KM20..HRF..(05S,07S);4K..KM20..LHD..SRF..(02S,05S,07S,09S) 12V 40A |
1 | ||
| 27020-13030 |
4K..KM20..VSP..02S;4K..KM20..03S,05S,06S,07S,08S,09S 12V 30A |
1 | ||
| 27039 - COVER, ALTERNATOR REAR END | ||||
| 27039-18011 |
4K..KM20..HRF..VSP..EUR;4K..KM20..HRF..(05S,07S);4K..KM20..LHD..SRF..(02S,05S,07S,09S) 12V 40A |
1 | ||
| 27039-15030 |
4K..KM20..LHD..SRF..EUR;4K..KM20..HRF..VSP..EUR;4K..KM20..HRF..(05S,07S) 12V 40A |
1 | ||
| 27039-11014 |
4K..KM20..VSP..02S;4K..KM20..03S,05S,06S,07S,08S,09S 12V 30A |
1 | ||
| 27039-18011 |
4K..KM20..LHD..SRF..EUR;4K..KM20..HRF..VSP..EUR;4K..KM20..HRF..(05S,07S) 12V 40A |
1 | ||
| 27212 - RING, SPACE(FOR ALTERNATOR ROTOR) | ||||
| 90099-19068 |
4K..KM20..VSP..02S;4K..KM20..03S,05S,06S,07S,08S,09S 12V 30A |
1 | ||
| 27212-39050 |
4K..KM20..HRF..VSP..EUR;4K..KM20..HRF..(05S,07S);4K..KM20..LHD..SRF..(02S,05S,07S,09S) 12V 40A |
1 | ||
| 27212-39050 |
4K..KM20..LHD..SRF..EUR;4K..KM20..HRF..VSP..EUR;4K..KM20..HRF..(05S,07S) 12V 40A |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-15060 |
4K..KM20..VSP..02S;4K..KM20..03S,05S,06S,07S,08S,09S 12V 30A |
1 | ||
| 27310-13050 |
4K..KM20..LHD..SRF..EUR;4K..KM20..HRF..VSP..EUR;4K..KM20..HRF..(05S,07S) 12V 40A |
1 | ||
| 27310-13050 |
4K..KM20..HRF..VSP..EUR;4K..KM20..HRF..(05S,07S);4K..KM20..LHD..SRF..(02S,05S,07S,09S) 12V 40A |
1 | ||
| 27310A - COLLAR OR NUT(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 27412-31040 |
4K..KM20..HRF..VSP..EUR;4K..KM20..HRF..(05S,07S);4K..KM20..LHD..SRF..(02S,05S,07S,09S) 12V 40A |
1 | ||
| 27412-31040 |
4K..KM20..LHD..SRF..EUR;4K..KM20..HRF..VSP..EUR;4K..KM20..HRF..(05S,07S) 12V 40A |
1 | ||
| 27412-56040 |
4K..KM20..VSP..02S;4K..KM20..03S,05S,06S,07S,08S,09S 12V 30A |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-10126 |
4K..KM20..LHD..SRF..EUR;4K..KM20..HRF..VSP..EUR;4K..KM20..HRF..(05S,07S) 12V 40A |
1 | ||
| 90099-10126 |
4K..KM20..HRF..VSP..EUR;4K..KM20..HRF..(05S,07S);4K..KM20..LHD..SRF..(02S,05S,07S,09S) 12V 40A |
1 | ||
| 90099-10012 |
4K..KM20..VSP..02S;4K..KM20..03S,05S,06S,07S,08S,09S 12V 30A |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-26050 |
4K..KM20..LHD..SRF..EUR;4K..KM20..HRF..VSP..EUR;4K..KM20..HRF..(05S,07S) 12V 40A |
1 | ||
| 27330-26050 |
4K..KM20..HRF..VSP..EUR;4K..KM20..HRF..(05S,07S);4K..KM20..LHD..SRF..(02S,05S,07S,09S) 12V 40A |
1 | ||
| 27330-22012 |
4K..KM20..VSP..02S;4K..KM20..03S,05S,06S,07S,08S,09S 12V 30A |
1 | ||
| 27330A - BEARING(FOR ALTERNATOR ROTOR) | ||||
| 90099-10111 |
4K..KM20..LHD..SRF..EUR;4K..KM20..HRF..VSP..EUR;4K..KM20..HRF..(05S,07S) 12V 40A |
1 | ||
| 90099-10111 |
4K..KM20..HRF..VSP..EUR;4K..KM20..HRF..(05S,07S);4K..KM20..LHD..SRF..(02S,05S,07S,09S) 12V 40A |
1 | ||
| 97110-06201 |
4K..KM20..VSP..02S;4K..KM20..03S,05S,06S,07S,08S,09S 12V 30A |
1 | ||
| 27330B - RING, SNAP(FOR ALTERNATOR ROTOR) | ||||
| 90099-07048 |
4K..KM20..HRF..VSP..EUR;4K..KM20..HRF..(05S,07S);4K..KM20..LHD..SRF..(02S,05S,07S,09S) 12V 40A |
1 | ||
| 90099-07048 |
4K..KM20..LHD..SRF..EUR;4K..KM20..HRF..VSP..EUR;4K..KM20..HRF..(05S,07S) 12V 40A |
1 | ||
| 27359 - FRAME, ALTERNATOR RECTIFIER END | ||||
| 27359-13050 |
4K..KM20..LHD..SRF..EUR;4K..KM20..HRF..VSP..EUR;4K..KM20..HRF..(05S,07S) 12V 40A |
1 | ||
| 27359-13050 |
4K..KM20..HRF..VSP..EUR;4K..KM20..HRF..(05S,07S);4K..KM20..LHD..SRF..(02S,05S,07S,09S) 12V 40A |
1 | ||
| 27359-31090 |
4K..KM20..VSP..02S;4K..KM20..03S,05S,06S,07S,08S,09S 12V 30A |
1 | ||
| 27362 - RECTIFIER ASSY, W/BRUSH | ||||
| 27362-15030 |
4K..KM20..HRF..VSP..EUR;4K..KM20..HRF..(05S,07S);4K..KM20..LHD..SRF..(02S,05S,07S,09S) 12V 40A |
1 | ||
| 27362-15030 |
4K..KM20..LHD..SRF..EUR;4K..KM20..HRF..VSP..EUR;4K..KM20..HRF..(05S,07S) 12V 40A |
1 | ||
| 27371 - BRUSH, ALTERNATOR | ||||
| 27371-31011 |
4K,1Y,2YC..KM20,YM2# 12V 30A,40A,50A |
2 | ||
| 27372 - SPRING, ALTERNATOR BRUSH | ||||
| 27372-31011 |
4K,1Y,2YC..KM20,YM2# 12V 30A,40A,50A |
2 | ||
| 27410 - STATOR ASSY, ALTERNATOR | ||||
| 27410-15030 |
4K..KM20..LHD..SRF..EUR;4K..KM20..HRF..VSP..EUR;4K..KM20..HRF..(05S,07S) 12V 40A |
1 | ||
| 27410-15030 |
4K..KM20..HRF..VSP..EUR;4K..KM20..HRF..(05S,07S);4K..KM20..LHD..SRF..(02S,05S,07S,09S) 12V 40A |
1 | ||
| 27410-11014 |
4K..KM20..VSP..02S;4K..KM20..03S,05S,06S,07S,08S,09S 12V 30A |
1 | ||
| 27411 - PULLEY, ALTERNATOR | ||||
| 27411-26111 |
4K..KM20..HRF..VSP..EUR;4K..KM20..HRF..(05S,07S);4K..KM20..LHD..SRF..(02S,05S,07S,09S) 12V 40A |
1 | ||
| 27411-26111 |
4K..KM20..LHD..SRF..EUR;4K..KM20..HRF..VSP..EUR;4K..KM20..HRF..(05S,07S) 12V 40A |
1 | ||
| 27411-13030 |
4K..KM20..VSP..02S;4K..KM20..03S,05S,06S,07S,08S,09S 12V 30A |
1 | ||
| 27412 - COLLAR, SPACER(FOR ALTERNATOR PULLEY) | ||||
| 27412-44030 |
4K..KM20..HRF..VSP..EUR;4K..KM20..HRF..(05S,07S);4K..KM20..LHD..SRF..(02S,05S,07S,09S) 12V 40A |
1 | ||
| 27412-44030 |
4K..KM20..LHD..SRF..EUR;4K..KM20..HRF..VSP..EUR;4K..KM20..HRF..(05S,07S) 12V 40A |
1 | ||
| 27441 - FAN, ALTERNATOR | ||||
| 27441-34030 |
4K..KM20..HRF..VSP..EUR;4K..KM20..HRF..(05S,07S);4K..KM20..LHD..SRF..(02S,05S,07S,09S) 12V 40A |
1 | ||
| 27441-34030 |
4K..KM20..LHD..SRF..EUR;4K..KM20..HRF..VSP..EUR;4K..KM20..HRF..(05S,07S) 12V 40A |
1 | ||
| 27441-31090 |
4K..KM20..VSP..02S;4K..KM20..03S,05S,06S,07S,08S,09S 12V 30A |
1 | ||
| Common parts | ||||
| 27378-15030 | ||||
| 27378-38040 | ||||
| 27387-45022 | ||||
| 27387-45110 | ||||
| 27447-24061 | ||||
| 90099-00912 | ||||
| 90099-04300 | ||||
| 90099-05060 | ||||
| 90099-05118 | ||||
| 90099-05119 | ||||
| 90101-10049 | ||||
| 90119-08023 | ||||
| 90179-06158 | ||||
| 90179-10016 | ||||
| 94110-41000 | ||||
| 94511-01000 | ||||
| 94511-01400 | ||||
| 94612-11001 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
