KM20LV-JRZGW (1979)

Toyota Liteace

Production Oct 1979 - Aug 1981
Engine 4K
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7910- )4K

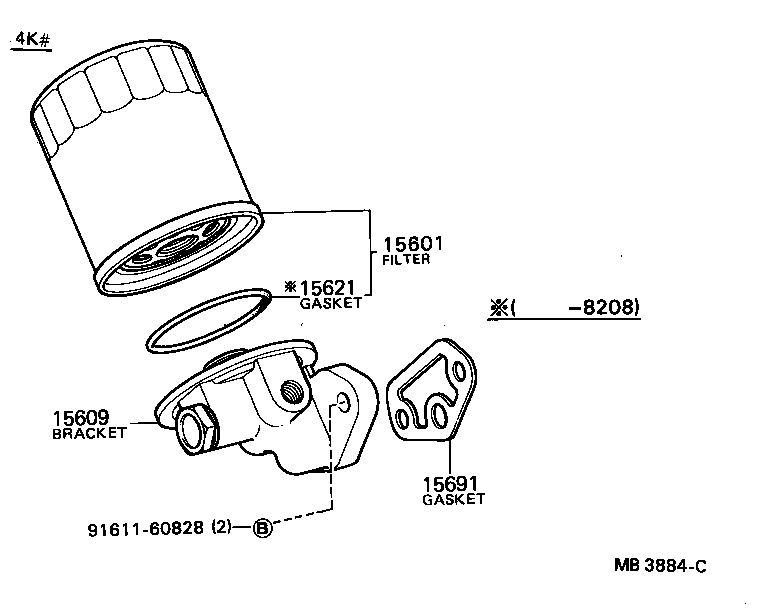

Click highlighted areas on diagram

diagram 15601 15609 15621 15691 9161160828
Part # Description Qty Price
15601 - FILTER SUB-ASSY, OIL
15601-33020

4K..KM20..VSP..02S;4K..KM20..03S,05S,06S,07S,08S,09S

 1
15609 - BRACKET SUB-ASSY, OIL FILTER
15609-22012

4K..KM20

 1
15621 - GASKET, OIL FILTER BODY
15621-22010

4K..KM20..VSP..02S;4K..KM20..03S,05S,06S,07S,08S,09S

 1
15691 - GASKET, OIL FILTER
15691-22010

4K..KM20..VSP..02S;4K..KM20..03S,05S,06S,07S,08S,09S

 1
Common parts
91611-60828
