KM20LV-JRZBFEW (1979)

Toyota Liteace

Production Oct 1979 - Aug 1981
Engine 4K 4KC
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7910- )4K

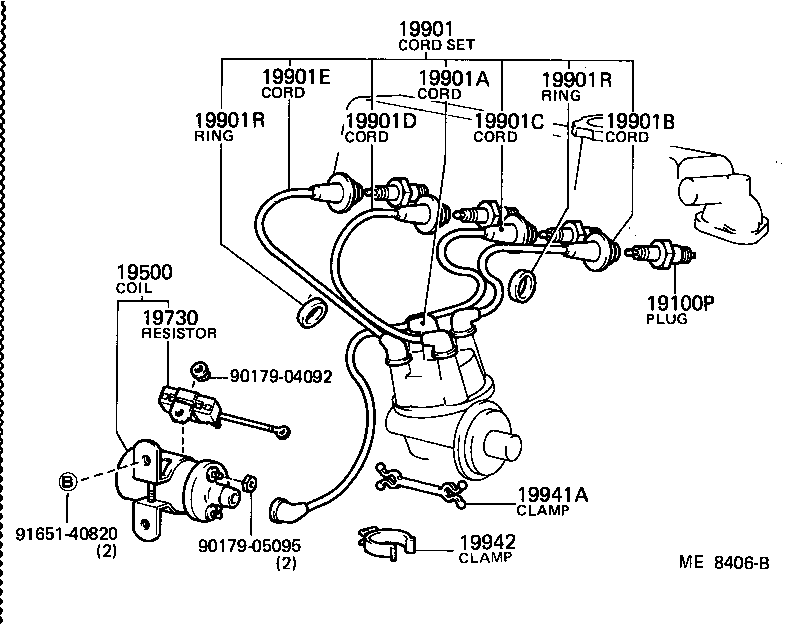

Click highlighted areas on diagram

diagram 19100P 19500 19730 19901 19901A 19901B 19901C 19901D 19901E 19901R 19901R 19941A 19942 9017904092 9017905095 9165140820
Part # Description Qty Price
19100P - PLUG, SPARK
90919-01051

4K..KM20..4F;4K..KM20..SRF..4H..EUR;4K..KM20..HRF..VSP..4H..EUR;4K..KM20..HRF..4H..(05S,07S)..EUR

W16EPR OR W16EXR-U,W16EPR

 4
90919-01064

4K..KM20..EUR

W16EXR-U,W16EXR-U

 4
19500 - COIL ASSY, IGNITION
90919-02119

4K..KM20..4F;4K..KM20..SRF..4H..EUR;4K..KM20..HRF..VSP..4H..EUR;4K..KM20..HRF..4H..(05S,07S)..EUR

 1
19730 - RESISTOR, IGNITION COIL
90919-04033

4K..KM20..VSP..02S;4K..KM20..03S,05S,06S,07S,08S,09S

 1
19901 - CORD SET, COIL & SPARK, W/RESISTIVE
90919-21235

4K..KM20..VSP..02S;4K..KM20..03S,05S,06S,07S,08S,09S

 1
19901A - CORD, COIL RESISTIVE
90919-13126

4K..KM20

 1
19901B - CORD, SPARK PLUG RESISTIVE, NO.1
90919-12228

4K..KM20..VSP..02S;4K..KM20..03S,05S,06S,07S,08S,09S

 1
19901C - CORD, SPARK PLUG RESISTIVE, NO.2
90919-12228

4K..KM20..VSP..02S;4K..KM20..03S,05S,06S,07S,08S,09S

 1
19901D - CORD, SPARK PLUG RESISTIVE, NO.3
90919-12228

4K..KM20..VSP..02S;4K..KM20..03S,05S,06S,07S,08S,09S

 1
19901E - CORD, SPARK PLUG RESISTIVE, NO.4
90919-12228

4K..KM20..VSP..02S;4K..KM20..03S,05S,06S,07S,08S,09S

 1
19901R - RING, RUBBER SPARK PLUG RESISTIVE CORD
90202-11067

4K..KM20

 2
19901R - RING, RUBBER SPARK PLUG RESISTIVE CORD
90202-11067

4K..KM20

 2
19941A - CLAMP(FOR RESISTIVE CORD)
90464-00073

4K..KM20..RHD..V;4K..KM20..LHD..VSP..EUR;4K..KM20..LHD..(03S,05S,06S,07S)

 1
Common parts
90179-04092
90179-05095
91651-40820
