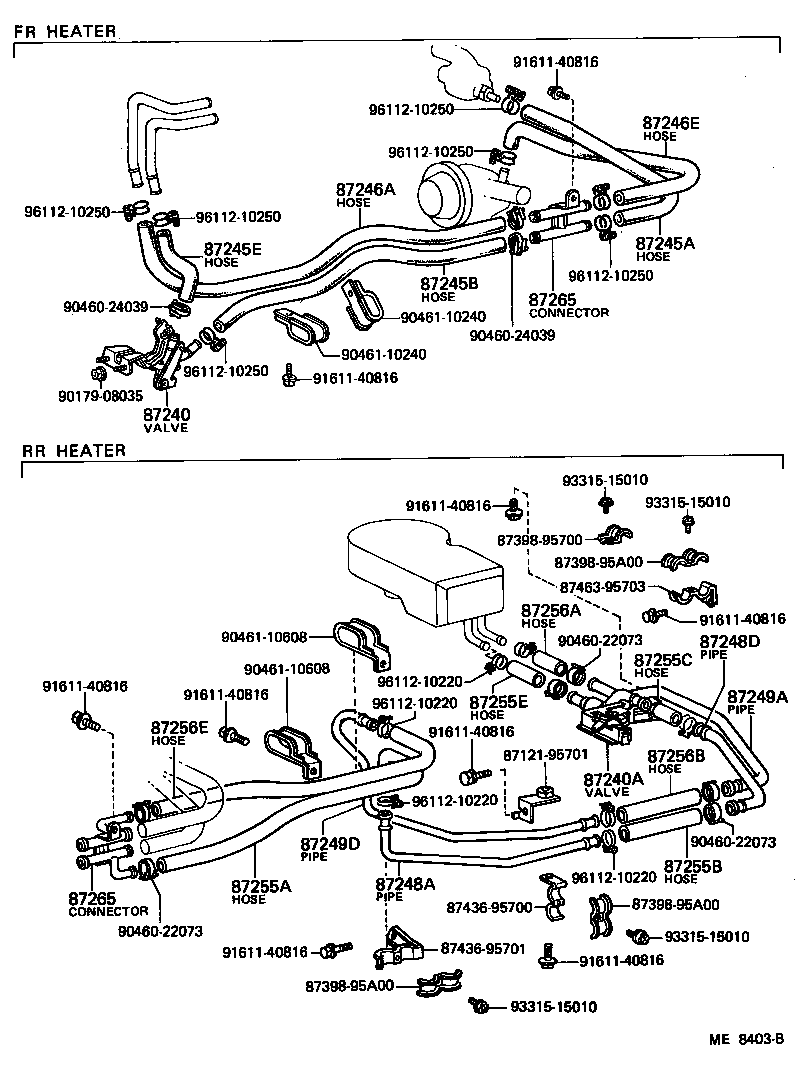

KM20LV-JRZBE (1979)
Toyota Liteace
(7910- )KM20
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87240 - VALVE ASSY, HEATER WATER | ||||
| 87240-95702 |
CM20,KM20..LHD |
1 | ||
| 87240-95702 |
KM20..VSP..02S;KM20..(HRF,SRF)..(03S,05S,06S,07S,08S,09S) |
1 | ||
| 87240-95700 |
KM20..RHD..V;KM20..LHD..VSP..EUR;KM20..LHD..(03S,05S,06S,07S,09S) |
1 | ||
| 87245A - HOSE, HEATER WATER, INLET A | ||||
| 99552-30500 |
KM20..4F;KM20..LHD..VSP..4H..EUR;KM20..LHD..4H..(03S,05S,06S,07S,09S) *H,L=390 |
1 | ||
| 99556-30390 |
KM20..LHD..HRF;KM20..V4D..SRF..4F..02S;KM20..LHD..SRF..(03S,05S,06S,08S,09S) *H,L=390 |
1 | ||
| 87245B - HOSE, HEATER WATER, INLET B | ||||
| 99552-31000 |
KM20..VSP..02S;KM20..03S,05S,06S,07S,08S,09S *H,L=820 |
1 | ||
| 99556-30820 |
KM20..V4D..02S;KM20..03S,05S,06S,08S,09S *H,L=820 |
1 | ||
| 87245E - HOSE, HEATER WATER, INLET E | ||||
| 87245-95705 |
CM20,KM20..LHD |
1 | ||
| 87245-95705 |
KM20..VSP..02S;KM20..(HRF,SRF)..(03S,05S,06S,07S,08S,09S) |
1 | ||
| 87246A - HOSE, HEATER WATER, OUTLET A | ||||
| 99556-30940 |
YM2#;KM20..V4D..02S;KM20..03S,05S,06S,08S,09S *H,L=940 |
1 | ||
| 99552-31000 |
YM2#;KM20..VSP..02S;KM20..03S,05S,06S,07S,08S,09S *H,L=940 |
1 | ||
| 87246E - HOSE, HEATER WATER, OUTLET E | ||||
| 87245-95701 |
KM20..LHD |
1 | ||
| 87265 - CONNECTOR, HEATER WATER HOSE | ||||
| 87248-95700 |
KM20 |
1 | ||
| 87265 - CONNECTOR, HEATER WATER HOSE | ||||
| 87248-95700 |
KM20 |
1 | ||
| Common parts | ||||
| 87121-95701 | ||||
| 87398-95700 | ||||
| 87398-95A00 | ||||
| 87436-95700 | ||||
| 87436-95701 | ||||
| 87463-95703 | ||||
| 90179-08035 | ||||
| 90460-22073 | ||||
| 90460-24039 | ||||
| 90461-10240 | ||||
| 90461-10608 | ||||
| 91611-40816 | ||||
| 93315-15010 | ||||
| 96112-10220 | ||||
| 96112-10250 | ||||
