KM20LV-JRZBE (1979)

Toyota Liteace

Production Oct 1979 - Aug 1985
Engine 4K
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7910- )

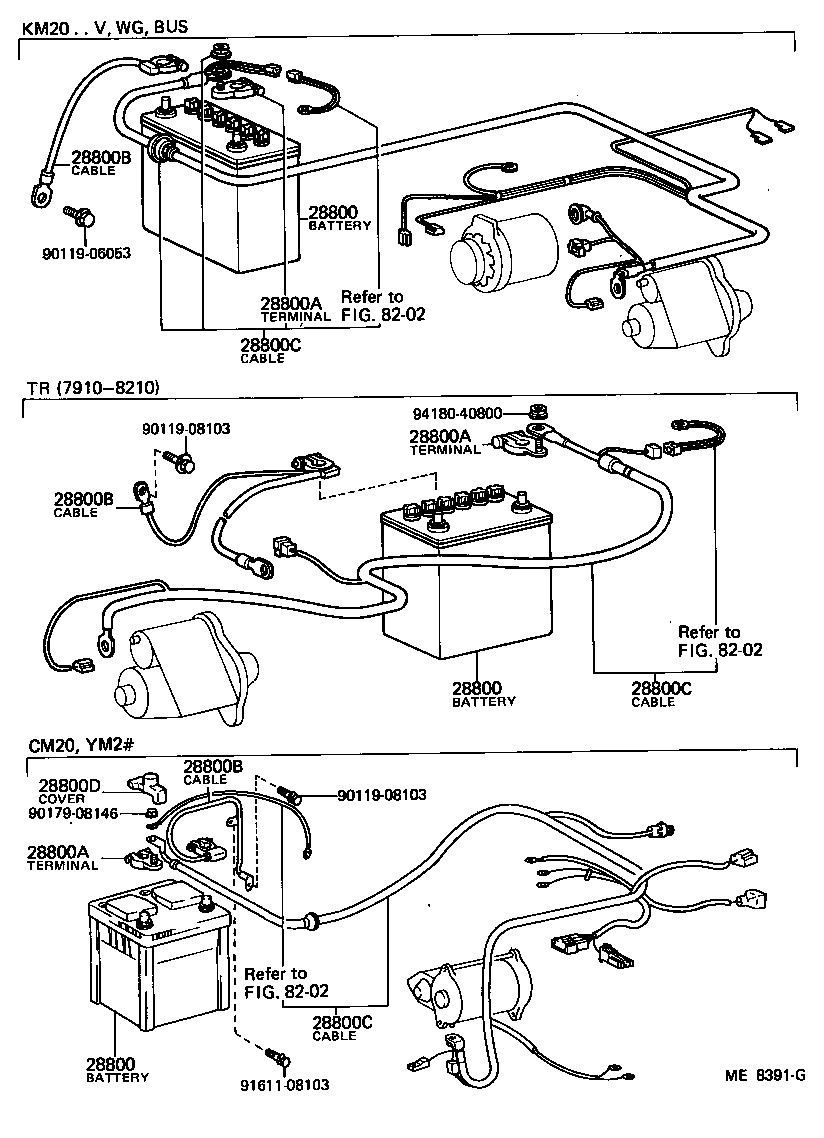

Click highlighted areas on diagram

diagram 28800 28800 28800 28800A 28800A 28800A 28800B 28800B 28800B 28800C 28800C 28800C 28800D 8202 8202 8202 9011906053 9011908103 9011908103 9017908146 9161108103 9418040800
Part # Description Qty Price
28800 - BATTERY
28800-13060

4K..KM20..(HRF,SRF)..GEN

28B19R,NS40S(12V 30AH-20HR)

 1
28800-33050

4K..KM20..LHD..GEN

46B24R,NS60(12V 45AH-20HR)

 1
28800-13110

4K..KM20..GEN

28B19R(S),NS40S(S)(12V 30AH-20HR)

 1
28800-13140

4K..KM20..LHD

46B24R(S),NS60(S)(12V 45AH-20HR)

 1
28800 - BATTERY
28800-13060

4K..KM20..(HRF,SRF)..GEN

28B19R,NS40S(12V 30AH-20HR)

 1
28800-33050

4K..KM20..LHD..GEN

46B24R,NS60(12V 45AH-20HR)

 1
28800-13110

4K..KM20..GEN

28B19R(S),NS40S(S)(12V 30AH-20HR)

 1
28800-13140

4K..KM20..LHD

46B24R(S),NS60(S)(12V 45AH-20HR)

 1
28800 - BATTERY
28800-13060

4K..KM20..(HRF,SRF)..GEN

28B19R,NS40S(12V 30AH-20HR)

 1
28800-33050

4K..KM20..LHD..GEN

46B24R,NS60(12V 45AH-20HR)

 1
28800-13110

4K..KM20..GEN

28B19R(S),NS40S(S)(12V 30AH-20HR)

 1
28800-13140

4K..KM20..LHD

46B24R(S),NS60(S)(12V 45AH-20HR)

 1
28800A - TERMINAL, BATTERY POSITIVE
90982-05004

4K..KM20..ARL,GEN

 1
90982-05005

1C,4K,1Y,2YC..CM20,KM20,YM2#

 1
28800A - TERMINAL, BATTERY POSITIVE
90982-05004

4K..KM20..ARL,GEN

 1
90982-05005

1C,4K,1Y,2YC..CM20,KM20,YM2#

 1
28800A - TERMINAL, BATTERY POSITIVE
90982-05004

4K..KM20..ARL,GEN

 1
90982-05005

1C,4K,1Y,2YC..CM20,KM20,YM2#

 1
28800B - CABLE, BATTERY TO GROUND
90982-02187

4K..KM20..(HRF,SRF)..(ARL,GEN)

 1
28800B - CABLE, BATTERY TO GROUND
90982-02187

4K..KM20..(HRF,SRF)..(ARL,GEN)

 1
28800B - CABLE, BATTERY TO GROUND
90982-02187

4K..KM20..(HRF,SRF)..(ARL,GEN)

 1
28800C - CABLE, BATTERY TO STARTER(FOR BATTERY TO MAIN SWITCH)
82021-95704

4K..KM20..LHD..GEN

 1
90982-01322

4K..KM20..LHD..GEN

 1
28800C - CABLE, BATTERY TO STARTER(FOR BATTERY TO MAIN SWITCH)
82021-95704

4K..KM20..LHD..GEN

 1
90982-01322

4K..KM20..LHD..GEN

 1
28800C - CABLE, BATTERY TO STARTER(FOR BATTERY TO MAIN SWITCH)
82021-95704

4K..KM20..LHD..GEN

 1
90982-01322

4K..KM20..LHD..GEN

 1
Common parts
90119-06053
90119-08103
90179-08146
91611-08103
94180-40800
Linked diagrams
8202
