KM20LV-JRZBE (1979)

Toyota Liteace

Production Oct 1979 - Aug 1985
Engine 4K
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7910- )

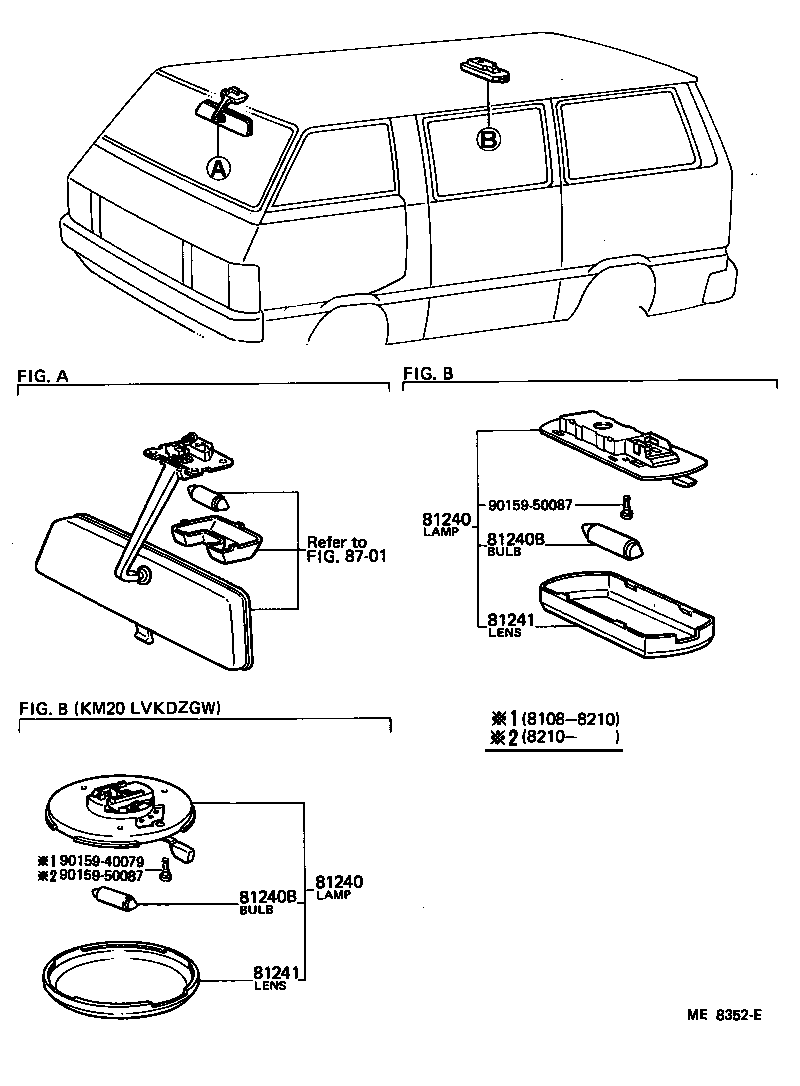

Click highlighted areas on diagram

diagram 81240 81240 81240B 81240B 81241 81241 8701 9015940079 9015950087 9015950087
Part # Description Qty Price
81240 - LAMP ASSY, ROOM, NO.1
81240-95702

KM20..VSP..02S;KM20..SRF..DLX;KM20..(HRF,SRF)..(03S,05S,06S,07S,08S,09S)..STD

 1
81240-9570408

CM20,KM20,YM2#

IVORY,IVORY

 1
81240 - LAMP ASSY, ROOM, NO.1
81240-95702

KM20..VSP..02S;KM20..SRF..DLX;KM20..(HRF,SRF)..(03S,05S,06S,07S,08S,09S)..STD

 1
81240-9570408

CM20,KM20,YM2#

IVORY,IVORY

 1
81240B - BULB, ROOM LAMP, NO.1
90981-11004

KM20..SRF..DLX;CM20,KM20,YM2#..(HRF,SRF)..STD

12V 10W

 1
81240B - BULB, ROOM LAMP, NO.1
90981-11004

KM20..SRF..DLX;CM20,KM20,YM2#..(HRF,SRF)..STD

12V 10W

 1
81241 - LENS, ROOM LAMP, NO.1
81241-95013

KM20..SRF..DLX;CM20,KM20,YM2#..(HRF,SRF)..STD

 1
81241 - LENS, ROOM LAMP, NO.1
81241-95013

KM20..SRF..DLX;CM20,KM20,YM2#..(HRF,SRF)..STD

 1
Common parts
90159-40079
90159-50087
Linked diagrams
8701
