KM20LV-JRZBE (1979)

Toyota Liteace

Production Oct 1979 - Aug 1985
Engine 4K
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7910- )KM20

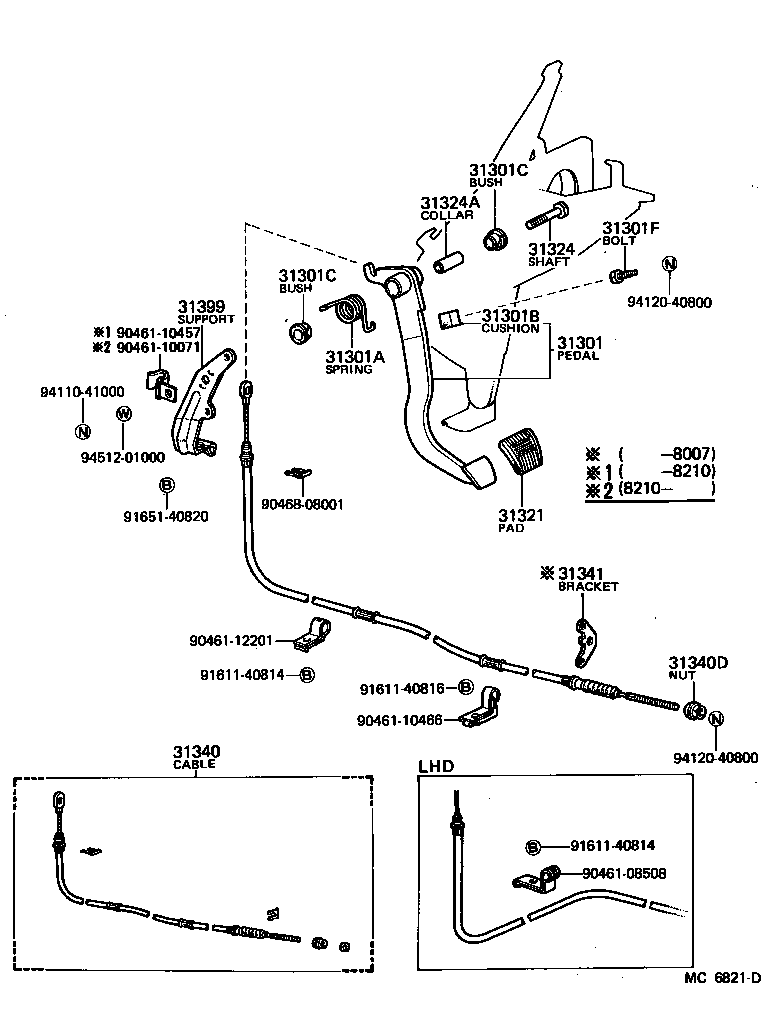

Click highlighted areas on diagram

diagram 31301 31301A 31301B 31301C 31301C 31301F 31321 31324 31324A 31340 31340D 31341 31399 9046108508 9046110071 9046110457 9046110466 9046112201 9046808001 9161140814 9161140814 9161140816 9165140820 9411041000 9412040800 9412040800 9451201000
Part # Description Qty Price
31301 - PEDAL SUB-ASSY, CLUTCH
31301-27061

KM20..4F;KM20..LHD..GEN

 1
31301-27062

KM20..LHD

 1
31301-27060

KM20..LHD..VSP..EUR;KM20..LHD..(03S,05S,06S,07S,09S)

 1
31301A - SPRING(FOR CLUTCH PEDAL)
90508-35386

KM20

 1
31301B - CUSHION, NO.1(FOR CLUTCH PEDAL)
47131-10020

CM20,KM20,YM2#..MTM

 1
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13007

CM20,KM20,YM2#..MTM

 2
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13007

CM20,KM20,YM2#..MTM

 2
31301F - BOLT(FOR CLUTCH PEDAL STOPPER)
90109-08052

KM20..VSP..02S;KM20..03S,05S,06S,07S,08S,09S

 1
90101-08052

CM20,KM20,YM2#..MTM

 1
90109-08001

KM20..RHD;KM20..LHD..VSP..EUR;KM20..LHD..(03S,05S,06S,07S)

 1
31321 - PAD, CLUTCH PEDAL
31321-14010

CM20,KM20,YM2#..MTM

 1
31324 - SHAFT, CLUTCH PEDAL
91111-51060

CM20,KM20,YM2#..MTM

 1
31324A - COLLAR, CLUTCH PEDAL SHAFT
90387-10003

CM20,KM20,YM2#..MTM

 1
31340 - CABLE ASSY, CLUTCH RELEASE
31340-29085

KM20..LHD

 1
31340D - NUT, WIRE ADJUST(FOR CLUTCH RELEASE CABLE)
31339-28010

KM20

 1
31341 - BRACKET, CLUTCH CABLE
31341-28010

KM20..RHD;KM20..LHD..VSP..EUR;KM20..LHD..(03S,05S,06S,07S)

 1
31399 - SUPPORT, PEDAL BRACKET CLUTCH WIRE
55169-95704

KM20..LHD

 1
55169-95702

KM20..VSP..02S;KM20..03S,05S,06S,07S,08S,09S

 1
Common parts
90461-08508
90461-10071
90461-10457
90461-10466
90461-12201
90468-08001
91611-40814
91611-40816
91651-40820
94110-41000
94120-40800
94512-01000
