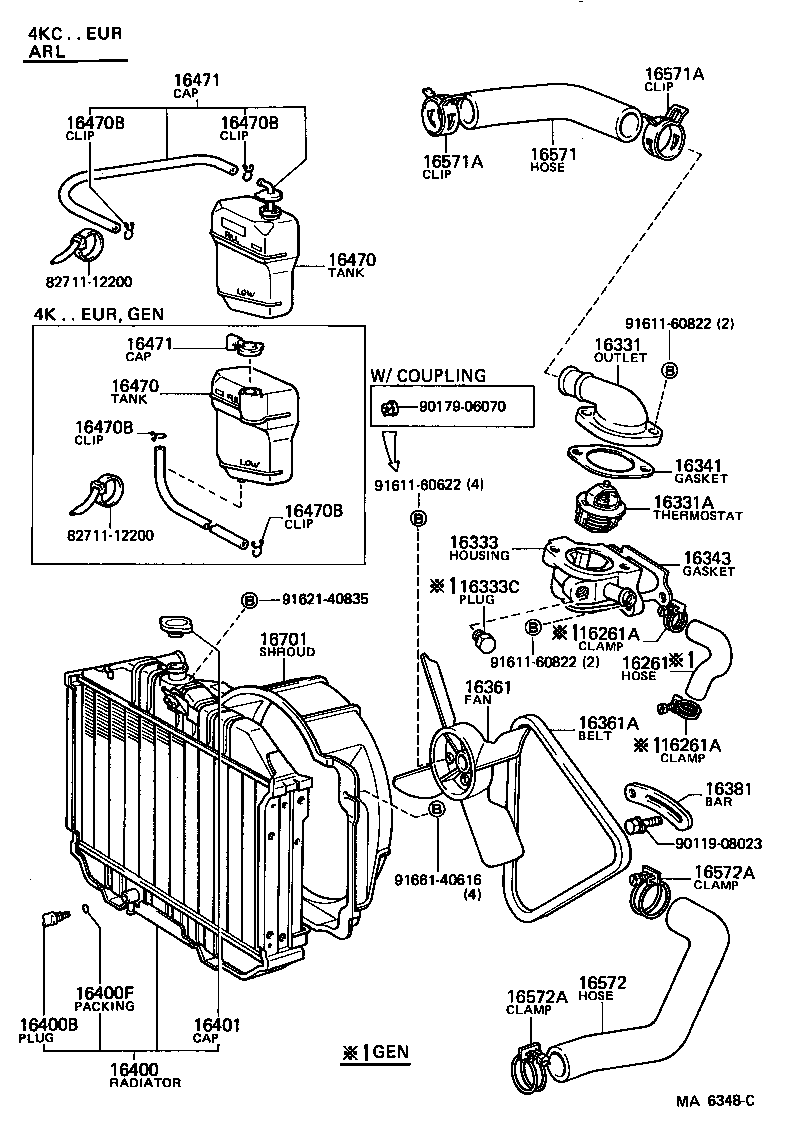

KM20LV-JRZBE (1979)
Toyota Liteace
(7910-8210)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-13030 |
4K..KM20..GEN |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 96112-10250 |
4K..KM20..GEN |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 96112-10250 |
4K..KM20..GEN |
2 | ||
| 16331 - OUTLET, WATER | ||||
| 16331-24011 |
4K..KM20 |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03020 |
4K..KM20..RHD;4K..KM20..LHD..VSP..EUR;4K..KM20..LHD..(03S,05S,06S,07S) *WAX 82-95,FUJI-THOMSON |
1 | ||
| 90916-03037 |
4K..KM20..RHD;4K..KM20..LHD..VSP..EUR;4K..KM20..LHD..(03S,05S,06S,07S) *WAX 82-95,KUZEH |
1 | ||
| 90916-03034 |
4K..KM20..RHD;4K..KM20..LHD..VSP..EUR;4K..KM20..LHD..(03S,05S,06S,07S) *WAX 82-95,FUJI-THOMSON |
1 | ||
| 90916-03037 |
4K..KM20..ARL,GEN *WAX 82-95,KUZEH |
1 | ||
| 90916-03038 |
4K..KM20..RHD;4K..KM20..LHD..VSP..EUR;4K..KM20..LHD..(03S,05S,06S,07S) *WAX 82-95,KUZEH |
1 | ||
| 90916-03034 |
4K..KM20..ARL,GEN *WAX 82-95,FUJI-THOMSON |
1 | ||
| 90916-03054 |
4K..KM20..ARL,GEN *WAX 82-95,*WAX 82-95 |
1 | ||
| 16333 - HOUSING, WATER OUTLET | ||||
| 16333-13040 |
4K..KM20 |
1 | ||
| 16333C - PLUG, W/HEAD TAPER SCREW | ||||
| 90345-53007 |
4K..KM20..GEN |
1 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-13011 |
4K..KM20 |
1 | ||
| 16343 - GASKET, WATER OUTLET HOUSING | ||||
| 16343-22011 |
4K..KM20 |
1 | ||
| 16343-22010 |
4K..KM20..VSP..02S;4K..KM20..03S,05S,06S,07S,08S,09S |
1 | ||
| 16361 - FAN | ||||
| 16361-24041 |
4K..KM20..VSP..02S;4K..KM20..03S,05S,06S,07S,08S,09S 4 BLADES |
1 | ||
| 16361-24041 |
4K..KM20..ARL,GEN 4 BLADES |
1 | ||
| 16361-26040 |
4K..KM20..LHD..GEN CHINA SPEC |
1 | ||
| 16361-26040 |
4K..KM20..(HRF,SRF)..GEN W/COOLER |
1 | ||
| 16361A - BELT, V(FOR FAN & ALTERNATOR) | ||||
| 99321-00840 |
4K..KM20..VSP..02S;4K..KM20..03S,05S,06S,07S,08S,09S L=840 |
1 | ||
| 99321-00830 |
4K..KM20..(HRF,SRF)..GEN W/COOLER |
1 | ||
| 99321-00855 |
4K..KM20..ARL,GEN L=855 |
1 | ||
| 99321-00850 |
4K..KM20..GEN L=850 |
1 | ||
| 99321-00855 |
4K..KM20..GEN L=855 |
1 | ||
| 16381 - BAR, FAN BELT ADJUSTING | ||||
| 16381-24011 |
4K..KM20 |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-13100 |
4K..KM20..VSP..02S;4K..KM20..03S,05S,06S,07S,08S,09S |
1 | ||
| 16400-13270 |
4K..KM20..ARL,GEN |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 16417-24200 |
4K..KM20 |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 16418-24200 |
4K..KM20 |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-41021 |
4K..KM20..VSP..02S;4K..KM20..03S,05S,06S,07S,08S,09S |
1 | ||
| 16401-71010 |
4K..KM20 |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-95704 |
4K..KM20..EUR,GEN |
1 | ||
| 16480-95702 |
4K..KM20..VSP..EUR;4K..KM20..(HRF,SRF)..(03S,05S,06S,07S,08S,09S)..(EUR,GEN) |
1 | ||
| 16480-95700 |
4K..KM20..RHD..V;4K..KM20..LHD..VSP..EUR;4K..KM20..LHD..(03S,05S,06S,07S) |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-95704 |
4K..KM20..EUR,GEN |
1 | ||
| 16480-95702 |
4K..KM20..VSP..EUR;4K..KM20..(HRF,SRF)..(03S,05S,06S,07S,08S,09S)..(EUR,GEN) |
1 | ||
| 16480-95700 |
4K..KM20..RHD..V;4K..KM20..LHD..VSP..EUR;4K..KM20..LHD..(03S,05S,06S,07S) |
1 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
4K..KM20 |
2 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
4K..KM20 |
2 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
4K..KM20 |
2 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
4K..KM20 |
2 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16405-95700 |
4K..KM20..RHD..V;4K..KM20..LHD..VSP..EUR;4K..KM20..LHD..(03S,05S,06S,07S) |
1 | ||
| 16405-95703 |
4K..KM20..VSP..EUR;4K..KM20..(HRF,SRF)..(03S,05S,06S,07S,08S,09S)..(EUR,GEN) |
1 | ||
| 16405-95703 |
4K..KM20..EUR,GEN |
1 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16405-95700 |
4K..KM20..RHD..V;4K..KM20..LHD..VSP..EUR;4K..KM20..LHD..(03S,05S,06S,07S) |
1 | ||
| 16405-95703 |
4K..KM20..VSP..EUR;4K..KM20..(HRF,SRF)..(03S,05S,06S,07S,08S,09S)..(EUR,GEN) |
1 | ||
| 16405-95703 |
4K..KM20..EUR,GEN |
1 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16571-13060 |
4K..KM20..LHD |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-37001 |
4K..KM20..RHD;4K..KM20..LHD..VSP..EUR;4K..KM20..LHD..(03S,05S,06S,07S) |
2 | ||
| 90467-37001 |
4K..KM20..RHD;4K..KM20..LHD..VSP..EUR;4K..KM20..LHD..(03S,05S,06S,07S,09S) OUTLET SIDE |
1 | ||
| 96111-10430 |
4K..KM20..RHD;4K..KM20..LHD..VSP..EUR;4K..KM20..LHD..(03S,05S,06S,07S) RADIATOR SIDE |
1 | ||
| 96111-10430 |
4K..KM20..RHD;4K..KM20..LHD..VSP..EUR;4K..KM20..LHD..(03S,05S,06S,07S,09S) RADIATOR SIDE |
1 | ||
| 90467-37001 |
4K..KM20 |
2 | ||
| 90467-37001 |
4K..KM20..RHD;4K..KM20..LHD..VSP..EUR;4K..KM20..LHD..(03S,05S,06S,07S) OUTLET SIDE |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-37001 |
4K..KM20..RHD;4K..KM20..LHD..VSP..EUR;4K..KM20..LHD..(03S,05S,06S,07S) |
2 | ||
| 90467-37001 |
4K..KM20..RHD;4K..KM20..LHD..VSP..EUR;4K..KM20..LHD..(03S,05S,06S,07S,09S) OUTLET SIDE |
1 | ||
| 96111-10430 |
4K..KM20..RHD;4K..KM20..LHD..VSP..EUR;4K..KM20..LHD..(03S,05S,06S,07S) RADIATOR SIDE |
1 | ||
| 96111-10430 |
4K..KM20..RHD;4K..KM20..LHD..VSP..EUR;4K..KM20..LHD..(03S,05S,06S,07S,09S) RADIATOR SIDE |
1 | ||
| 90467-37001 |
4K..KM20 |
2 | ||
| 90467-37001 |
4K..KM20..RHD;4K..KM20..LHD..VSP..EUR;4K..KM20..LHD..(03S,05S,06S,07S) OUTLET SIDE |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-37001 |
4K..KM20..RHD;4K..KM20..LHD..VSP..EUR;4K..KM20..LHD..(03S,05S,06S,07S) |
2 | ||
| 90467-37001 |
4K..KM20..RHD;4K..KM20..LHD..VSP..EUR;4K..KM20..LHD..(03S,05S,06S,07S,09S) OUTLET SIDE |
1 | ||
| 96111-10430 |
4K..KM20..RHD;4K..KM20..LHD..VSP..EUR;4K..KM20..LHD..(03S,05S,06S,07S) RADIATOR SIDE |
1 | ||
| 96111-10430 |
4K..KM20..RHD;4K..KM20..LHD..VSP..EUR;4K..KM20..LHD..(03S,05S,06S,07S,09S) RADIATOR SIDE |
1 | ||
| 90467-37001 |
4K..KM20 |
2 | ||
| 90467-37001 |
4K..KM20..RHD;4K..KM20..LHD..VSP..EUR;4K..KM20..LHD..(03S,05S,06S,07S) OUTLET SIDE |
1 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-13040 |
4K..KM20..LHD |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90460-47036 |
4K..KM20 ID=47 |
2 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90460-47036 |
4K..KM20 ID=47 |
2 | ||
| 16701 - SHROUD SUB-ASSY, FAN | ||||
| 16711-27040 |
4K..KM20..LHD..GEN W/COOLER |
1 | ||
| 16711-13220 |
4K..KM20..LHD..GEN W/COOLER |
1 | ||
| 16711-27080 |
4K..KM20..4F;4K..KM20..LHD..VSP..4H..EUR;4K..KM20..LHD..4H..(03S,05S,06S,07S,09S) |
1 | ||
| 16711-27080 |
4K..KM20..LHD..GEN |
1 | ||
| 16711-13220 |
4K..KM20..LHD..GEN CHINA SPEC |
1 | ||
| Common parts | ||||
| 90464-00102 | ||||
| 91611-40822 | ||||
| 91611-60622 | ||||
| 91611-60822 | ||||
| 91651-40616 | ||||
| 94180-40600 | ||||

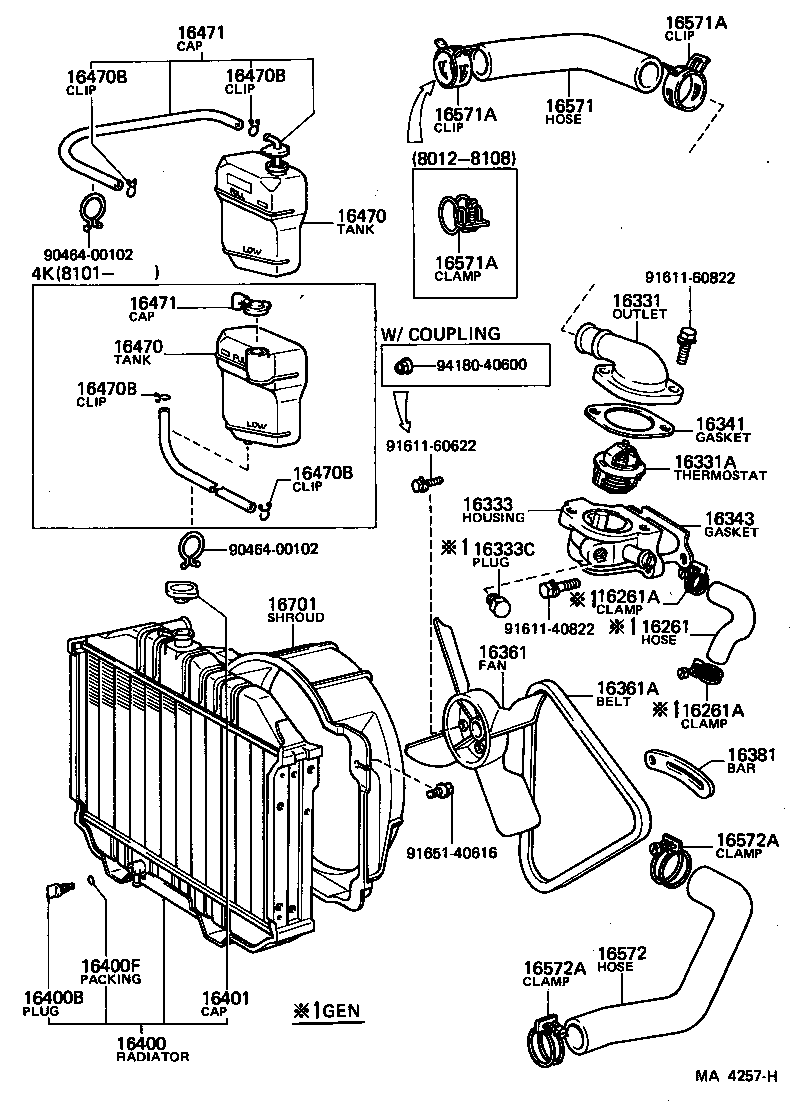

(8210- )4K
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-13030 |
4K..KM20..GEN |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 96112-10250 |
4K..KM20..GEN |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 96112-10250 |
4K..KM20..GEN |
2 | ||
| 16331 - OUTLET, WATER | ||||
| 16331-24011 |
4K..KM20 |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03020 |
4K..KM20..RHD;4K..KM20..LHD..VSP..EUR;4K..KM20..LHD..(03S,05S,06S,07S) *WAX 82-95,FUJI-THOMSON |
1 | ||
| 90916-03037 |
4K..KM20..RHD;4K..KM20..LHD..VSP..EUR;4K..KM20..LHD..(03S,05S,06S,07S) *WAX 82-95,KUZEH |
1 | ||
| 90916-03034 |
4K..KM20..RHD;4K..KM20..LHD..VSP..EUR;4K..KM20..LHD..(03S,05S,06S,07S) *WAX 82-95,FUJI-THOMSON |
1 | ||
| 90916-03037 |
4K..KM20..ARL,GEN *WAX 82-95,KUZEH |
1 | ||
| 90916-03038 |
4K..KM20..RHD;4K..KM20..LHD..VSP..EUR;4K..KM20..LHD..(03S,05S,06S,07S) *WAX 82-95,KUZEH |
1 | ||
| 90916-03034 |
4K..KM20..ARL,GEN *WAX 82-95,FUJI-THOMSON |
1 | ||
| 90916-03054 |
4K..KM20..ARL,GEN *WAX 82-95,*WAX 82-95 |
1 | ||
| 16333 - HOUSING, WATER OUTLET | ||||
| 16333-13040 |
4K..KM20 |
1 | ||
| 16333C - PLUG, W/HEAD TAPER SCREW | ||||
| 90345-53007 |
4K..KM20..GEN |
1 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-13011 |
4K..KM20 |
1 | ||
| 16343 - GASKET, WATER OUTLET HOUSING | ||||
| 16343-22011 |
4K..KM20 |
1 | ||
| 16343-22010 |
4K..KM20..VSP..02S;4K..KM20..03S,05S,06S,07S,08S,09S |
1 | ||
| 16361 - FAN | ||||
| 16361-24041 |
4K..KM20..VSP..02S;4K..KM20..03S,05S,06S,07S,08S,09S 4 BLADES |
1 | ||
| 16361-24041 |
4K..KM20..ARL,GEN 4 BLADES |
1 | ||
| 16361-26040 |
4K..KM20..LHD..GEN CHINA SPEC |
1 | ||
| 16361-26040 |
4K..KM20..(HRF,SRF)..GEN W/COOLER |
1 | ||
| 16361A - BELT, V(FOR FAN & ALTERNATOR) | ||||
| 99321-00840 |
4K..KM20..VSP..02S;4K..KM20..03S,05S,06S,07S,08S,09S L=840 |
1 | ||
| 99321-00830 |
4K..KM20..(HRF,SRF)..GEN W/COOLER |
1 | ||
| 99321-00855 |
4K..KM20..ARL,GEN L=855 |
1 | ||
| 99321-00850 |
4K..KM20..GEN L=850 |
1 | ||
| 99321-00855 |
4K..KM20..GEN L=855 |
1 | ||
| 16381 - BAR, FAN BELT ADJUSTING | ||||
| 16381-24011 |
4K..KM20 |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-13100 |
4K..KM20..VSP..02S;4K..KM20..03S,05S,06S,07S,08S,09S |
1 | ||
| 16400-13270 |
4K..KM20..ARL,GEN |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 16417-24200 |
4K..KM20 |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 16418-24200 |
4K..KM20 |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-41021 |
4K..KM20..VSP..02S;4K..KM20..03S,05S,06S,07S,08S,09S |
1 | ||
| 16401-71010 |
4K..KM20 |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-95704 |
4K..KM20..EUR,GEN |
1 | ||
| 16480-95702 |
4K..KM20..VSP..EUR;4K..KM20..(HRF,SRF)..(03S,05S,06S,07S,08S,09S)..(EUR,GEN) |
1 | ||
| 16480-95700 |
4K..KM20..RHD..V;4K..KM20..LHD..VSP..EUR;4K..KM20..LHD..(03S,05S,06S,07S) |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-95704 |
4K..KM20..EUR,GEN |
1 | ||
| 16480-95702 |
4K..KM20..VSP..EUR;4K..KM20..(HRF,SRF)..(03S,05S,06S,07S,08S,09S)..(EUR,GEN) |
1 | ||
| 16480-95700 |
4K..KM20..RHD..V;4K..KM20..LHD..VSP..EUR;4K..KM20..LHD..(03S,05S,06S,07S) |
1 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
4K..KM20 |
2 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
4K..KM20 |
2 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
4K..KM20 |
2 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
4K..KM20 |
2 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16405-95700 |
4K..KM20..RHD..V;4K..KM20..LHD..VSP..EUR;4K..KM20..LHD..(03S,05S,06S,07S) |
1 | ||
| 16405-95703 |
4K..KM20..VSP..EUR;4K..KM20..(HRF,SRF)..(03S,05S,06S,07S,08S,09S)..(EUR,GEN) |
1 | ||
| 16405-95703 |
4K..KM20..EUR,GEN |
1 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16405-95700 |
4K..KM20..RHD..V;4K..KM20..LHD..VSP..EUR;4K..KM20..LHD..(03S,05S,06S,07S) |
1 | ||
| 16405-95703 |
4K..KM20..VSP..EUR;4K..KM20..(HRF,SRF)..(03S,05S,06S,07S,08S,09S)..(EUR,GEN) |
1 | ||
| 16405-95703 |
4K..KM20..EUR,GEN |
1 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16571-13060 |
4K..KM20..LHD |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-37001 |
4K..KM20..RHD;4K..KM20..LHD..VSP..EUR;4K..KM20..LHD..(03S,05S,06S,07S) |
2 | ||
| 90467-37001 |
4K..KM20..RHD;4K..KM20..LHD..VSP..EUR;4K..KM20..LHD..(03S,05S,06S,07S,09S) OUTLET SIDE |
1 | ||
| 96111-10430 |
4K..KM20..RHD;4K..KM20..LHD..VSP..EUR;4K..KM20..LHD..(03S,05S,06S,07S) RADIATOR SIDE |
1 | ||
| 96111-10430 |
4K..KM20..RHD;4K..KM20..LHD..VSP..EUR;4K..KM20..LHD..(03S,05S,06S,07S,09S) RADIATOR SIDE |
1 | ||
| 90467-37001 |
4K..KM20 |
2 | ||
| 90467-37001 |
4K..KM20..RHD;4K..KM20..LHD..VSP..EUR;4K..KM20..LHD..(03S,05S,06S,07S) OUTLET SIDE |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-37001 |
4K..KM20..RHD;4K..KM20..LHD..VSP..EUR;4K..KM20..LHD..(03S,05S,06S,07S) |
2 | ||
| 90467-37001 |
4K..KM20..RHD;4K..KM20..LHD..VSP..EUR;4K..KM20..LHD..(03S,05S,06S,07S,09S) OUTLET SIDE |
1 | ||
| 96111-10430 |
4K..KM20..RHD;4K..KM20..LHD..VSP..EUR;4K..KM20..LHD..(03S,05S,06S,07S) RADIATOR SIDE |
1 | ||
| 96111-10430 |
4K..KM20..RHD;4K..KM20..LHD..VSP..EUR;4K..KM20..LHD..(03S,05S,06S,07S,09S) RADIATOR SIDE |
1 | ||
| 90467-37001 |
4K..KM20 |
2 | ||
| 90467-37001 |
4K..KM20..RHD;4K..KM20..LHD..VSP..EUR;4K..KM20..LHD..(03S,05S,06S,07S) OUTLET SIDE |
1 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-13040 |
4K..KM20..LHD |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90460-47036 |
4K..KM20 ID=47 |
2 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90460-47036 |
4K..KM20 ID=47 |
2 | ||
| 16701 - SHROUD SUB-ASSY, FAN | ||||
| 16711-27040 |
4K..KM20..LHD..GEN W/COOLER |
1 | ||
| 16711-13220 |
4K..KM20..LHD..GEN W/COOLER |
1 | ||
| 16711-27080 |
4K..KM20..4F;4K..KM20..LHD..VSP..4H..EUR;4K..KM20..LHD..4H..(03S,05S,06S,07S,09S) |
1 | ||
| 16711-27080 |
4K..KM20..LHD..GEN |
1 | ||
| 16711-13220 |
4K..KM20..LHD..GEN CHINA SPEC |
1 | ||
| Common parts | ||||
| 82711-12200 | ||||
| 90119-08023 | ||||
| 90179-06070 | ||||
| 91611-60622 | ||||
| 91611-60822 | ||||
| 91621-40835 | ||||
| 91661-40616 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
