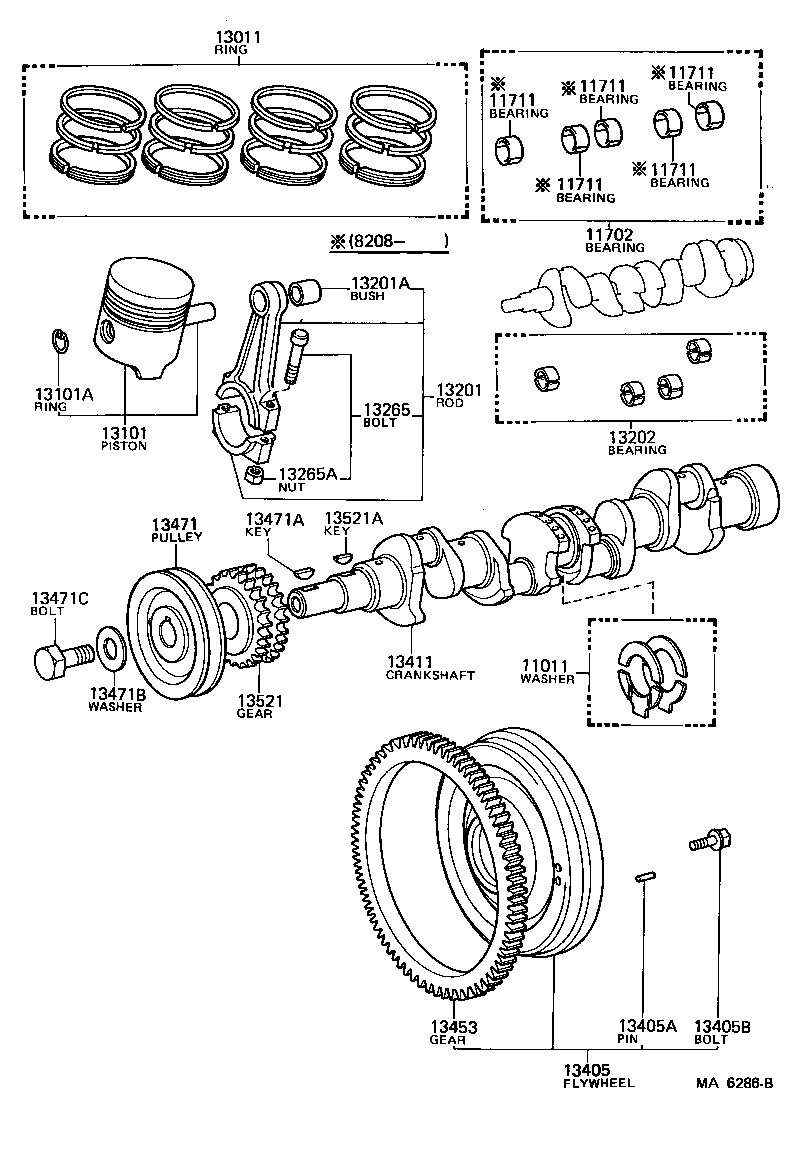

KM20LV-JRZBE (1979)
Toyota Liteace
(7910-8210)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11011 - WASHER SET, CRANKSHAFT THRUST | ||||
| 11011-22011 |
4K..KM20 STD,STD |
1 | ||
| 11013-22011 |
4K..KM20 O/S 0.250,O/S 0.250 |
1 | ||
| 11012-22011 |
4K..KM20 O/S 0.125,O/S 0.125 |
1 | ||
| 11702 - BEARING SET, CRANKSHAFT | ||||
| 11703-22020 |
4K..KM20..VSP..02S;4K..KM20..03S,05S,06S,07S,08S,09S U/S 0.05 |
1 | ||
| 11702-22020 |
4K..KM20 STD |
1 | ||
| 11704-13010 |
4K..KM20..VSP..02S;4K..KM20..03S,05S,06S,08S,09S U/S 0.25,U/S 0.25 |
1 | ||
| 11704-13011 |
4K..KM20..V4D..02S;4K..KM20..03S,05S,06S,08S,09S U/S 0.25,U/S 0.25 |
1 | ||
| 11704-22020 |
4K..KM20..VSP..02S;4K..KM20..03S,05S,06S,07S,08S,09S U/S 0.25,U/S 0.25 |
1 | ||
| 11705-13011 |
4K..KM20..V4D..02S;4K..KM20..03S,05S,06S,08S,09S U/S 0.50,U/S 0.50 |
1 | ||
| 11705-22020 |
4K..KM20..VSP..02S;4K..KM20..03S,05S,06S,07S,08S,09S U/S 0.50 |
1 | ||
| 11705-13010 |
4K..KM20..VSP..02S;4K..KM20..03S,05S,06S,08S,09S U/S 0.50,U/S 0.50 |
1 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-1301004 |
4K..KM20..VSP..02S;4K..KM20..03S,05S,06S,08S,09S STD,MARK"4",MARK 4 |
5 | ||
| 11701-1301007 |
4K..KM20..VSP..02S;4K..KM20..03S,05S,06S,08S,09S STD,MARK"7",MARK 7 |
5 | ||
| 11701-1301003 |
4K..KM20..VSP..02S;4K..KM20..03S,05S,06S,08S,09S STD,MARK"3",MARK 3 |
5 | ||
| 11701-1301005 |
4K..KM20..VSP..02S;4K..KM20..03S,05S,06S,08S,09S STD,MARK"5",MARK 5 |
5 | ||
| 11701-1301105 |
4K..KM20..V4D..02S;4K..KM20..03S,05S,06S,08S,09S STD,MARK"5",MARK 5 |
5 | ||
| 11701-1301104 |
4K..KM20..V4D..02S;4K..KM20..03S,05S,06S,08S,09S STD,MARK"4",MARK 4 |
5 | ||
| 11701-1301006 |
4K..KM20..VSP..02S;4K..KM20..03S,05S,06S,08S,09S STD,MARK"6",MARK 6 |
5 | ||
| 11701-1301106 |
4K..KM20..V4D..02S;4K..KM20..03S,05S,06S,08S,09S STD,MARK"6",MARK 6 |
5 | ||
| 11701-1301103 |
4K..KM20..V4D..02S;4K..KM20..03S,05S,06S,08S,09S STD,MARK"3",MARK 3 |
5 | ||
| 11701-1301107 |
4K..KM20..V4D..02S;4K..KM20..03S,05S,06S,08S,09S STD,MARK"7",MARK 7 |
5 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-1301004 |
4K..KM20..VSP..02S;4K..KM20..03S,05S,06S,08S,09S STD,MARK"4",MARK 4 |
5 | ||
| 11701-1301007 |
4K..KM20..VSP..02S;4K..KM20..03S,05S,06S,08S,09S STD,MARK"7",MARK 7 |
5 | ||
| 11701-1301003 |
4K..KM20..VSP..02S;4K..KM20..03S,05S,06S,08S,09S STD,MARK"3",MARK 3 |
5 | ||
| 11701-1301005 |
4K..KM20..VSP..02S;4K..KM20..03S,05S,06S,08S,09S STD,MARK"5",MARK 5 |
5 | ||
| 11701-1301105 |
4K..KM20..V4D..02S;4K..KM20..03S,05S,06S,08S,09S STD,MARK"5",MARK 5 |
5 | ||
| 11701-1301104 |
4K..KM20..V4D..02S;4K..KM20..03S,05S,06S,08S,09S STD,MARK"4",MARK 4 |
5 | ||
| 11701-1301006 |
4K..KM20..VSP..02S;4K..KM20..03S,05S,06S,08S,09S STD,MARK"6",MARK 6 |
5 | ||
| 11701-1301106 |
4K..KM20..V4D..02S;4K..KM20..03S,05S,06S,08S,09S STD,MARK"6",MARK 6 |
5 | ||
| 11701-1301103 |
4K..KM20..V4D..02S;4K..KM20..03S,05S,06S,08S,09S STD,MARK"3",MARK 3 |
5 | ||
| 11701-1301107 |
4K..KM20..V4D..02S;4K..KM20..03S,05S,06S,08S,09S STD,MARK"7",MARK 7 |
5 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-1301004 |
4K..KM20..VSP..02S;4K..KM20..03S,05S,06S,08S,09S STD,MARK"4",MARK 4 |
5 | ||
| 11701-1301007 |
4K..KM20..VSP..02S;4K..KM20..03S,05S,06S,08S,09S STD,MARK"7",MARK 7 |
5 | ||
| 11701-1301003 |
4K..KM20..VSP..02S;4K..KM20..03S,05S,06S,08S,09S STD,MARK"3",MARK 3 |
5 | ||
| 11701-1301005 |
4K..KM20..VSP..02S;4K..KM20..03S,05S,06S,08S,09S STD,MARK"5",MARK 5 |
5 | ||
| 11701-1301105 |
4K..KM20..V4D..02S;4K..KM20..03S,05S,06S,08S,09S STD,MARK"5",MARK 5 |
5 | ||
| 11701-1301104 |
4K..KM20..V4D..02S;4K..KM20..03S,05S,06S,08S,09S STD,MARK"4",MARK 4 |
5 | ||
| 11701-1301006 |
4K..KM20..VSP..02S;4K..KM20..03S,05S,06S,08S,09S STD,MARK"6",MARK 6 |
5 | ||
| 11701-1301106 |
4K..KM20..V4D..02S;4K..KM20..03S,05S,06S,08S,09S STD,MARK"6",MARK 6 |
5 | ||
| 11701-1301103 |
4K..KM20..V4D..02S;4K..KM20..03S,05S,06S,08S,09S STD,MARK"3",MARK 3 |
5 | ||
| 11701-1301107 |
4K..KM20..V4D..02S;4K..KM20..03S,05S,06S,08S,09S STD,MARK"7",MARK 7 |
5 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-1301004 |
4K..KM20..VSP..02S;4K..KM20..03S,05S,06S,08S,09S STD,MARK"4",MARK 4 |
5 | ||
| 11701-1301007 |
4K..KM20..VSP..02S;4K..KM20..03S,05S,06S,08S,09S STD,MARK"7",MARK 7 |
5 | ||
| 11701-1301003 |
4K..KM20..VSP..02S;4K..KM20..03S,05S,06S,08S,09S STD,MARK"3",MARK 3 |
5 | ||
| 11701-1301005 |
4K..KM20..VSP..02S;4K..KM20..03S,05S,06S,08S,09S STD,MARK"5",MARK 5 |
5 | ||
| 11701-1301105 |
4K..KM20..V4D..02S;4K..KM20..03S,05S,06S,08S,09S STD,MARK"5",MARK 5 |
5 | ||
| 11701-1301104 |
4K..KM20..V4D..02S;4K..KM20..03S,05S,06S,08S,09S STD,MARK"4",MARK 4 |
5 | ||
| 11701-1301006 |
4K..KM20..VSP..02S;4K..KM20..03S,05S,06S,08S,09S STD,MARK"6",MARK 6 |
5 | ||
| 11701-1301106 |
4K..KM20..V4D..02S;4K..KM20..03S,05S,06S,08S,09S STD,MARK"6",MARK 6 |
5 | ||
| 11701-1301103 |
4K..KM20..V4D..02S;4K..KM20..03S,05S,06S,08S,09S STD,MARK"3",MARK 3 |
5 | ||
| 11701-1301107 |
4K..KM20..V4D..02S;4K..KM20..03S,05S,06S,08S,09S STD,MARK"7",MARK 7 |
5 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-1301004 |
4K..KM20..VSP..02S;4K..KM20..03S,05S,06S,08S,09S STD,MARK"4",MARK 4 |
5 | ||
| 11701-1301007 |
4K..KM20..VSP..02S;4K..KM20..03S,05S,06S,08S,09S STD,MARK"7",MARK 7 |
5 | ||
| 11701-1301003 |
4K..KM20..VSP..02S;4K..KM20..03S,05S,06S,08S,09S STD,MARK"3",MARK 3 |
5 | ||
| 11701-1301005 |
4K..KM20..VSP..02S;4K..KM20..03S,05S,06S,08S,09S STD,MARK"5",MARK 5 |
5 | ||
| 11701-1301105 |
4K..KM20..V4D..02S;4K..KM20..03S,05S,06S,08S,09S STD,MARK"5",MARK 5 |
5 | ||
| 11701-1301104 |
4K..KM20..V4D..02S;4K..KM20..03S,05S,06S,08S,09S STD,MARK"4",MARK 4 |
5 | ||
| 11701-1301006 |
4K..KM20..VSP..02S;4K..KM20..03S,05S,06S,08S,09S STD,MARK"6",MARK 6 |
5 | ||
| 11701-1301106 |
4K..KM20..V4D..02S;4K..KM20..03S,05S,06S,08S,09S STD,MARK"6",MARK 6 |
5 | ||
| 11701-1301103 |
4K..KM20..V4D..02S;4K..KM20..03S,05S,06S,08S,09S STD,MARK"3",MARK 3 |
5 | ||
| 11701-1301107 |
4K..KM20..V4D..02S;4K..KM20..03S,05S,06S,08S,09S STD,MARK"7",MARK 7 |
5 | ||
| 13011 - RING SET, PISTON | ||||
| 13011-24011 |
4K..KM20..RHD;4K..KM20..LHD..VSP..EUR;4K..KM20..LHD..(03S,05S,06S,07S) STD |
1 | ||
| 13014-24011 |
4K..KM20..RHD;4K..KM20..LHD..VSP..EUR;4K..KM20..LHD..(03S,05S,06S,07S) O/S 0.75 |
1 | ||
| 13013-24011 |
4K..KM20..RHD;4K..KM20..LHD..VSP..EUR;4K..KM20..LHD..(03S,05S,06S,07S) O/S 0.50 |
1 | ||
| 13015-24012 |
4K..KM20..VSP..02S;4K..KM20..03S,05S,06S,07S,08S,09S O/S 1.00 |
1 | ||
| 13011-24012 |
4K..KM20..VSP..02S;4K..KM20..03S,05S,06S,07S,08S,09S STD,STD |
1 | ||
| 13011-24012 |
4K..KM20..VSP..EUR;4K..KM20..(03S,05S,06S,08S,09S)..(EUR,GEN) STD,STD |
1 | ||
| 13014-24012 |
4K..KM20..VSP..02S;4K..KM20..03S,05S,06S,07S,08S,09S O/S 0.75 |
1 | ||
| 13013-24012 |
4K..KM20..VSP..EUR;4K..KM20..(03S,05S,06S,08S,09S)..(EUR,GEN) O/S 0.50 |
1 | ||
| 13015-24011 |
4K..KM20..RHD;4K..KM20..LHD..VSP..EUR;4K..KM20..LHD..(03S,05S,06S,07S) O/S 1.00 |
1 | ||
| 13013-24012 |
4K..KM20..VSP..02S;4K..KM20..03S,05S,06S,07S,08S,09S O/S 0.50 |
1 | ||
| 13013-24012 |
4K..KM20..VSP..02S;4K..KM20..03S,05S,06S,08S,09S O/S 0.50 |
1 | ||
| 13015-13030 |
4K..KM20 O/S 1.00,O/S 1.00 |
1 | ||
| 13013-13030 |
4K..KM20 O/S 0.50,O/S 0.50 |
1 | ||
| 13015-24012 |
4K..KM20..VSP..02S;4K..KM20..03S,05S,06S,08S,09S O/S 1.00 |
1 | ||
| 13014-13030 |
4K..KM20 O/S 0.75,O/S 0.75 |
1 | ||
| 13011-24012 |
4K..KM20..VSP..02S;4K..KM20..03S,05S,06S,08S,09S STD,STD |
1 | ||
| 13014-24012 |
4K..KM20..VSP..02S;4K..KM20..03S,05S,06S,08S,09S O/S 0.75 |
1 | ||
| 13014-24012 |
4K..KM20..VSP..EUR;4K..KM20..(03S,05S,06S,08S,09S)..(EUR,GEN) O/S 0.75 |
1 | ||
| 13011-13030 |
4K..KM20 STD,STD |
1 | ||
| 13015-24012 |
4K..KM20..VSP..EUR;4K..KM20..(03S,05S,06S,08S,09S)..(EUR,GEN) O/S 1.00 |
1 | ||
| 13101 - PISTON SUB-ASSY, W/PIN | ||||
| 13103-24010 |
4K..KM20 O/S 0.50,O/S 0.50 |
4 | ||
| 13101-24011 |
4K..KM20 STD,STD |
4 | ||
| 13104-24010 |
4K..KM20 O/S 0.75,O/S 0.75 |
4 | ||
| 13105-24010 |
4K..KM20 O/S 1.00,O/S 1.00 |
4 | ||
| 13101A - RING, HOLE SNAP(FOR PISTON PIN) | ||||
| 90521-21088 |
4K..KM20 |
8 | ||
| 13201 - ROD SUB-ASSY, CONNECTING | ||||
| 13201-13010 |
4K..KM20 |
4 | ||
| 13201A - BUSH(FOR CONNECTING ROD SMALL END) | ||||
| 90999-73070 |
4K..KM20 |
4 | ||
| 13202 - BEARING SET, CONNECTING ROD | ||||
| 13203-13010 |
4K..KM20..VSP..02S;4K..KM20..03S,05S,06S,07S,08S,09S U/S 0.05,REP STD #2,U/S 0.05 |
1 | ||
| 13204-13010 |
4K..KM20..V4D..VSP..02S;4K..KM20..03S,05S,06S,08S,09S U/S 0.25,U/S 0.25 |
1 | ||
| 13202-13010 |
4K..KM20 STD,REP STD #1 |
1 | ||
| 13206-13040 |
4K..KM20..V4D..02S;4K..KM20..03S,05S,06S,08S,09S U/S 0.75,U/S 0.75 |
1 | ||
| 13204-13040 |
4K..KM20..V4D..02S;4K..KM20..03S,05S,06S,08S,09S U/S 0.25,U/S 0.25 |
1 | ||
| 13205-13010 |
4K..KM20..V4D..VSP..02S;4K..KM20..03S,05S,06S,08S,09S U/S 0.50,U/S 0.50 |
1 | ||
| 13205-13040 |
4K..KM20..V4D..02S;4K..KM20..03S,05S,06S,08S,09S U/S 0.50,U/S 0.50 |
1 | ||
| 13206-13010 |
4K..KM20..V4D..VSP..02S;4K..KM20..03S,05S,06S,08S,09S U/S 0.75,U/S 0.75 |
1 | ||
| 13265 - BOLT, CONNECTING ROD | ||||
| 13265-29015 |
4K..KM20 |
8 | ||
| 13265-70010 |
4K..KM20..V4D..02S;4K..KM20..03S,05S,06S,08S,09S |
8 | ||
| 13265A - NUT, HEXAGON(FOR CONNECTING ROD BOLT) | ||||
| 90170-09001 |
4K..KM20 |
8 | ||
| 90170-09195 |
4K..KM20..RHD;4K..KM20..LHD..VSP..EUR;4K..KM20..LHD..(03S,05S,06S,07S) |
8 | ||
| 13405 - FLYWHEEL SUB-ASSY | ||||
| 13405-29125 |
4K..KM20 N=106 |
1 | ||
| 13405A - PIN, STRAIGHT(FOR FLYWHEEL) | ||||
| 90250-08120 |
4K..KM20 L=18,OD=8,L=18,OD=8 |
3 | ||
| 13405B - BOLT, FLYWHEEL SETTING | ||||
| 90913-01005 |
4K..KM20 |
6 | ||
| 13411 - CRANKSHAFT | ||||
| 13411-13900 |
4K..KM20..V4D..02S;4K..KM20..03S,05S,06S,08S,09S |
1 | ||
| 13411-13010 |
4K..KM20..VSP..02S;4K..KM20..03S,05S,06S,07S,08S,09S |
1 | ||
| 13453 - GEAR, FLYWHEEL RING | ||||
| 13453-10010 |
4K..KM20 N=106 |
1 | ||
| 13471 - PULLEY, CRANKSHAFT | ||||
| 13471-13020 |
4K..KM20..ARL,GEN |
1 | ||
| 13471-13050 |
4K..KM20..ARL,GEN |
1 | ||
| 13471-13020 |
4K..KM20..VSP..02S;4K..KM20..03S,05S,06S,08S,09S |
1 | ||
| 13471-13050 |
4K..KM20..ARL,GEN |
1 | ||
| 13471A - KEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET) | ||||
| 90280-05010 |
4K..KM20 |
1 | ||
| 13471B - WASHER, PLATE(FOR CRANKSHAFT PULLEY SET) | ||||
| 90209-13003 |
4K..KM20 |
1 | ||
| 13471C - BOLT(FOR CRANKSHAFT PULLEY SET) | ||||
| 90105-12051 |
4K..KM20 |
1 | ||
| 90105-12050 |
4K..KM20..RHD;4K..KM20..LHD..VSP..EUR;4K..KM20..LHD..(03S,05S,06S,07S) |
1 | ||
| 13521 - GEAR OR SPROCKET, CRANKSHAFT TIMING | ||||
| 13521-22010 |
4K..KM20..RHD;4K..KM20..LHD..VSP..EUR;4K..KM20..LHD..(03S,05S,06S,07S,09S) N=18 |
1 | ||
| 13521-13020 |
4K..KM20 |
1 | ||
| 13521A - KEY(FOR CRANKSHAFT TIMING GEAR) | ||||
| 90280-05010 |
4K..KM20 |
1 | ||

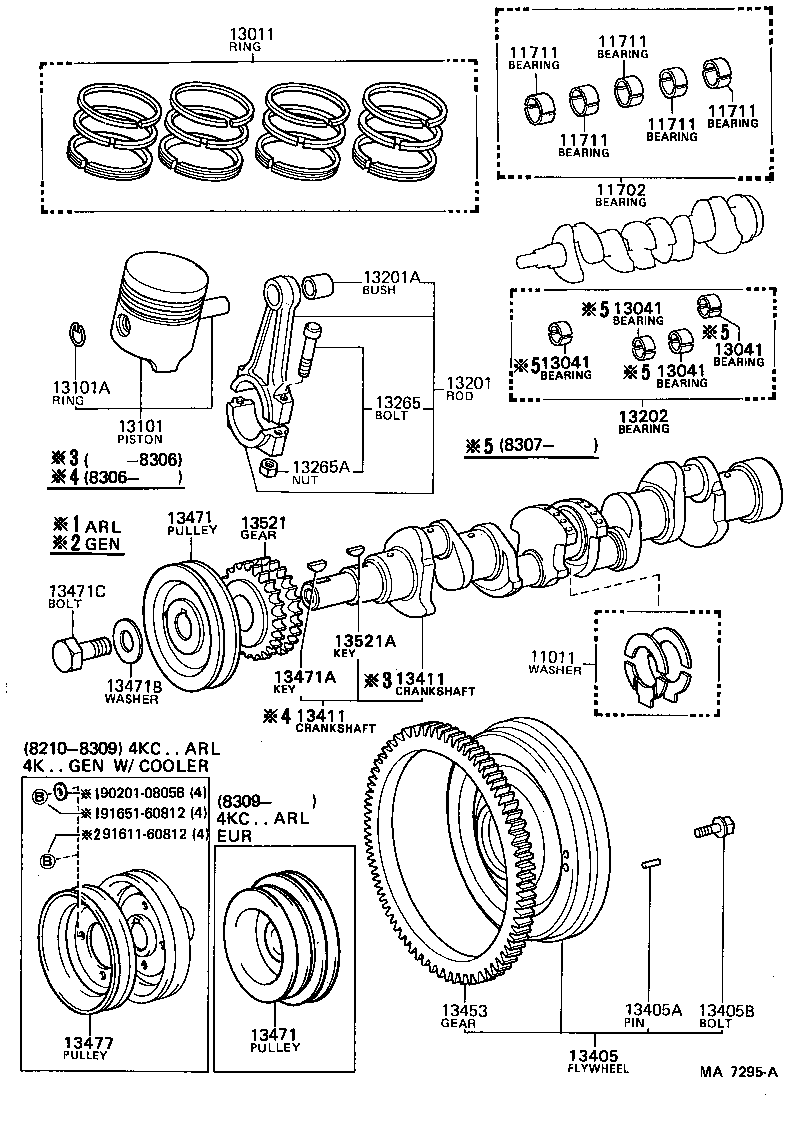

(8210- )4K
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11011 - WASHER SET, CRANKSHAFT THRUST | ||||
| 11011-22011 |
4K..KM20 STD,STD |
1 | ||
| 11013-22011 |
4K..KM20 O/S 0.250,O/S 0.250 |
1 | ||
| 11012-22011 |
4K..KM20 O/S 0.125,O/S 0.125 |
1 | ||
| 11702 - BEARING SET, CRANKSHAFT | ||||
| 11703-22020 |
4K..KM20..VSP..02S;4K..KM20..03S,05S,06S,07S,08S,09S U/S 0.05 |
1 | ||
| 11702-22020 |
4K..KM20 STD |
1 | ||
| 11704-13010 |
4K..KM20..VSP..02S;4K..KM20..03S,05S,06S,08S,09S U/S 0.25,U/S 0.25 |
1 | ||
| 11704-13011 |
4K..KM20..V4D..02S;4K..KM20..03S,05S,06S,08S,09S U/S 0.25,U/S 0.25 |
1 | ||
| 11704-22020 |
4K..KM20..VSP..02S;4K..KM20..03S,05S,06S,07S,08S,09S U/S 0.25,U/S 0.25 |
1 | ||
| 11705-13011 |
4K..KM20..V4D..02S;4K..KM20..03S,05S,06S,08S,09S U/S 0.50,U/S 0.50 |
1 | ||
| 11705-22020 |
4K..KM20..VSP..02S;4K..KM20..03S,05S,06S,07S,08S,09S U/S 0.50 |
1 | ||
| 11705-13010 |
4K..KM20..VSP..02S;4K..KM20..03S,05S,06S,08S,09S U/S 0.50,U/S 0.50 |
1 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-1301004 |
4K..KM20..VSP..02S;4K..KM20..03S,05S,06S,08S,09S STD,MARK"4",MARK 4 |
5 | ||
| 11701-1301007 |
4K..KM20..VSP..02S;4K..KM20..03S,05S,06S,08S,09S STD,MARK"7",MARK 7 |
5 | ||
| 11701-1301003 |
4K..KM20..VSP..02S;4K..KM20..03S,05S,06S,08S,09S STD,MARK"3",MARK 3 |
5 | ||
| 11701-1301005 |
4K..KM20..VSP..02S;4K..KM20..03S,05S,06S,08S,09S STD,MARK"5",MARK 5 |
5 | ||
| 11701-1301105 |
4K..KM20..V4D..02S;4K..KM20..03S,05S,06S,08S,09S STD,MARK"5",MARK 5 |
5 | ||
| 11701-1301104 |
4K..KM20..V4D..02S;4K..KM20..03S,05S,06S,08S,09S STD,MARK"4",MARK 4 |
5 | ||
| 11701-1301006 |
4K..KM20..VSP..02S;4K..KM20..03S,05S,06S,08S,09S STD,MARK"6",MARK 6 |
5 | ||
| 11701-1301106 |
4K..KM20..V4D..02S;4K..KM20..03S,05S,06S,08S,09S STD,MARK"6",MARK 6 |
5 | ||
| 11701-1301103 |
4K..KM20..V4D..02S;4K..KM20..03S,05S,06S,08S,09S STD,MARK"3",MARK 3 |
5 | ||
| 11701-1301107 |
4K..KM20..V4D..02S;4K..KM20..03S,05S,06S,08S,09S STD,MARK"7",MARK 7 |
5 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-1301004 |
4K..KM20..VSP..02S;4K..KM20..03S,05S,06S,08S,09S STD,MARK"4",MARK 4 |
5 | ||
| 11701-1301007 |
4K..KM20..VSP..02S;4K..KM20..03S,05S,06S,08S,09S STD,MARK"7",MARK 7 |
5 | ||
| 11701-1301003 |
4K..KM20..VSP..02S;4K..KM20..03S,05S,06S,08S,09S STD,MARK"3",MARK 3 |
5 | ||
| 11701-1301005 |
4K..KM20..VSP..02S;4K..KM20..03S,05S,06S,08S,09S STD,MARK"5",MARK 5 |
5 | ||
| 11701-1301105 |
4K..KM20..V4D..02S;4K..KM20..03S,05S,06S,08S,09S STD,MARK"5",MARK 5 |
5 | ||
| 11701-1301104 |
4K..KM20..V4D..02S;4K..KM20..03S,05S,06S,08S,09S STD,MARK"4",MARK 4 |
5 | ||
| 11701-1301006 |
4K..KM20..VSP..02S;4K..KM20..03S,05S,06S,08S,09S STD,MARK"6",MARK 6 |
5 | ||
| 11701-1301106 |
4K..KM20..V4D..02S;4K..KM20..03S,05S,06S,08S,09S STD,MARK"6",MARK 6 |
5 | ||
| 11701-1301103 |
4K..KM20..V4D..02S;4K..KM20..03S,05S,06S,08S,09S STD,MARK"3",MARK 3 |
5 | ||
| 11701-1301107 |
4K..KM20..V4D..02S;4K..KM20..03S,05S,06S,08S,09S STD,MARK"7",MARK 7 |
5 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-1301004 |
4K..KM20..VSP..02S;4K..KM20..03S,05S,06S,08S,09S STD,MARK"4",MARK 4 |
5 | ||
| 11701-1301007 |
4K..KM20..VSP..02S;4K..KM20..03S,05S,06S,08S,09S STD,MARK"7",MARK 7 |
5 | ||
| 11701-1301003 |
4K..KM20..VSP..02S;4K..KM20..03S,05S,06S,08S,09S STD,MARK"3",MARK 3 |
5 | ||
| 11701-1301005 |
4K..KM20..VSP..02S;4K..KM20..03S,05S,06S,08S,09S STD,MARK"5",MARK 5 |
5 | ||
| 11701-1301105 |
4K..KM20..V4D..02S;4K..KM20..03S,05S,06S,08S,09S STD,MARK"5",MARK 5 |
5 | ||
| 11701-1301104 |
4K..KM20..V4D..02S;4K..KM20..03S,05S,06S,08S,09S STD,MARK"4",MARK 4 |
5 | ||
| 11701-1301006 |
4K..KM20..VSP..02S;4K..KM20..03S,05S,06S,08S,09S STD,MARK"6",MARK 6 |
5 | ||
| 11701-1301106 |
4K..KM20..V4D..02S;4K..KM20..03S,05S,06S,08S,09S STD,MARK"6",MARK 6 |
5 | ||
| 11701-1301103 |
4K..KM20..V4D..02S;4K..KM20..03S,05S,06S,08S,09S STD,MARK"3",MARK 3 |
5 | ||
| 11701-1301107 |
4K..KM20..V4D..02S;4K..KM20..03S,05S,06S,08S,09S STD,MARK"7",MARK 7 |
5 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-1301004 |
4K..KM20..VSP..02S;4K..KM20..03S,05S,06S,08S,09S STD,MARK"4",MARK 4 |
5 | ||
| 11701-1301007 |
4K..KM20..VSP..02S;4K..KM20..03S,05S,06S,08S,09S STD,MARK"7",MARK 7 |
5 | ||
| 11701-1301003 |
4K..KM20..VSP..02S;4K..KM20..03S,05S,06S,08S,09S STD,MARK"3",MARK 3 |
5 | ||
| 11701-1301005 |
4K..KM20..VSP..02S;4K..KM20..03S,05S,06S,08S,09S STD,MARK"5",MARK 5 |
5 | ||
| 11701-1301105 |
4K..KM20..V4D..02S;4K..KM20..03S,05S,06S,08S,09S STD,MARK"5",MARK 5 |
5 | ||
| 11701-1301104 |
4K..KM20..V4D..02S;4K..KM20..03S,05S,06S,08S,09S STD,MARK"4",MARK 4 |
5 | ||
| 11701-1301006 |
4K..KM20..VSP..02S;4K..KM20..03S,05S,06S,08S,09S STD,MARK"6",MARK 6 |
5 | ||
| 11701-1301106 |
4K..KM20..V4D..02S;4K..KM20..03S,05S,06S,08S,09S STD,MARK"6",MARK 6 |
5 | ||
| 11701-1301103 |
4K..KM20..V4D..02S;4K..KM20..03S,05S,06S,08S,09S STD,MARK"3",MARK 3 |
5 | ||
| 11701-1301107 |
4K..KM20..V4D..02S;4K..KM20..03S,05S,06S,08S,09S STD,MARK"7",MARK 7 |
5 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-1301004 |
4K..KM20..VSP..02S;4K..KM20..03S,05S,06S,08S,09S STD,MARK"4",MARK 4 |
5 | ||
| 11701-1301007 |
4K..KM20..VSP..02S;4K..KM20..03S,05S,06S,08S,09S STD,MARK"7",MARK 7 |
5 | ||
| 11701-1301003 |
4K..KM20..VSP..02S;4K..KM20..03S,05S,06S,08S,09S STD,MARK"3",MARK 3 |
5 | ||
| 11701-1301005 |
4K..KM20..VSP..02S;4K..KM20..03S,05S,06S,08S,09S STD,MARK"5",MARK 5 |
5 | ||
| 11701-1301105 |
4K..KM20..V4D..02S;4K..KM20..03S,05S,06S,08S,09S STD,MARK"5",MARK 5 |
5 | ||
| 11701-1301104 |
4K..KM20..V4D..02S;4K..KM20..03S,05S,06S,08S,09S STD,MARK"4",MARK 4 |
5 | ||
| 11701-1301006 |
4K..KM20..VSP..02S;4K..KM20..03S,05S,06S,08S,09S STD,MARK"6",MARK 6 |
5 | ||
| 11701-1301106 |
4K..KM20..V4D..02S;4K..KM20..03S,05S,06S,08S,09S STD,MARK"6",MARK 6 |
5 | ||
| 11701-1301103 |
4K..KM20..V4D..02S;4K..KM20..03S,05S,06S,08S,09S STD,MARK"3",MARK 3 |
5 | ||
| 11701-1301107 |
4K..KM20..V4D..02S;4K..KM20..03S,05S,06S,08S,09S STD,MARK"7",MARK 7 |
5 | ||
| 13011 - RING SET, PISTON | ||||
| 13011-24011 |
4K..KM20..RHD;4K..KM20..LHD..VSP..EUR;4K..KM20..LHD..(03S,05S,06S,07S) STD |
1 | ||
| 13014-24011 |
4K..KM20..RHD;4K..KM20..LHD..VSP..EUR;4K..KM20..LHD..(03S,05S,06S,07S) O/S 0.75 |
1 | ||
| 13013-24011 |
4K..KM20..RHD;4K..KM20..LHD..VSP..EUR;4K..KM20..LHD..(03S,05S,06S,07S) O/S 0.50 |
1 | ||
| 13015-24012 |
4K..KM20..VSP..02S;4K..KM20..03S,05S,06S,07S,08S,09S O/S 1.00 |
1 | ||
| 13011-24012 |
4K..KM20..VSP..02S;4K..KM20..03S,05S,06S,07S,08S,09S STD,STD |
1 | ||
| 13011-24012 |
4K..KM20..VSP..EUR;4K..KM20..(03S,05S,06S,08S,09S)..(EUR,GEN) STD,STD |
1 | ||
| 13014-24012 |
4K..KM20..VSP..02S;4K..KM20..03S,05S,06S,07S,08S,09S O/S 0.75 |
1 | ||
| 13013-24012 |
4K..KM20..VSP..EUR;4K..KM20..(03S,05S,06S,08S,09S)..(EUR,GEN) O/S 0.50 |
1 | ||
| 13015-24011 |
4K..KM20..RHD;4K..KM20..LHD..VSP..EUR;4K..KM20..LHD..(03S,05S,06S,07S) O/S 1.00 |
1 | ||
| 13013-24012 |
4K..KM20..VSP..02S;4K..KM20..03S,05S,06S,07S,08S,09S O/S 0.50 |
1 | ||
| 13013-24012 |
4K..KM20..VSP..02S;4K..KM20..03S,05S,06S,08S,09S O/S 0.50 |
1 | ||
| 13015-13030 |
4K..KM20 O/S 1.00,O/S 1.00 |
1 | ||
| 13013-13030 |
4K..KM20 O/S 0.50,O/S 0.50 |
1 | ||
| 13015-24012 |
4K..KM20..VSP..02S;4K..KM20..03S,05S,06S,08S,09S O/S 1.00 |
1 | ||
| 13014-13030 |
4K..KM20 O/S 0.75,O/S 0.75 |
1 | ||
| 13011-24012 |
4K..KM20..VSP..02S;4K..KM20..03S,05S,06S,08S,09S STD,STD |
1 | ||
| 13014-24012 |
4K..KM20..VSP..02S;4K..KM20..03S,05S,06S,08S,09S O/S 0.75 |
1 | ||
| 13014-24012 |
4K..KM20..VSP..EUR;4K..KM20..(03S,05S,06S,08S,09S)..(EUR,GEN) O/S 0.75 |
1 | ||
| 13011-13030 |
4K..KM20 STD,STD |
1 | ||
| 13015-24012 |
4K..KM20..VSP..EUR;4K..KM20..(03S,05S,06S,08S,09S)..(EUR,GEN) O/S 1.00 |
1 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-1304004 |
4K..KM20..V4D..02S;4K..KM20..03S,05S,06S,08S,09S MARK"4",MARK 4 |
4 | ||
| 13041-1304005 |
4K..KM20..V4D..02S;4K..KM20..03S,05S,06S,08S,09S MARK"5",MARK 5 |
4 | ||
| 13041-1304003 |
4K..KM20..V4D..02S;4K..KM20..03S,05S,06S,08S,09S MARK"3",MARK 3 |
4 | ||
| 13041-1304007 |
4K..KM20..V4D..02S;4K..KM20..03S,05S,06S,08S,09S MARK"7",MARK 7 |
4 | ||
| 13041-1304006 |
4K..KM20..V4D..02S;4K..KM20..03S,05S,06S,08S,09S MARK"6",MARK 6 |
4 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-1304004 |
4K..KM20..V4D..02S;4K..KM20..03S,05S,06S,08S,09S MARK"4",MARK 4 |
4 | ||
| 13041-1304005 |
4K..KM20..V4D..02S;4K..KM20..03S,05S,06S,08S,09S MARK"5",MARK 5 |
4 | ||
| 13041-1304003 |
4K..KM20..V4D..02S;4K..KM20..03S,05S,06S,08S,09S MARK"3",MARK 3 |
4 | ||
| 13041-1304007 |
4K..KM20..V4D..02S;4K..KM20..03S,05S,06S,08S,09S MARK"7",MARK 7 |
4 | ||
| 13041-1304006 |
4K..KM20..V4D..02S;4K..KM20..03S,05S,06S,08S,09S MARK"6",MARK 6 |
4 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-1304004 |
4K..KM20..V4D..02S;4K..KM20..03S,05S,06S,08S,09S MARK"4",MARK 4 |
4 | ||
| 13041-1304005 |
4K..KM20..V4D..02S;4K..KM20..03S,05S,06S,08S,09S MARK"5",MARK 5 |
4 | ||
| 13041-1304003 |
4K..KM20..V4D..02S;4K..KM20..03S,05S,06S,08S,09S MARK"3",MARK 3 |
4 | ||
| 13041-1304007 |
4K..KM20..V4D..02S;4K..KM20..03S,05S,06S,08S,09S MARK"7",MARK 7 |
4 | ||
| 13041-1304006 |
4K..KM20..V4D..02S;4K..KM20..03S,05S,06S,08S,09S MARK"6",MARK 6 |
4 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-1304004 |
4K..KM20..V4D..02S;4K..KM20..03S,05S,06S,08S,09S MARK"4",MARK 4 |
4 | ||
| 13041-1304005 |
4K..KM20..V4D..02S;4K..KM20..03S,05S,06S,08S,09S MARK"5",MARK 5 |
4 | ||
| 13041-1304003 |
4K..KM20..V4D..02S;4K..KM20..03S,05S,06S,08S,09S MARK"3",MARK 3 |
4 | ||
| 13041-1304007 |
4K..KM20..V4D..02S;4K..KM20..03S,05S,06S,08S,09S MARK"7",MARK 7 |
4 | ||
| 13041-1304006 |
4K..KM20..V4D..02S;4K..KM20..03S,05S,06S,08S,09S MARK"6",MARK 6 |
4 | ||
| 13101 - PISTON SUB-ASSY, W/PIN | ||||
| 13103-24010 |
4K..KM20 O/S 0.50,O/S 0.50 |
4 | ||
| 13101-24011 |
4K..KM20 STD,STD |
4 | ||
| 13104-24010 |
4K..KM20 O/S 0.75,O/S 0.75 |
4 | ||
| 13105-24010 |
4K..KM20 O/S 1.00,O/S 1.00 |
4 | ||
| 13101A - RING, HOLE SNAP(FOR PISTON PIN) | ||||
| 90521-21088 |
4K..KM20 |
8 | ||
| 13201 - ROD SUB-ASSY, CONNECTING | ||||
| 13201-13010 |
4K..KM20 |
4 | ||
| 13201A - BUSH(FOR CONNECTING ROD SMALL END) | ||||
| 90999-73070 |
4K..KM20 |
4 | ||
| 13202 - BEARING SET, CONNECTING ROD | ||||
| 13203-13010 |
4K..KM20..VSP..02S;4K..KM20..03S,05S,06S,07S,08S,09S U/S 0.05,REP STD #2,U/S 0.05 |
1 | ||
| 13204-13010 |
4K..KM20..V4D..VSP..02S;4K..KM20..03S,05S,06S,08S,09S U/S 0.25,U/S 0.25 |
1 | ||
| 13202-13010 |
4K..KM20 STD,REP STD #1 |
1 | ||
| 13206-13040 |
4K..KM20..V4D..02S;4K..KM20..03S,05S,06S,08S,09S U/S 0.75,U/S 0.75 |
1 | ||
| 13204-13040 |
4K..KM20..V4D..02S;4K..KM20..03S,05S,06S,08S,09S U/S 0.25,U/S 0.25 |
1 | ||
| 13205-13010 |
4K..KM20..V4D..VSP..02S;4K..KM20..03S,05S,06S,08S,09S U/S 0.50,U/S 0.50 |
1 | ||
| 13205-13040 |
4K..KM20..V4D..02S;4K..KM20..03S,05S,06S,08S,09S U/S 0.50,U/S 0.50 |
1 | ||
| 13206-13010 |
4K..KM20..V4D..VSP..02S;4K..KM20..03S,05S,06S,08S,09S U/S 0.75,U/S 0.75 |
1 | ||
| 13265 - BOLT, CONNECTING ROD | ||||
| 13265-29015 |
4K..KM20 |
8 | ||
| 13265-70010 |
4K..KM20..V4D..02S;4K..KM20..03S,05S,06S,08S,09S |
8 | ||
| 13265A - NUT, HEXAGON(FOR CONNECTING ROD BOLT) | ||||
| 90170-09001 |
4K..KM20 |
8 | ||
| 90170-09195 |
4K..KM20..RHD;4K..KM20..LHD..VSP..EUR;4K..KM20..LHD..(03S,05S,06S,07S) |
8 | ||
| 13405 - FLYWHEEL SUB-ASSY | ||||
| 13405-29125 |
4K..KM20 N=106 |
1 | ||
| 13405A - PIN, STRAIGHT(FOR FLYWHEEL) | ||||
| 90250-08120 |
4K..KM20 L=18,OD=8,L=18,OD=8 |
3 | ||
| 13405B - BOLT, FLYWHEEL SETTING | ||||
| 90913-01005 |
4K..KM20 |
6 | ||
| 13411 - CRANKSHAFT | ||||
| 13411-13900 |
4K..KM20..V4D..02S;4K..KM20..03S,05S,06S,08S,09S |
1 | ||
| 13411-13010 |
4K..KM20..VSP..02S;4K..KM20..03S,05S,06S,07S,08S,09S |
1 | ||
| 13411 - CRANKSHAFT | ||||
| 13411-13900 |
4K..KM20..V4D..02S;4K..KM20..03S,05S,06S,08S,09S |
1 | ||
| 13411-13010 |
4K..KM20..VSP..02S;4K..KM20..03S,05S,06S,07S,08S,09S |
1 | ||
| 13453 - GEAR, FLYWHEEL RING | ||||
| 13453-10010 |
4K..KM20 N=106 |
1 | ||
| 13471 - PULLEY, CRANKSHAFT | ||||
| 13471-13020 |
4K..KM20..ARL,GEN |
1 | ||
| 13471-13050 |
4K..KM20..ARL,GEN |
1 | ||
| 13471-13020 |
4K..KM20..VSP..02S;4K..KM20..03S,05S,06S,08S,09S |
1 | ||
| 13471-13050 |
4K..KM20..ARL,GEN |
1 | ||
| 13471 - PULLEY, CRANKSHAFT | ||||
| 13471-13020 |
4K..KM20..ARL,GEN |
1 | ||
| 13471-13050 |
4K..KM20..ARL,GEN |
1 | ||
| 13471-13020 |
4K..KM20..VSP..02S;4K..KM20..03S,05S,06S,08S,09S |
1 | ||
| 13471-13050 |
4K..KM20..ARL,GEN |
1 | ||
| 13471A - KEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET) | ||||
| 90280-05010 |
4K..KM20 |
1 | ||
| 13471B - WASHER, PLATE(FOR CRANKSHAFT PULLEY SET) | ||||
| 90209-13003 |
4K..KM20 |
1 | ||
| 13471C - BOLT(FOR CRANKSHAFT PULLEY SET) | ||||
| 90105-12051 |
4K..KM20 |
1 | ||
| 90105-12050 |
4K..KM20..RHD;4K..KM20..LHD..VSP..EUR;4K..KM20..LHD..(03S,05S,06S,07S) |
1 | ||
| 13477 - PULLEY, CRANKSHAFT, NO.2 | ||||
| 88358-16010 |
4K..KM20..GEN W/COOLER |
1 | ||
| 13521 - GEAR OR SPROCKET, CRANKSHAFT TIMING | ||||
| 13521-22010 |
4K..KM20..RHD;4K..KM20..LHD..VSP..EUR;4K..KM20..LHD..(03S,05S,06S,07S,09S) N=18 |
1 | ||
| 13521-13020 |
4K..KM20 |
1 | ||
| 13521A - KEY(FOR CRANKSHAFT TIMING GEAR) | ||||
| 90280-05010 |
4K..KM20 |
1 | ||
| Common parts | ||||
| 90201-08058 | ||||
| 91611-60812 | ||||
| 91651-60812 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
