KM20LV-JRZ (1979)

Toyota Liteace

Production Oct 1979 - Oct 1982
Engine 4K
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7910- )HRF,SRF

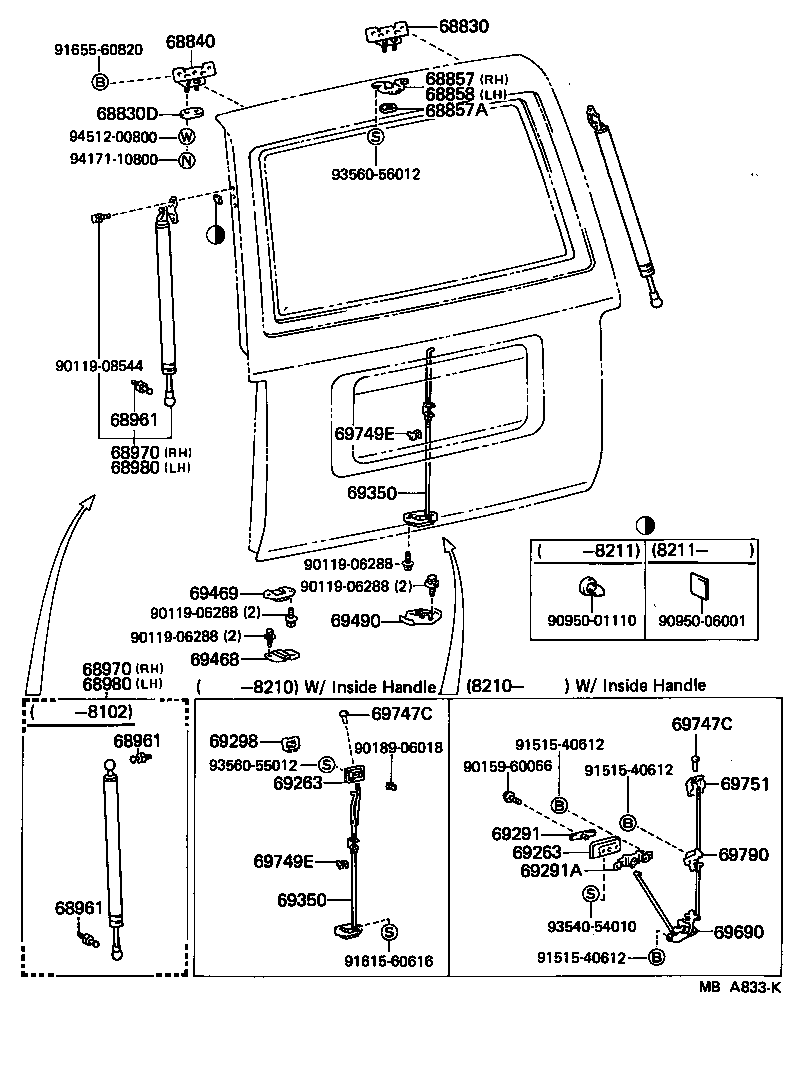

Click highlighted areas on diagram

diagram 68830 68830D 68840 68857 68857A 68858 68961 68961 68961 68970 68970 68980 68980 69263 69263 69291 69291A 69298 69350 69350 69468 69469 69490 69690 69747C 69747C 69749E 69749E 69751 69790 9011906288 9011906288 9011906288 9011906288 9011908544 9015960066 9018906018 9095001110 9095006001 9151540612 9151540612 9151540612 9161560616 9165560820 9354054010 9356055012 9356056012 9417110800 9451200800
Part # Description Qty Price
68830 - HINGE ASSY, BACK DOOR, RH
68810-95701

CM20,KM20,YM2#..HRF,SRF

 1
68830D - PLATE, BACK DOOR HINGE
68825-95700

CM20,KM20,YM2#..HRF,SRF

 2
68840 - HINGE ASSY, BACK DOOR, LH
68810-95701

CM20,KM20,YM2#..HRF,SRF

 1
68961 - BOLT, BACK DOOR STAY
68961-95701

KM20..LHD..VSP..EUR;KM20..RHD..(HRF,SRF);KM20..LHD..(03S,05S,06S,07S,09S)

 4
68961 - BOLT, BACK DOOR STAY
68961-95701

KM20..LHD..VSP..EUR;KM20..RHD..(HRF,SRF);KM20..LHD..(03S,05S,06S,07S,09S)

 4
68961 - BOLT, BACK DOOR STAY
68961-95701

KM20..LHD..VSP..EUR;KM20..RHD..(HRF,SRF);KM20..LHD..(03S,05S,06S,07S,09S)

 4
68970 - STAY ASSY, BACK DOOR, RH
68921-29045

KM20..(HRF,SRF)..(ARL,GEN)

 1
68970 - STAY ASSY, BACK DOOR, RH
68921-29045

KM20..(HRF,SRF)..(ARL,GEN)

 1
68980 - STAY ASSY, BACK DOOR
68922-29045

KM20..(HRF,SRF)..(ARL,GEN)

 1
68980 - STAY ASSY, BACK DOOR
68922-29045

KM20..(HRF,SRF)..(ARL,GEN)

 1
69350 - LOCK ASSY, BACK DOOR
69350-95701

CM20,KM20,YM21..HRF,SRF

 1
69350 - LOCK ASSY, BACK DOOR
69350-95701

CM20,KM20,YM21..HRF,SRF

 1
69468 - STOPPER, BACK DOOR SIDE MALE
69469-95700

CM20,KM20,YM2#..HRF,SRF

LH

 1
69468-95701

CM20,KM20,YM2#..HRF,SRF

RH

 1
69469 - STOPPER, BACK DOOR SIDE FEMALE
69407-95701

CM20,KM20,YM2#..HRF,SRF

RH

 1
69408-95701

CM20,KM20,YM2#..HRF,SRF

LH

 1
69490 - STRIKER ASSY, BACK DOOR LOCK
69430-95701

CM20,KM20,YM2#..HRF,SRF

 1
69749E - CLAMP, BACK DOOR LOCK LINK
69749-12010

KM20..VSP..02S;KM20..03S,05S,06S,07S,08S,09S

 1
69749E - CLAMP, BACK DOOR LOCK LINK
69749-12010

KM20..VSP..02S;KM20..03S,05S,06S,07S,08S,09S

 1
Common parts
90119-06288
90119-08544
90159-60066
90189-06018
90950-01110
90950-06001
91515-40612
91615-60616
91655-60820
93540-54010
93560-55012
93560-56012
94171-10800
94512-00800
