KM20LV-JRZ (1979)

Toyota Liteace

Production Oct 1979 - Oct 1982
Engine 4K
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7910- )

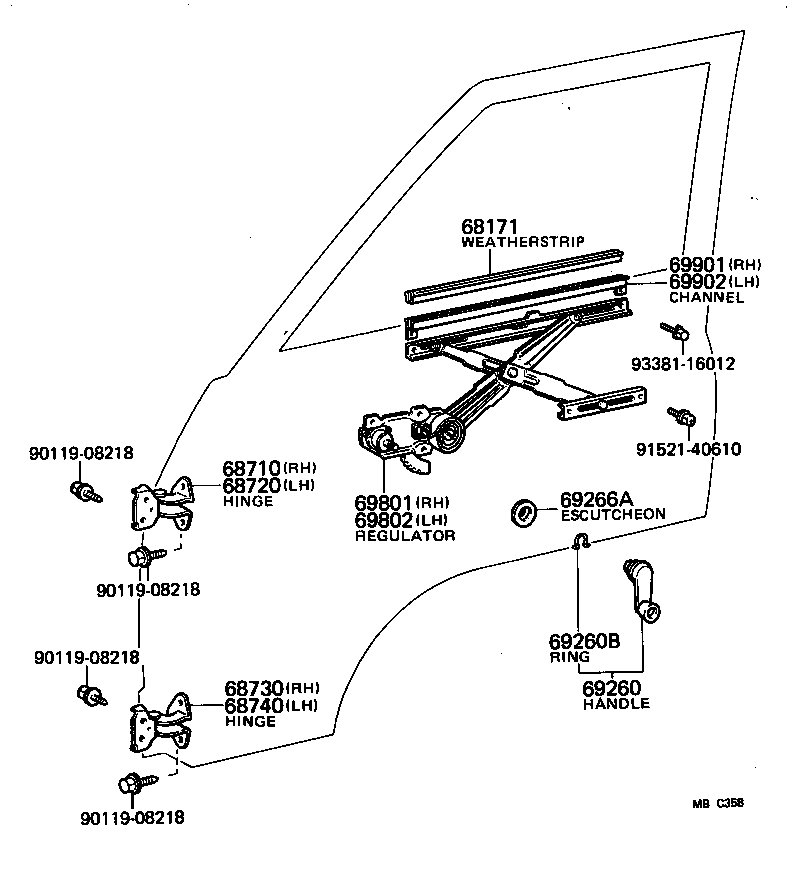

Click highlighted areas on diagram

diagram 68171 68710 68720 68730 68740 69260 69260B 69266A 69801 69802 69901 69902 9011908218 9011908218 9011908218 9011908218 9152140610 9338116012
Part # Description Qty Price
68171 - WEATHERSTRIP, FRONT DOOR GLASS CHANNEL
69981-95701

CM20,KM20,YM2#

 2
68710 - HINGE ASSY, FRONT DOOR, UPPER RH
68710-95701

CM20,KM20,YM2#

 1
68720 - HINGE ASSY, FRONT DOOR, UPPER LH
68720-95700

CM20,KM20,YM2#

 1
68730 - HINGE ASSY, FRONT DOOR, LOWER RH
68720-95700

CM20,KM20,YM2#

 1
68740 - HINGE ASSY, FRONT DOOR, LOWER LH
68710-95701

CM20,KM20,YM2#

 1
69260 - HANDLE ASSY, FRONT DOOR WINDOW REGULATOR
69260-95A00

KM20..V..4F;KM20..LHD..GEN;KM20..4H..05S..EUR;KM20..LHD..VSP..4H..EUR;KM20..RHD..(02S,03S,06S,09S)

 2
69260B - RING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE
90520-01002

CM20,KM20,YM2#

 2
69266A - ESCUTCHEON, DOOR REGULATOR HANDLE(FOR FRONT DOOR)
69272-30010

CM20,KM20,YM2#

 2
69801 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH
69810-95701

KM20..RHD;KM20..LHD..VSP..EUR;KM20..LHD..(03S,05S,06S,07S,09S)

 1
69802 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH
69820-95701

KM20..RHD;KM20..LHD..VSP..EUR;KM20..LHD..(03S,05S,06S,07S,09S)

 1
69901 - CHANNEL SUB-ASSY, FRONT DOOR GLASS, RH
69901-95701

CM20,KM20,YM2#

 1
69902 - CHANNEL SUB-ASSY, FRONT DOOR GLASS, LH
69901-95701

CM20,KM20,YM2#

 1
Common parts
90119-08218
91521-40610
93381-16012
