KM20LV-JRZ (1979)

Toyota Liteace

Production Oct 1979 - Oct 1982
Engine 4K
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7910- )LHD..V4D ; (7910- )LHD..BUS,WG

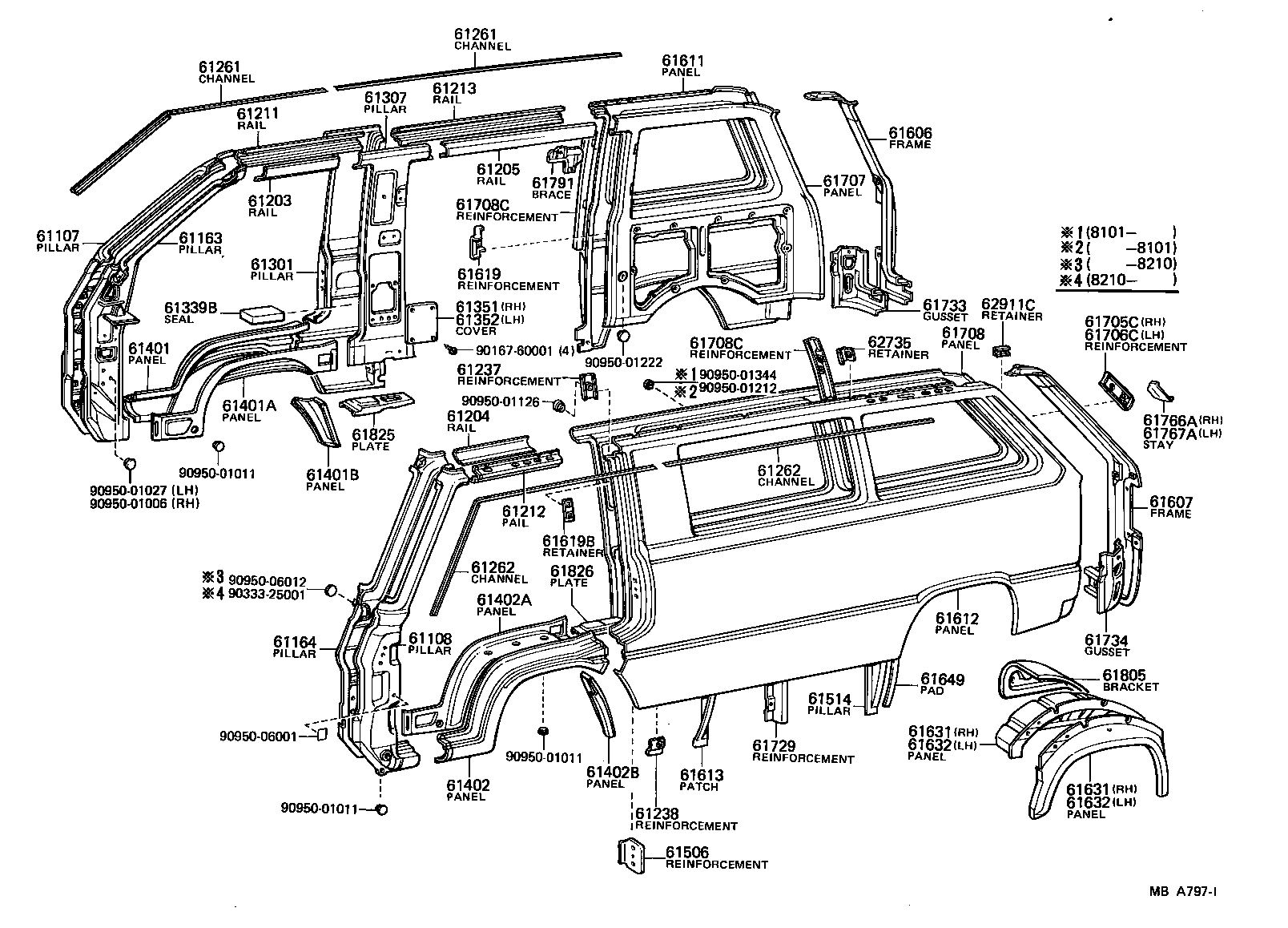

Click highlighted areas on diagram

diagram 61107 61108 61163 61164 61203 61204 61205 61211 61212 61213 61237 61238 61261 61261 61262 61262 61301 61307 61339B 61351 61352 61401 61401A 61401B 61402 61402A 61402B 61506 61514 61606 61607 61611 61612 61613 61619 61619B 61631 61631 61632 61632 61649 61705C 61706C 61707 61708 61708C 61708C 61729 61733 61734 61766A 61767A 61791 61805 61825 61826 62735 62911C 9033325001 9095001006 9095001011 9095001011 9095001011 9095001027 9095001126 9095001212 9095001222 9095001344 9095006001 9095006012
Part # Description Qty Price
61107 - PILLAR SUB-ASSY, FRONT BODY OUTER, RH
61103-95708

KM20..LHD..GEN

 1
61103-95711

KM20..LHD..GEN

 1
61108 - PILLAR SUB-ASSY, FRONT BODY OUTER, LH
61104-95706

KM20..LHD..V..GEN;KM20..HRF..VSP..EUR;KM20..HRF..(05S,07S);KM20..SRF..(02S,05S,07S,09S)

 1
61104-95709

KM20..SRF..EUR;KM20..LHD..GEN;KM20..HRF..VSP..EUR;KM20..HRF..(05S,07S)

 1
61163 - PILLAR, FRONT BODY, INNER RH
61105-95704

CM20,KM20..LHD..GEN

 1
61164 - PILLAR, FRONT BODY, INNER LH
61106-95703

KM20..LHD..GEN

 1
61203 - RAIL SUB-ASSY, ROOF SIDE, INNER RH
61205-95702

CM20,KM20..LHD

 1
61204 - RAIL SUB-ASSY, ROOF SIDE, INNER LH
61232-95702

KM20..4F;KM20..LHD..VSP..4H..EUR;KM20..LHD..4H..(03S,05S,06S,07S,09S)

 1
61205 - RAIL SUB-ASSY, ROOF SIDE, INNER REAR RH
61233-95701

KM20..V4D..4F;KM20..WG..STD;KM20..LHD..V4D..VSP..4H..EUR;KM20..LHD..V4D..4H..(03S,05S,06S)

 1
61211 - RAIL, ROOF SIDE, OUTER RH
61211-95704

CM20,KM20..LHD..V4D;KM20..LHD..(BUS,WG)

 1
61212 - RAIL, ROOF SIDE, OUTER LH
61212-95704

CM20,KM20..LHD..V4D;KM20..LHD..(BUS,WG)

 1
61213 - RAIL, ROOF SIDE, OUTER REAR RH
61213-95700

CM20,KM20..LHD..V4D;KM20..LHD..(BUS,WG)

 1
61237 - REINFORCEMENT, SAFETY BAND ANCHORAGE
64011-95700

KM20..BUS,WG;KM20..V4D..4F;KM20..RHD..V4D;KM20..LHD..V4D..VSP..4H..EUR;KM20..LHD..V4D..4H..(03S,05S,06S)

 1
61261 - CHANNEL, ROOF DRIP, RH
61263-95700

CM20,KM20,YM2#..HRF,SRF

FR

 1
61267-95700

CM20,KM20,YM2#..HRF,SRF

RR

 1
61261 - CHANNEL, ROOF DRIP, RH
61263-95700

CM20,KM20,YM2#..HRF,SRF

FR

 1
61267-95700

CM20,KM20,YM2#..HRF,SRF

RR

 1
61262 - CHANNEL, ROOF DRIP, LH
61268-95700

CM20,KM20,YM2#..HRF,SRF

RR

 1
61264-95700

CM20,KM20,YM2#..HRF,SRF

FR

 1
61262 - CHANNEL, ROOF DRIP, LH
61268-95700

CM20,KM20,YM2#..HRF,SRF

RR

 1
61264-95700

CM20,KM20,YM2#..HRF,SRF

FR

 1
61301 - PILLAR SUB-ASSY, CENTER BODY, RH
61301-95701

CM20,KM20..LHD..V4D;KM20..LHD..(BUS,WG)

 1
61307 - PILLAR SUB-ASSY, CENTER BODY, INNER RH
61303-95704

CM20,KM20..LHD..GEN

 1
61351 - COVER, CENTER BODY, INNER RH
61306-95701

KM20..(HRF,SRF)..GEN

 1
61352 - COVER, CENTER BODY, INNER, LH
61347-95701

CM20,KM20..(HRF,SRF)..GEN

 1
61401 - PANEL SUB-ASSY, FENDER, RH
61411-95701

CM20,KM20,YM2#

 1
61401A - PANEL SUB-ASSY, FENDER, INNER RH
61421-95701

CM20,KM20,YM2#..HRF,SRF

 1
61401B - PANEL, FENDER, INNER LOWER RH
61423-95701

CM20,KM20,YM2#..HRF,SRF

 1
61402 - PANEL SUB-ASSY, FENDER, LH
61412-95701

CM20,KM20,YM2#

 1
61402A - PANEL SUB-ASSY, FENDER, INNER LH
61422-95701

KM20..RHD..V;KM20..LHD..VSP..EUR;KM20..LHD..(03S,05S,06S,07S,09S)

 1
61402B - PANEL, FENDER, INNER LOWER LH
61424-95701

CM20,KM20,YM2#..HRF,SRF

 1
61506 - REINFORCE SUB-ASSY, FRONT DOOR LOCK STRIKER, LH
61308-95700

CM20,KM20..LHD..V4D;KM20..LHD..(BUS,WG)

 1
61514 - PILLAR, QUARTER LOCK, INNER LH
61615-95701

KM20..V4D..4F;KM20..LHD..(BUS,WG);KM20..LHD..V4D..VSP..4H..EUR;KM20..LHD..V4D..4H..(03S,05S,06S)

 1
61606 - FRAME SUB-ASSY, BACK DOOR OPENING SIDE, RH
61605-95701

CM20,KM20,YM2#..HRF,SRF

 1
61607 - FRAME SUB-ASSY, BACK DOOR OPENING SIDE, LH
61606-95701

CM20,KM20,YM2#..HRF,SRF

 1
61611 - PANEL, QUARTER, RH
61611-95712

KM20..LHD..(05S,06S,07S,08S,09S)

 1
61612 - PANEL, QUARTER, LH
61612-95708

KM20..LHD..V4D..(05S,06S)

 1
61613 - PATCH, QUARTER PANEL
61613-95703

KM20..08S,09S;KM20..V4D..4F;KM20..RHD..V4D;KM20..LHD..V4D..GEN

 1
61613-95701

KM20..BUS,WG;KM20..V4D..4F;KM20..RHD..V4D;KM20..LHD..V4D..VSP..4H..EUR;KM20..LHD..V4D..4H..(03S,05S,06S)

 1
61619 - REINFORCEMENT, SLIDE DOOR LOCK STRIKER
61401-95700

CM20,KM20..LHD..V4D;KM20..LHD..(BUS,WG)

RH

 1
61631 - PANEL, QUARTER WHEEL HOUSE, RH
61631-95700

KM20..VSP..02S;KM20..(HRF,SRF)..(03S,05S,06S,07S,08S,09S)

OUTER

 1
61633-95701

CM20,KM20,YM2#..HRF,SRF

INNER

 1
61631 - PANEL, QUARTER WHEEL HOUSE, RH
61631-95700

KM20..VSP..02S;KM20..(HRF,SRF)..(03S,05S,06S,07S,08S,09S)

OUTER

 1
61633-95701

CM20,KM20,YM2#..HRF,SRF

INNER

 1
61632 - PANEL, QUARTER WHEEL HOUSE, LH
61634-95701

CM20,KM20,YM2#..HRF,SRF

INNER

 1
61631-95700

KM20..VSP..02S;KM20..(HRF,SRF)..(03S,05S,06S,07S,08S,09S)

OUTER

 1
61632 - PANEL, QUARTER WHEEL HOUSE, LH
61634-95701

CM20,KM20,YM2#..HRF,SRF

INNER

 1
61631-95700

KM20..VSP..02S;KM20..(HRF,SRF)..(03S,05S,06S,07S,08S,09S)

OUTER

 1
61649 - PAD, QUARTER PANEL, OUTER
61647-95A00

CM20,YM2#;KM20..V4D;KM20..BUS,WG

 4
61707 - PANEL SUB-ASSY, QUARTER, INNER RH
61731-95724

CM20,KM20..LHD..VSG

 1
61708 - PANEL SUB-ASSY, QUARTER, INNER LH
61732-95709

KM20..LHD..V4D..(05S,06S)

 1
61729 - REINFORCEMENT, QUARTER PANEL, FRONT LH
61737-95700

CM20,KM20..LHD..V4D;KM20..LHD..(BUS,WG)

 1
61733 - GUSSET, QUARTER, INNER RH
61701-95701

CM20,KM20,YM2#..HRF,SRF

 1
61734 - GUSSET, QUARTER, INNER LH
61702-95700

CM20,KM20,YM2#..HRF,SRF

 1
61791 - BRACE, QUARTER INNER PANEL
61783-95701

CM20,KM20..LHD..V4D;KM20..LHD..(BUS,WG)

RH

 1
61825 - PLATE, QUARTER INNER PANEL, LOWER FRONT RH
64153-95703

CM20,KM20..LHD..V4D;KM20..LHD..(BUS,WG)

 1
61826 - PLATE, QUARTER INNER PANEL, LOWER FRONT LH
64154-95702

CM20,KM20..LHD..V4D;KM20..LHD..(BUS,WG)

 1
Common parts
90333-25001
90950-01006
90950-01011
90950-01027
90950-01126
90950-01212
90950-01222
90950-01344
90950-06001
90950-06012
