KM20LV-JRZ (1979)

Toyota Liteace

Production Oct 1979 - Oct 1982
Engine 4K
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7910-8210)

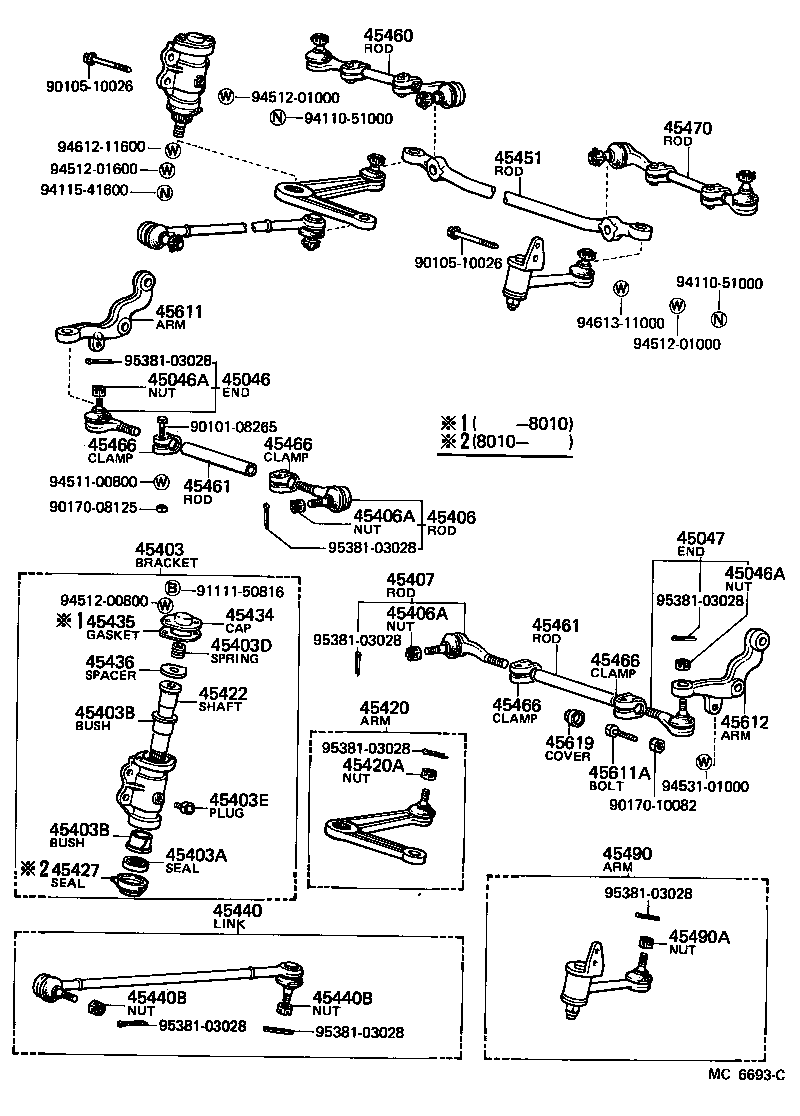

Click highlighted areas on diagram

diagram 45046 45046A 45046A 45047 45403 45403A 45403B 45403B 45403D 45403E 45406 45406A 45406A 45407 45420 45420A 45422 45427 45434 45435 45436 45440 45440B 45440B 45451 45460 45461 45461 45466 45466 45466 45466 45470 45490 45490A 45611 45611A 45612 45619 9010108265 9010510026 9010510026 9017008125 9017010082 9111150816 9411051000 9411051000 9411541600 9451100800 9451200800 9451201000 9451201000 9451201600 9453101000 9461211600 9461311000 9538103028 9538103028 9538103028 9538103028 9538103028 9538103028 9538103028 9538103028
Part # Description Qty Price
45046 - END SUB-ASSY, TIE ROD, RH
45046-29095

KM20

 1
45046A - NUT, CASTLE(FOR TIE ROD END)
90171-12028

CM20,KM20,YM2#

 2
45046A - NUT, CASTLE(FOR TIE ROD END)
90171-12028

CM20,KM20,YM2#

 2
45047 - END SUB-ASSY, TIE ROD, LH
45046-29095

KM20

 1
45403 - BRACKET SUB-ASSY, CENTER ARM
45403-26030

KM20..LHD

 1
45403-26031

KM20..4F;KM20..LHD..VSP..4H..EUR;KM20..LHD..4H..(03S,05S,06S,07S,09S)

 1
45403A - SEAL, OIL(FOR CENTER ARM BRACKET)
90311-25004

CM20,KM20,YM2#

 1
45403B - BUSH(FOR CENTER ARM BRACKET)
90386-25075

KM20

 2
45403B - BUSH(FOR CENTER ARM BRACKET)
90386-25075

KM20

 2
45403D - SPRING, COMPRESSION(FOR CENTER ARM SHAFT SET)
90501-30369

CM20,KM20,YM2#

 1
45403E - PLUG, W/HEAD TAPER SCREW(FOR CENTER ARM SHAFT)
90345-06014

CM20,KM20,YM2#

 1
45406 - ROD SUB-ASSY, TIE, RH
45406-29125

KM20..VSP..02S;KM20..03S,05S,06S,08S,09S

 1
45406-19016

KM20

 1
45406A - NUT, CASTLE(FOR TIE ROD)
90171-12028

CM20,KM20,YM2#

 2
45406A - NUT, CASTLE(FOR TIE ROD)
90171-12028

CM20,KM20,YM2#

 2
45407 - ROD SUB-ASSY, TIE, LH
45406-19016

KM20

 1
45406-29125

KM20..VSP..02S;KM20..03S,05S,06S,08S,09S

 1
45420 - ARM ASSY, STEERING CENTER
45402-29025

KM20..LHD

 1
45420A - NUT, CASTLE(FOR STEERING CENTER ARM)
90171-12028

CM20,KM20,YM2#

 1
45422 - SHAFT, CENTER ARM
45422-26010

CM20,KM20,YM2#

 1
45434 - CAP, CENTER ARM BRACKET
45434-26010

KM20

 1
45435 - GASKET, CENTER ARM BRACKET CAP
45435-26010

KM20

 1
45436 - SEAT, CENTER ARM SHAFT
45436-26010

KM20

 1
45440 - LINK ASSY, STEERING DRAG
45440-29105

KM20..LHD

 1
45440B - NUT, CASTLE(FOR STEERING DRAG LINK)
90171-12028

CM20,KM20,YM2#

 2
45440B - NUT, CASTLE(FOR STEERING DRAG LINK)
90171-12028

CM20,KM20,YM2#

 2
45451 - ROD, STEERING RELAY
45451-27050

KM20..LHD

 1
45460 - ROD ASSY, TIE, RH
45460-29176

KM20..VSP..02S;KM20..03S,05S,06S,08S,09S

 1
45460-29175

KM20

 1
45461 - ROD, STEERING TIE
45465-27030

KM20..VSP..02S;KM20..03S,05S,06S,08S,09S

 2
45465-12020

KM20

 2
45461 - ROD, STEERING TIE
45465-27030

KM20..VSP..02S;KM20..03S,05S,06S,08S,09S

 2
45465-12020

KM20

 2
45466 - CLAMP, TIE ROD END
45466-22010

KM20

 4
45466 - CLAMP, TIE ROD END
45466-22010

KM20

 4
45466 - CLAMP, TIE ROD END
45466-22010

KM20

 4
45466 - CLAMP, TIE ROD END
45466-22010

KM20

 4
45470 - ROD ASSY, TIE, LH
45460-29175

KM20

 1
45460-29176

KM20..VSP..02S;KM20..03S,05S,06S,08S,09S

 1
45490 - ARM ASSY, STEERING IDLER
45490-29325

KM20..LHD

 1
45490-29326

KM20..4F;KM20..LHD..VSP..4H..EUR;KM20..LHD..4H..(03S,05S,06S,07S,09S)

 1
45490A - NUT, CASTLE(FOR IDLER ARM)
90171-12028

CM20,KM20,YM2#

 1
45611 - ARM, STEERING KNUCKLE, RH
45611-27030

KM20

 1
45611A - BOLT, KNUCKLE STOPPER
90106-10032

CM20,KM20,YM2#

 2
45612 - ARM, STEERING KNUCKLE, LH
45612-27030

KM20

 1
45619 - COVER, KNUCKLE STOPPER
45619-14020

CM20,KM20,YM2#

 2
Common parts
90101-08265
90105-10026
90170-08125
90170-10082
91111-50816
94110-51000
94115-41600
94511-00800
94512-00800
94512-01000
94512-01600
94531-01000
94612-11600
94613-11000
95381-03028
