KM20LV-JRZ (1979)

Toyota Liteace

Production Oct 1979 - Oct 1982
Engine 4K
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7910- )4F,4H

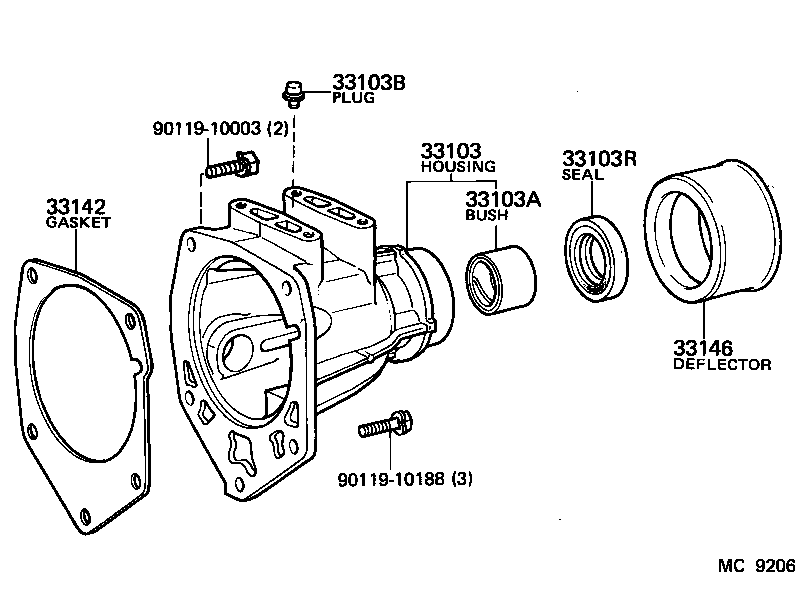

Click highlighted areas on diagram

diagram 33103 33103A 33103B 33103R 33142 33146 9011910003 9011910188
Part # Description Qty Price
33103 - HOUSING SUB-ASSY, EXTENSION(MTM)
33103-27020

KM20..LHD

 1
33103A - BUSH(FOR MANUAL TRANSMISSION EXTENSION HOUSING)
90999-72023

CM20,KM20,YM2#..MTM

 1
33103B - PLUG, BREATHER(FOR TRANSMISSION EXTENSION HOUSING)
90930-03075

CM20,KM20..4F,4H

 1
33103R - SEAL, OIL(FOR MANUAL TRANSMISSION EXTENSION HOUSING)
90311-38043

CM20,KM20,YM2#..MTM

 1
33142 - GASKET, EXTENSION HOUSING(MTM)
33142-26010

CM20,KM20..4F,4H

 1
33146 - DEFLECTOR, EXTENSION HOUSING DUST(MTM)
33146-30010

CM20,KM20,YM2#..MTM

 1
Common parts
90119-10003
90119-10188
