KM20LV-JRW (1979)
Toyota Liteace
Production
Oct 1979
-
Aug 1981
Engine
4K
Transmission
4H MTM
Displacement
2500cc
Power
168 HP (125 kW)
(7910- )

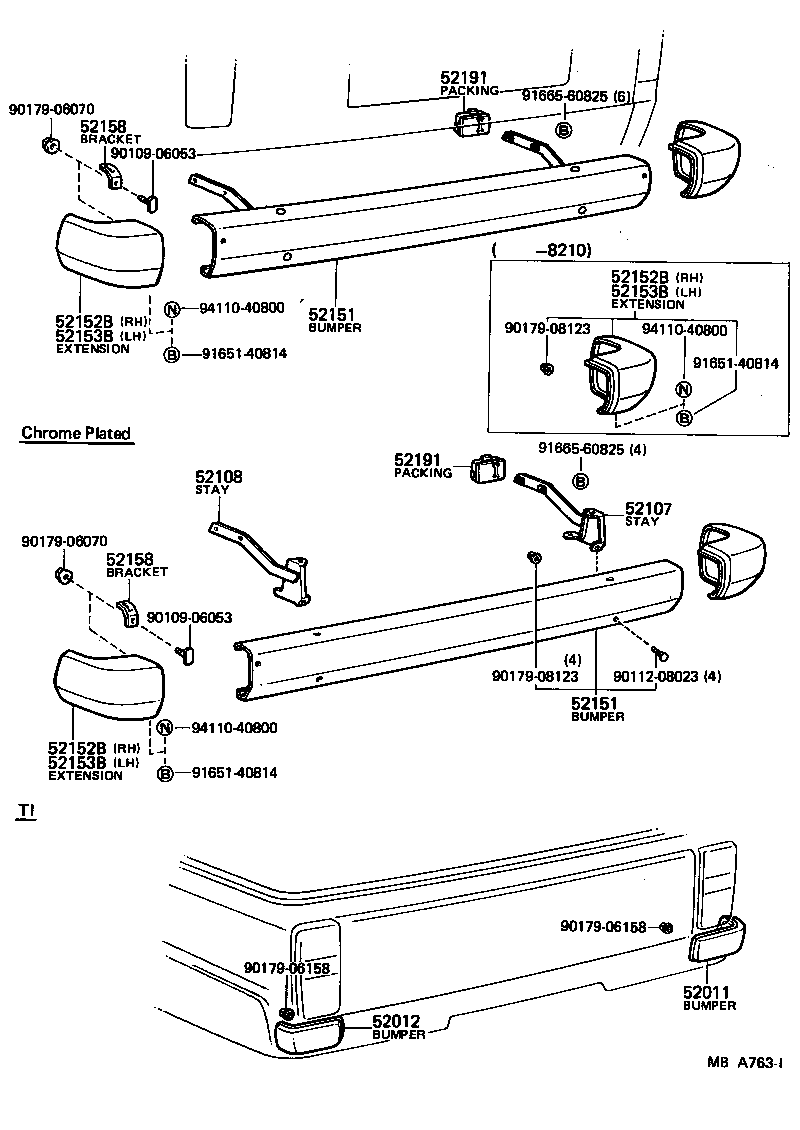

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52151 - BUMPER ASSY, REAR | ||||
| 52102-95703 |
KM20..SRF..EUR;KM20..HRF..VSP..EUR;KM20..HRF..(05S,07S) |
1 | ||
| 52151 - BUMPER ASSY, REAR | ||||
| 52102-95703 |
KM20..SRF..EUR;KM20..HRF..VSP..EUR;KM20..HRF..(05S,07S) |
1 | ||
| 52152B - EXTENSION, REAR BUMPER, RH | ||||
| 52021-29015 |
KM20..VSP..02S;KM20..(HRF,SRF)..(03S,05S,06S,07S,08S,09S) |
1 | ||
| 52152B - EXTENSION, REAR BUMPER, RH | ||||
| 52021-29015 |
KM20..VSP..02S;KM20..(HRF,SRF)..(03S,05S,06S,07S,08S,09S) |
1 | ||
| 52152B - EXTENSION, REAR BUMPER, RH | ||||
| 52021-29015 |
KM20..VSP..02S;KM20..(HRF,SRF)..(03S,05S,06S,07S,08S,09S) |
1 | ||
| 52153B - EXTENSION, REAR BUMPER, LH | ||||
| 52022-29015 |
KM20..VSP..02S;KM20..(HRF,SRF)..(03S,05S,06S,07S,08S,09S) |
1 | ||
| 52153B - EXTENSION, REAR BUMPER, LH | ||||
| 52022-29015 |
KM20..VSP..02S;KM20..(HRF,SRF)..(03S,05S,06S,07S,08S,09S) |
1 | ||
| 52153B - EXTENSION, REAR BUMPER, LH | ||||
| 52022-29015 |
KM20..VSP..02S;KM20..(HRF,SRF)..(03S,05S,06S,07S,08S,09S) |
1 | ||
| 52191 - PACKING, REAR BUMPER STAY | ||||
| 52191-95700 |
CM20,KM20,YM2#..HRF,SRF |
2 | ||
| 52191 - PACKING, REAR BUMPER STAY | ||||
| 52191-95700 |
CM20,KM20,YM2#..HRF,SRF |
2 | ||
| Common parts | ||||
| 90109-06053 | ||||
| 90112-08023 | ||||
| 90179-06070 | ||||
| 90179-06158 | ||||
| 90179-08123 | ||||
| 91651-40814 | ||||
| 91665-60825 | ||||
| 94110-40800 | ||||
