KM20LV-JRGW (1979)

Toyota Liteace

Production Oct 1979 - Aug 1981
Engine 4K
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

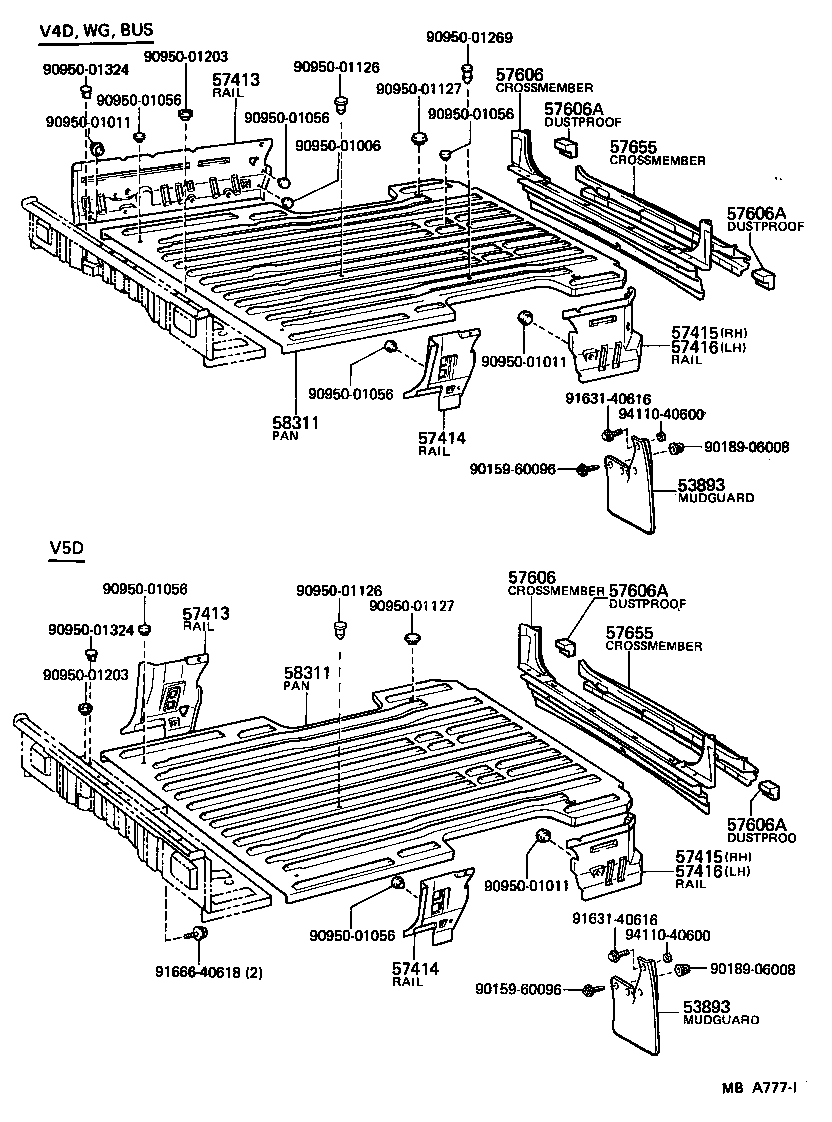

(7910- )KM20..HRF,SRF

Click highlighted areas on diagram

diagram 53893 53893 57413 57413 57414 57414 57415 57415 57416 57416 57606 57606 57606A 57606A 57606A 57606A 57655 57655 58311 58311 9015960096 9015960096 9018906008 9018906008 9095001006 9095001011 9095001011 9095001011 9095001056 9095001056 9095001056 9095001056 9095001056 9095001056 9095001126 9095001126 9095001127 9095001127 9095001203 9095001203 9095001269 9095001324 9095001324 9163140616 9163140616 9166640618 9411040600 9411040600
Part # Description Qty Price
57413 - RAIL, FLOOR SIDE, CENTER RH
57413-95705

KM20..V4D..4F;KM20..LHD..(BUS,WG)..STD;KM20..LHD..V4D..VSP..4H..EUR;KM20..LHD..V4D..4H..(03S,05S,06S)

 1
57413 - RAIL, FLOOR SIDE, CENTER RH
57413-95705

KM20..V4D..4F;KM20..LHD..(BUS,WG)..STD;KM20..LHD..V4D..VSP..4H..EUR;KM20..LHD..V4D..4H..(03S,05S,06S)

 1
57414 - RAIL, FLOOR SIDE, CENTER LH
57406-95700

KM20..07S

 1
57414 - RAIL, FLOOR SIDE, CENTER LH
57406-95700

KM20..07S

 1
57415 - RAIL, FLOOR SIDE, REAR RH
57045-95700

KM20..LHD..VSP..EUR;KM20..LHD..(03S,05S,06S,07S,09S)

 1
57415 - RAIL, FLOOR SIDE, REAR RH
57045-95700

KM20..LHD..VSP..EUR;KM20..LHD..(03S,05S,06S,07S,09S)

 1
57416 - RAIL, FLOOR SIDE, REAR LH
57046-95700

KM20..LHD..VSP..EUR;KM20..LHD..(03S,05S,06S,07S,09S)

 1
57416 - RAIL, FLOOR SIDE, REAR LH
57046-95700

KM20..LHD..VSP..EUR;KM20..LHD..(03S,05S,06S,07S,09S)

 1
57606 - CROSSMEMBER SUB-ASSY, REAR FLOOR REAR, INNER
57607-95702

CM20,KM20,YM2#..HRF,SRF

 1
57606 - CROSSMEMBER SUB-ASSY, REAR FLOOR REAR, INNER
57607-95702

CM20,KM20,YM2#..HRF,SRF

 1
57606A - DUST PROOF(FOR REAR CROSSMEMBER)
57614-95700

KM20..4F;KM20..SRF..4H..EUR;KM20..HRF..VSP..4H..EUR;KM20..HRF..4H..(05S,07S)..EUR

 2
57606A - DUST PROOF(FOR REAR CROSSMEMBER)
57614-95700

KM20..4F;KM20..SRF..4H..EUR;KM20..HRF..VSP..4H..EUR;KM20..HRF..4H..(05S,07S)..EUR

 2
57606A - DUST PROOF(FOR REAR CROSSMEMBER)
57614-95700

KM20..4F;KM20..SRF..4H..EUR;KM20..HRF..VSP..4H..EUR;KM20..HRF..4H..(05S,07S)..EUR

 2
57606A - DUST PROOF(FOR REAR CROSSMEMBER)
57614-95700

KM20..4F;KM20..SRF..4H..EUR;KM20..HRF..VSP..4H..EUR;KM20..HRF..4H..(05S,07S)..EUR

 2
57655 - MEMBER, REAR FLOOR CROSS, NO.5
57708-95702

CM20,KM20,YM2#..HRF,SRF

 1
57655 - MEMBER, REAR FLOOR CROSS, NO.5
57708-95702

CM20,KM20,YM2#..HRF,SRF

 1
58311 - PAN, REAR FLOOR
58311-95713

KM20..07S

 1
58311 - PAN, REAR FLOOR
58311-95713

KM20..07S

 1
Common parts
90159-60096
90189-06008
90950-01006
90950-01011
90950-01056
90950-01126
90950-01127
90950-01203
90950-01269
90950-01324
91631-40616
91666-40618
94110-40600

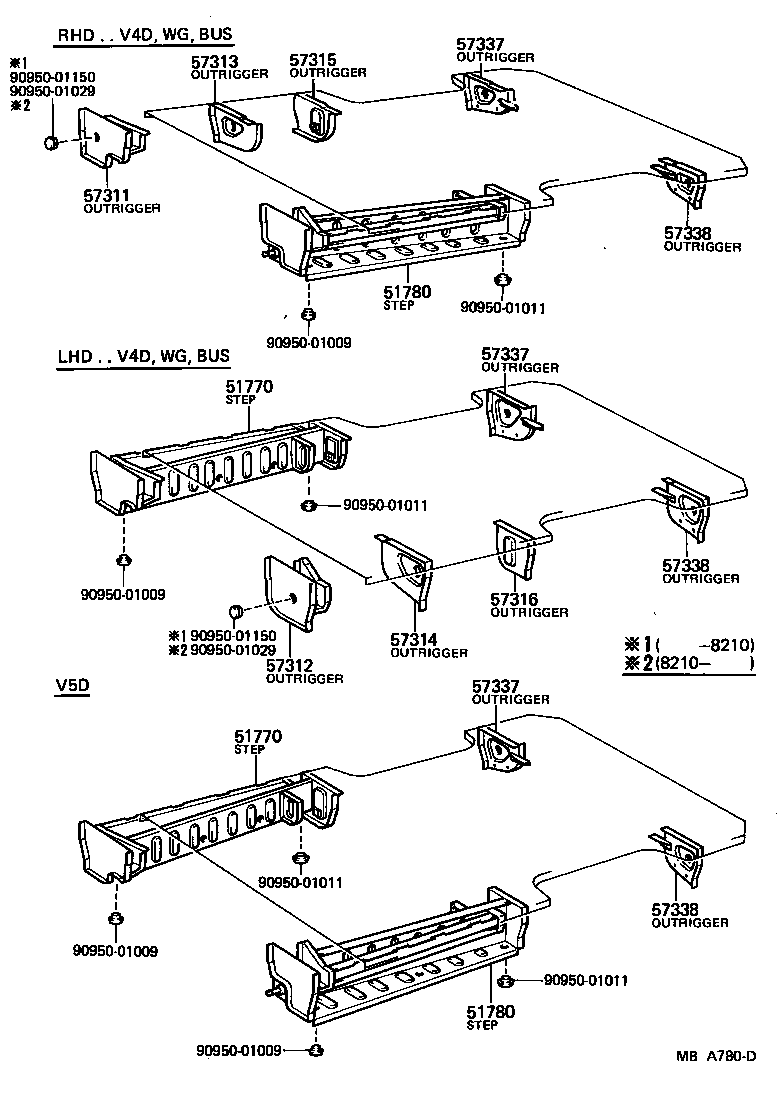

(7910- )HRF,SRF

Click highlighted areas on diagram

diagram 51770 51770 51780 51780 57311 57312 57313 57314 57315 57316 57337 57337 57337 57338 57338 57338 9095001009 9095001009 9095001009 9095001009 9095001011 9095001011 9095001011 9095001011 9095001029 9095001029 9095001150 9095001150
Part # Description Qty Price
51770 - STEP ASSY, FRONT, RH
58033-95702

CM20,KM20..LHD

 1
51770 - STEP ASSY, FRONT, RH
58033-95702

CM20,KM20..LHD

 1
57312 - OUTRIGGER, NO.1 LH
57302-95700

KM20..V4D..4F;KM20..LHD..(BUS,WG);KM20..LHD..V4D..VSP..4H..EUR;KM20..LHD..V4D..4H..(03S,05S,06S)

 1
57314 - OUTRIGGER, NO.2 LH
57318-95701

CM20,KM20..LHD..V4D;KM20..LHD..(BUS,WG)

 1
57316 - OUTRIGGER, NO.3 LH
57316-95701

CM20,KM20..LHD..V4D;KM20..LHD..(BUS,WG)

 1
57337 - OUTRIGGER, REAR RH
57305-95700

CM20,KM20,YM2#..HRF,SRF

 1
57337 - OUTRIGGER, REAR RH
57305-95700

CM20,KM20,YM2#..HRF,SRF

 1
57337 - OUTRIGGER, REAR RH
57305-95700

CM20,KM20,YM2#..HRF,SRF

 1
57338 - OUTRIGGER, REAR LH
57306-95700

CM20,KM20,YM2#..HRF,SRF

 1
57338 - OUTRIGGER, REAR LH
57306-95700

CM20,KM20,YM2#..HRF,SRF

 1
57338 - OUTRIGGER, REAR LH
57306-95700

CM20,KM20,YM2#..HRF,SRF

 1
Common parts
90950-01009
90950-01011
90950-01029
90950-01150
