KM20LV-JRGW (1979)

Toyota Liteace

Production Oct 1979 - Aug 1981
Engine 4K
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7910-8205)

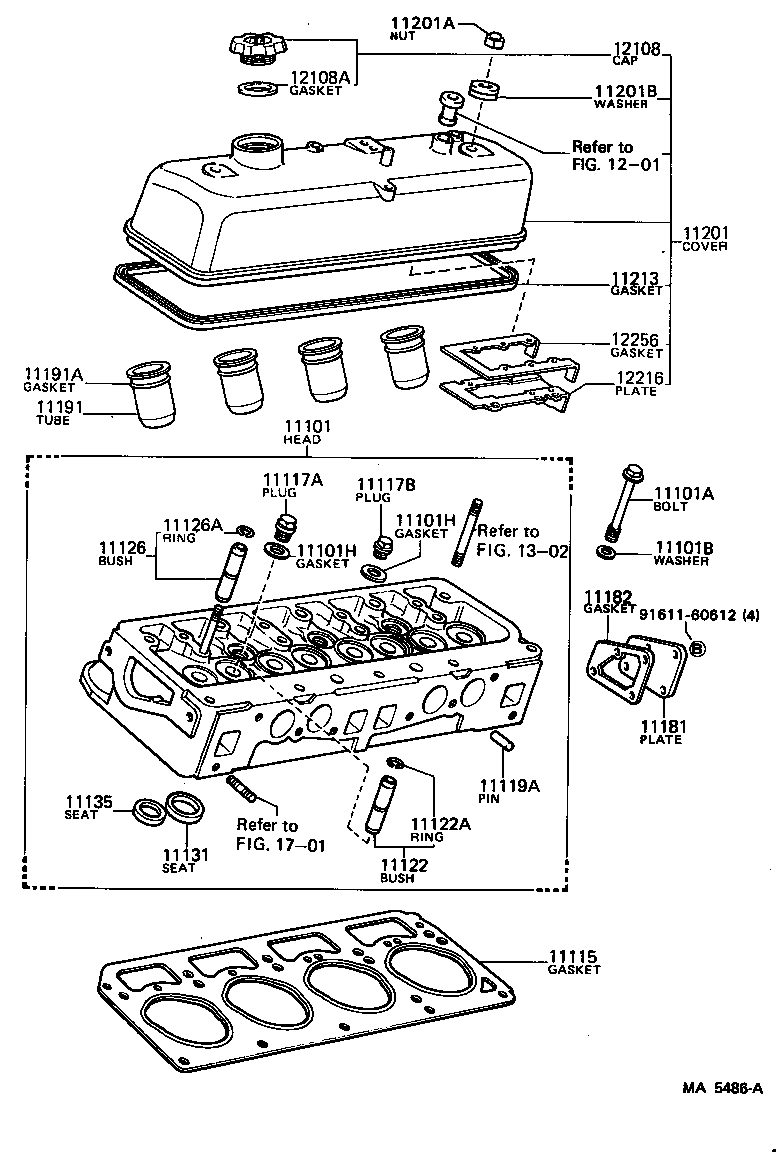

Click highlighted areas on diagram

diagram 11101 11101A 11101B 11101H 11101H 11115 11117A 11117B 11119A 11122 11122A 11126 11126A 11131 11135 11181 11182 11191 11191A 11201 11201A 11201B 11213 1201 12108 12108A 12216 12256 1302 1701 9161160612
Part # Description Qty Price
11101 - HEAD SUB-ASSY, CYLINDER
11101-19045

4K..KM20..VSP..EUR;4K..KM20..(03S,05S,06S,07S,08S,09S)..(EUR,GEN)

 1
11101A - BOLT(FOR CYLINDER HEAD SET)
90910-02020

4K..KM20..RHD;4K..KM20..LHD..VSP..EUR;4K..KM20..LHD..(03S,05S,06S,07S,09S)

*10-1.25PX100-20

 10
11101B - WASHER, PLATE(FOR CYLINDER HEAD SET)
90201-10005

4K..KM20

ID=10.5,OD=21

 10
11101H - GASKET(FOR CYLINDER HEAD SCREW PLUG)
90430-18152

4K..KM20

ID=18,OD=25

 3
90430-15151

4K..KM20

ID=15,OD=21

 2
11101H - GASKET(FOR CYLINDER HEAD SCREW PLUG)
90430-18152

4K..KM20

ID=18,OD=25

 3
90430-15151

4K..KM20

ID=15,OD=21

 2
11115 - GASKET, CYLINDER HEAD
11115-13010

4K..KM20..RHD;4K..KM20..LHD..VSP..EUR;4K..KM20..LHD..(03S,05S,06S,07S,09S)

 1
11117A - PLUG, W/HEAD TAPER SCREW, NO.1
90341-18063

4K..KM20

 3
11117B - PLUG, W/HEAD TAPER SCREW, NO.2
90341-15045

4K..KM20

 2
11119A - PIN, STRAIGHT, NO.1
90250-08120

4K..KM20

L=18,OD=8

 2
11122 - BUSH, INTAKE VALVE GUIDE
11123-24020

4K..KM20

O/S 0.05,O/S 0.05

 4
11122-24020

4K..KM20

STD,STD

 4
11122A - RING, SHAFT SNAP (FOR VALVE GUIDE BUSH)
90520-12049

4K..KM20

 4
11126 - BUSH, EXHAUST VALVE GUIDE
11126-24020

4K..KM20..VSP..02S;4K..KM20..03S,05S,06S,07S,08S,09S

STD

 4
11127-24020

4K..KM20..VSP..02S;4K..KM20..03S,05S,06S,07S,08S,09S

O/S 0.05

 4
11126A - RING, SHAFT SNAP(FOR VALVE GUIDE BUSH)
90520-12049

4K..KM20

 4
11131 - SEAT, INTAKE VALVE
11131-24010

4K..KM20

STD,STD

 4
11132-24010

4K..KM20

O/S 0.03,O/S 0.03

 4
11135 - SEAT, EXHAUST VALVE
11135-13010

4K..KM20

STD,STD

 4
11136-13010

4K..KM20

O/S 0.03,O/S 0.03

 4
11181 - PLATE, CYLINDER HEAD, REAR
11181-24020

4K..KM20

 1
11182 - GASKET, CYLINDER HEAD REAR PLATE
11182-24010

4K..KM20

 1
11191 - TUBE, SPARK PLUG
11191-22010

4K..KM20

 4
11191A - GASKET(FOR SPARK PLUG TUBE)
90430-31141

4K..KM20

 4
11201 - COVER SUB-ASSY, CYLINDER HEAD
11201-19026

4K..KM20

 1
11201A - NUT, CAP(FOR CYLINDER HEAD COVER)
94171-10800

4K..KM20

 2
11201B - WASHER, SEAL(FOR CYLINDER HEAD COVER)
90210-09007

4K..KM20

 2
11213 - GASKET, CYLINDER HEAD COVER
11213-22010

4K..KM20

 1
12108 - CAP SUB-ASSY, OIL FILLER
12180-13010

4K..KM20..VSP..02S;4K..KM20..03S,05S,06S,07S,08S,09S

 1
12108A - GASKET(FOR OIL FILLER CAP)
90430-37140

4K..KM20

 1
12216 - PLATE, VENTILATION BAFFLE
12216-22010

4K..KM20

 1
12256 - GASKET, VENTILATION BAFFLE
12256-22010

4K..KM20

 1
Common parts
91611-60612
Linked diagrams
1201
1302
1701
