KM20LV-JRFW (1979)

Toyota Liteace

Production Oct 1979 - Aug 1981
Engine 4K
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7910- )

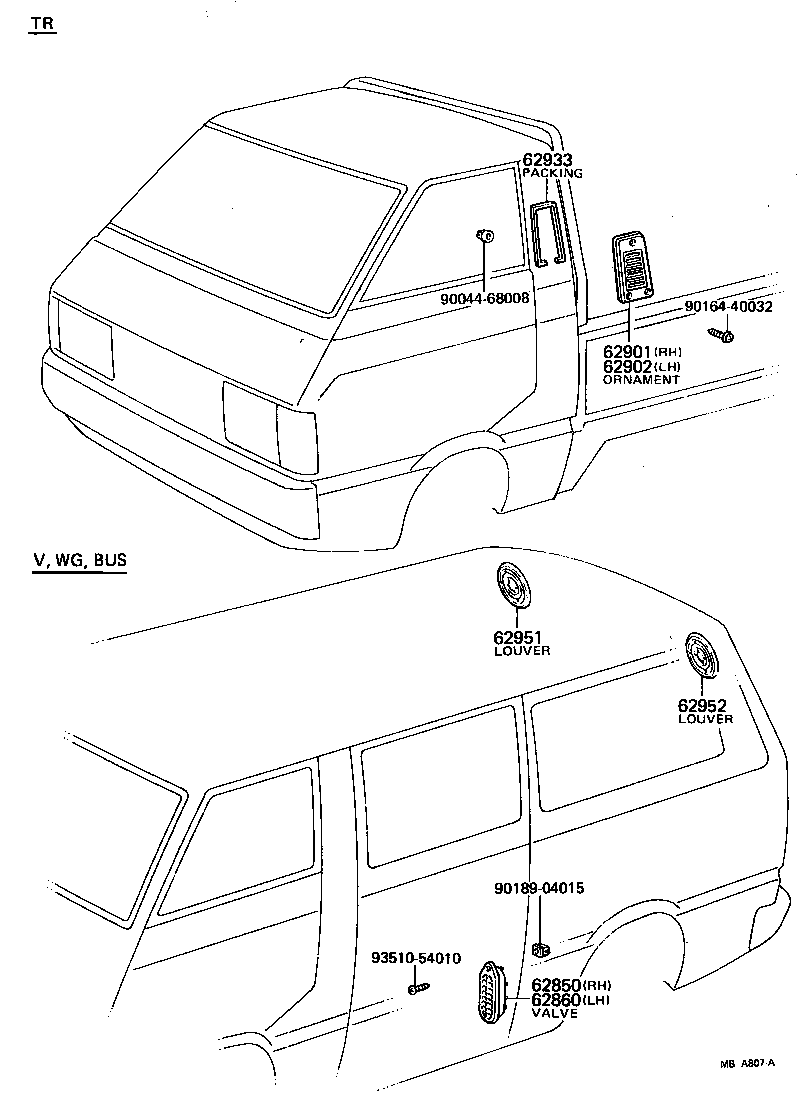

Click highlighted areas on diagram

diagram 62850 62860 62901 62902 62933 62951 62952 9004468008 9016440032 9018904015 9351054010
Part # Description Qty Price
62850 - VALVE ASSY, ROOM PRESSURE RELIEF, RH
62850-14021

KM20..4F;KM20..LHD..VSP..4H..EUR;KM20..LHD..4H..(03S,05S,06S,07S,09S)

 1
62951 - LOUVER, VENT, INNER RH
55856-9570006

KM20..VSP..02S;KM20..(HRF,SRF)..(03S,05S,06S,07S,08S,09S)..STD

BROWN,BROWN

 1
62952 - LOUVER, VENT, INNER LH
55856-9570006

KM20..VSP..02S;KM20..(HRF,SRF)..(03S,05S,06S,07S,08S,09S)..STD

BROWN,BROWN

 1
Common parts
90044-68008
90164-40032
90189-04015
93510-54010
